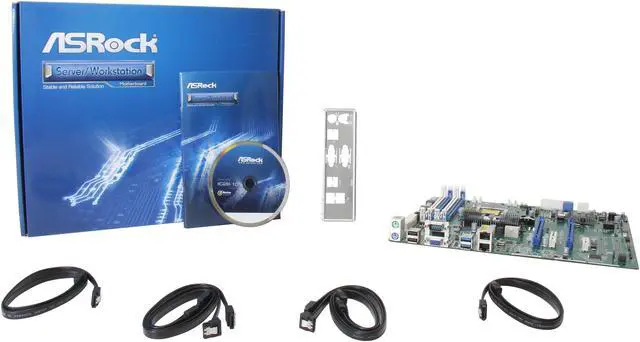

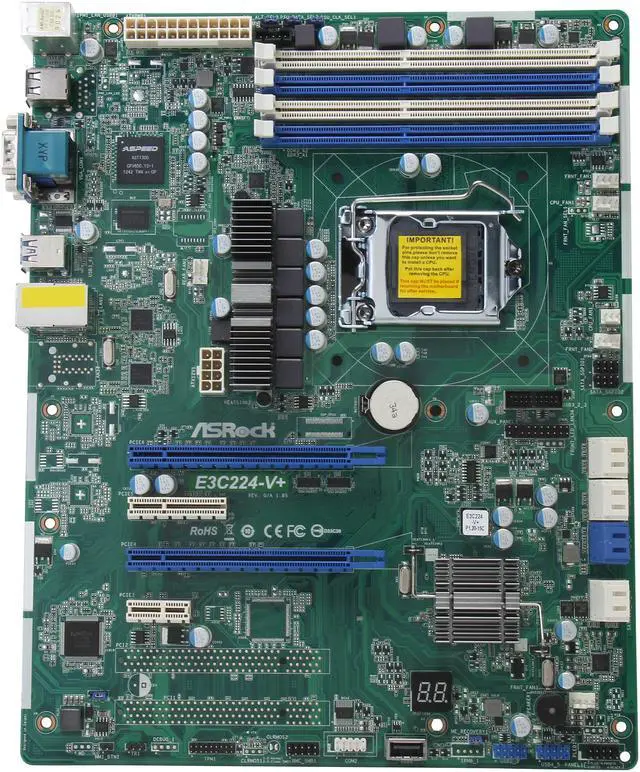

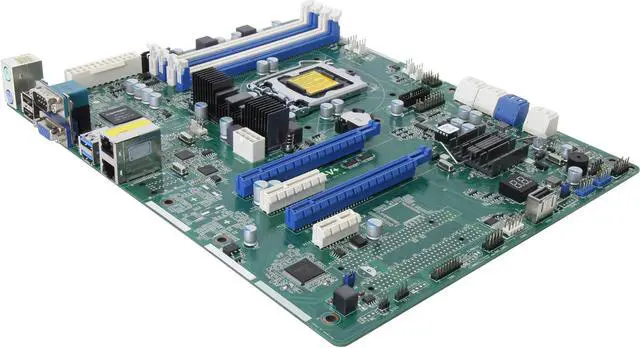

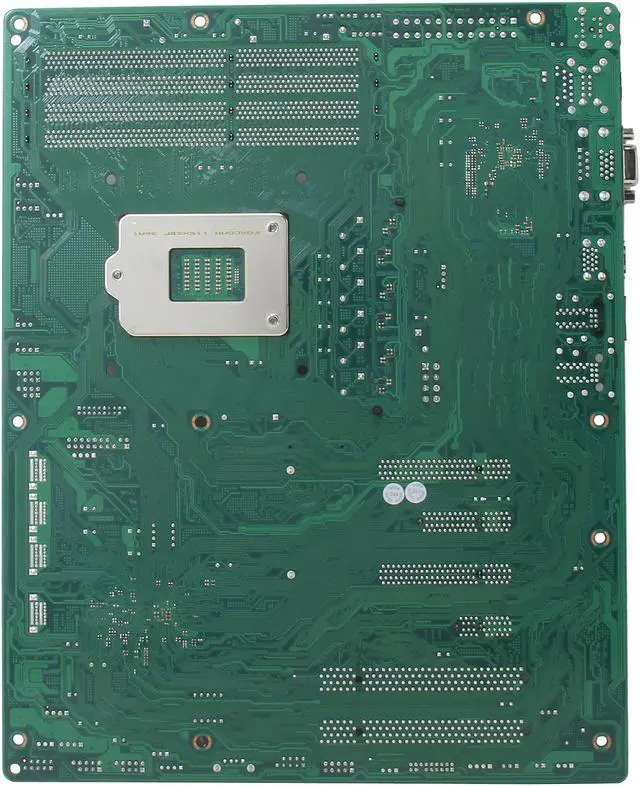

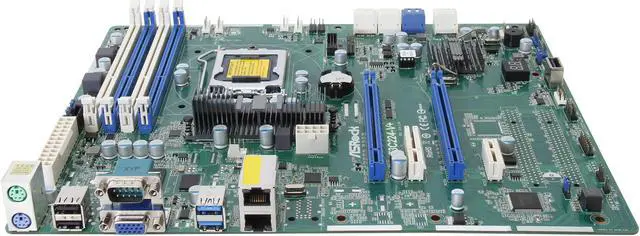

ASRock E3C224-V+ ATX Server Motherboard LGA 1150 Intel C224 DDR3 1600/1333
- LGA 1150
- Intel C224
- 4 x 240pin
Specs
Reviews
Learn more about the ASRock Rack E3C224-V+
| Brand | ASRock |
|---|---|
| Model | E3C224-V+ |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Intel Xeon E3-1200 v3 Series and next generation 22nm Core i3 processors |
| North Bridge | Intel C224 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 32GB |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 2 slots (PCIE6 : x8 / PCIE4 : x8/x4) |
|---|---|
| PCI Express x4 | 1 slot (PCIE5: x0/x4 mode) |
| PCI Express x1 | 1 x PCI Express x1 |
| SATA | 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Additional SATA | Marvell SE9172: 2 x SATA3 6.0 Gb/s |
| Additional SATA RAID | 0/1 |
| Onboard Video Chipset | ASPEED AST2300, 16MB |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Date First Available | September 10, 2013 |
|---|
