Does this motherboard need a BIOS update to support the Kaby Lake CPUs?

Actually, 8th Gen Intel Core processors are Coffee Lake (which are only supported by Intel 300 Series motherboards), Intel Sky Lake (6th Gen) and Intel Kaby Lake (7th Gen) are supported by this board. The main question here would be, what Kaby Lake CPUs are you considering, as the Kaby Lake Xeon CPUs came out later than their Core Series counterparts. If you are going to use a desktop Kaby Lake CPU, you should be O.K., as Bios v7.10 (released 12/14/2016) should be installed when you receive the board. The newest Bios version is 7.30, released 03/12/2018. Go to the Warranty & Returns tab and click on Manufacturer Product Page to see this info.

is that compatible with windows server 2016?

Absolutely. I've been running essentials on it for a few weeks now. No problems so far.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

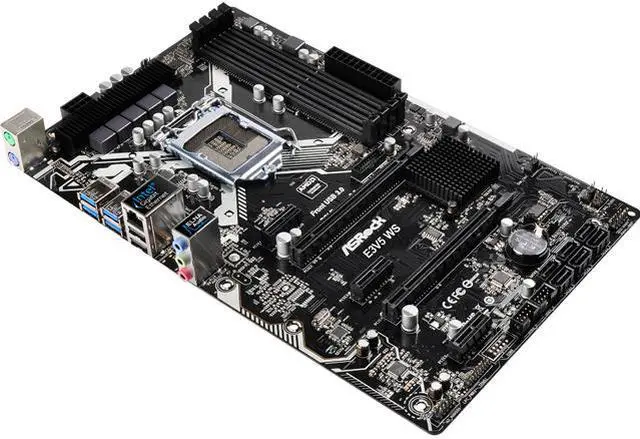

Main image of ASRock E3V5 WS LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard

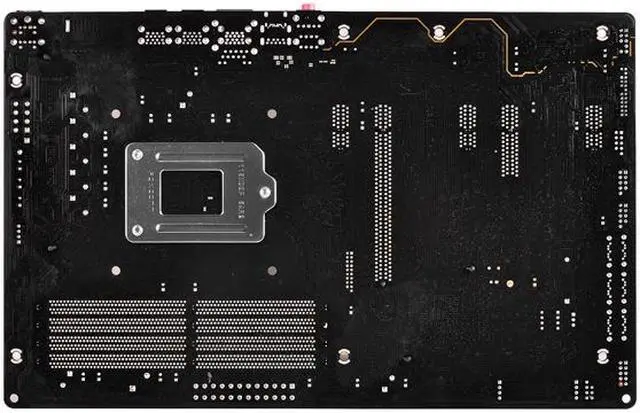

Alt view image 2 of 5 - ASRock E3V5 WS LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard

Alt view image 3 of 5 - ASRock E3V5 WS LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard

Alt view image 4 of 5 - ASRock E3V5 WS LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard

Alt view image 5 of 5 - ASRock E3V5 WS LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard

Shop All ASRock Products

ASRock E3V5 WS LGA 1151 Intel C232 USB 3.0 ATX Intel Motherboard

(5) Write a Review

Intel C232
Intel Xeon E3-1200 v5 and Core i7 / i5 / i3 / Pentium / Celeron (LGA 1151)
DDR4 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (5)

Any questions? Our AI beta will help you find out quickly.

Try me now

ASRock E3V5 WS LGA1151/ Intel C232/ DDR4/ Quad CrossFireX/ SATA3&USB3.0/ A&GbE/ ATX Motherboard

Model
Brand	ASRock
Model	E3V5 WS

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Intel Xeon E3-1200 v5 and Core i7 / i5 / i3 / Pentium / Celeron (LGA 1151)
Supported CPU Technologies	Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs

Chipsets
Chipset	Intel C232

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode) * * Supports NVMe SSD as boot disks
PCI Express x1	3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I219-LM
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2	1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.0	4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.0	2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors	1 x TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Physical Spec
Form Factor	ATX
Power Pin	24 Pin

Features
Features	Unique Feature ASRock Super Alloy - Premium 50A Power Choke - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA Voltage Multi-adjustment Software - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)* * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Easy RAID Installer - ASRock Easy Driver Installer Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit / Server 2012 R2 64-bit / Server 2012 64-bit / Server 2008 R2 64-bit* * To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)

Packaging
Package Contents	Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables

Additional Information
First Listed on Newegg	February 22, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
