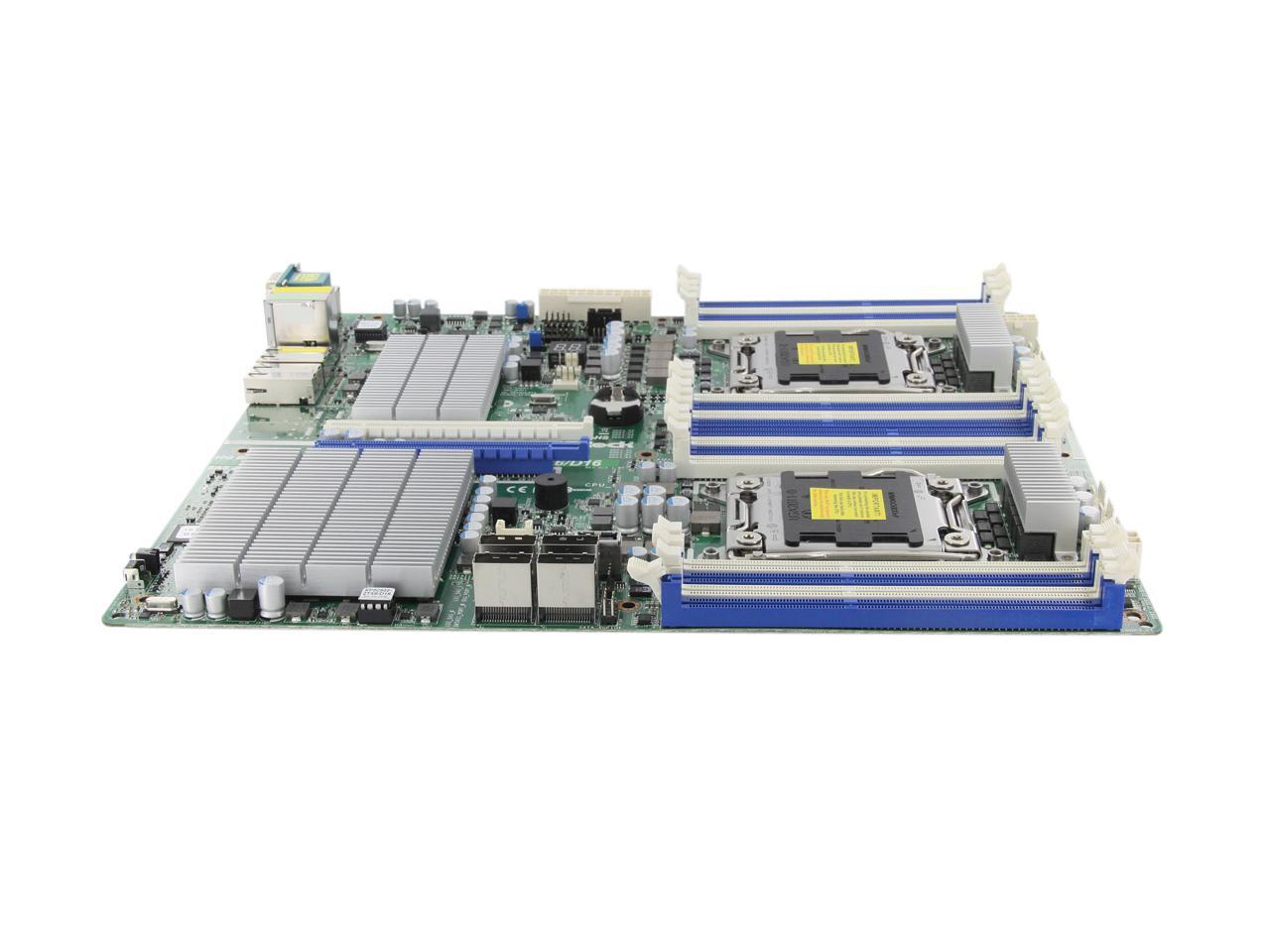

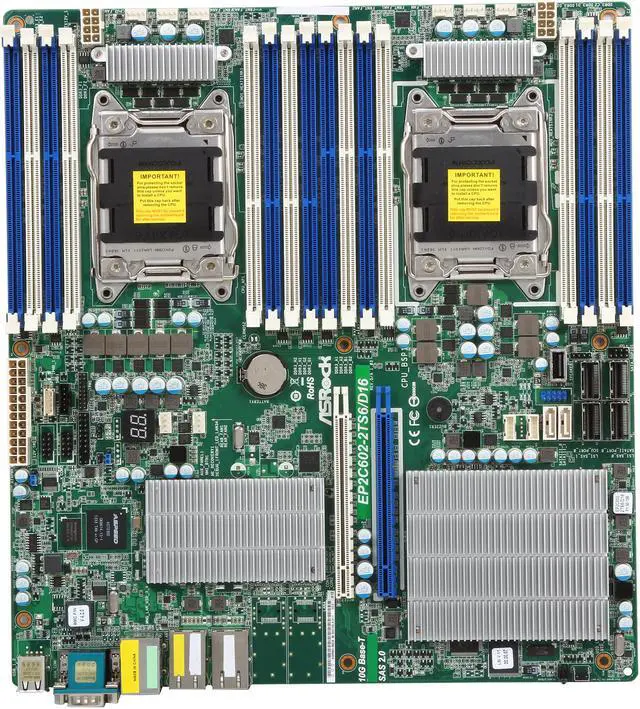

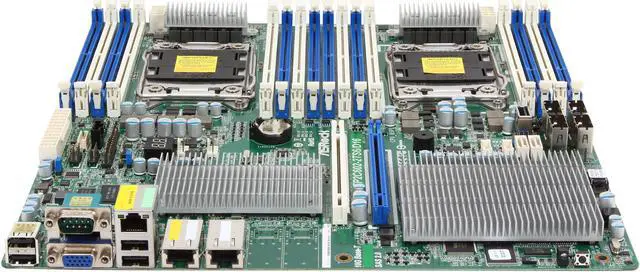

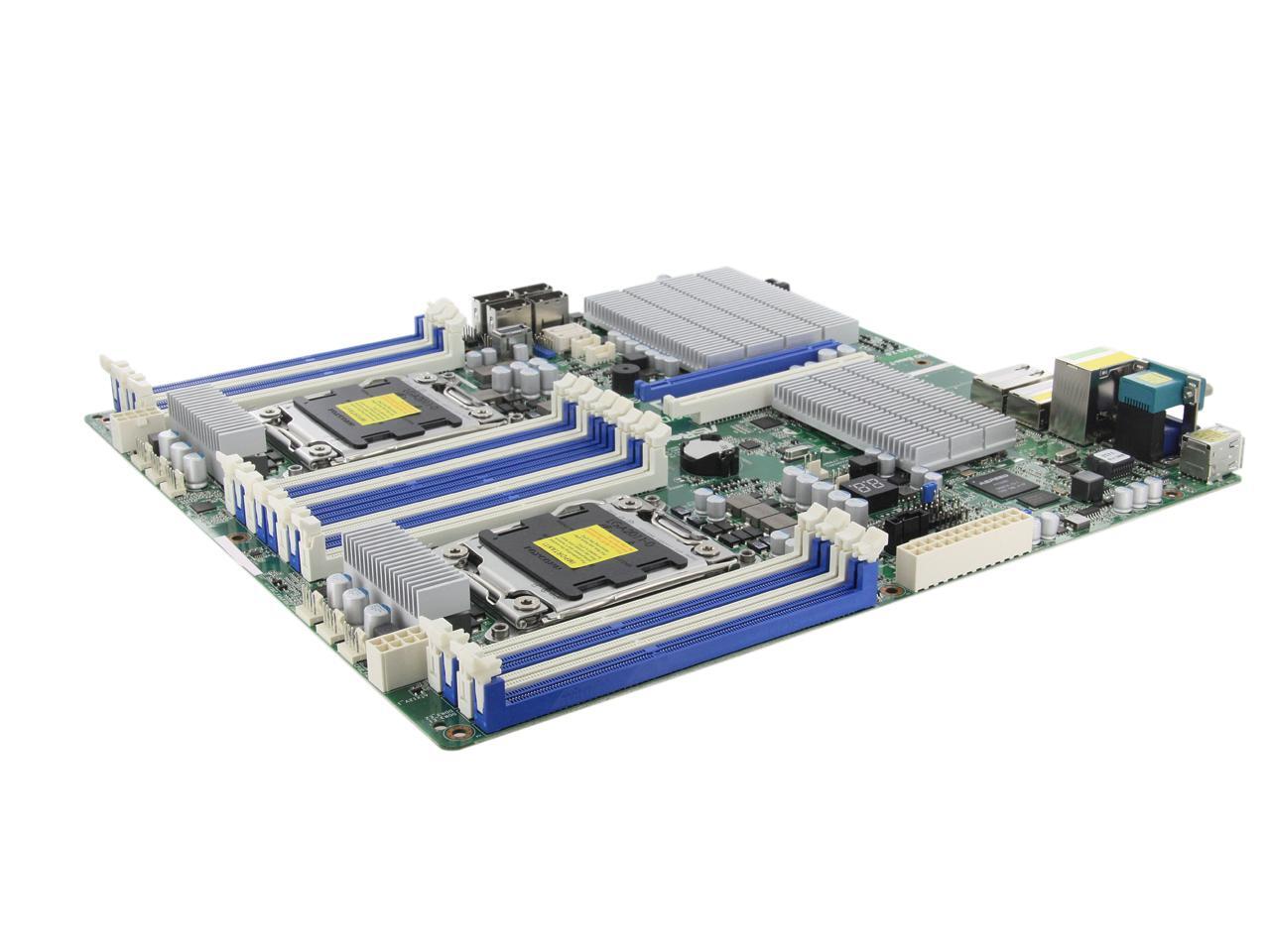

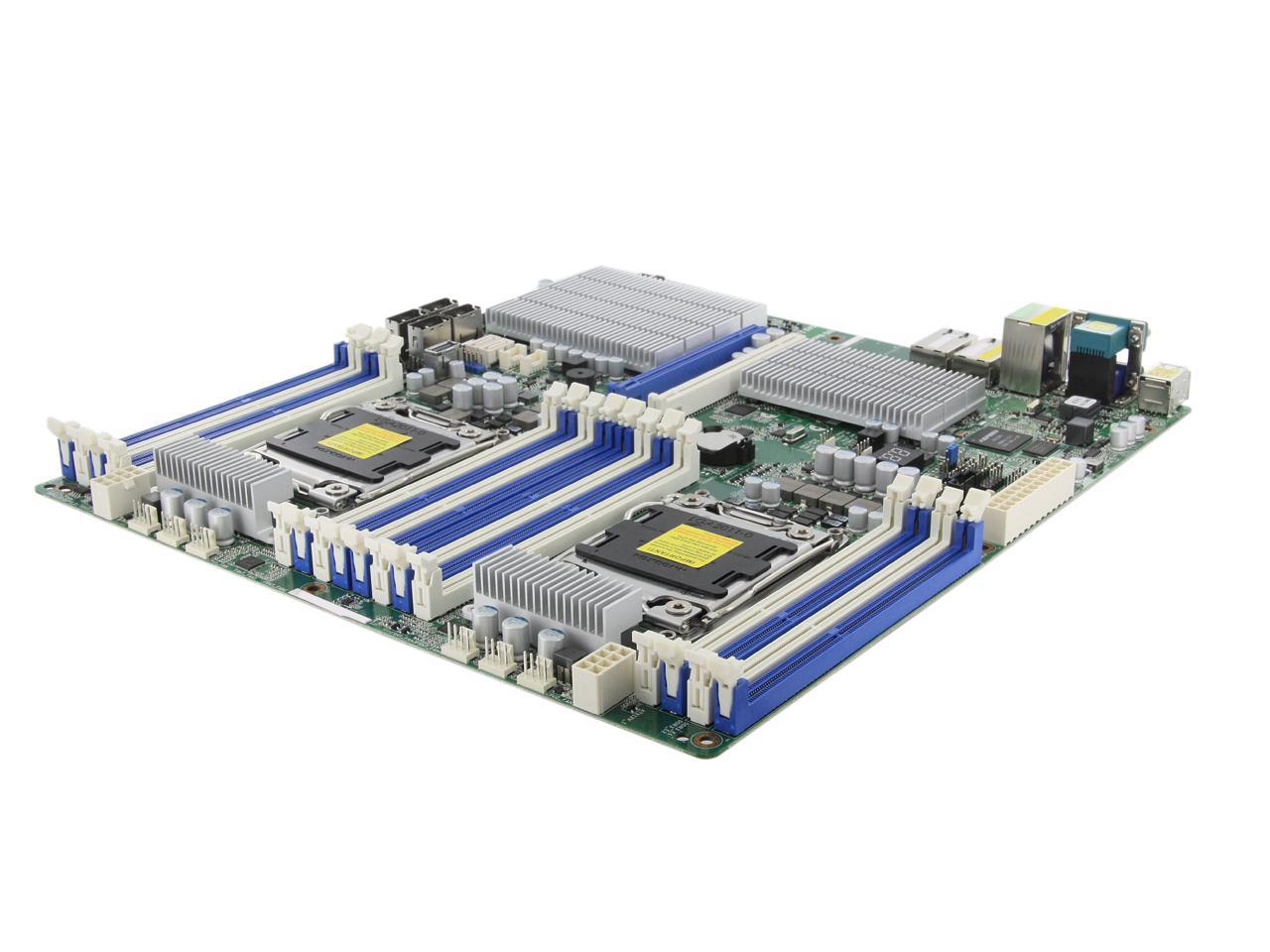

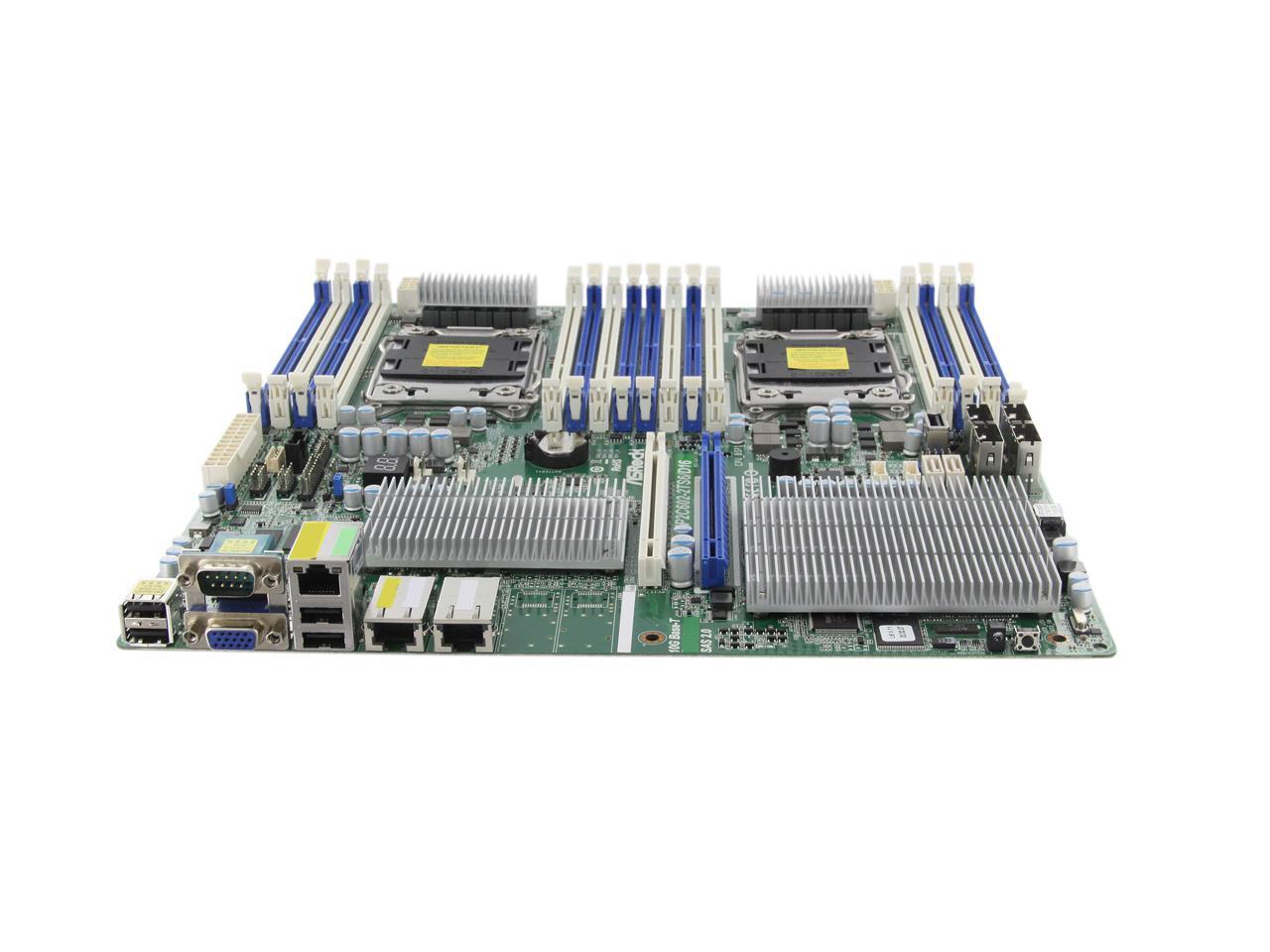

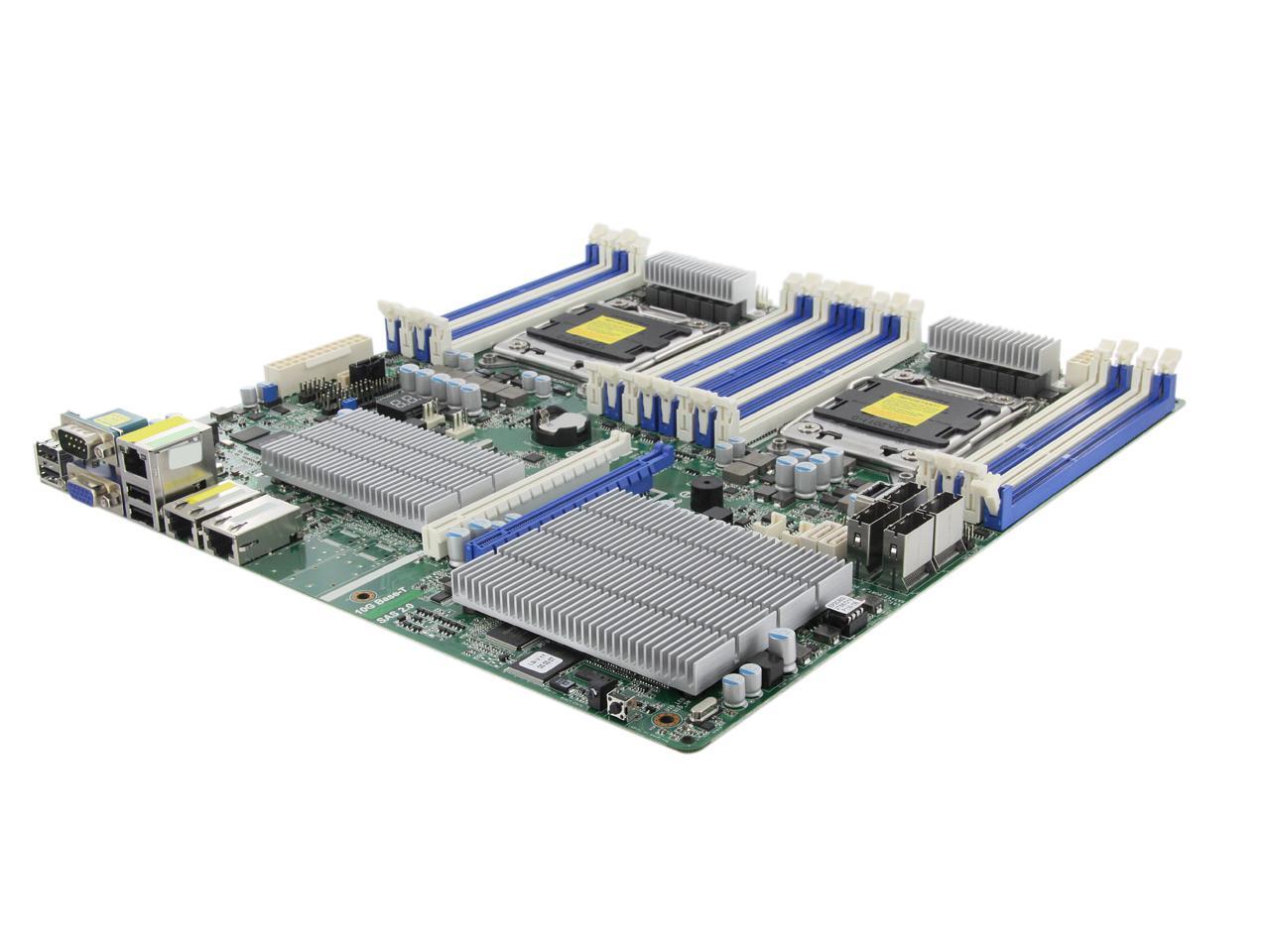

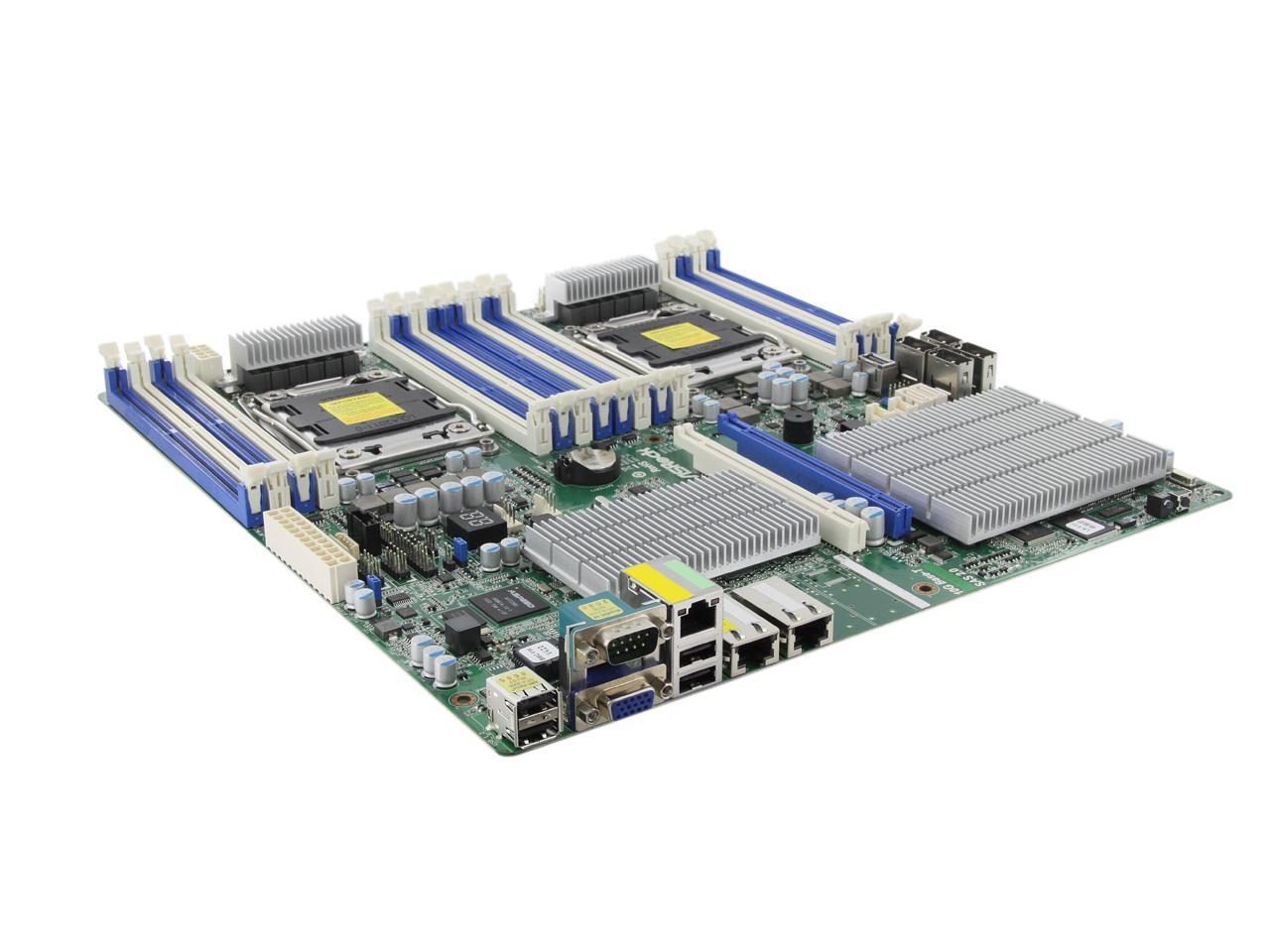

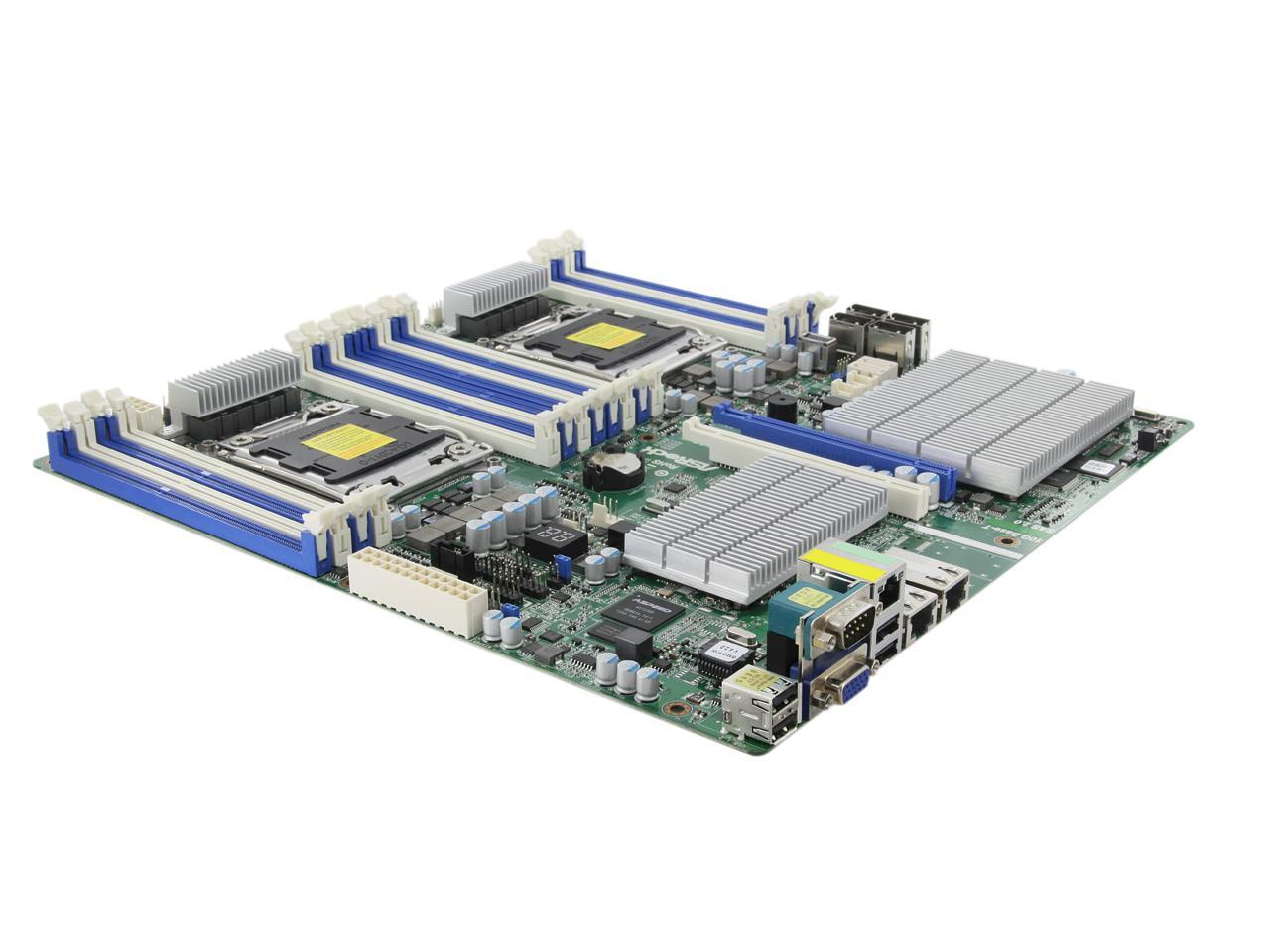

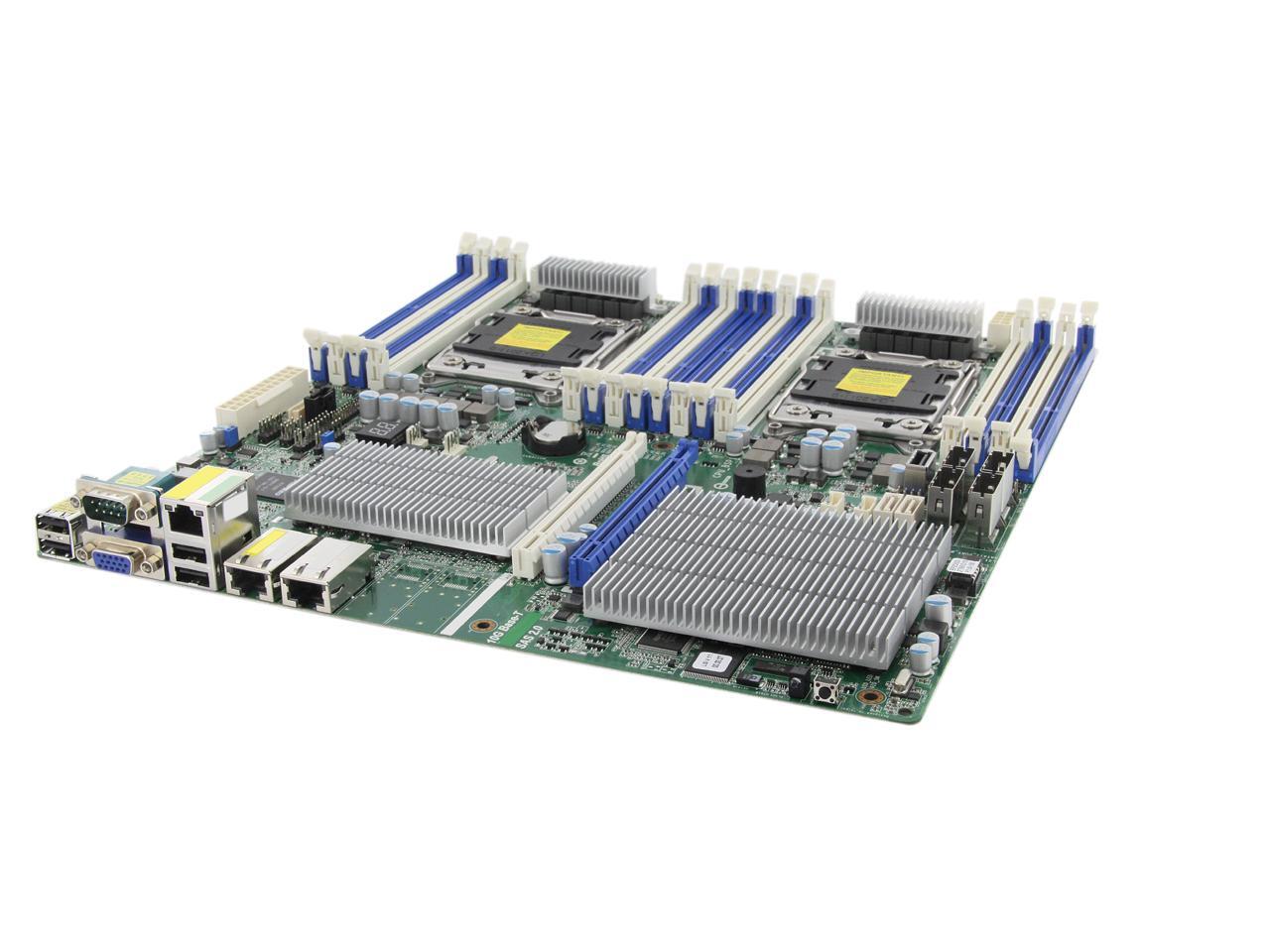

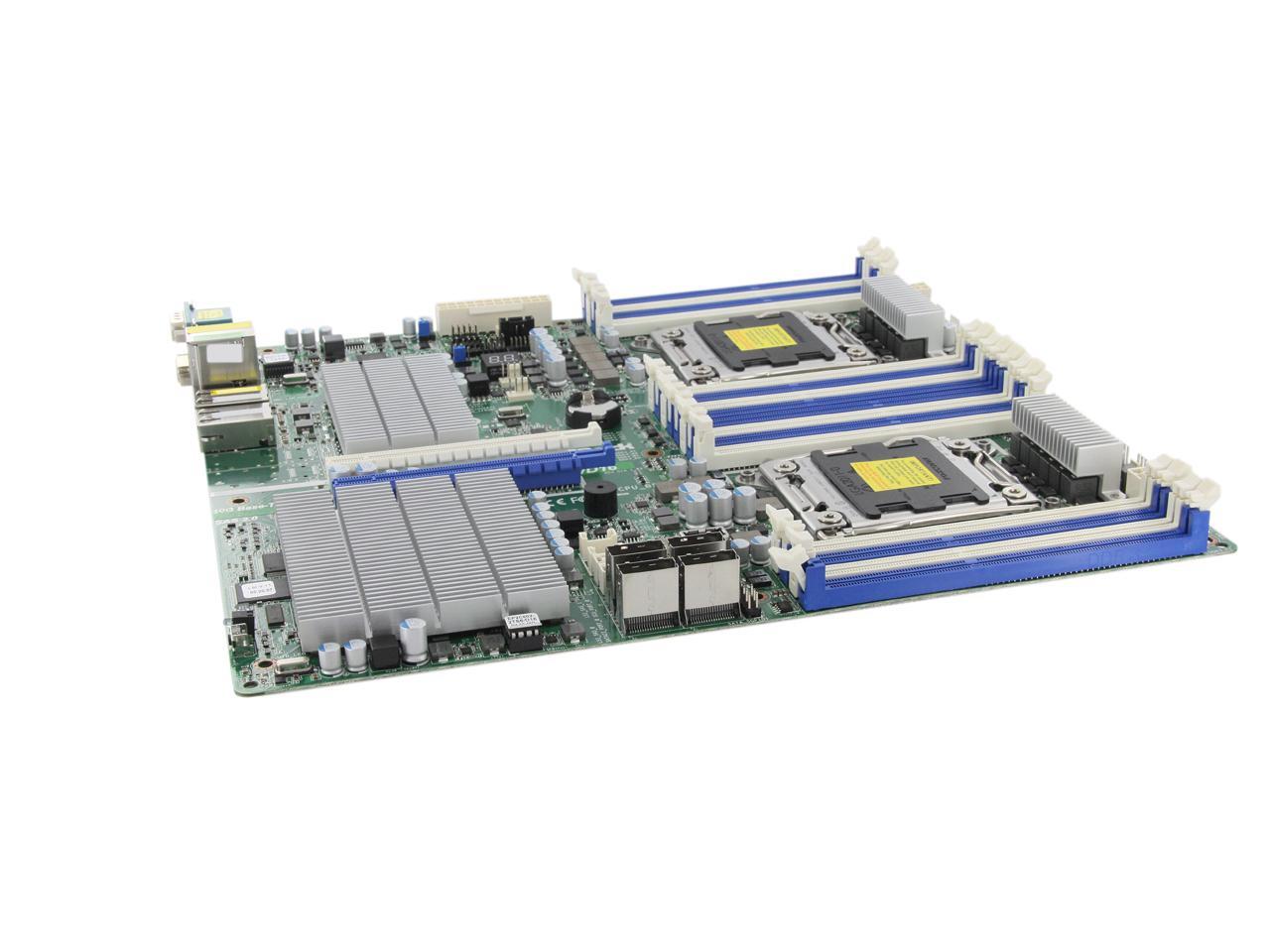

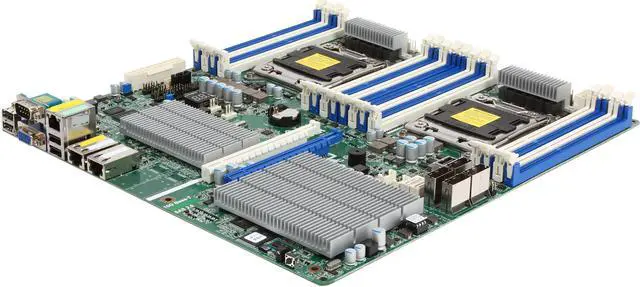

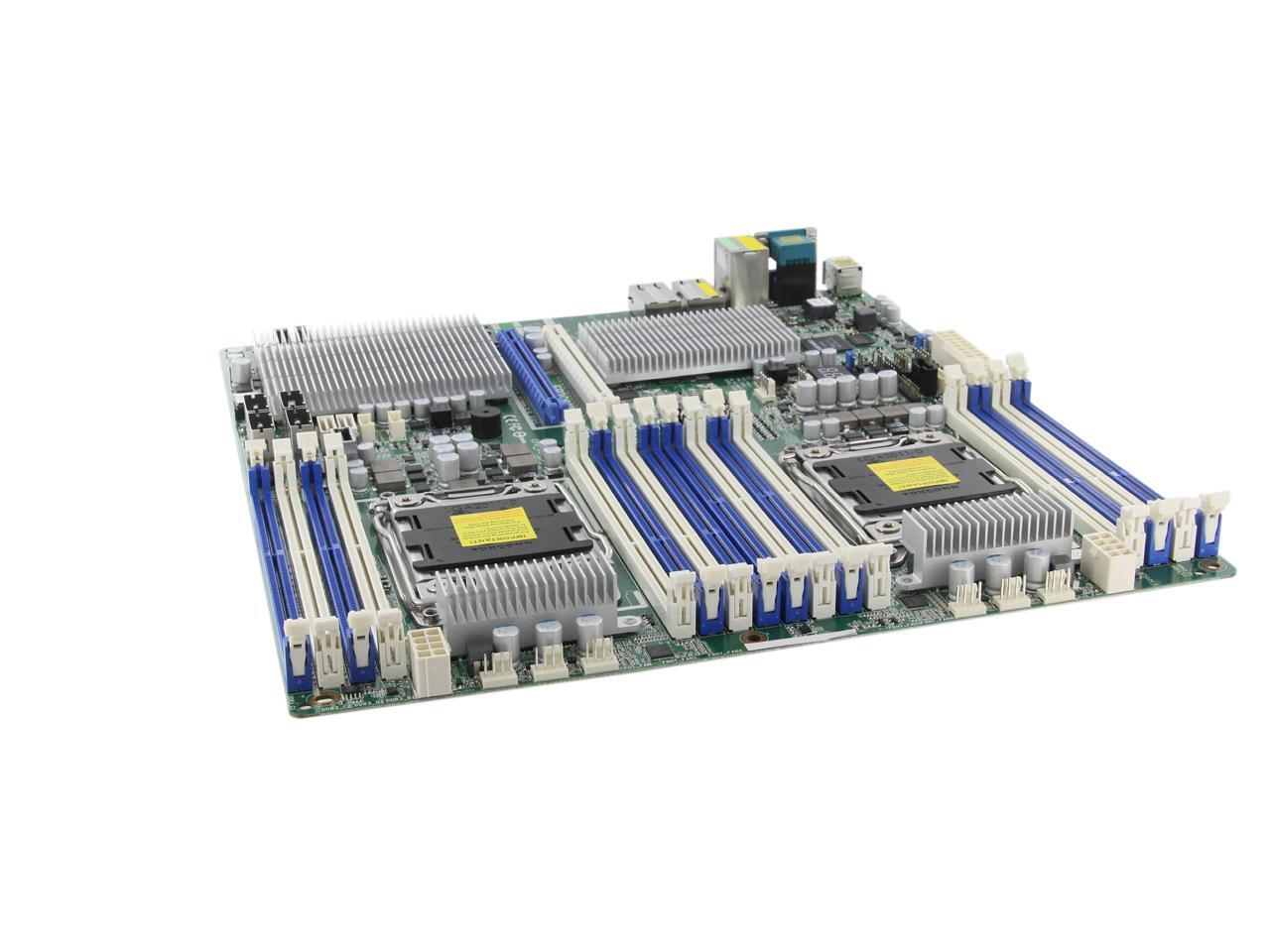

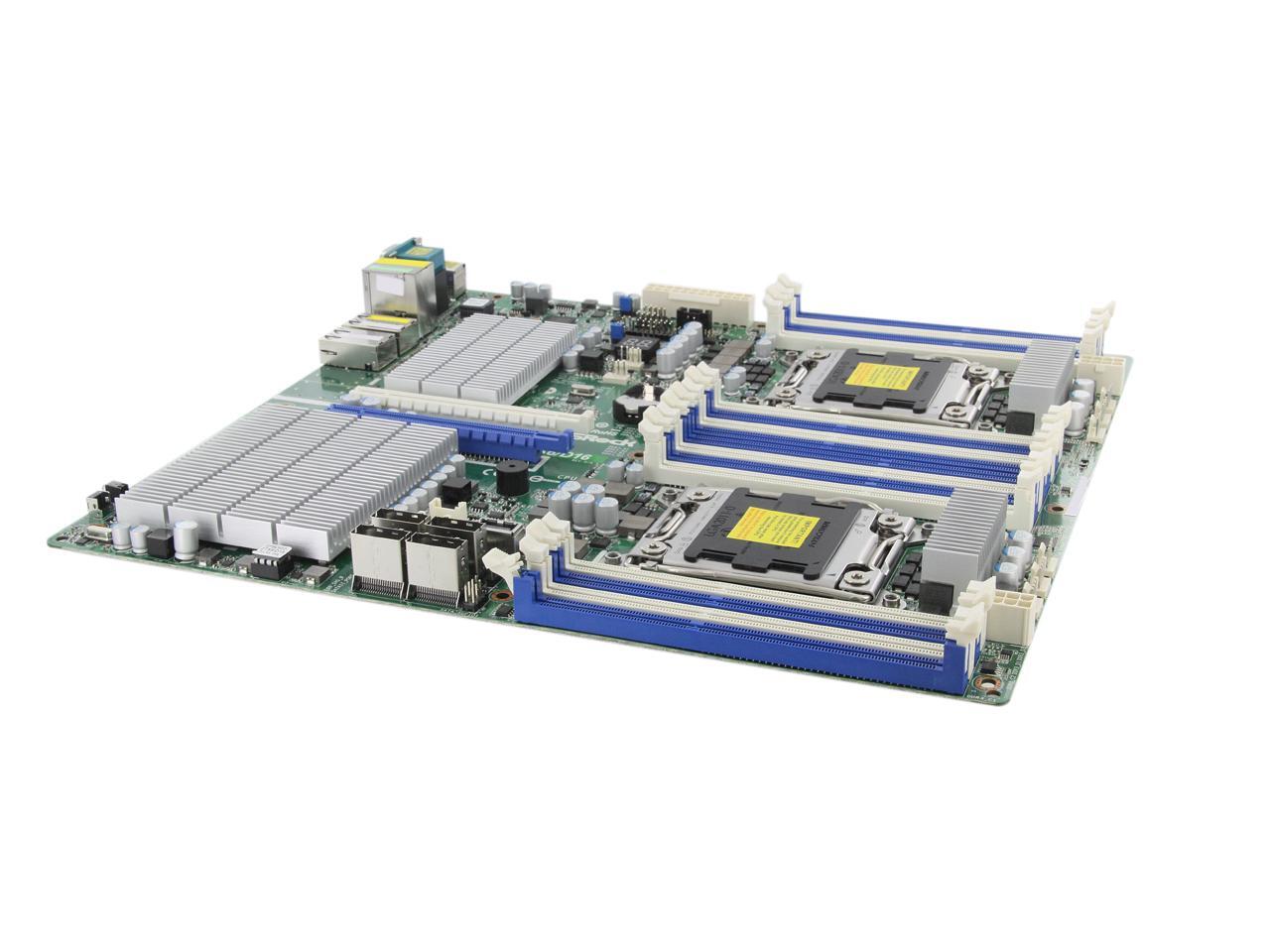

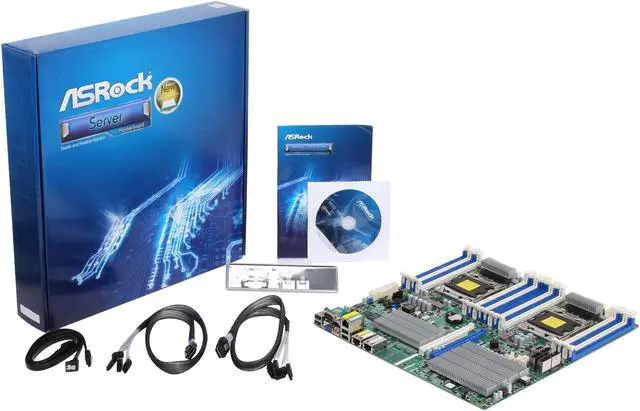

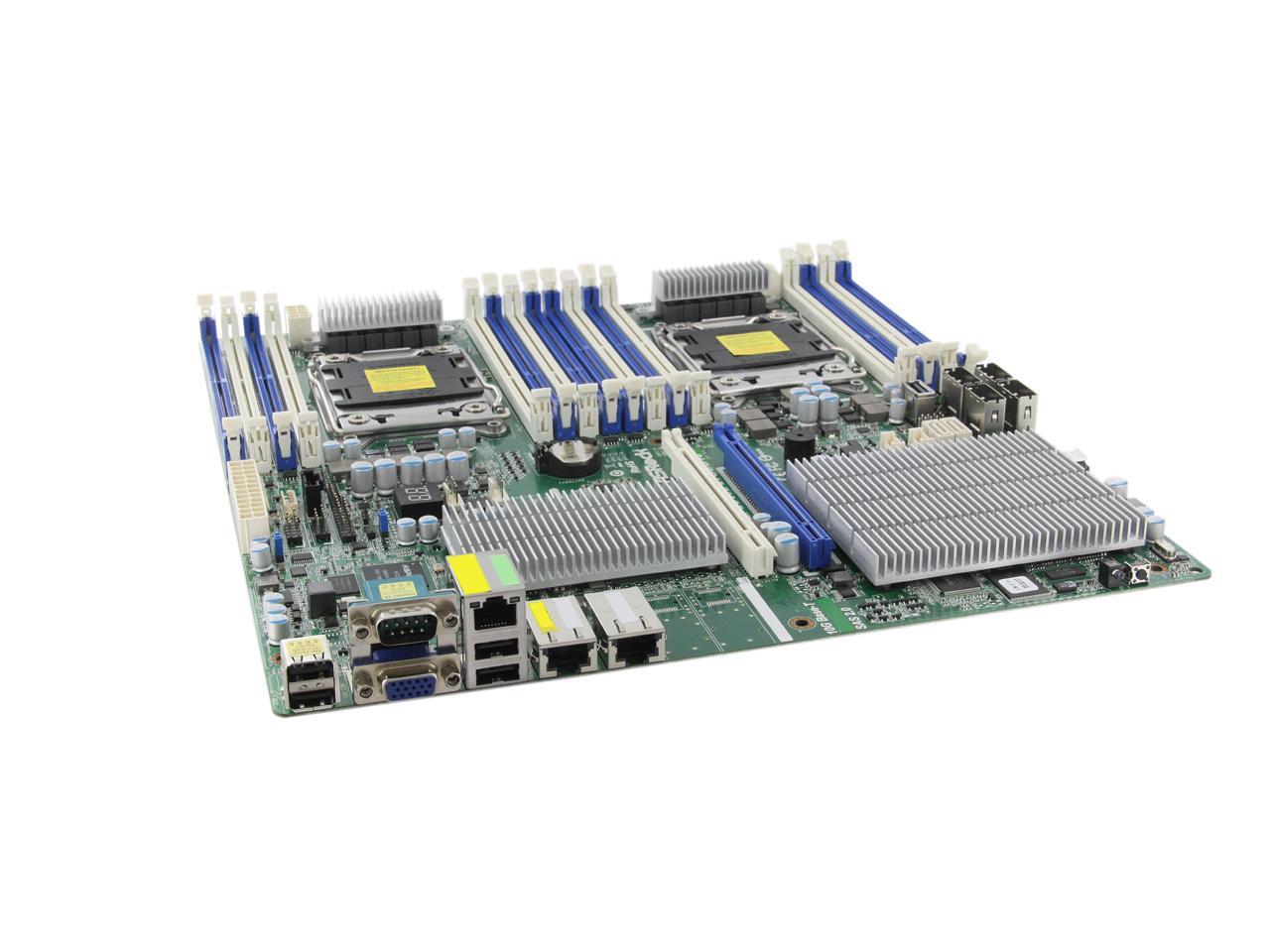

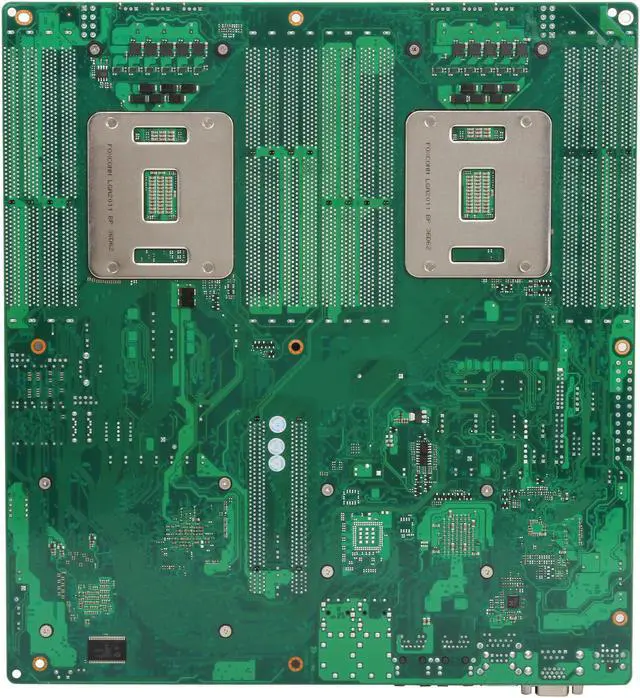

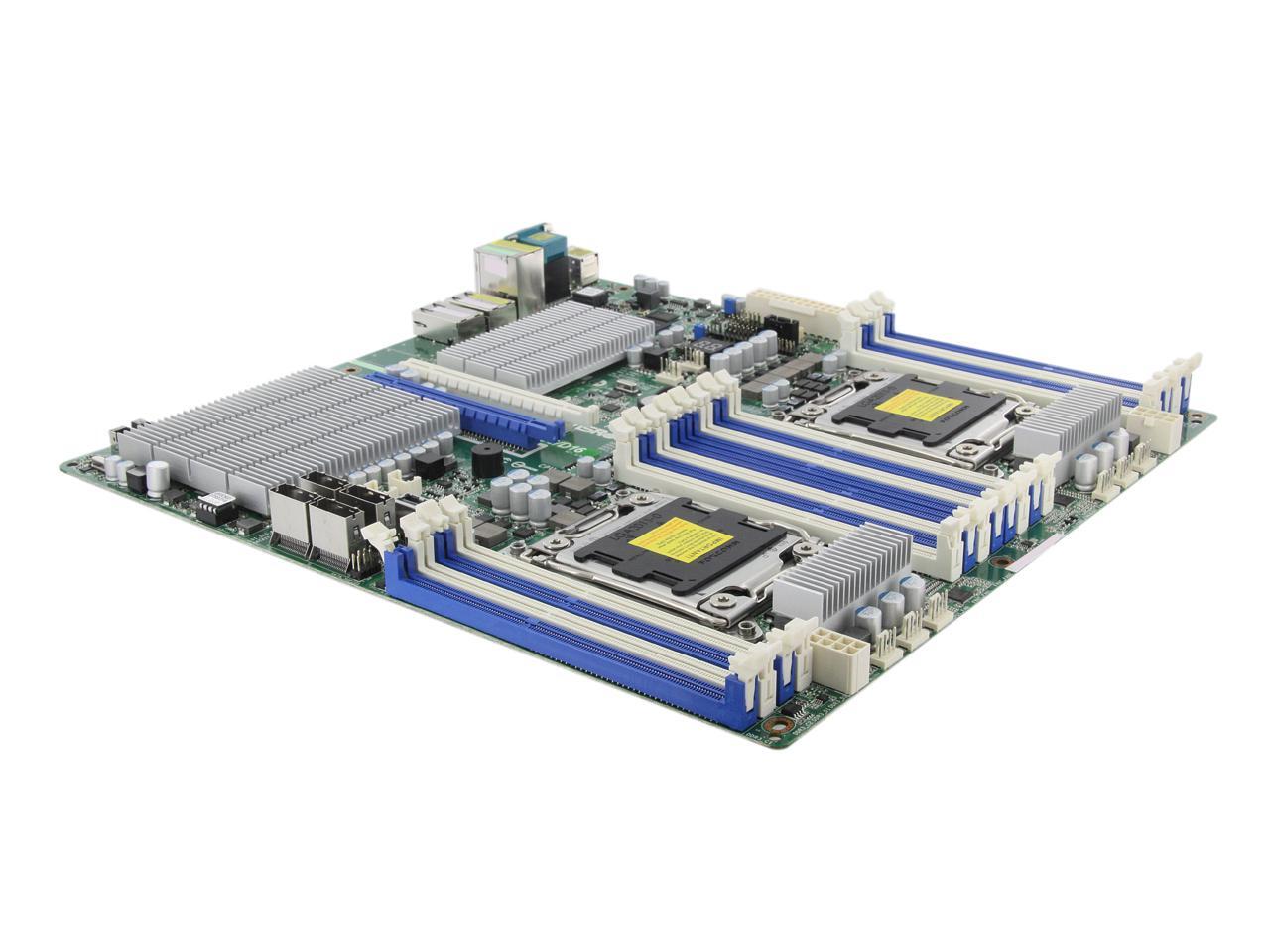

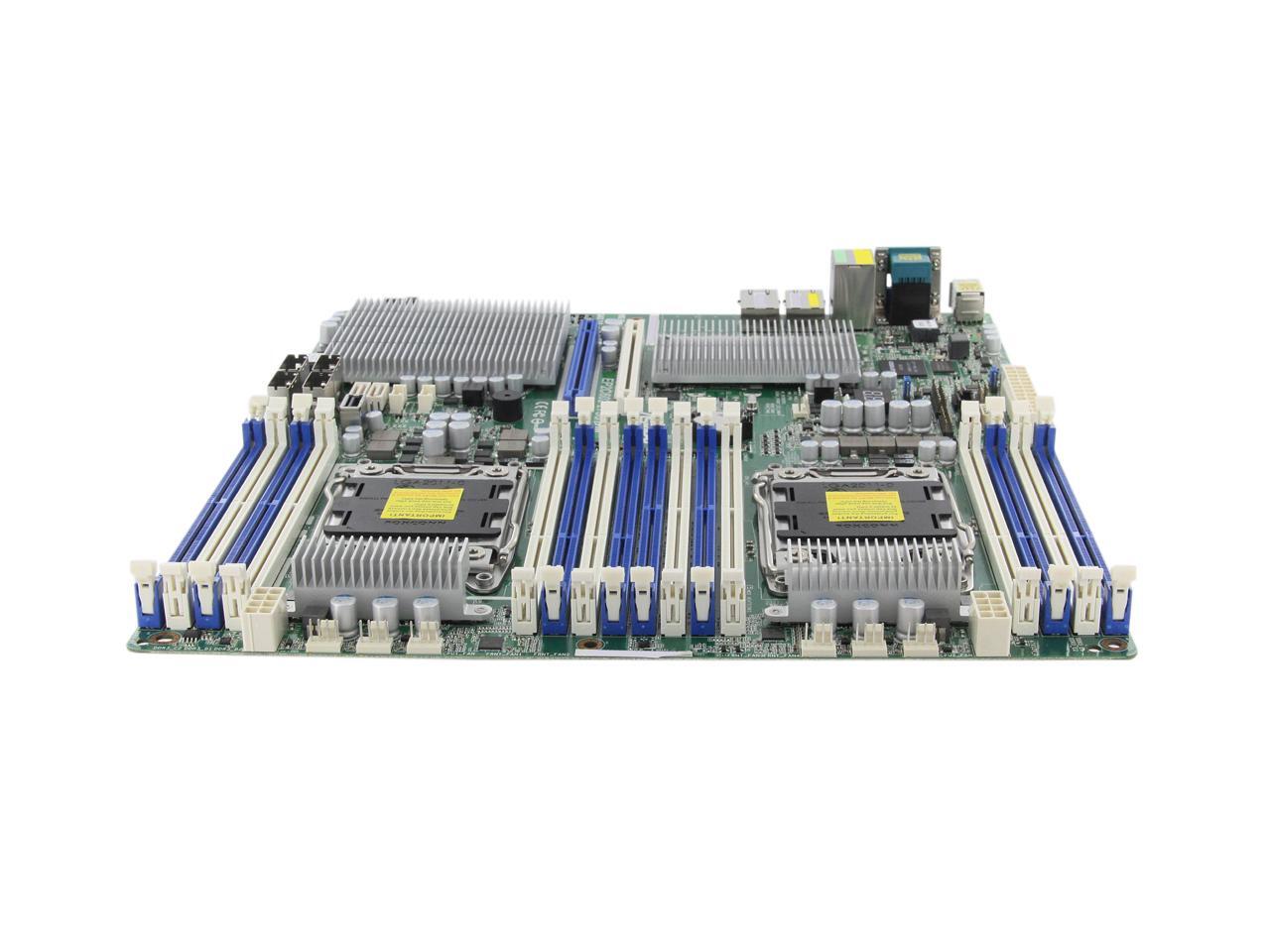

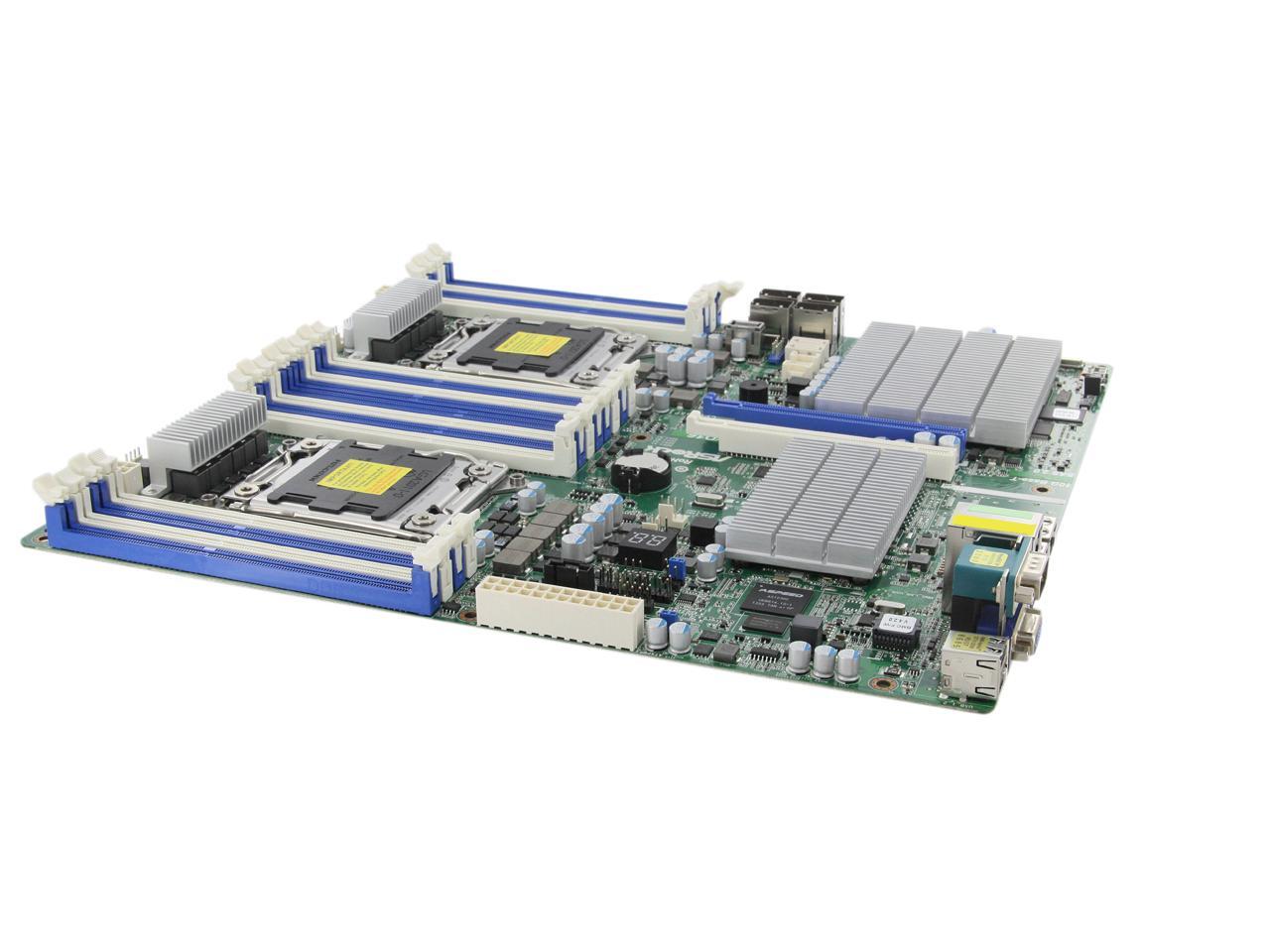

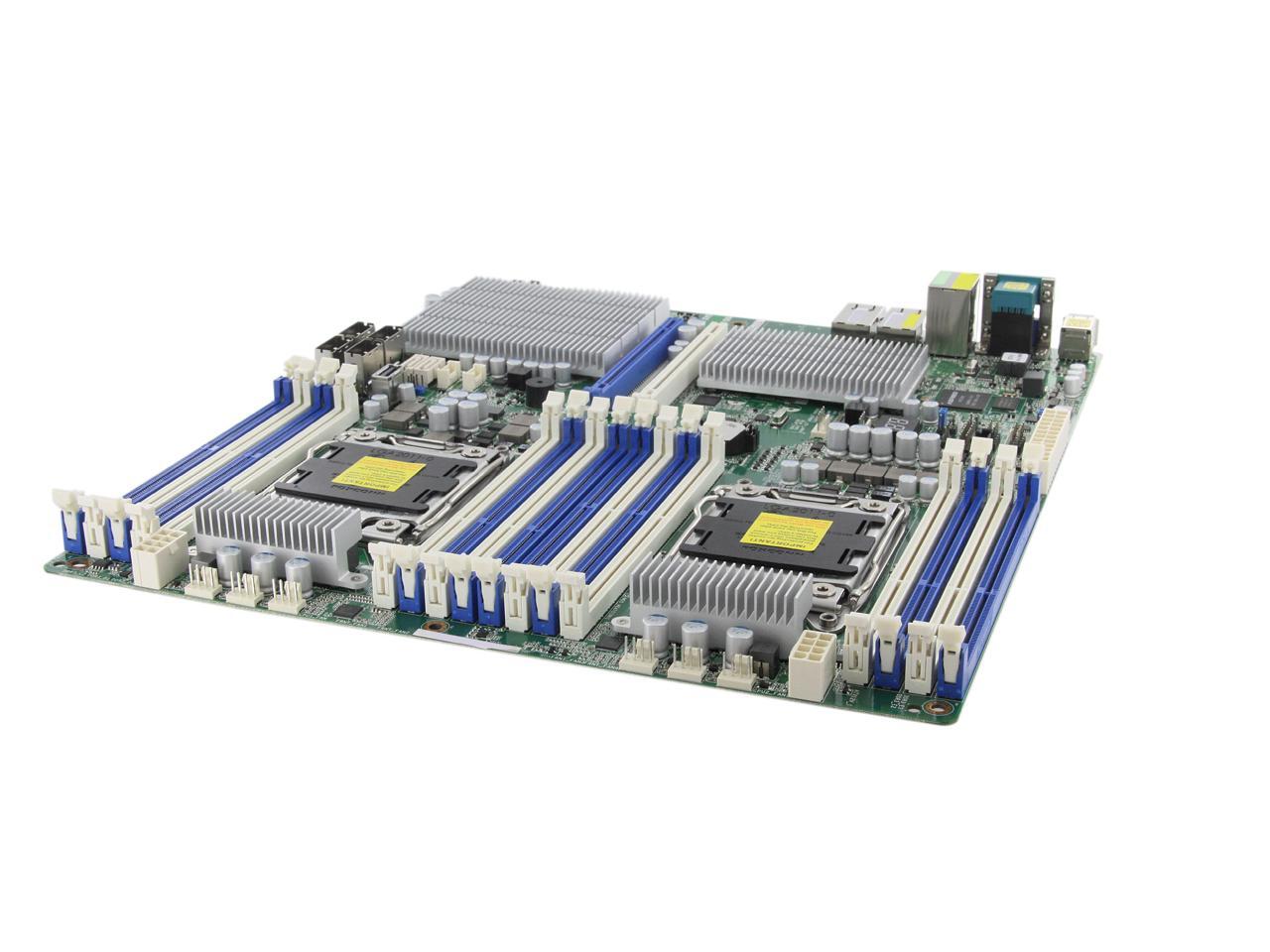

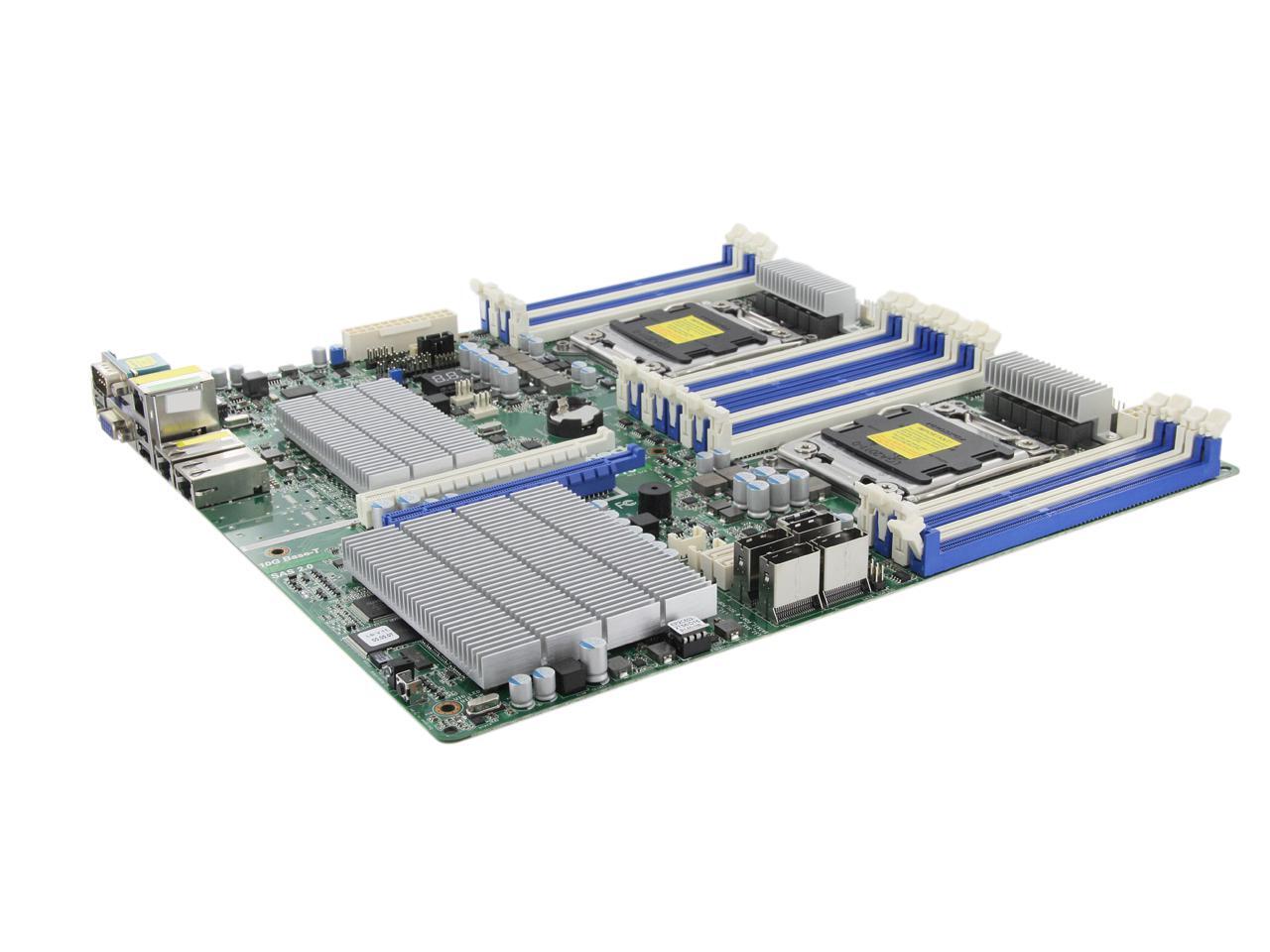

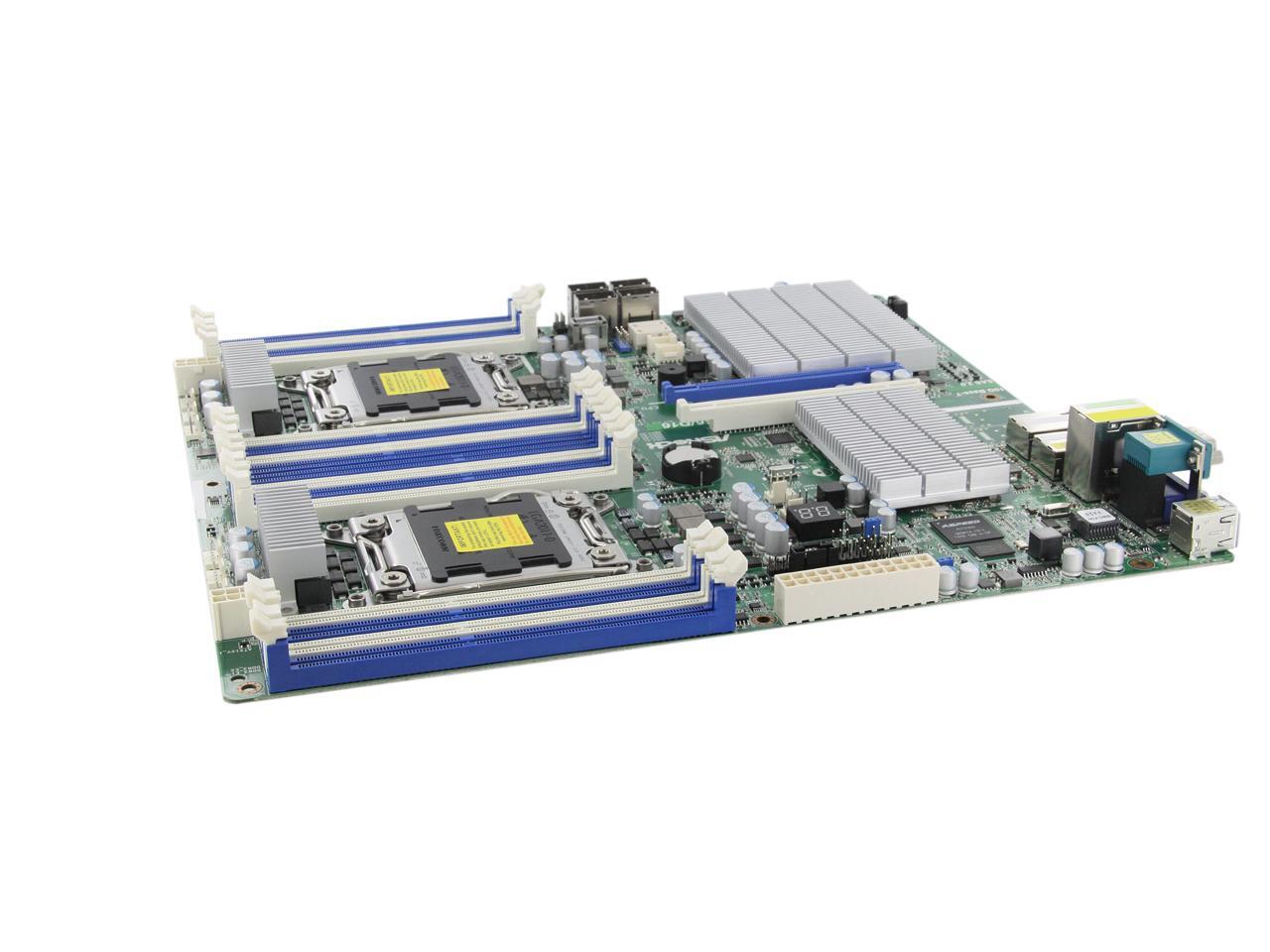

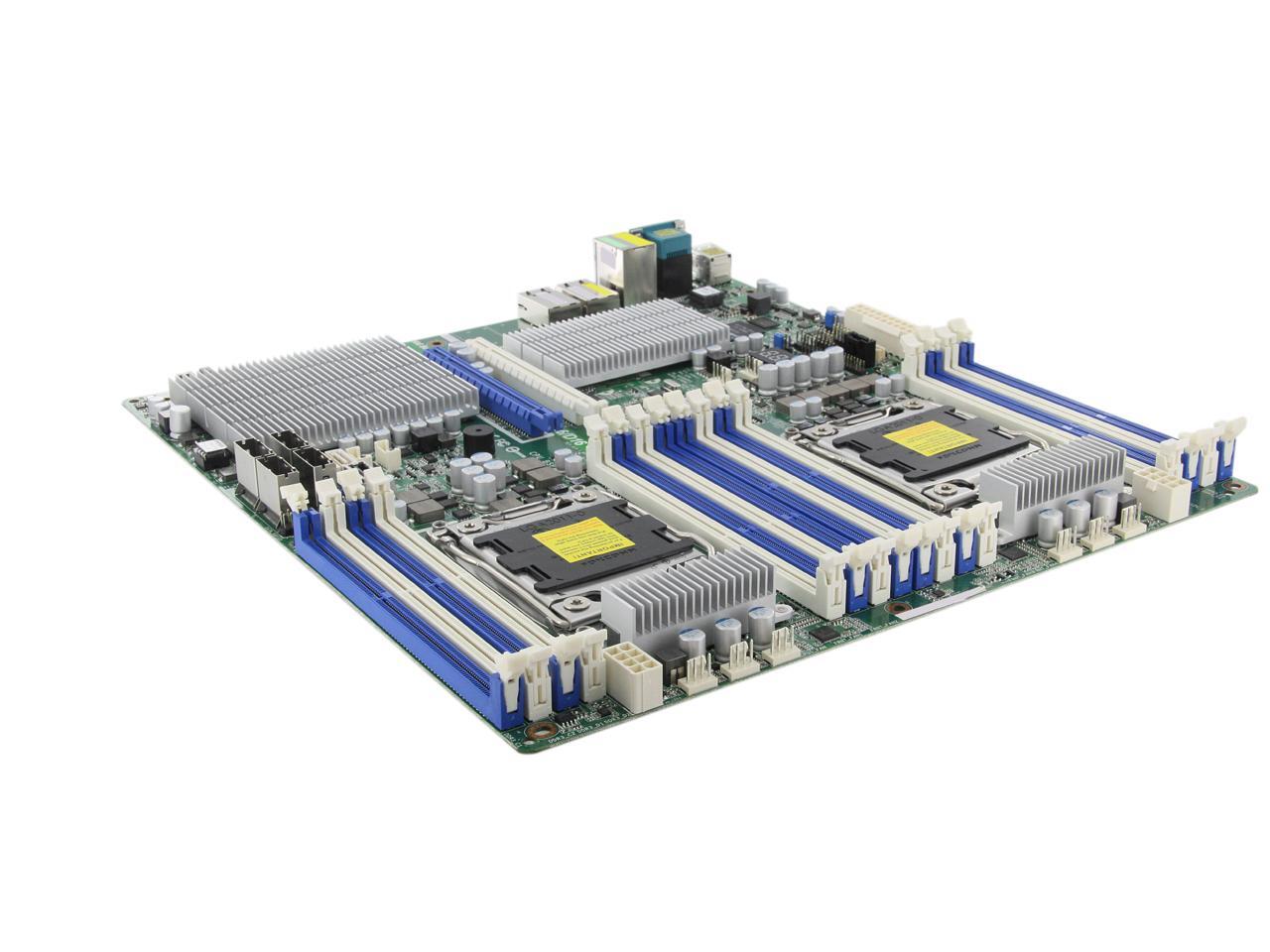

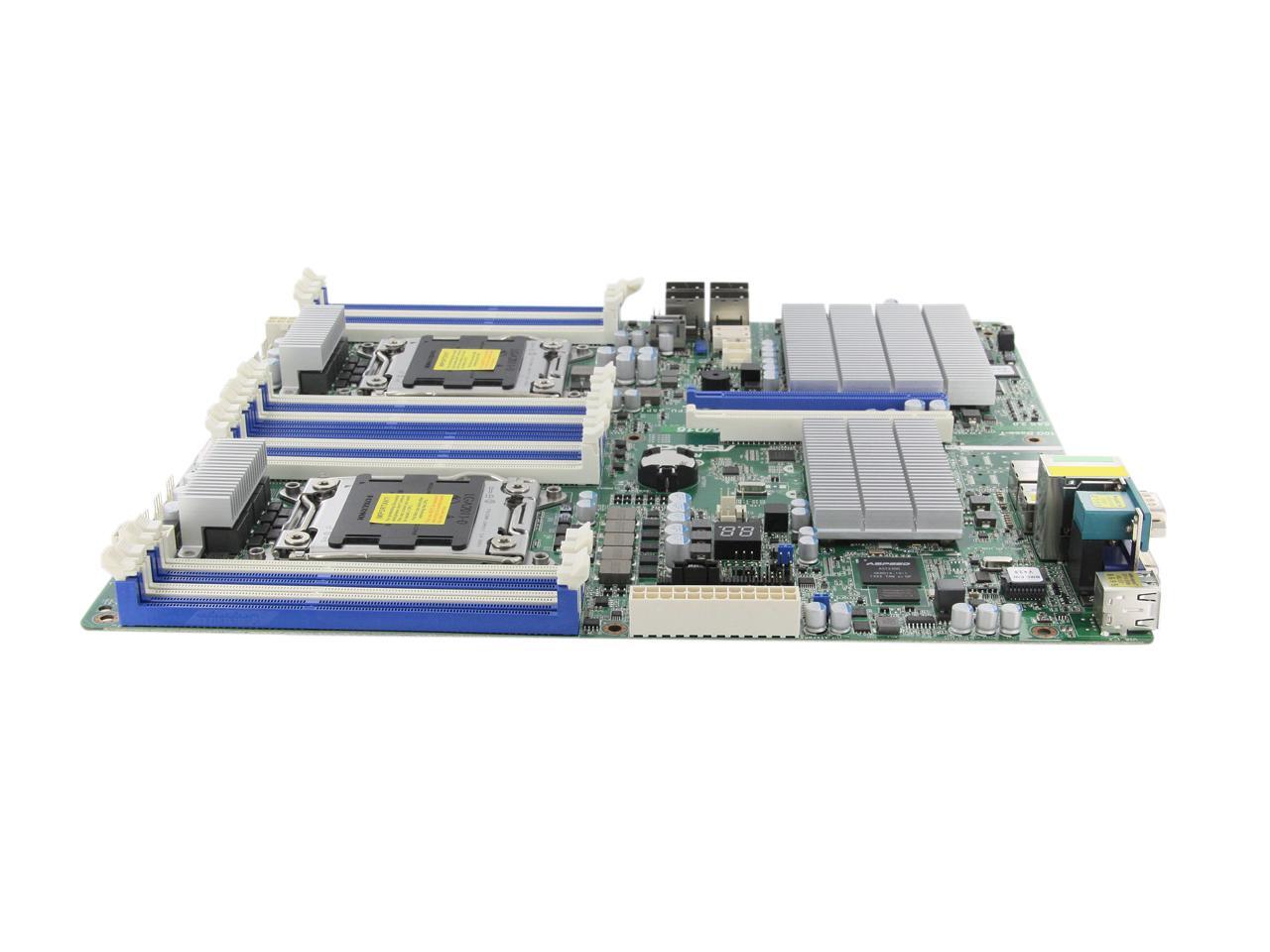

ASRock EP2C602-2TS6/D16 SSI EEB Server Motherboard Dual LGA 2011 Intel C602 DDR3 1600/1333/1066

Be the first to review this product...
  • Dual LGA 2011
  • Intel C602
  • 16 x 240pin
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack EP2C602-2TS6/D16

Model
Brand ASRock
Model EP2C602-2TS6/D16
Supported CPU
CPU Socket Type Dual LGA 2011
CPU Type Intel Xeon processor E5-1600/2600/4600 & v2 series
Supported CPU Technologies Hyper-Threading Technology
Chipsets
North Bridge Intel C602
Memory
Number of DDR3 Slots 16 x 240pin
DDR3 Standard DDR3 1600/1333/1066
Maximum Memory Supported up to 512GB DDR3 R/LR DIMM ; 128GB ECC/non-ECC unbuffered UDIMM
Channel Supported Quad Channel
ECC Supported Yes
Expansion Slots
PCI Express 3.0 x16 2
Storage Devices
SATA 2 x SATA 6.0Gb/s + 8 x SATA 3.0Gb/s
SATA RAID 0/1/5/10
SAS 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector)
Onboard Video
Onboard Video Chipset Aspeed AST2300
Onboard LAN
LAN Chipset 1 x Intel X540
LAN Speed 10G /1G /100Mb/s
Max LAN Speed 10Gbps
Rear Panel Ports
COM 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Onboard Ports
Onboard USB 2 Header (each support 2 USB 2.0)
Features
Features E5-1600 supports single socket
5 +1 Power Phase Design
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE.

Lan Port: 2 + 1 (IPMI) Lan port (RJ45)
LAN Ports with LED (ACT/LINK LED and SPEED LED)

1 x Realtek RTL8211E for dedicated management GLAN

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Dimensions
Form Factor SSI EEB
Dimensions (W x L) 13" x 12"
Additional Information
First Listed on Newegg February 20, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
