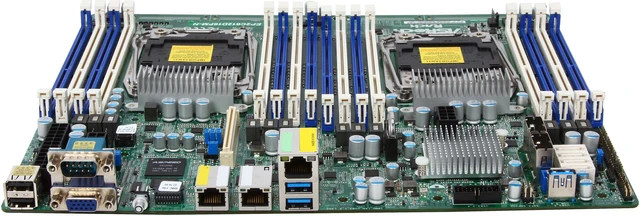

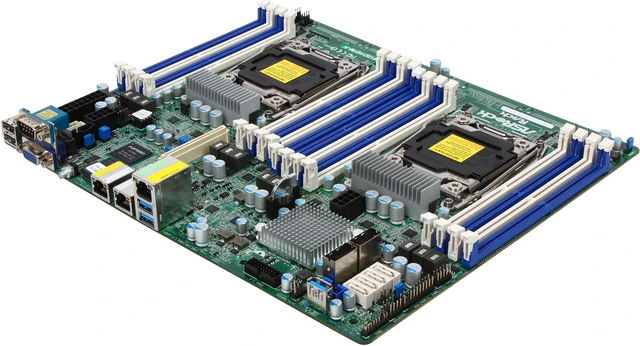

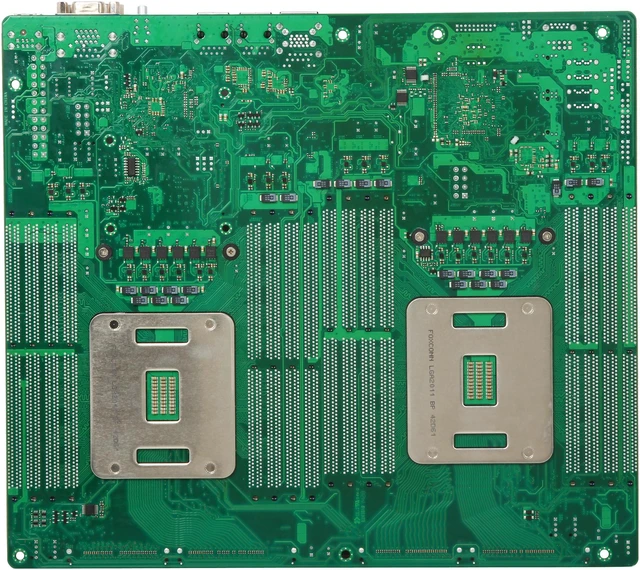

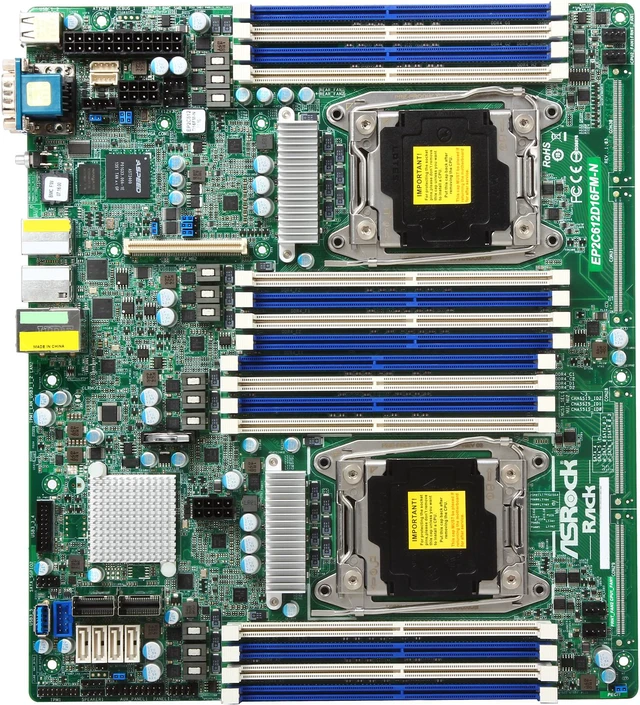

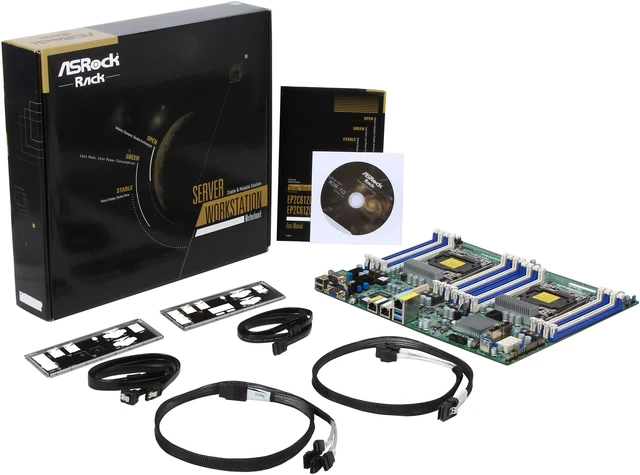

ASRock EP2C612D16FM-N SSI CEB Server Motherboard Dual Socket LGA 2011 R3

Motherboard Physical Stats

Form Factor	SSI CEB
Dimensions	12 x 10.5" (30.5 x 26.7cm)

---

Processor System

CPU	Intel® Xeon processor E5-2600/4600 v3 series
Socket	Dual Socket LGA 2011 R3
Chipset	Intel® C612

---

System Memory

Capacity	16 DIMM slots
Type	Quad Channel memory technology Supports 2133/1866/1600 ECC DIMM,RDIMM,NVDIMM and LRDIMM
Voltage	1.2V

---

Expansion Slots

Additional PCIe switch	NA

---

Storage

SATA Controller	Intel® C612: 10 x SATA3 6.0Gbps (8 from 2 mini SAS connector + 2x SATA3 connector)
Additional Storage Controller	Marvell 9172: 2 x SATA3 6Gbps

---

Ethernet

Interface	1000 / 100 / 10Mbps
LAN Controller	2 x RJ45 by Intel® i210 Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE LAN1 Supports NCSI
Mezzanine	x8 Mezzanine slot supports mezzanine card with 2 x10G Ethernet or 2 xGLAN (2 x 10G Base-T by Intel® X540 or 2 x SFP+ by Intel® 82599ES or 2 x GLAN by Intel® i350 ) Supports NCSI

---

Management

BMC Controller	ASPEED AST2400
IPMI Dedicated LAN	1 x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog NMI

---

Graphics

Controller	ASPEED AST2400
VRAM	DDR3 16MB

---

Rear Panel I/O

VGA Ports	1 x D-Sub
USB 2.0 Ports	2
USB 3.0 Ports	2
LAN Ports	2 + 1 (IPMI) LAN ports (RJ45) LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Ports	1 (COM1)
UID Button / UID LED	1

---

Internal Connector

Auxiliary Panel Header	1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header	1
IPMB Header	1
Fan Header	2 x CPU Fans, 6 x system Fans (4-pin)
ATX Power	1 (24-pin) + 2 (8-pin)
USB 3.0 Headers	1 ( support 2 USB 3.0)
USB 2.0 Headers	1 ( support 2 USB 2.0)
Type A USB 3.0 Ports	1
Front Panel	1
Mezzanine	1 (from CPU 1)

---

System BIOS

BIOS Type	128Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8 Support ASRock Rack Instant Flash

---

Hardware Monitor

Temperature	CPU Temperature Sensing System Temperature Sensing Card Side Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: CPU1/2, VCCM AB/CD/EF/GH, +1.50 PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB

---

Supported Operating Systems

Operating System	Microsoft Windows Server 2008 R2 SP1 (64-Bit) Server 2012 (64-Bit) Server 2012 R2 (64-Bit) Linux RedHat Enterprise Linux Server 5.9/6.4 (32- / 64-Bit) CentOS 5.9 / 6.4 (32- / 64-Bit) SUSE Enterprise Linux Server 11 SP3 (32- / 64-Bit) FreeBSD 9.1 (32- / 64-Bit) Fedora core 19 (64-Bit) Ubuntu 12.04.2 (64-Bit) / 12.10 (64-Bit) Virtual VMWare ESXi 5.5 (not supported for Marvell 9172)

---

Environment

Temperature	Operation temperature: 14 - 95°F (10 - 35°C) / Non operation temperature: -40 - 158°F (-40 - 70°C)

---
