ASRock Fatal1ty B450 GAMING-ITX/AC AM4 AMD Promontory B450 SATA 6Gb/s Mini ITX AMD Motherboard

OPEN BOX

AMD Promontory B450
AMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/2400/2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Learn more about the ASRock B450 GAMING-ITX/AC

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD AM4 Socket Ryzen 2000 and 3000 Series Desktop Processors

Chipsets
Chipset	AMD Promontory B450

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	AMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/2400/2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) (Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs)* AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)* * Supports NVMe SSD as boot disks
Other Slots	1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi-802.11ac module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage Devices
SATA 6Gb/s	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2	1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with Athlon series APU)* * Supports NVMe SSD as boot disks
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* Integrated AMD Radeon R-Series Graphics in A-series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required) Supports HDCP 1.4 with HDMI 2.0 and DisplayPort 1.2 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports * Actual support may vary by CPU. ** The Max shared memory 16GB requires 32GB system memory installed.

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel i211AT
Max LAN Speed	1Gbps
Wireless LAN	Intel 802.11 ac Wi-Fi Module Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps
Bluetooth	Supports Bluetooth 4.2 / 3.0 + High speed class II

Rear Panel Ports

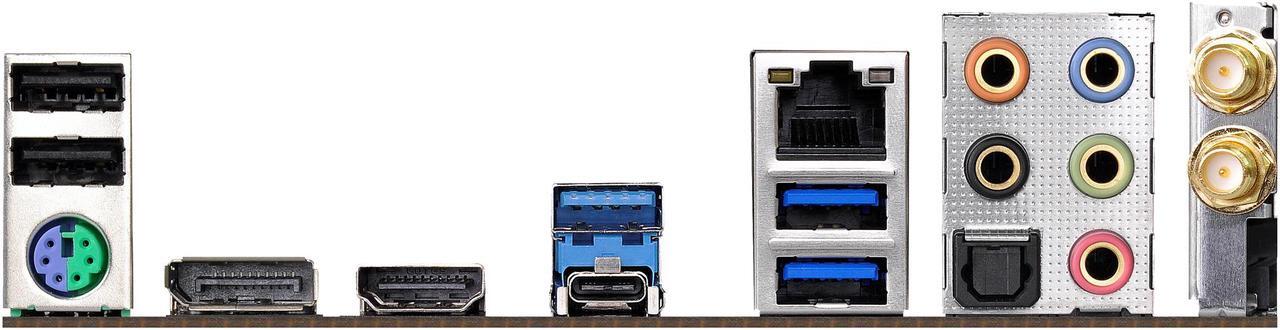

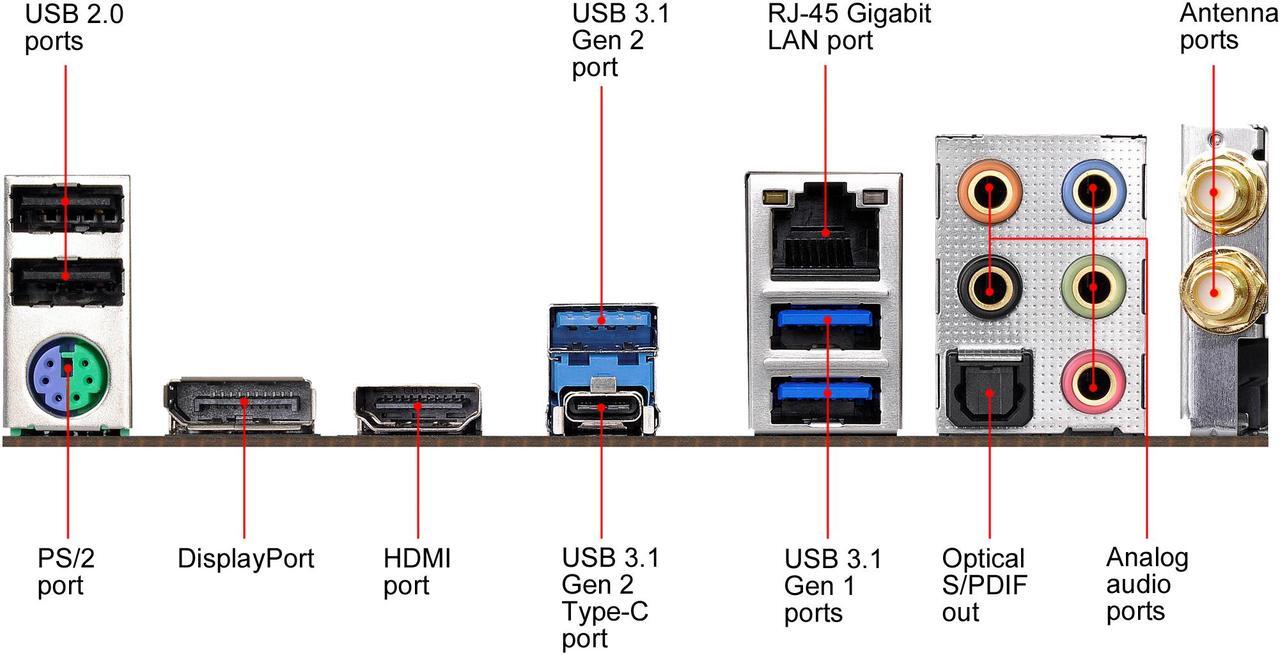

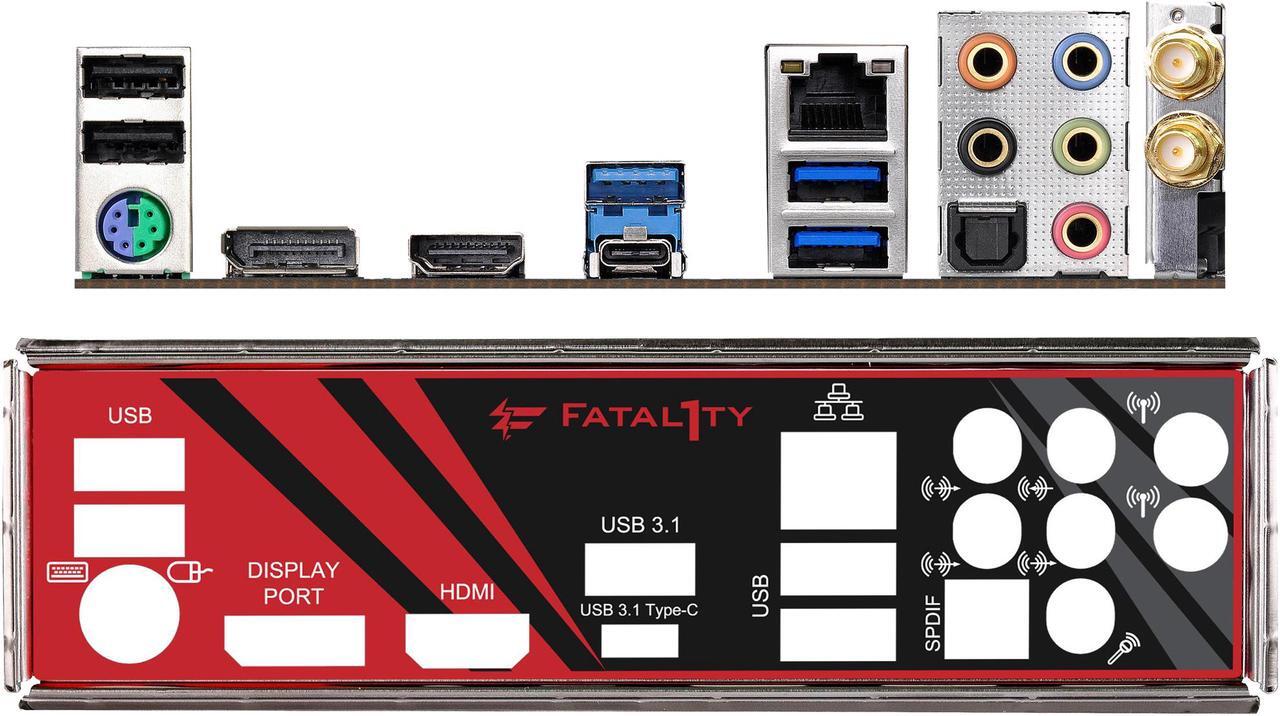

Back I/O Ports	2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection)* 1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection) 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * 1 x Fatal1ty Mouse Port (USB 2.0) is included

Internal I/O Connectors
Onboard USB	1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x LPC Header 1 x Addressable LED Header * Supports in total up to 5V/3A, 15W LED Strip. 1 x AMD Fan LED Header * The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x AMD LED Fan USB Header

Physical Spec
Form Factor	Mini ITX
LED Lighting	RGB

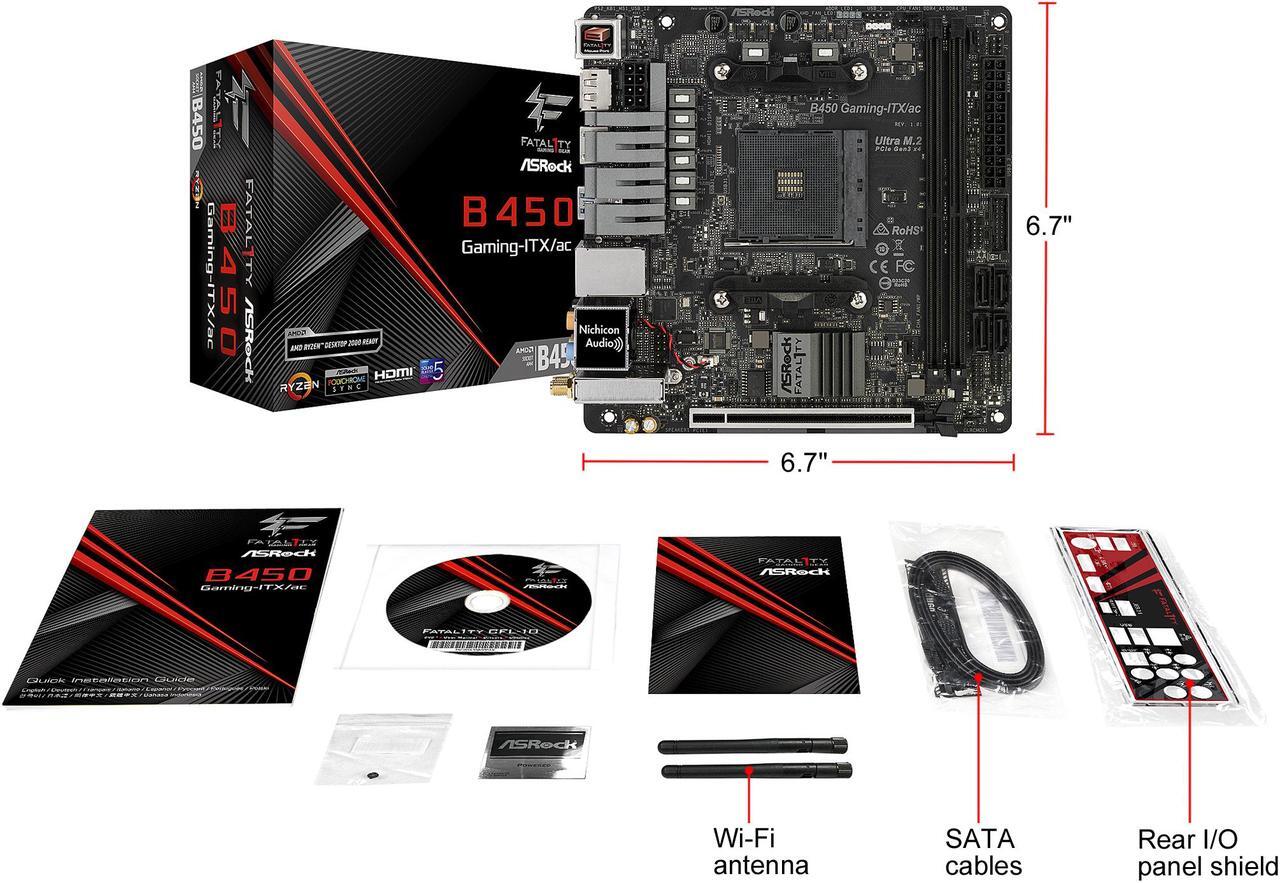

Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

Software Feature
Windows 11	Supported

Additional Information
Date First Available	February 01, 2019
