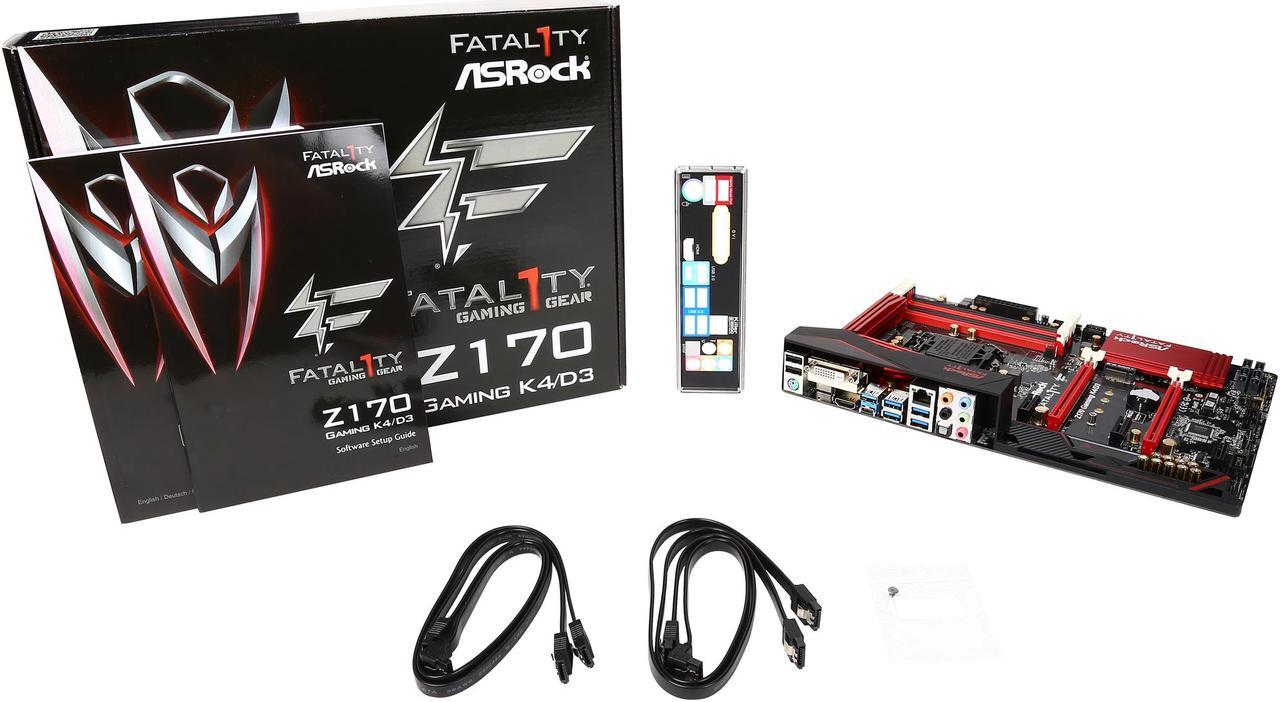

Images from RETAIL item, box contents may vary.

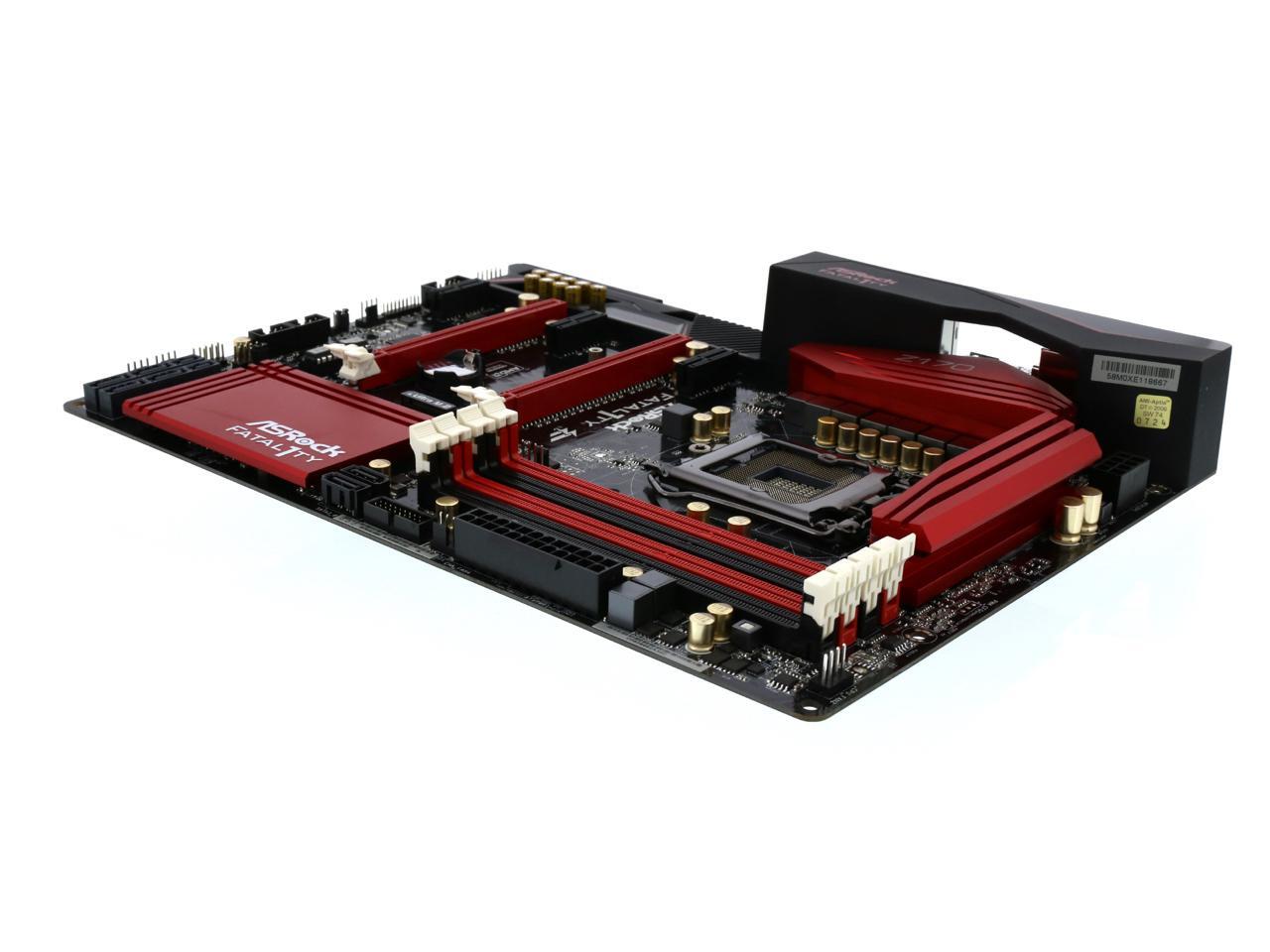

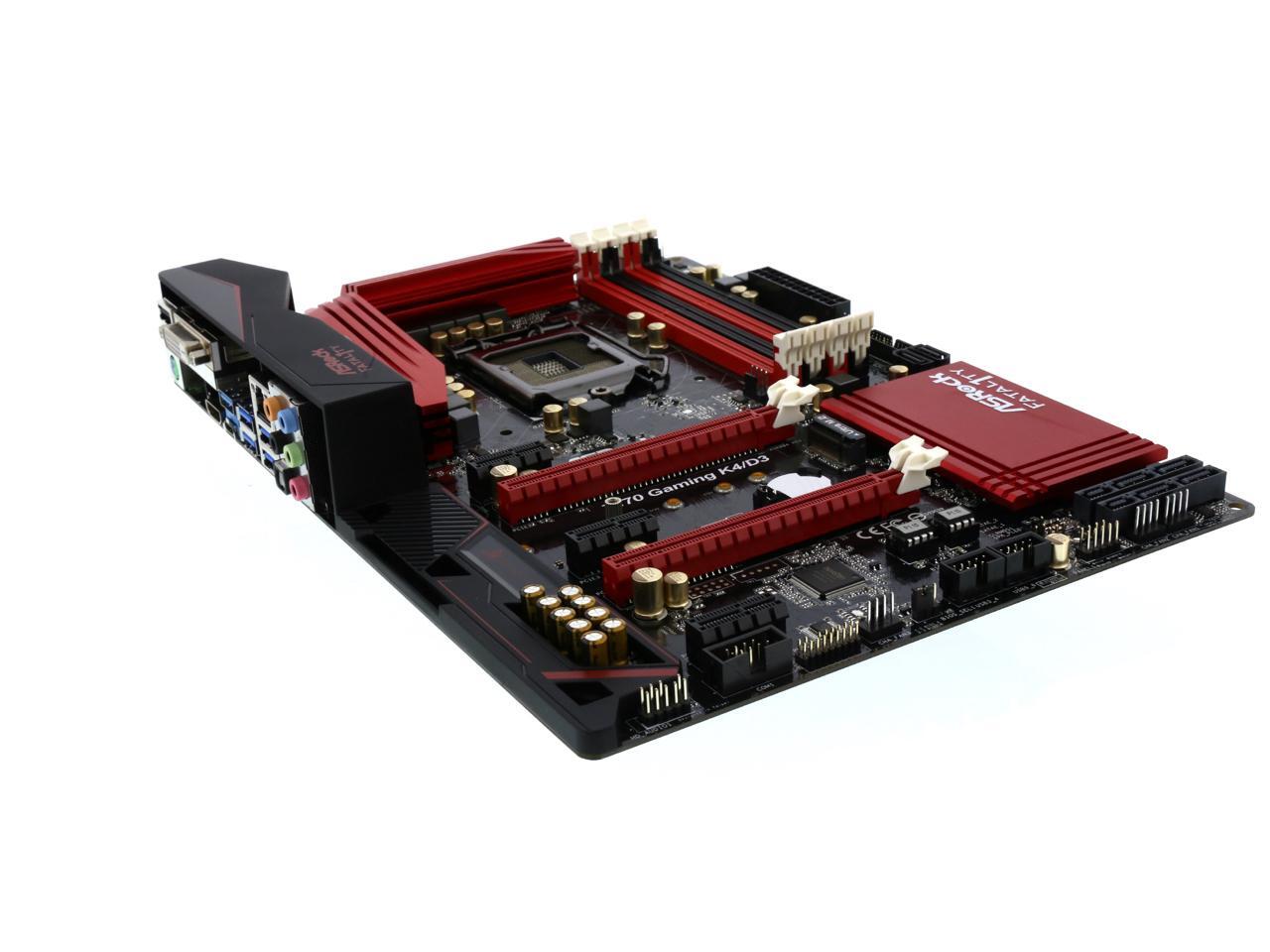

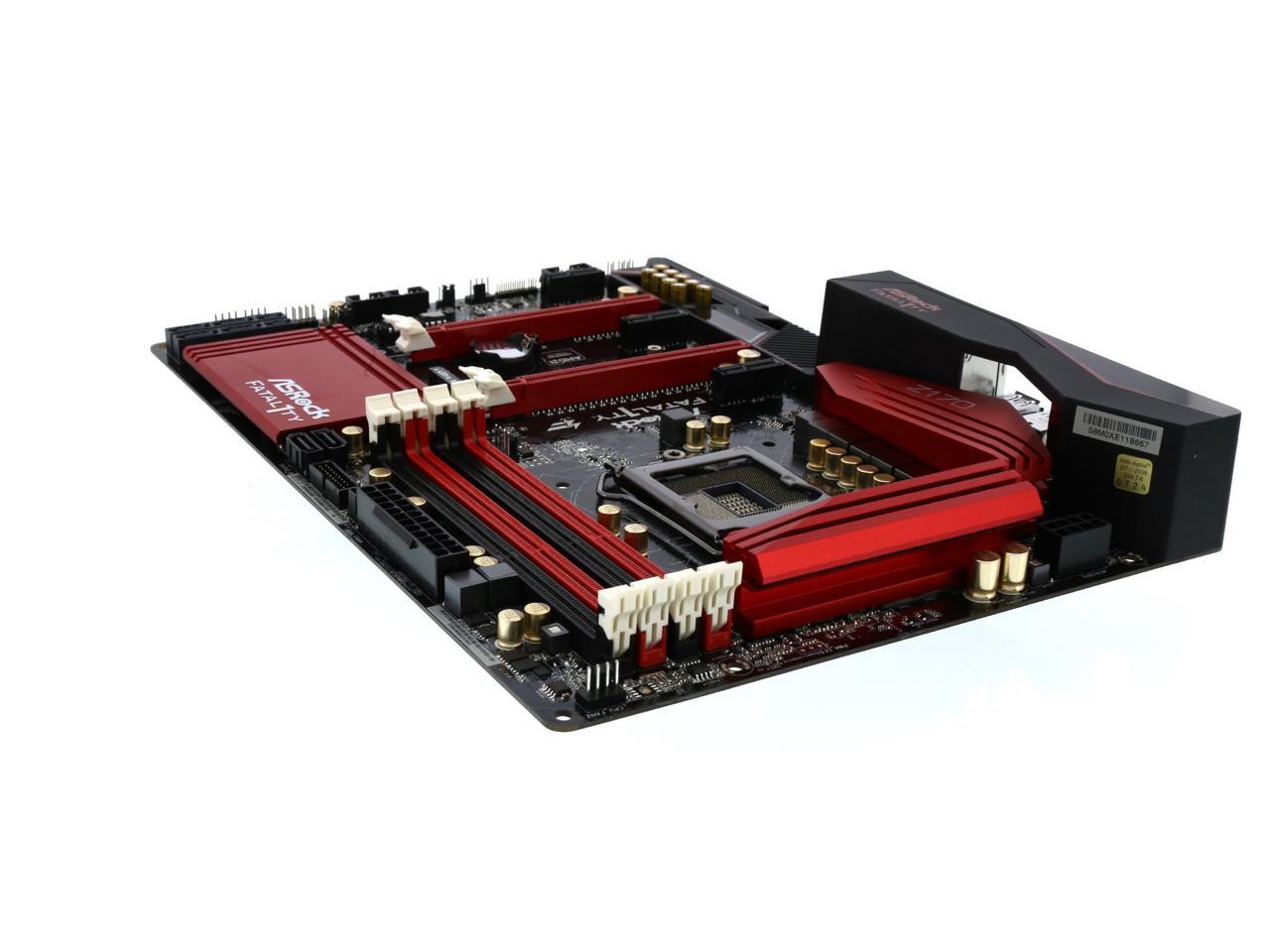

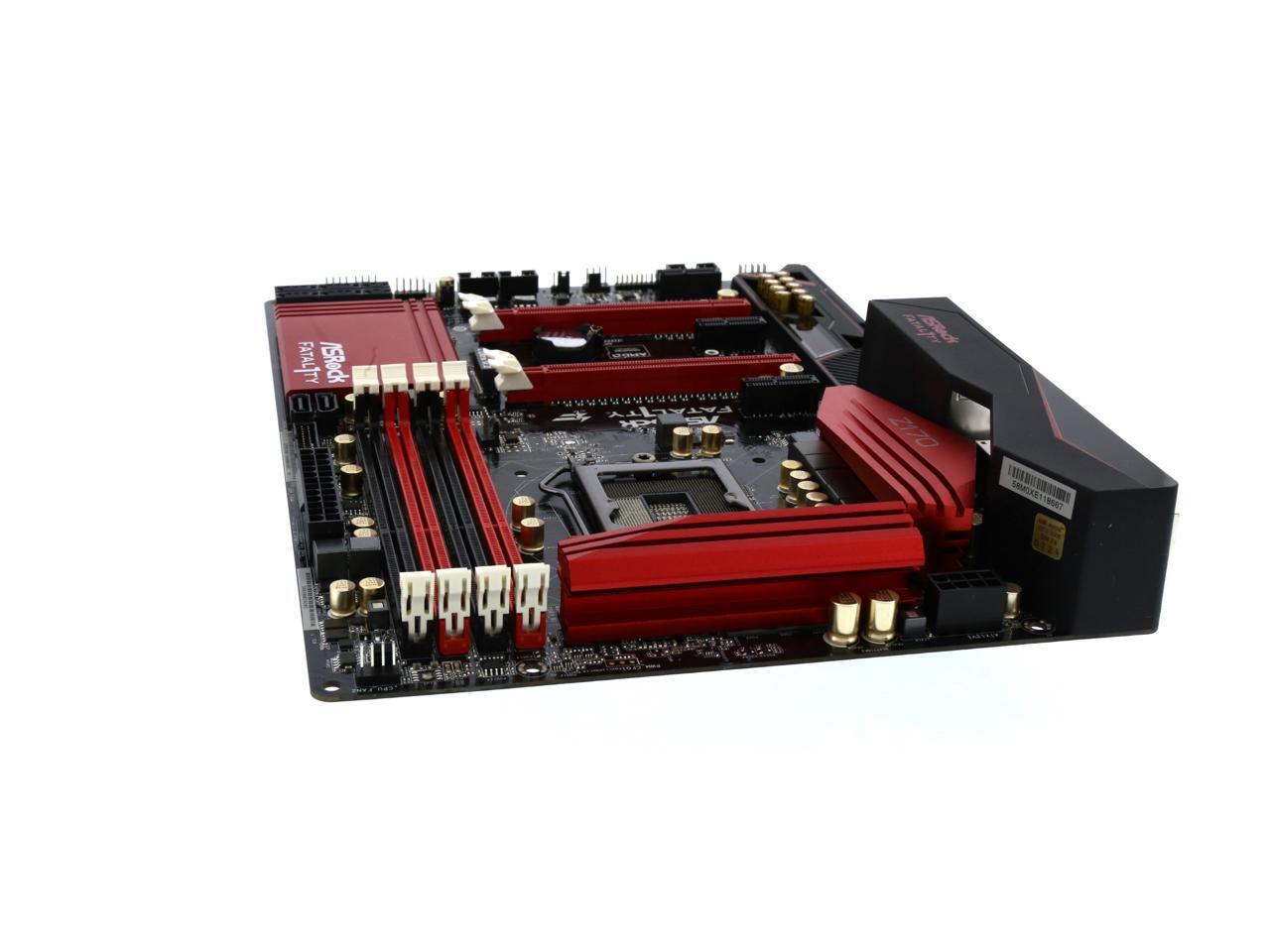

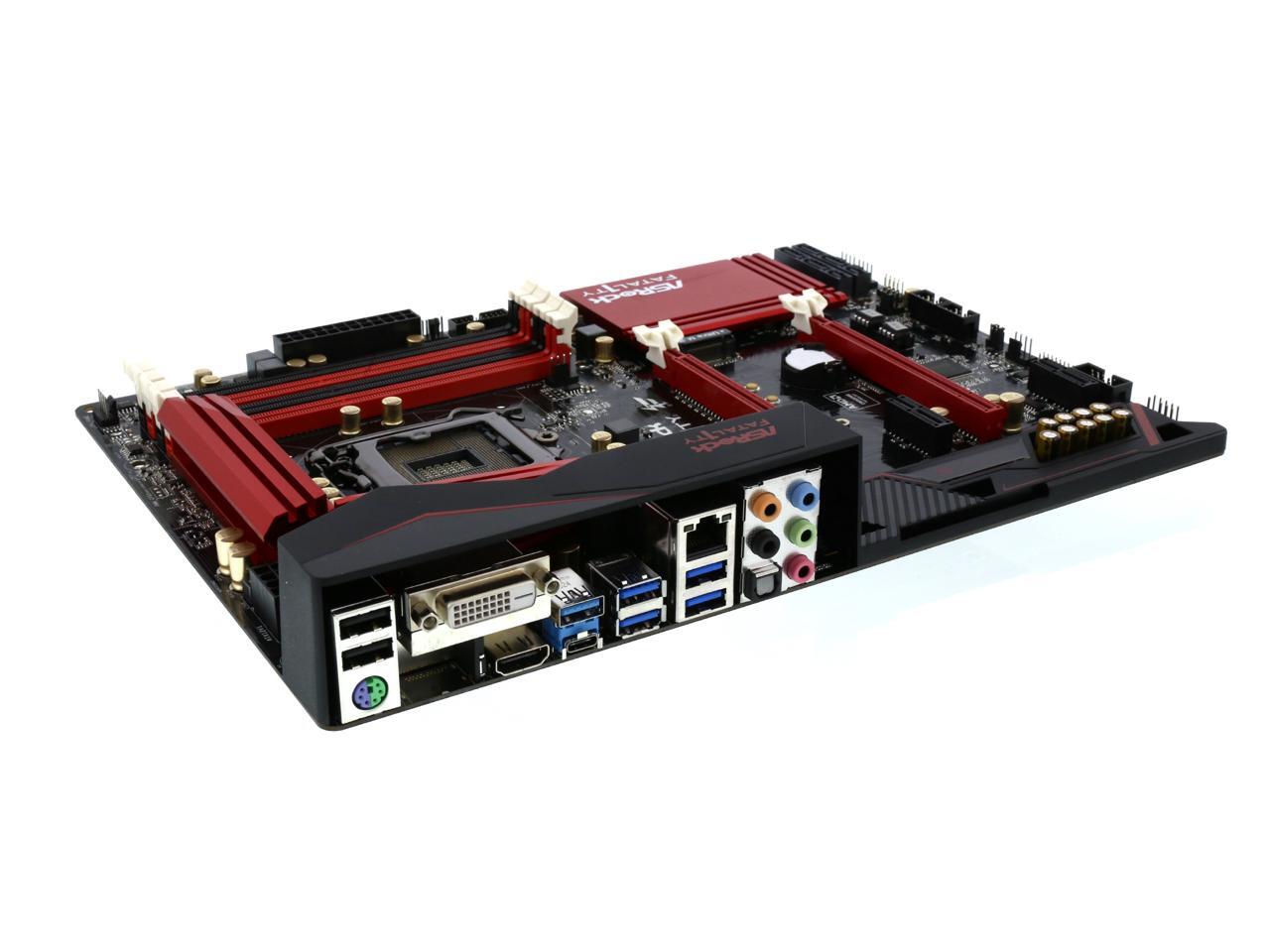

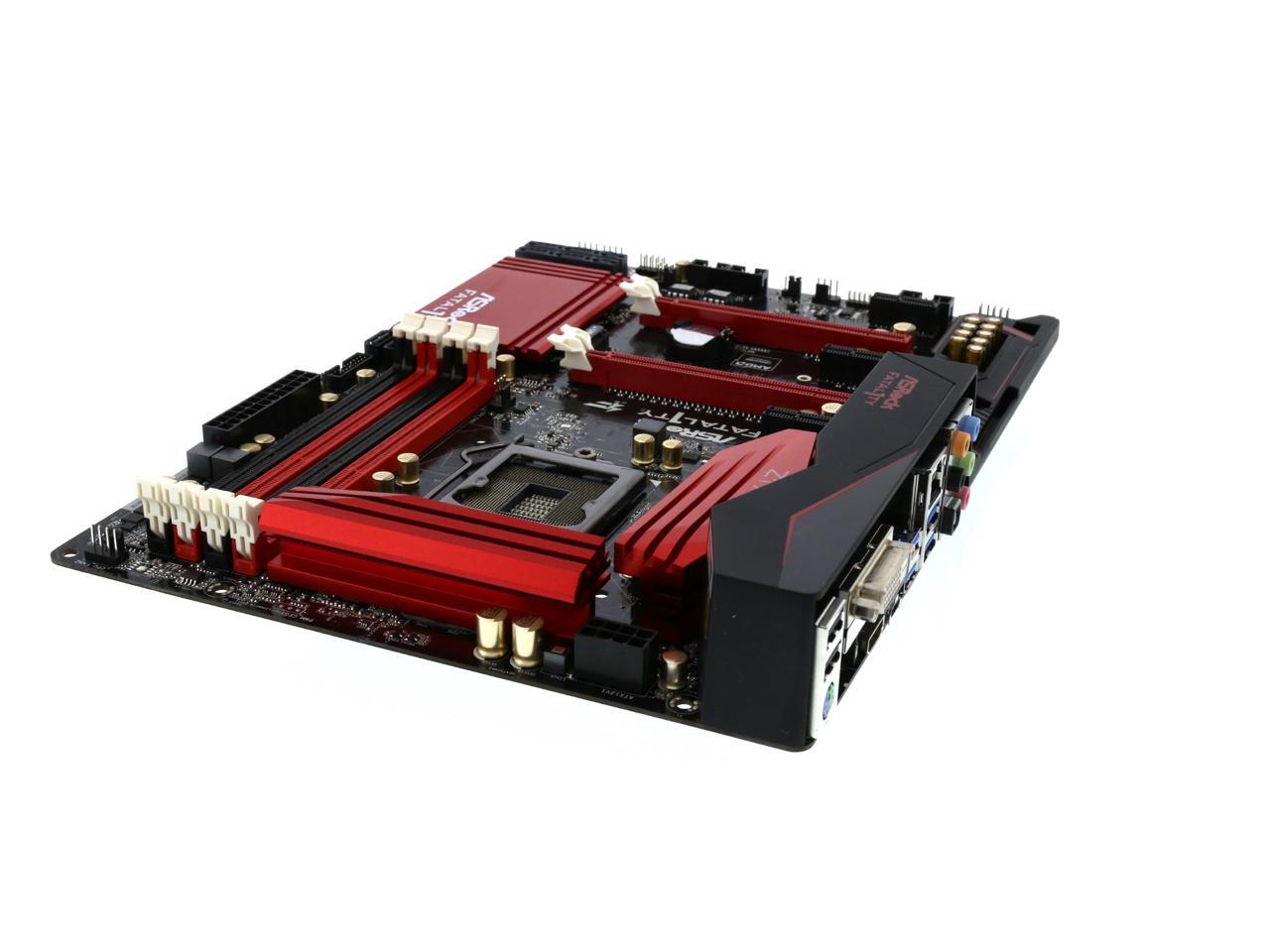

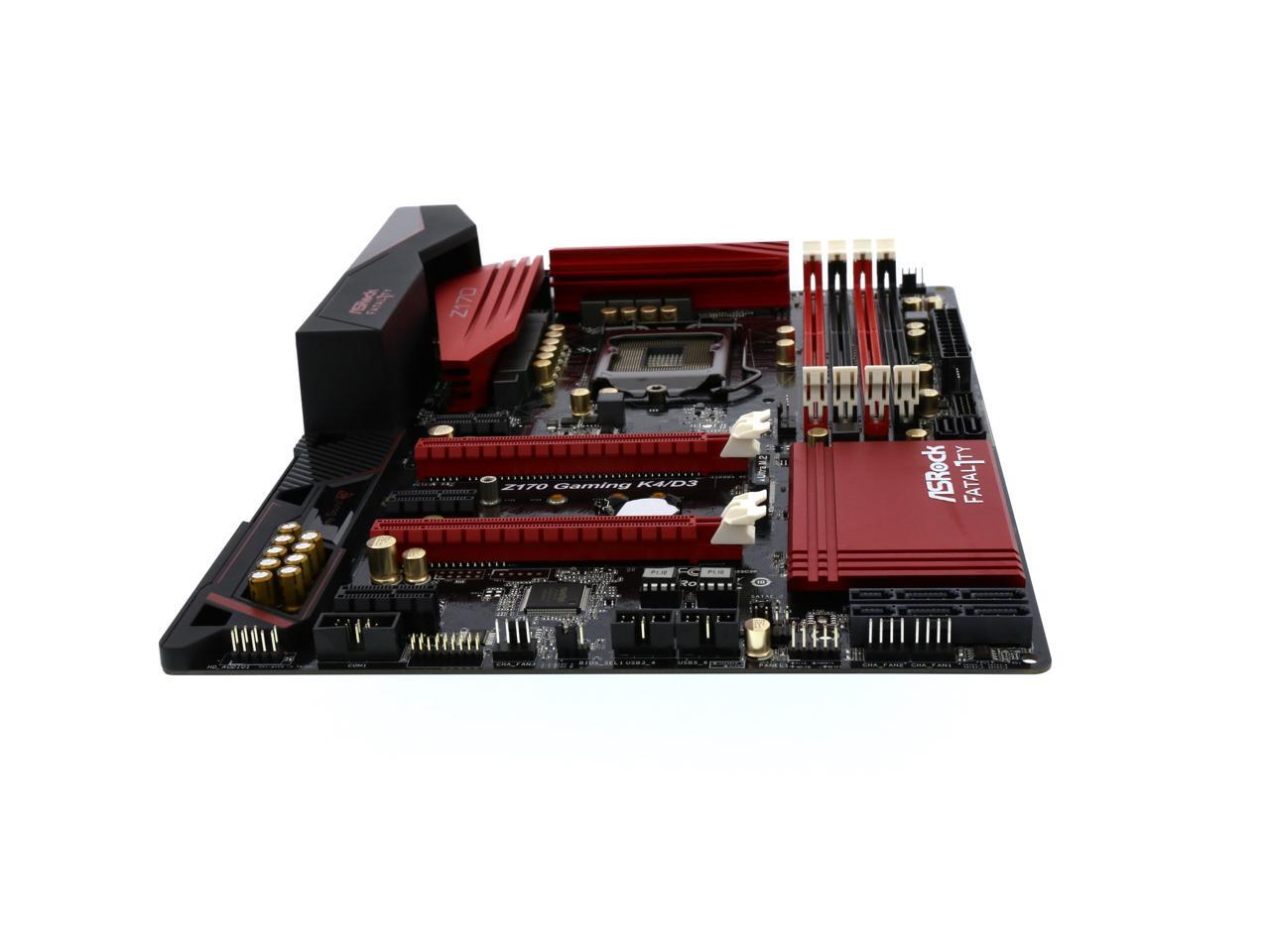

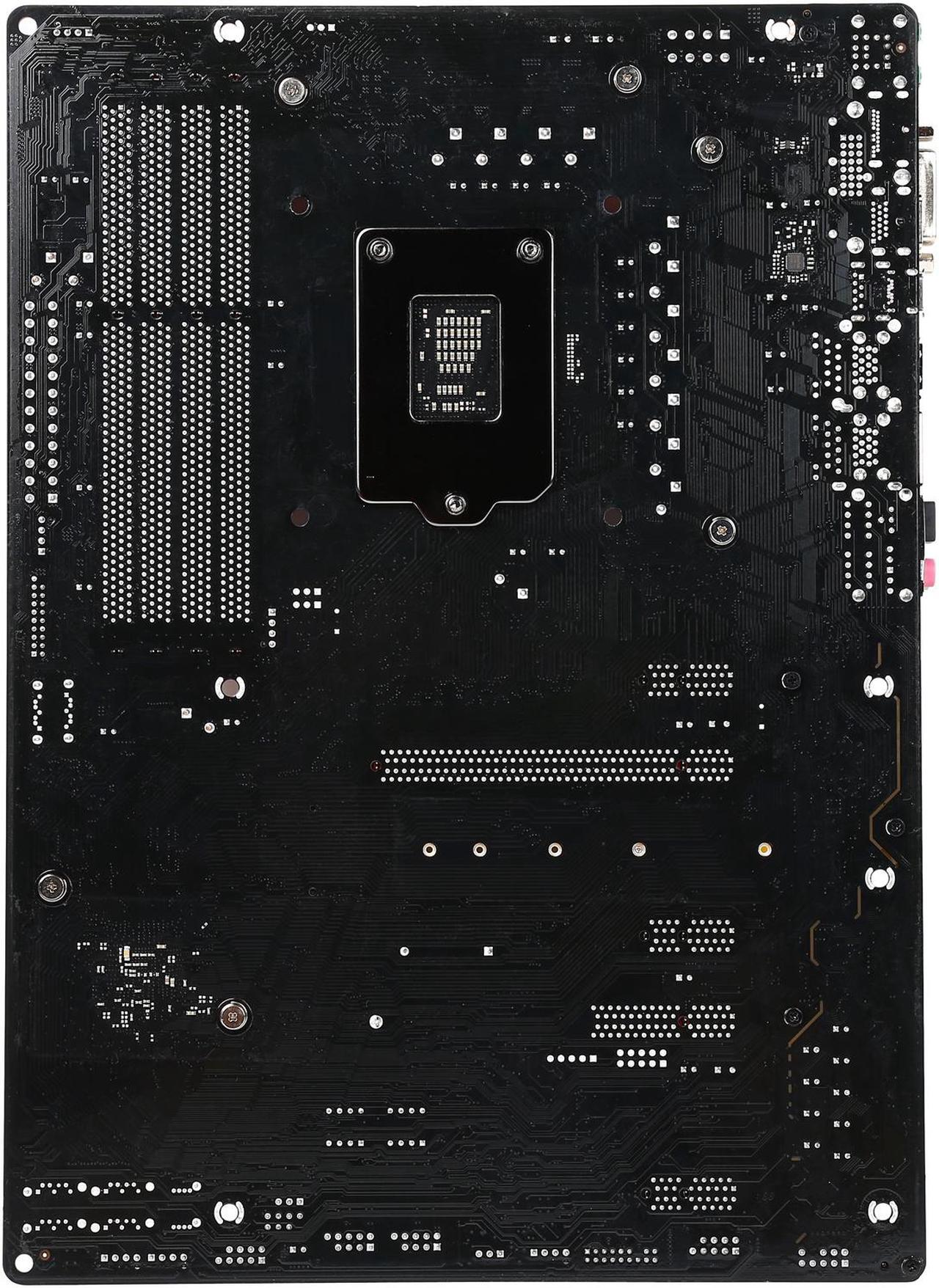

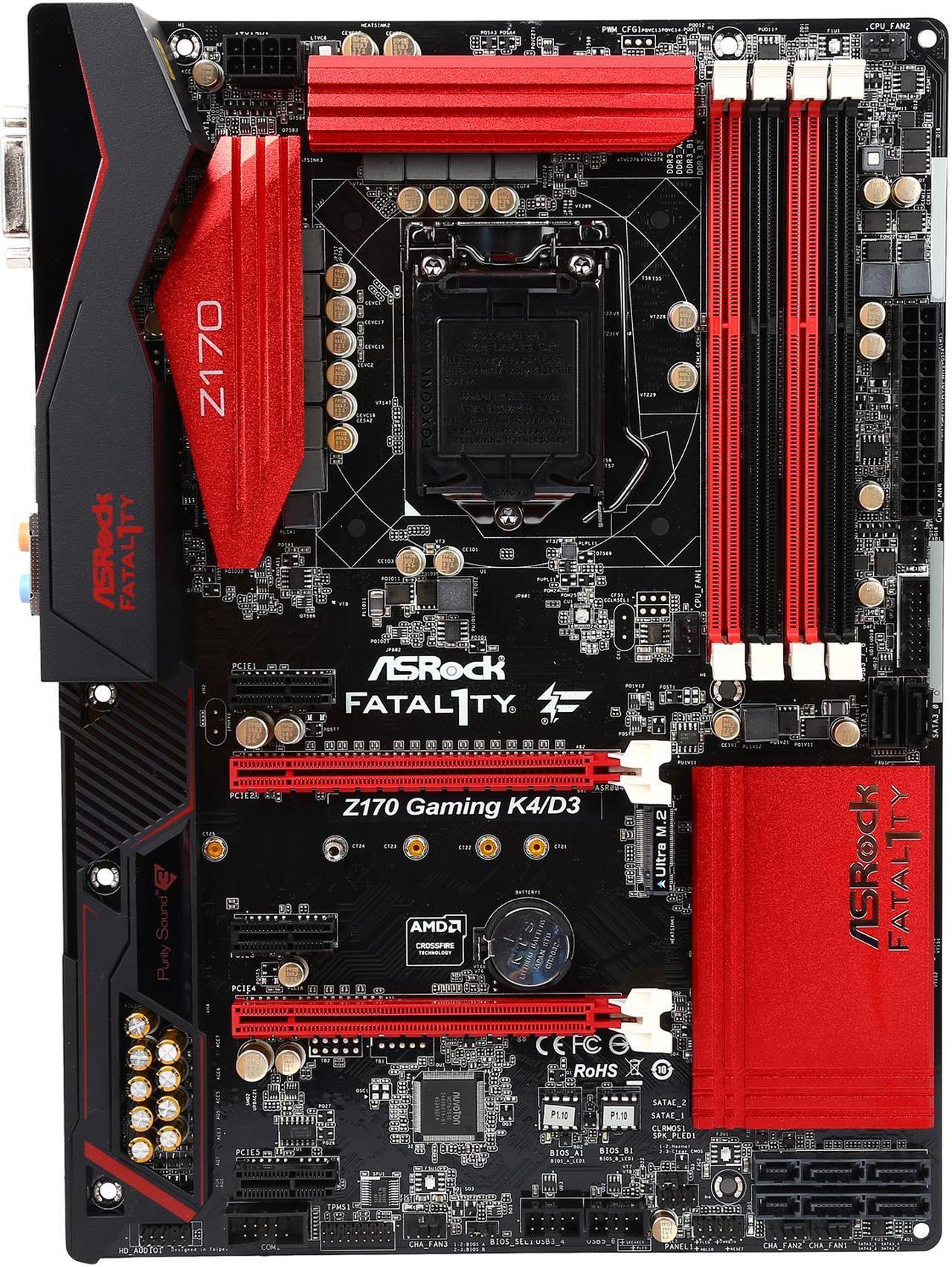

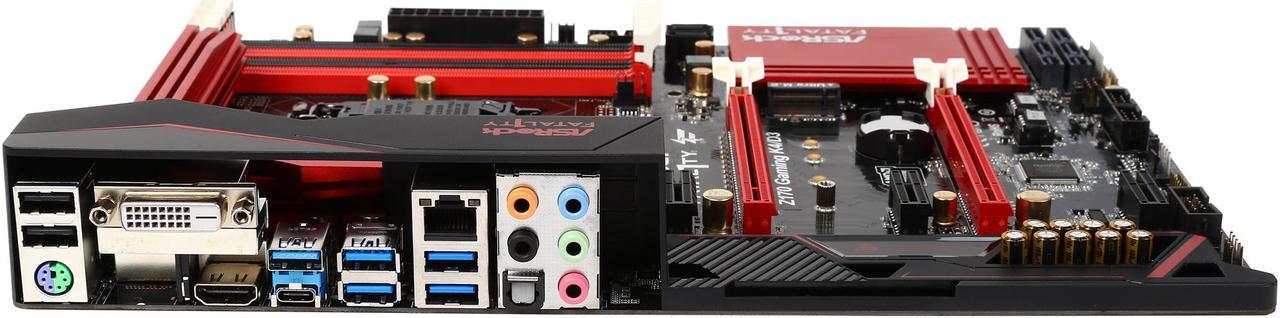

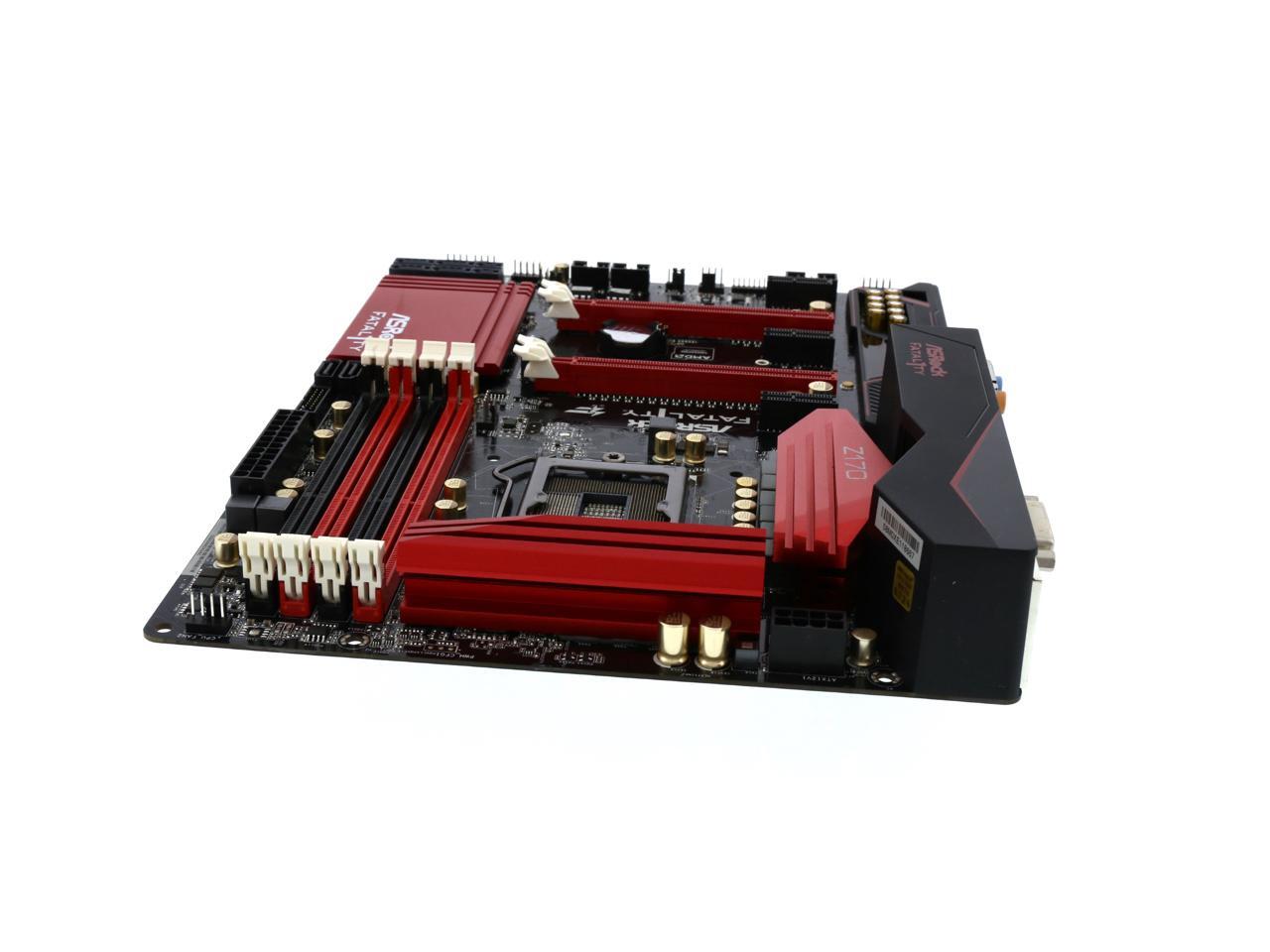

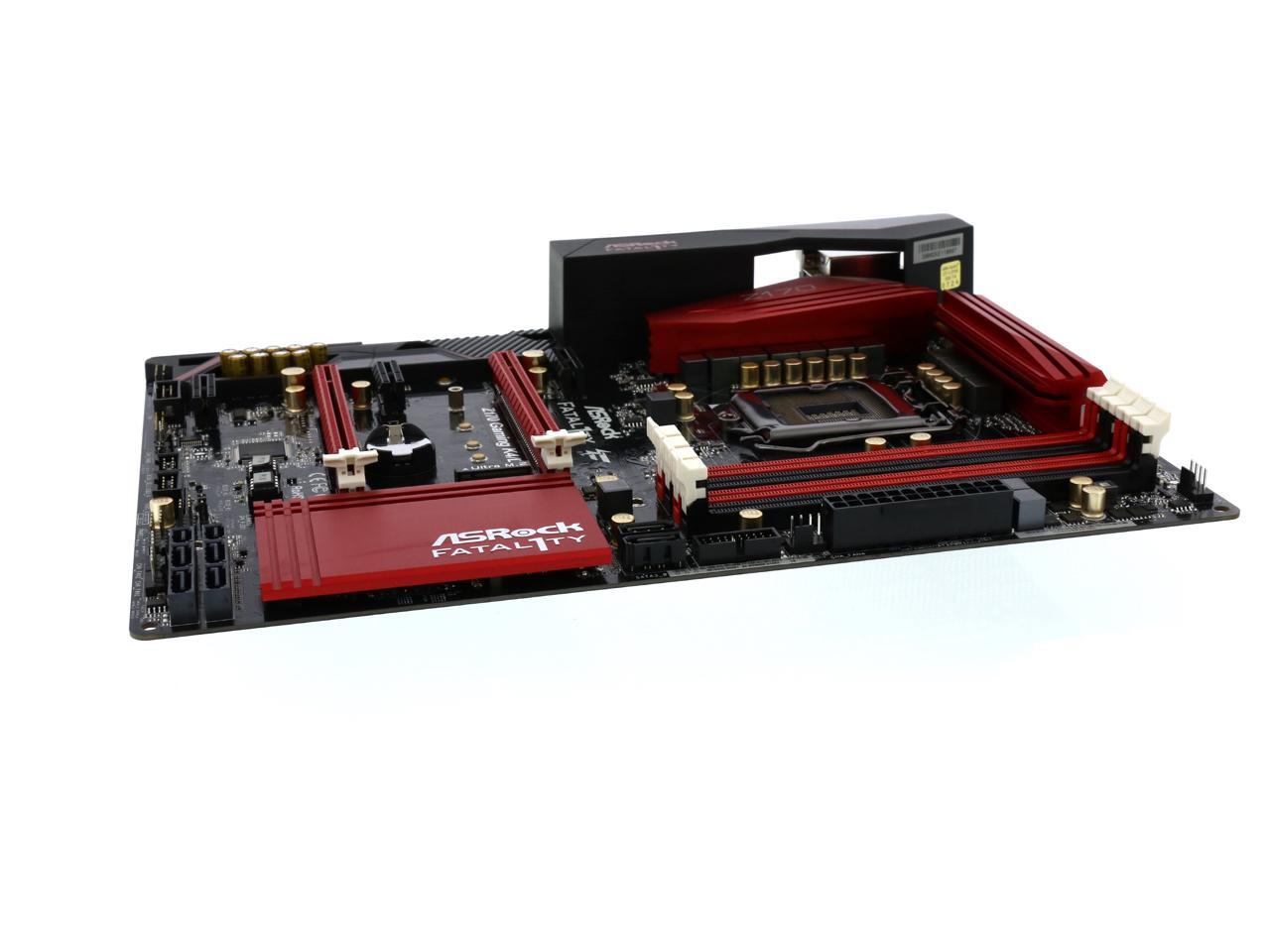

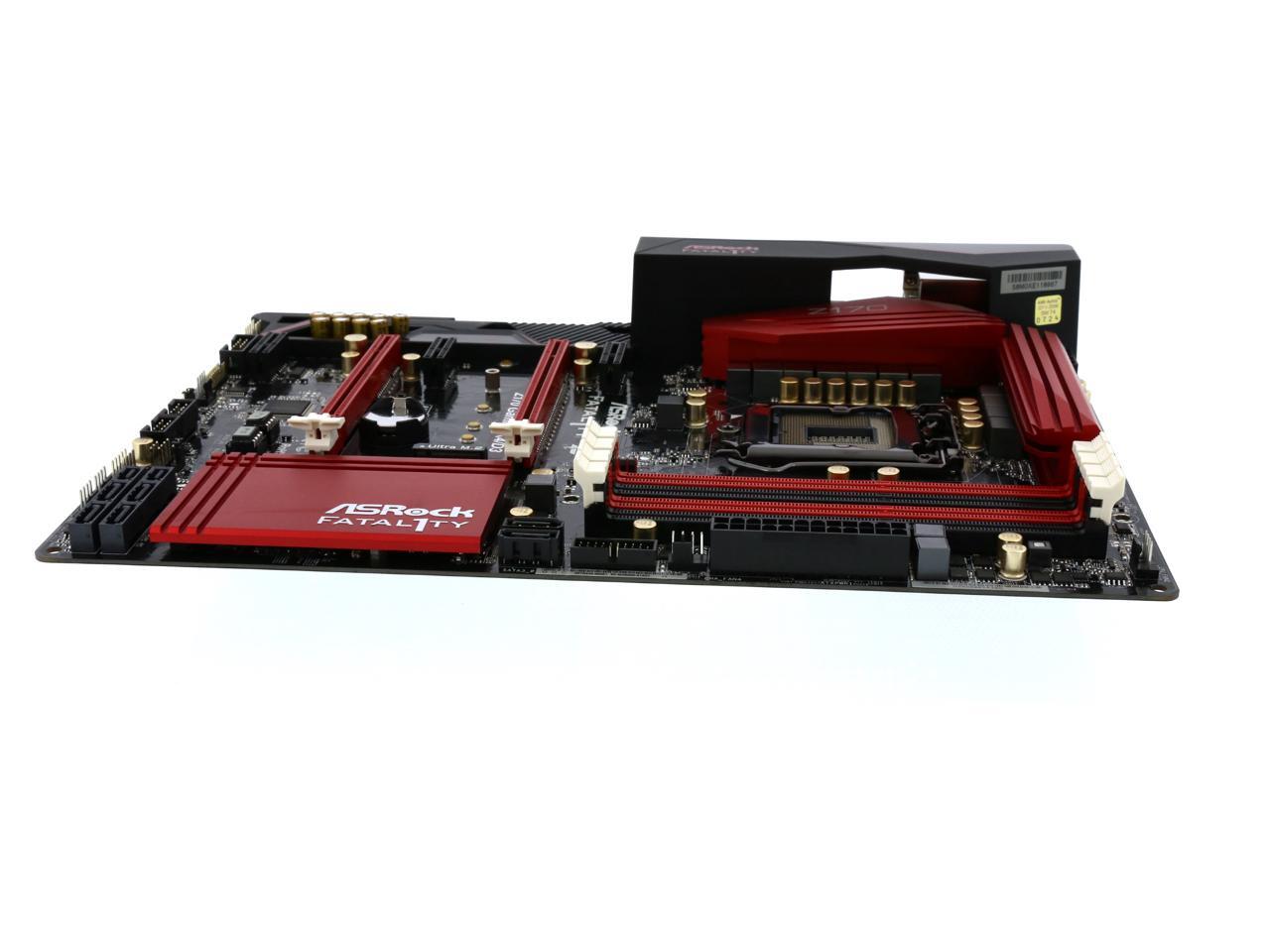

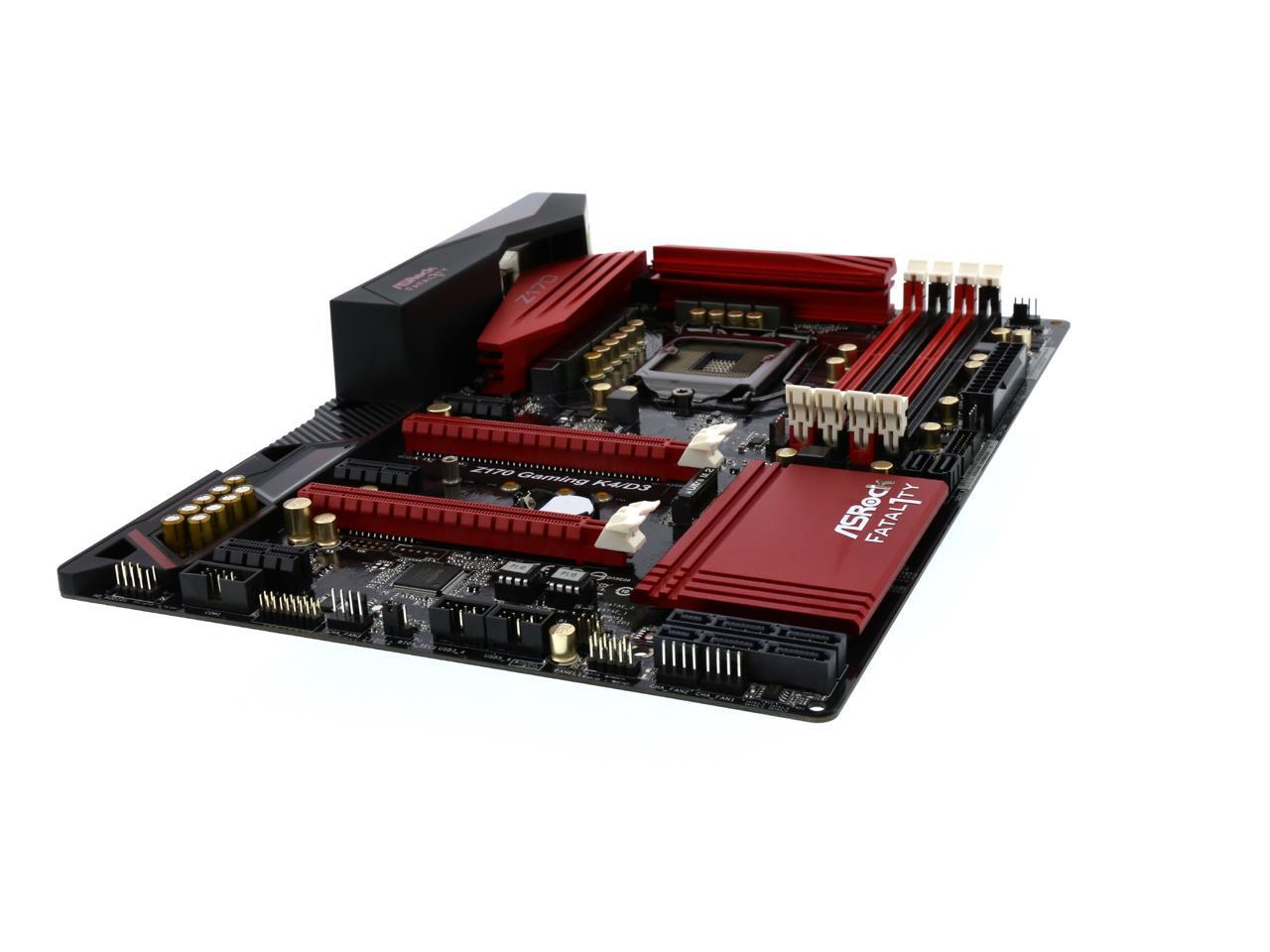

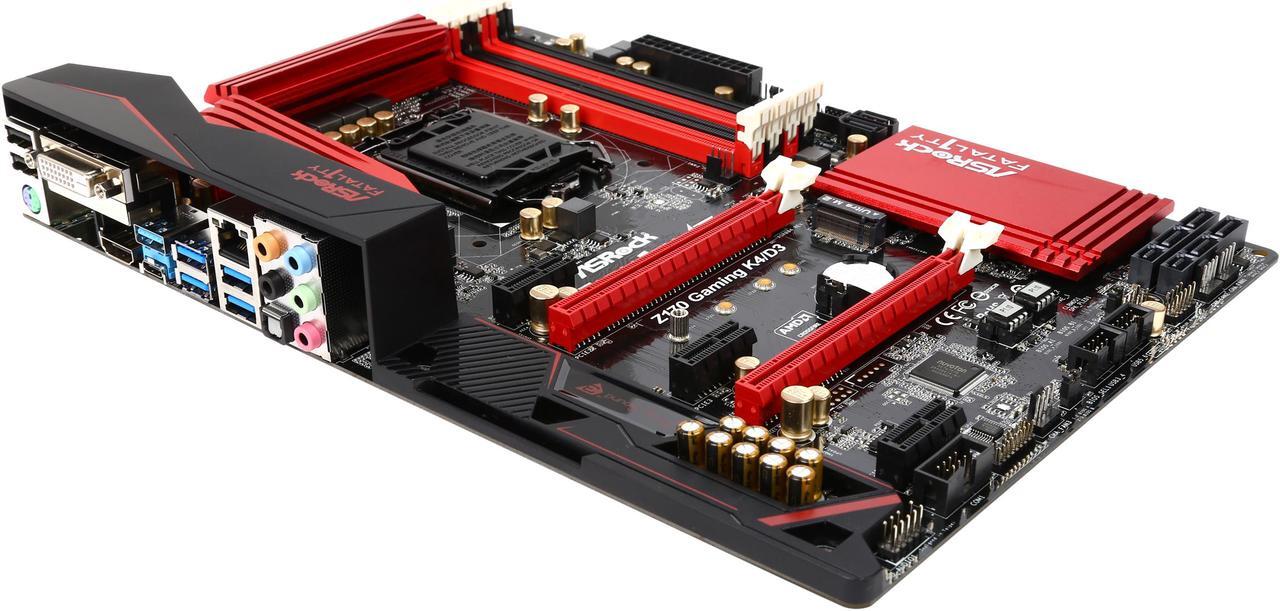

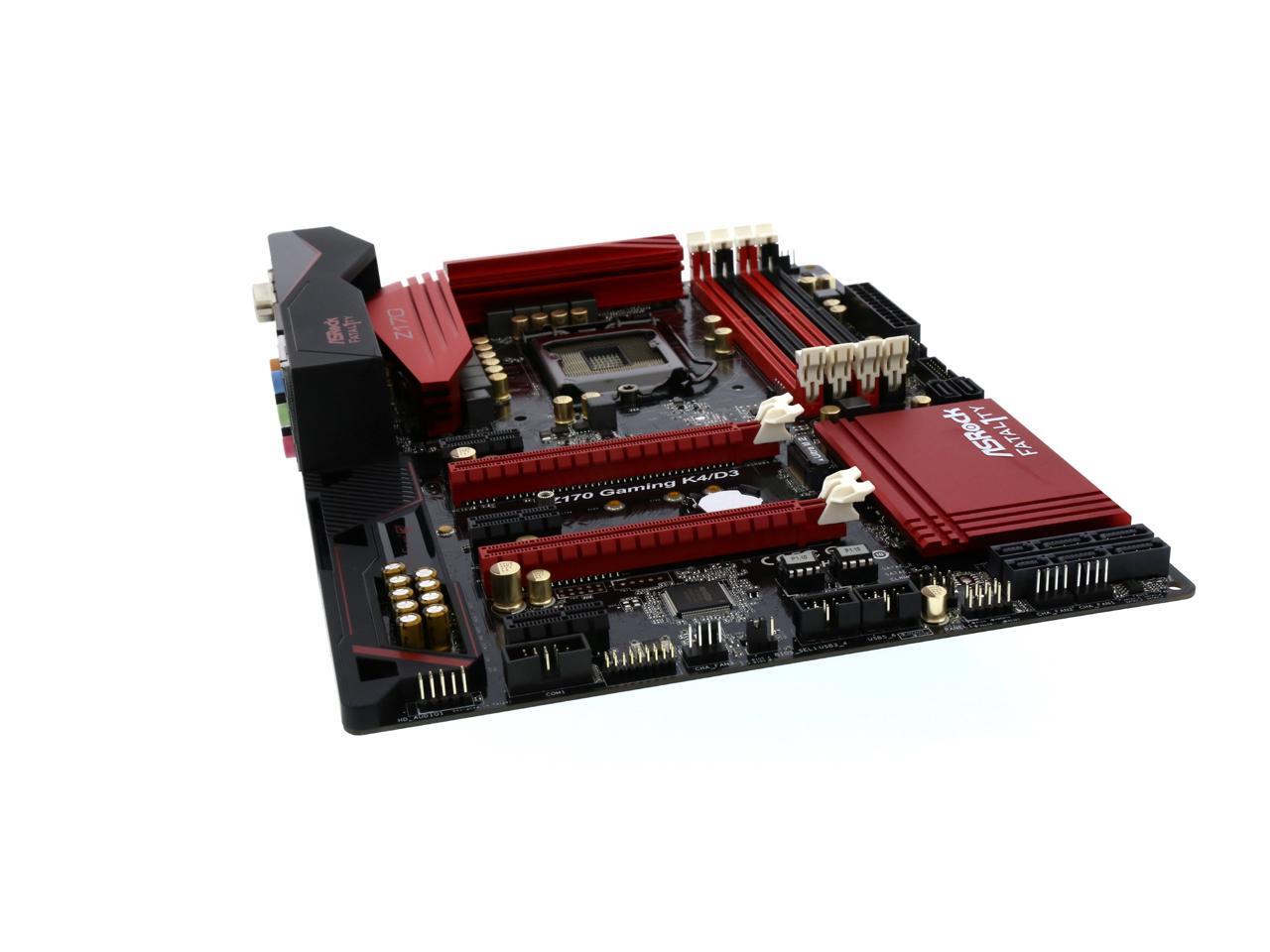

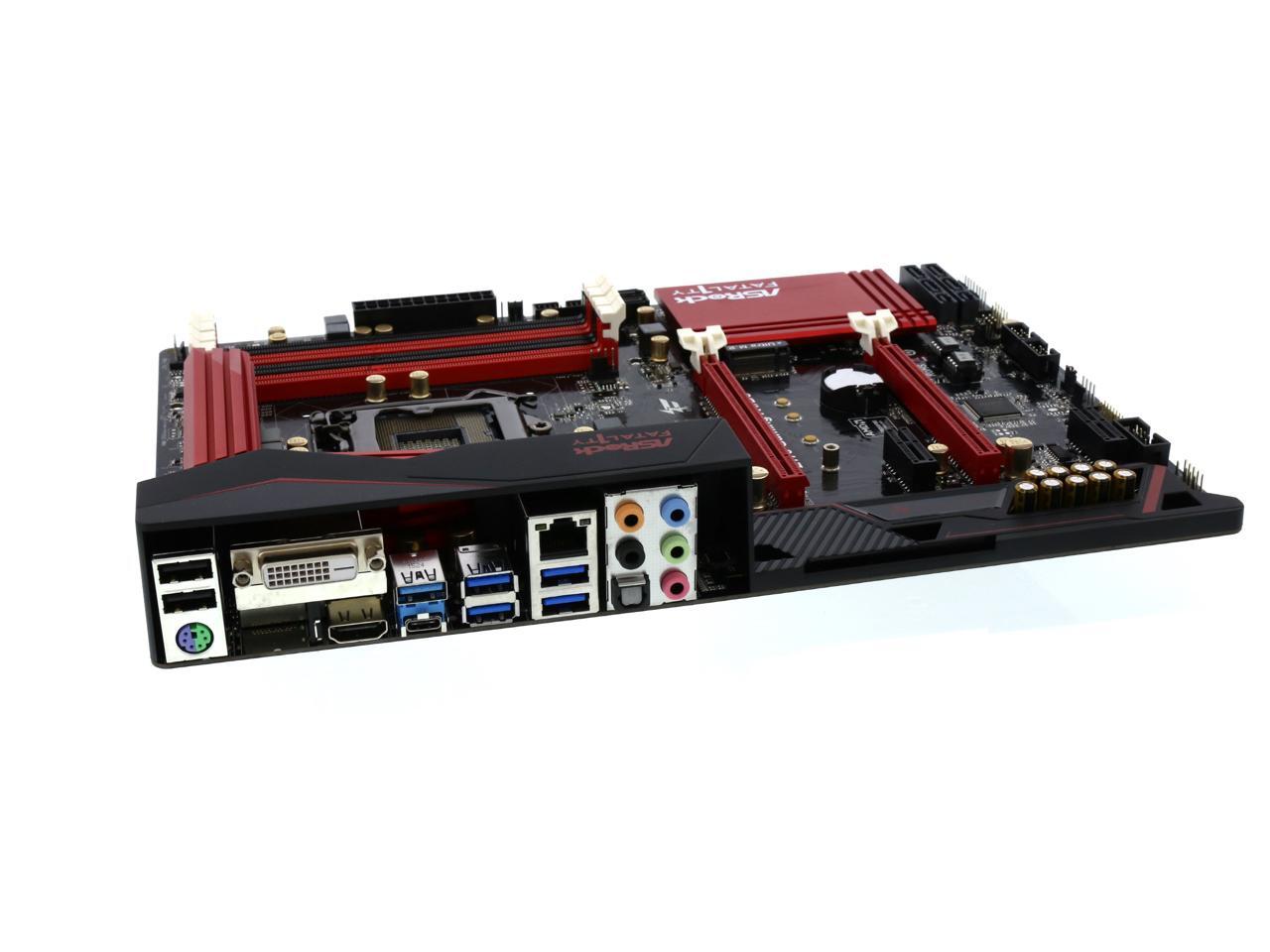

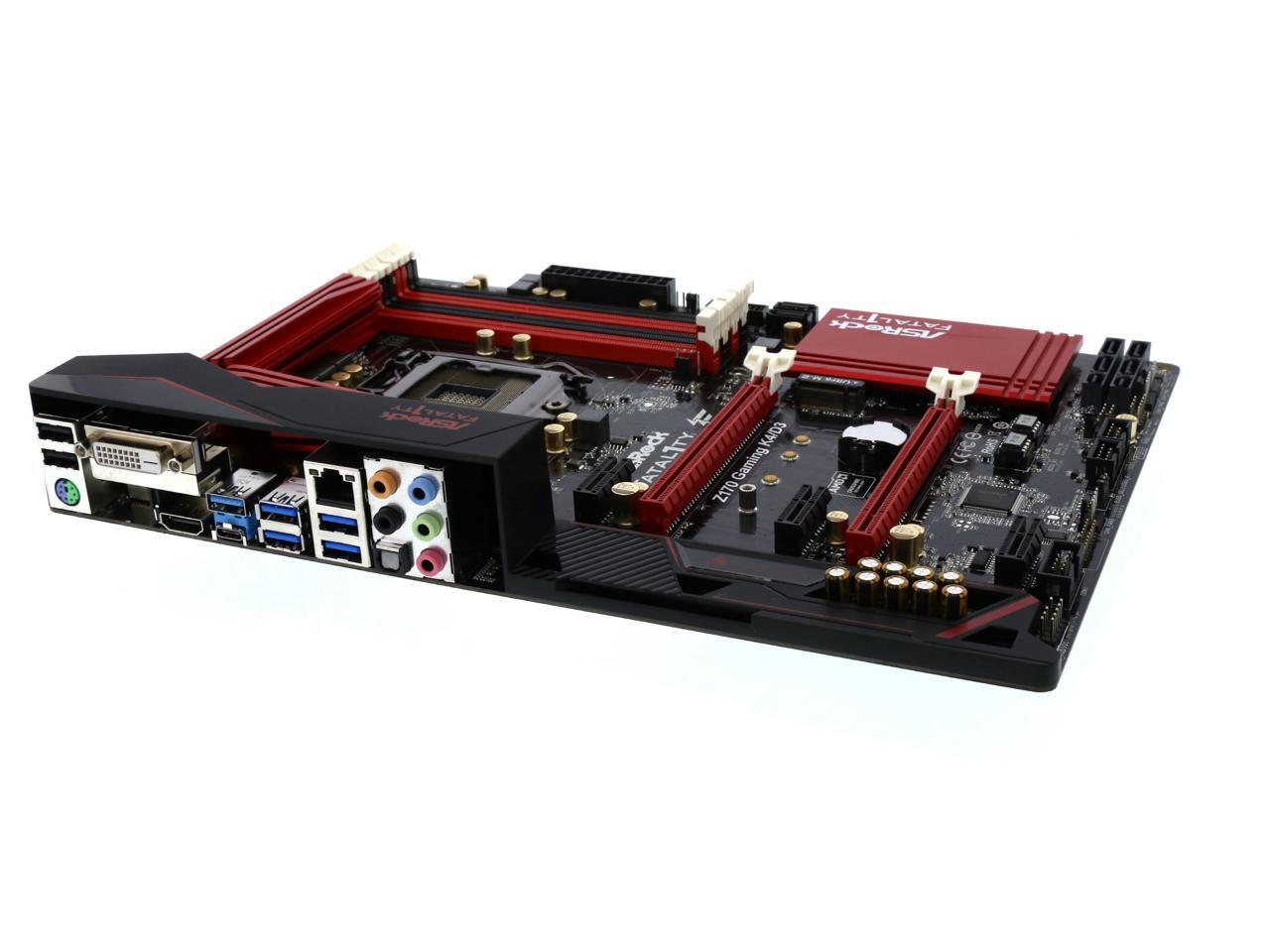

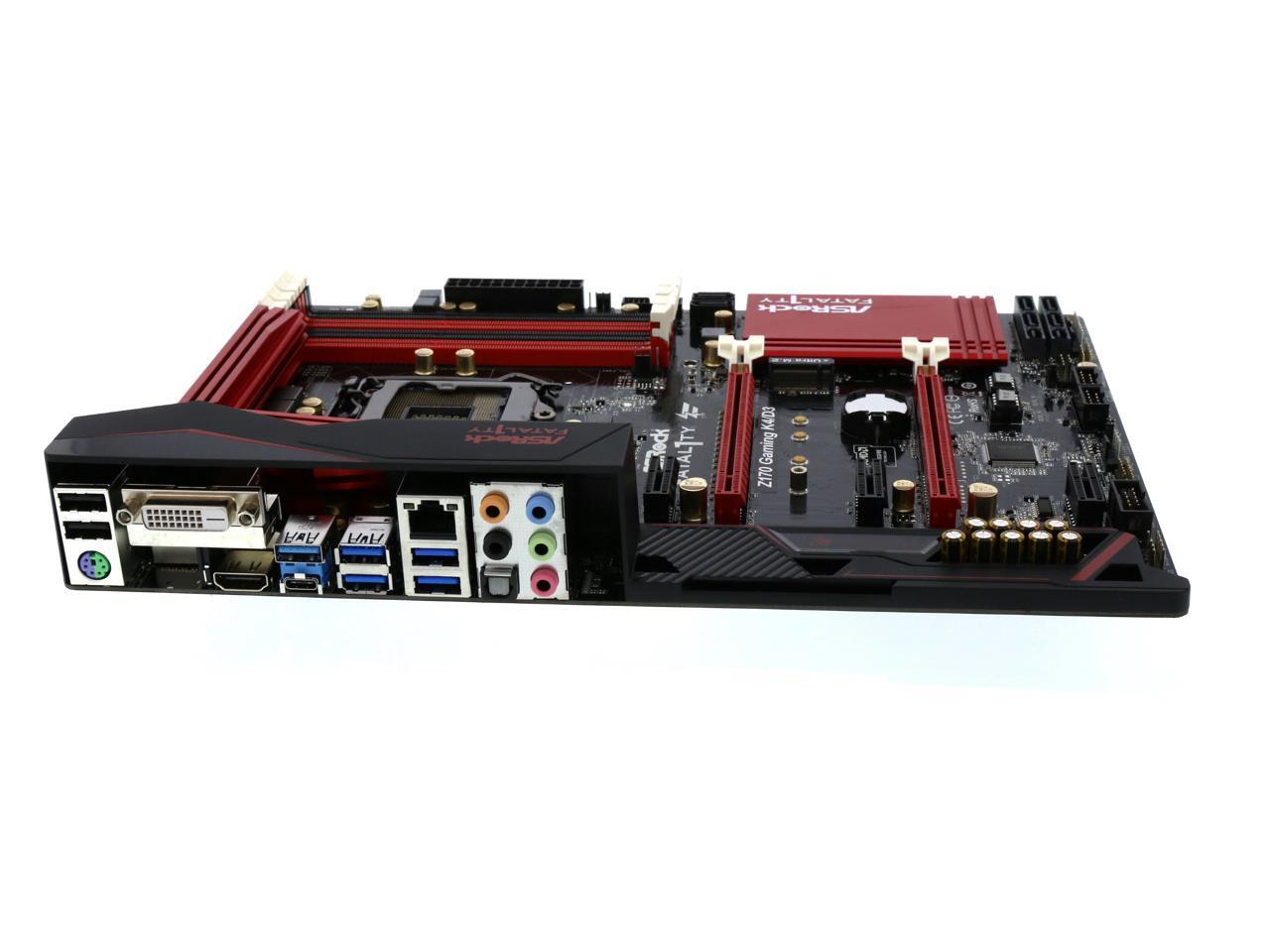

ASRock ASRock Fatal1ty Gaming Z170 Gaming K4/D3 LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard
OPEN BOX Product Type
- Intel Z170
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium
- DDR3/DDR3L 2133+*(*OC)/ 1866*/ 1600/ 1333/ 1066
Specs
Learn more about the ASRock Z170 Gaming K4/D3
| Brand | ASRock |
|---|---|
| Series | ASRock Fatal1ty Gaming |
| Model | Z170 Gaming K4/D3 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Pentium |
| Chipset | Intel Z170 |
|---|
| Onboard Video Chipset | * Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1792MB - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (Hgi h Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3/DDR3L 2133+*(*OC)/ 1866*/ 1600/ 1333/ 1066 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode) |
|---|---|
| PCI Express x1 | 3 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| SATA 6Gb/s | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 14 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug |
|---|---|
| SATA Express | 2 x SATA Express 10 Gb/s Connectors* * Support to be announced * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 and the SATA function of SATA3_2_3 and SATA3_4_5 will be disabled. |
| M.2 | 1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) * Supports ASRock U.2 Kit |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Killer E2400 Series |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| COM | 1 |
| Video Ports | 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 5 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB Type-C | 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection)) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Unique Feature ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection ASRock Live Update & APP Shop Gaming Armor Memory - 15µ Gold Contact in DIMM Slots VGA Card - 15µ Gold Contact in VGA PCIe Slot (PCIE2) Internet - Killer E2400 LAN Cooling - XXL Aluminum Alloy Heatsink Audio - Purity Sound 3 BIOS Feature - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 Support - CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Googel Chrome Browser and Toolbar, XSplit, Killer Network Manager Software - ASRock F-Stream - ASRock Disk Health Report - ASRock USB Key - ASRock Key Master - ASRock APP Charger - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI, Instant Boot) * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI System Browser - ASRock UEFI Tech Service - ASRock Easy RAID Installer - ASRock Easy Driver Installer Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA OS - Microsoft Windows 10 64-bit/8.1 64-bit/7 32-bit/7 64-bit Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Date First Available | September 04, 2015 |
|---|
