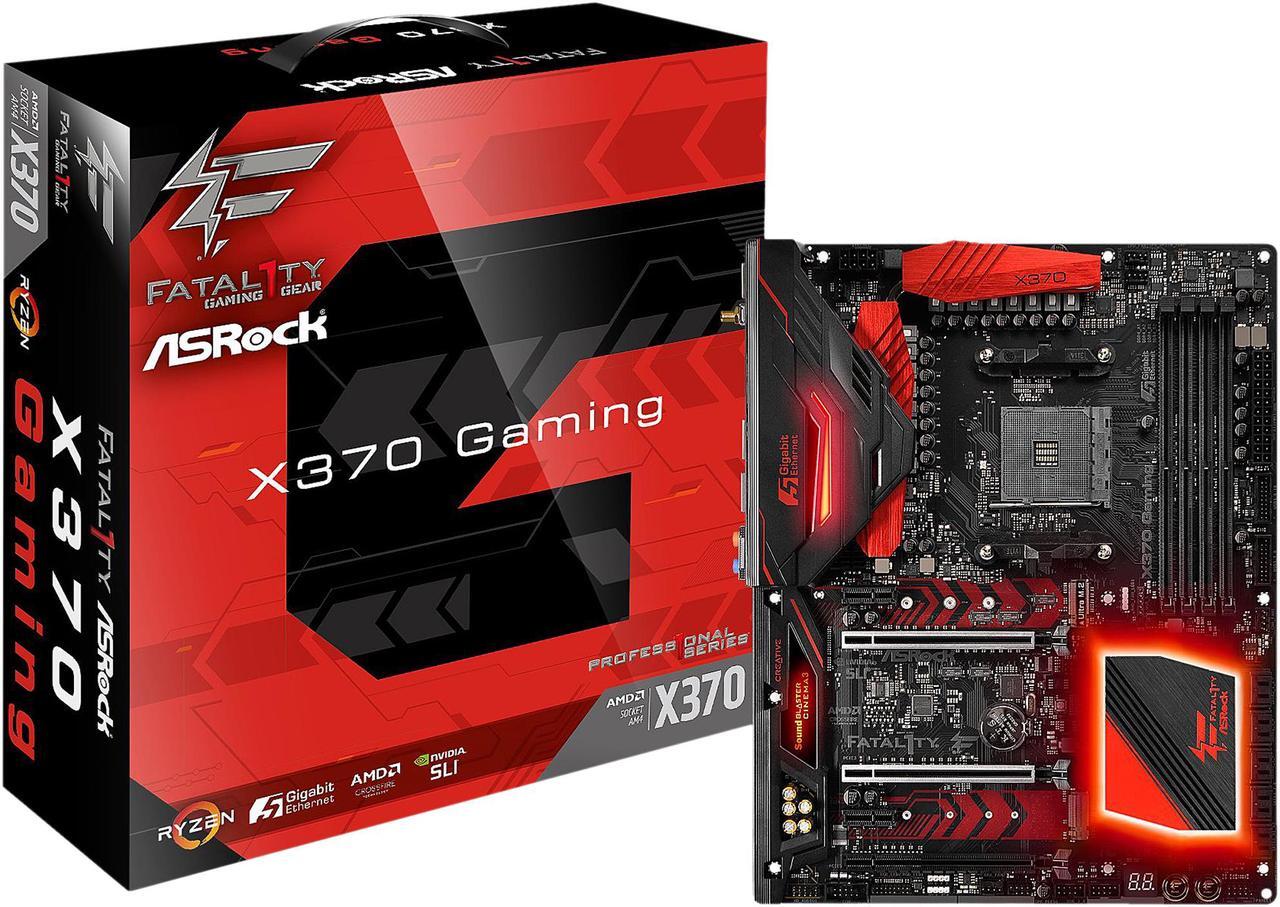

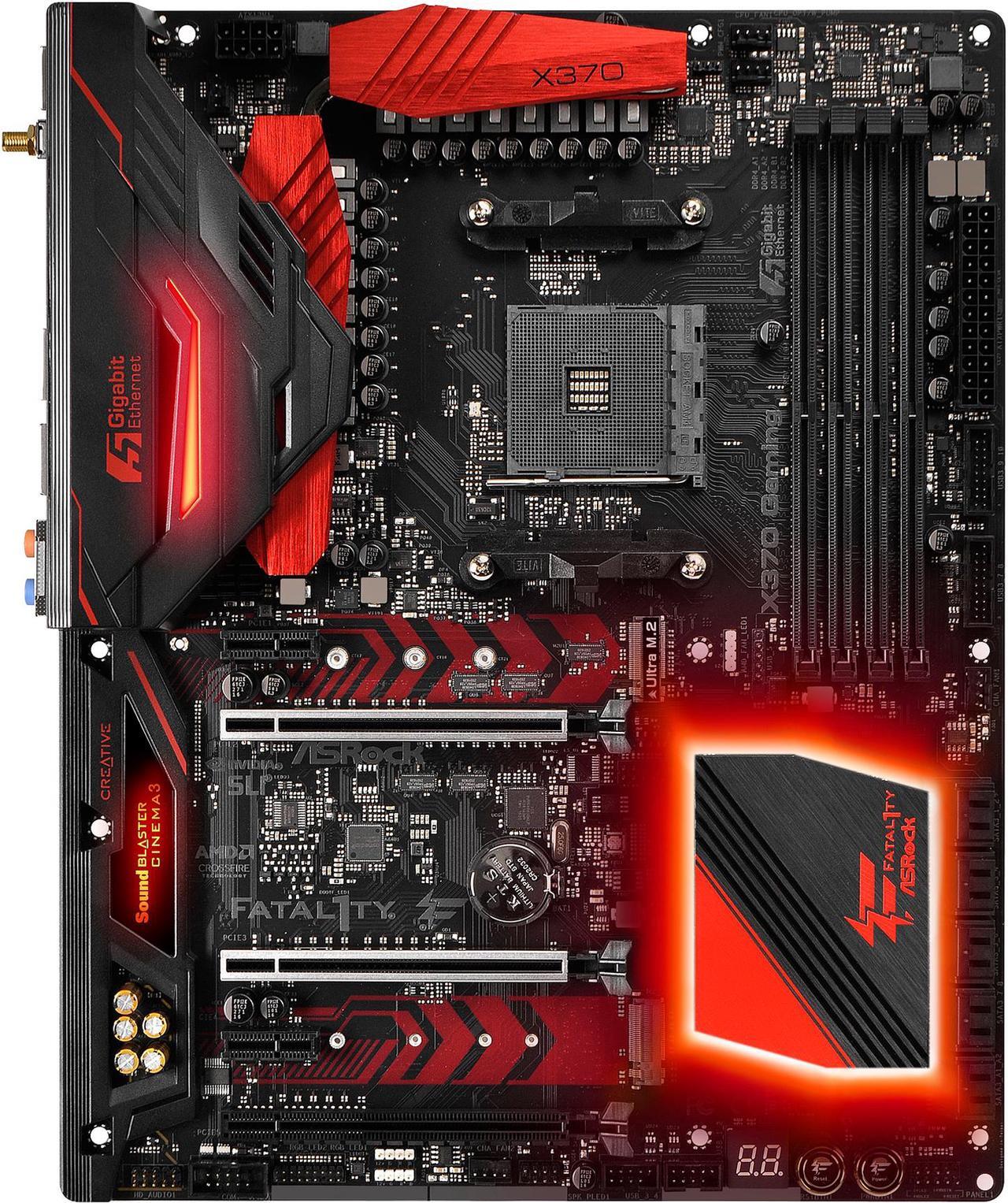

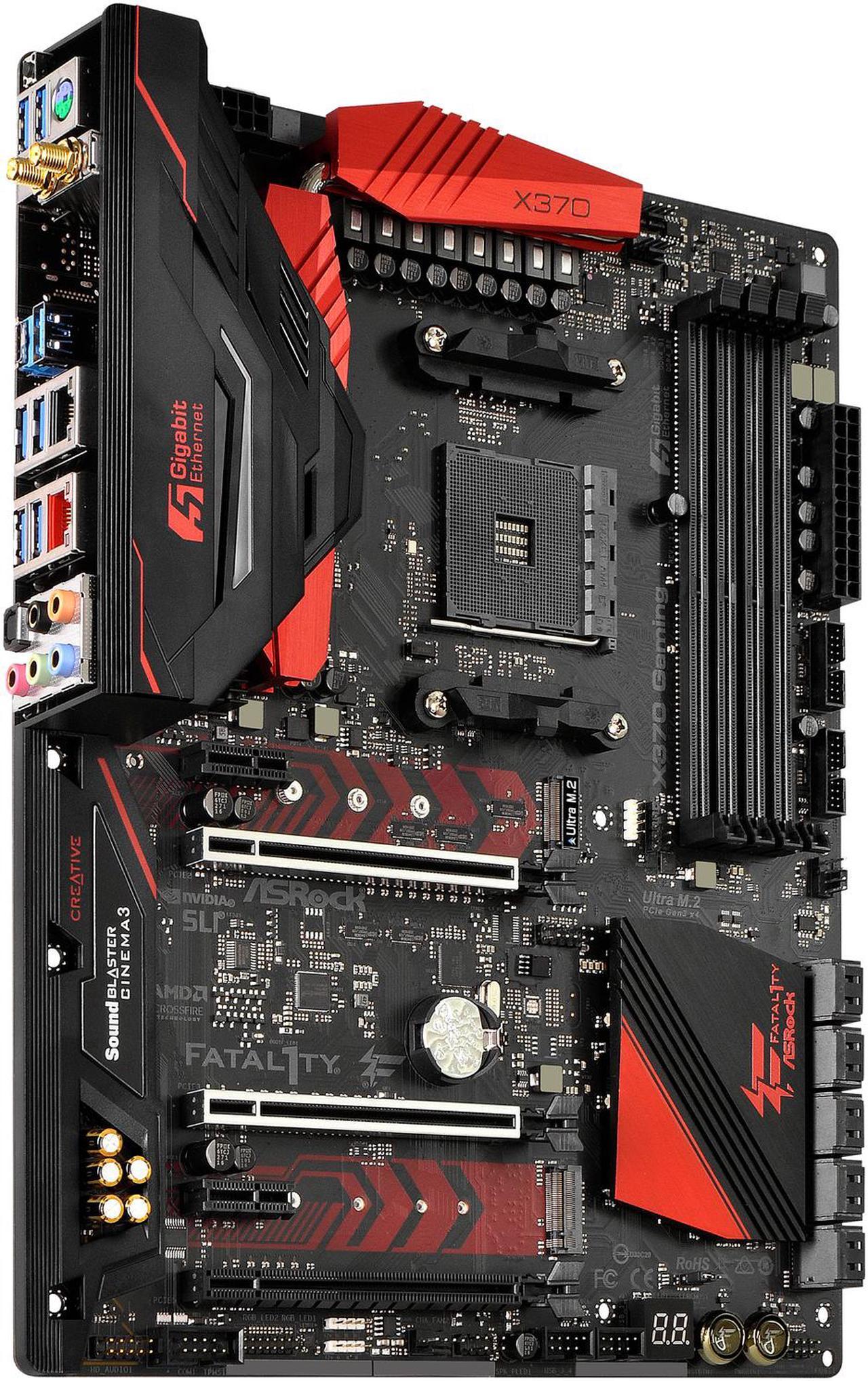

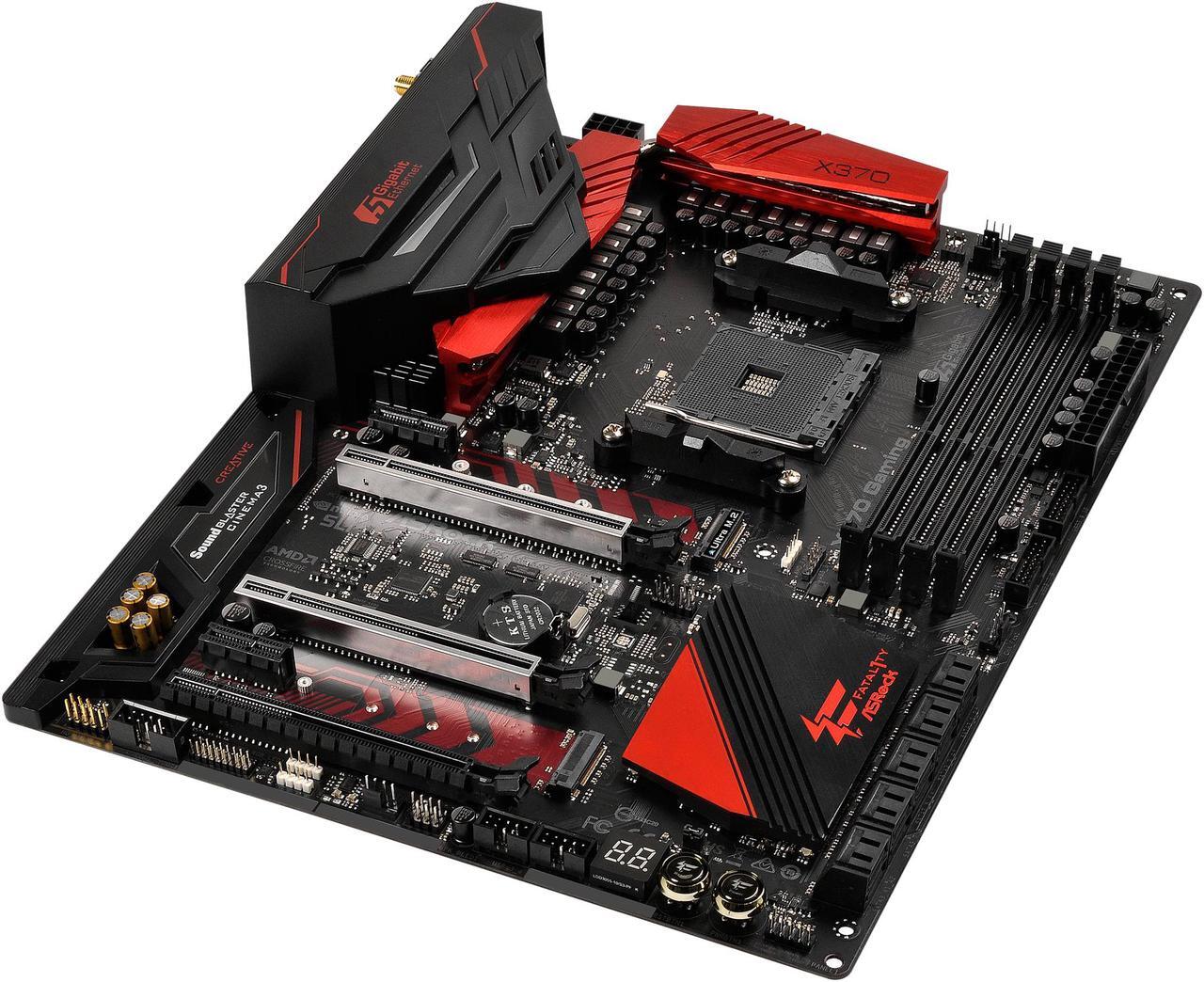

ASRock Fatal1ty X370 Professional Gaming AM4 AMD Promontory X370 ATX AMD Motherboard

OPEN BOX

AMD X370
ATX
ASRock Super Alloy
Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge & Raven Ridge)
Supports DDR4 3200+(OC)
2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1
NVIDIA Quad SLI, AMD Quad CrossFireX
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster Cinema 3
10 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x4)
2 USB 3.1 Gen2 (1 Type-A, 1 Type-C), 10 USB 3.1 Gen1 (4 Front, 6 Rear)
AQUANTIA 5 Gigabit LAN, Intel Gigabit LAN
Intel 802.11ac WiFi + BT 4.2

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

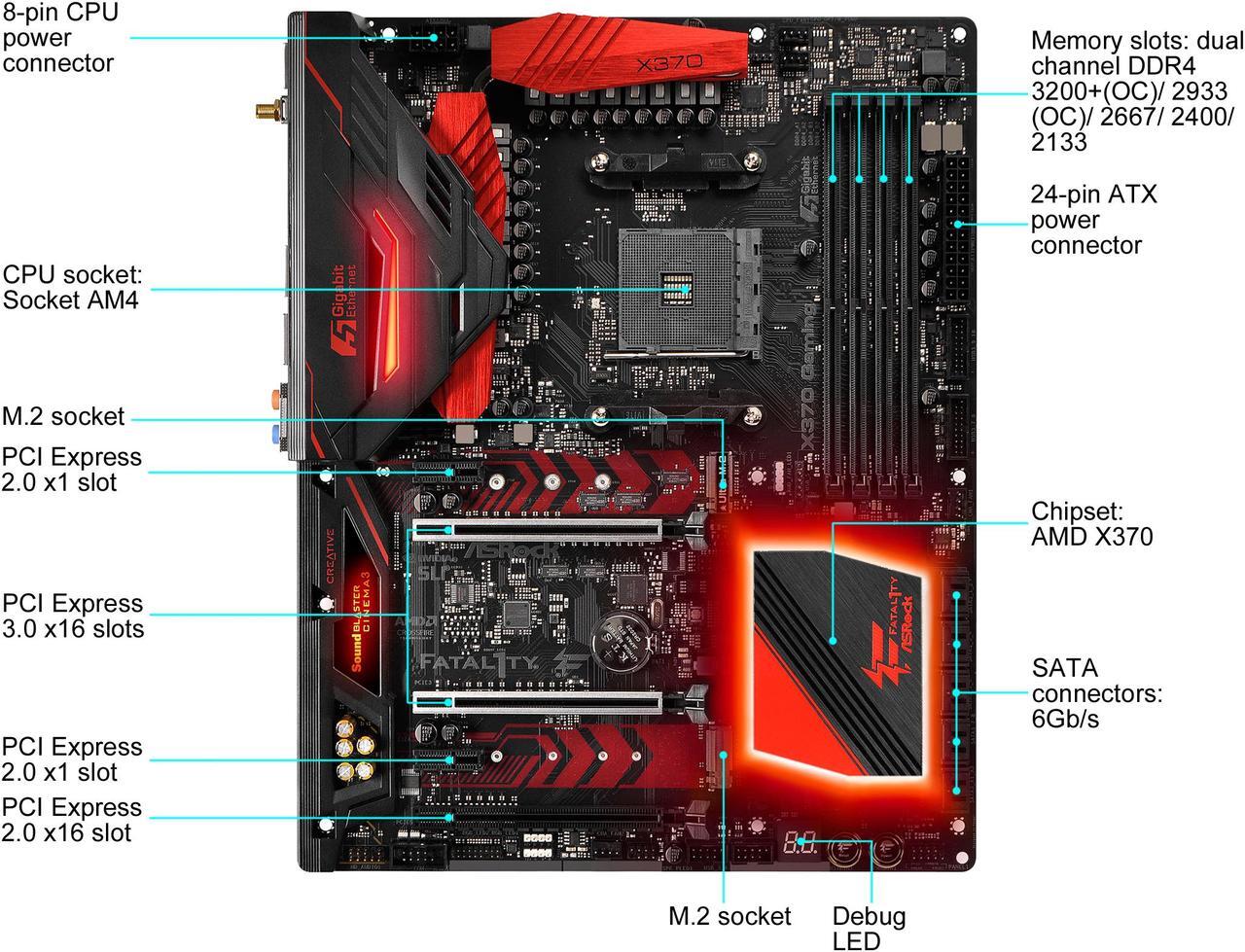

Learn more about the ASRock X370 Professional Gaming

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Socket AM4 Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)

Chipsets
Chipset	AMD Promontory X370

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	AMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Maximum Memory Supported	64GB Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))* AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE2))* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (single at x4 (PCIE2))* * Supports NVMe SSD as boot disks * If PCIE5 slot is occupied, M2_2 will be disabled
PCI Express 2.0 x16	1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode) * If PCIE5 slot is occupied, M2_2 will be disabled
PCI Express x1	2 x PCI Express 2.0 x1 Slots
Other Slots	1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11ac module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE2)

Storage Devices
Serial ATA (SATA)	8 x SATA3 6.0Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
M.2	1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with Athlon 2xxGE series APU)* 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20Gb/s)* * If M2_2 is occupied, PCIE5 slot will be disabled * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	None

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	AQUANTIA AQC108
Second LAN Chipset	Intel I211-AT
Max LAN Speed	5Gbps + 1Gbps

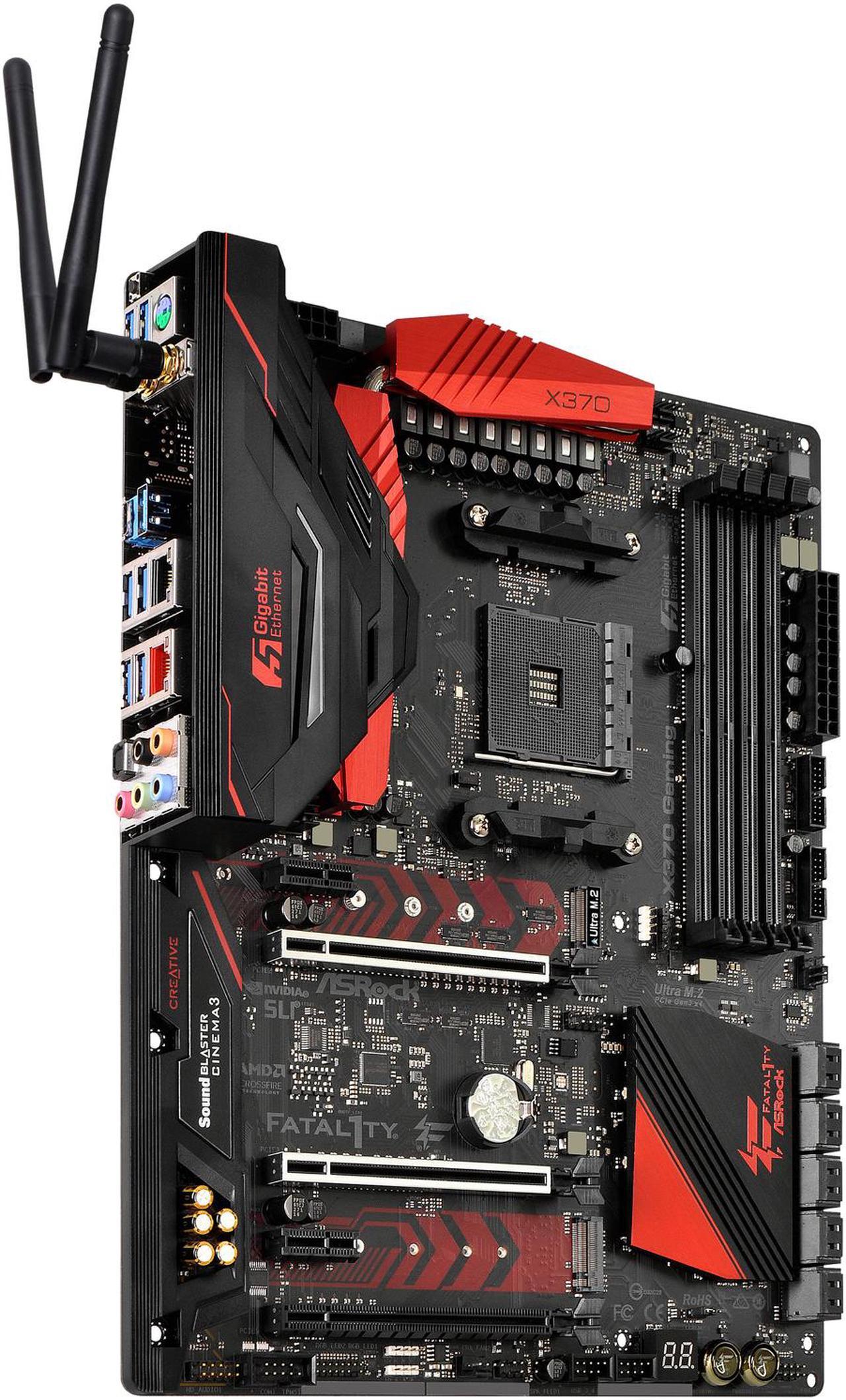

Wireless LAN	Intel 802.11 ac Wi-Fi Module (Free Bundle) - Supports IEEE 802.11 a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433 Mbps
Bluetooth	Bluetooth 4.2 / 3.0 + High speed class II

Rear Panel Ports

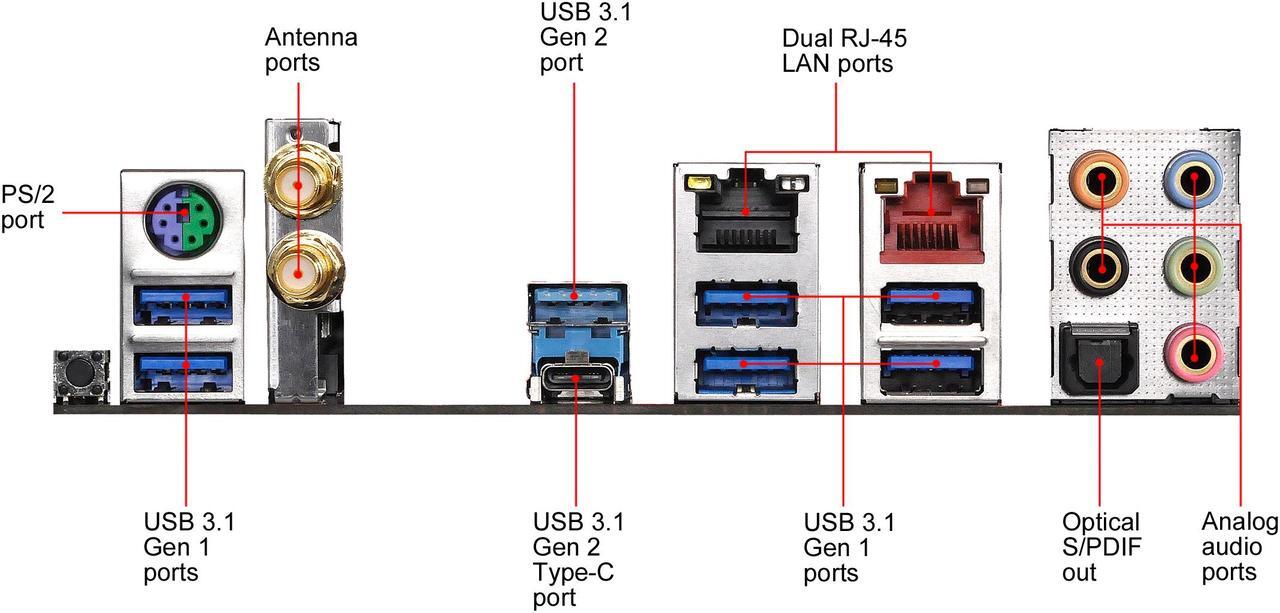

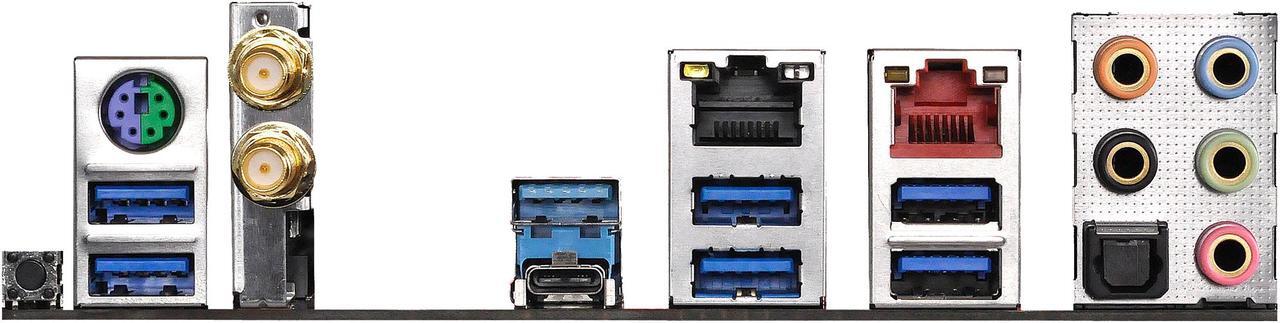

Back I/O Ports	2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x Optical SPDIF Out Port 1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)* 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)** 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_5_6 ports. * ACPI wake-up function is not supported on USB3_5_6 ports. ** 1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included.

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x AMD Fan LED Header* 2 x RGB LED Headers* 1 x CPU Fan Connector (4-pin) 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x AMD LED Fan USB Header 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED * Supports in total up to 12V/3A, 36W LED Strip. * The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. * The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ** The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ** CPU_FAN1, CHA_FAN1, CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	ATX
LED Lighting	RGB

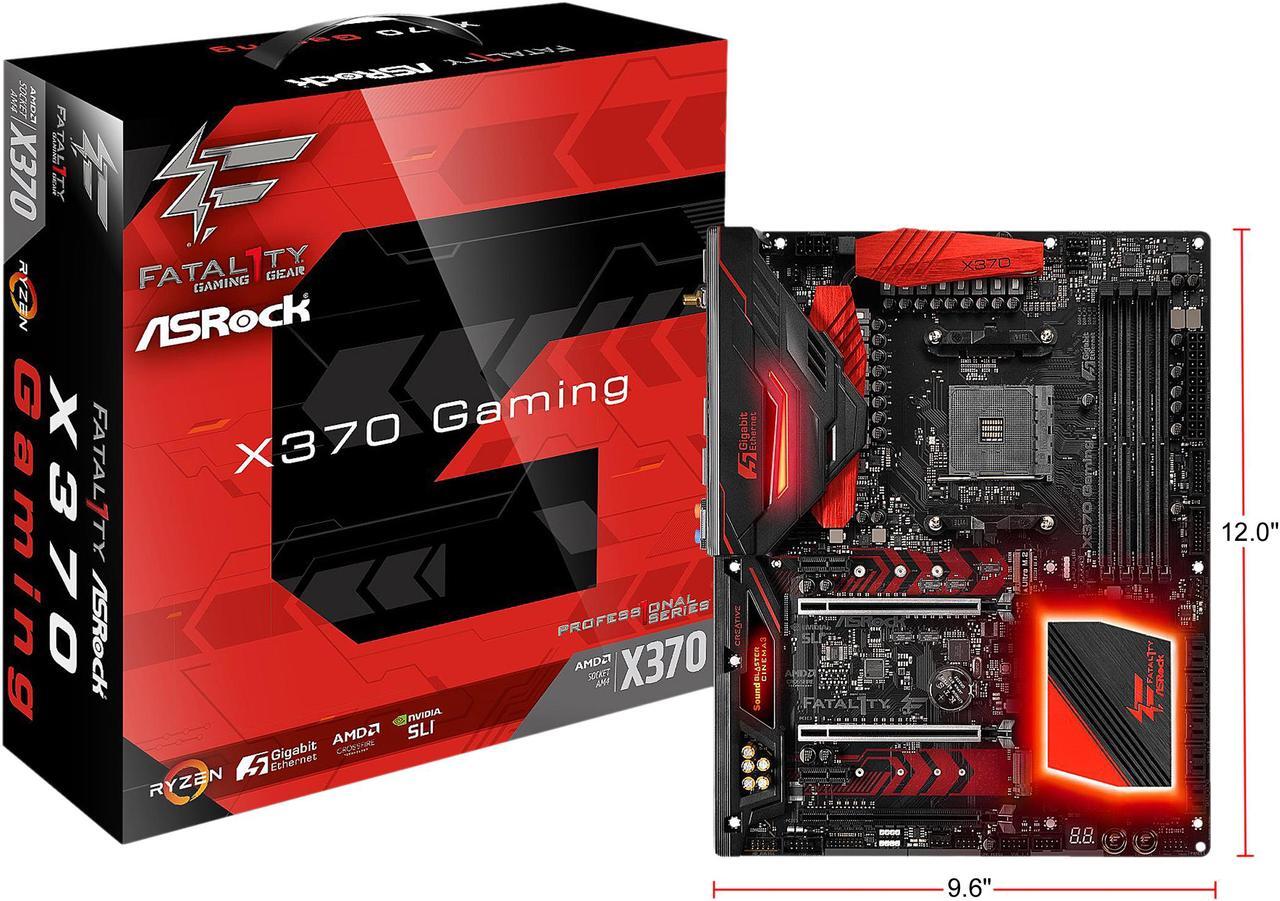

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

Additional Information
Date First Available	June 24, 2018
