ASRock Fatal1ty X399 Professional Gaming sTR4 AMD X399 ATX AMD Motherboard
OPEN BOX Product Type
- AMD X399
- Ryzen Threadripper 1st Gen / Ryzen Threadripper 2nd Gen
- DDR4 3600+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock X399 Professional Gaming
| Brand | ASRock |
|---|---|
| Series | Fatal1ty |
| Model | X399 Professional Gaming |

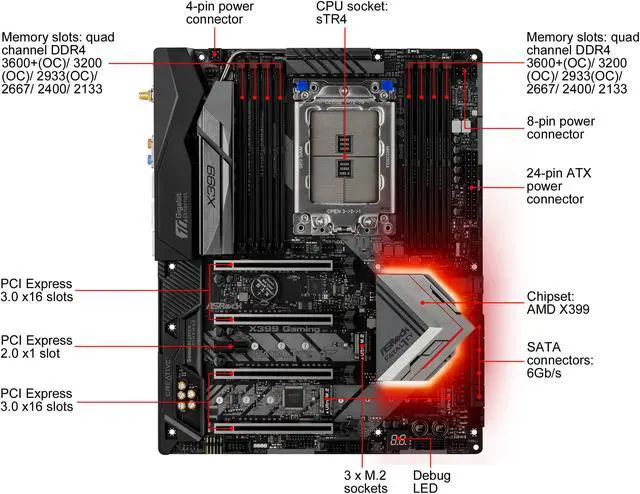

| CPU Socket Type | sTR4 |
|---|---|
| CPU Type | Ryzen Threadripper 1st Gen / Ryzen Threadripper 2nd Gen |
| Chipset | AMD X399 |
|---|
| Number of Memory Slots | 8x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3600+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 |
| Maximum Memory Supported | 128GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4) |
| Serial ATA (SATA) | 8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
|---|---|
| M.2 | 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit 1 x U.2 Connector * If U.2 Connector is plugged, M2_1 will be disabled |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | AQUANTIA AQC107 |
|---|---|
| Second LAN Chipset | 2 x Intel I211AT |
| Max LAN Speed | 10Gbps + 2 x 1Gbps |
| Wireless LAN | Intel 802.11 ac Wi-Fi Module (Free Bundle) Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band (2.4/5 GHz) Supports high speed wireless connections up to 433 Mbps |
| Bluetooth | Supports Bluetooth 4.2 / 3.0 + High speed class II |

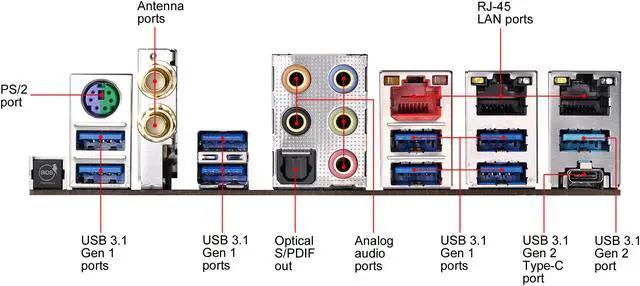

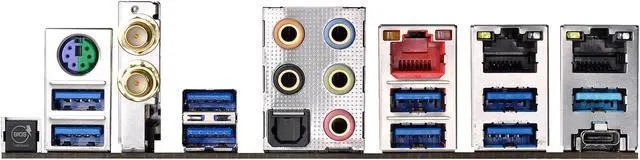

| Back I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x Optical SPDIF Out Port 1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection) 8 x USB 3.1 Gen1 Ports (Supports ESD Protection) 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Switch HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_6 port. * ACPI wake-up function is not supported on USB3_6 port. * 1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included. |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 1 x CPU Fan Connector (4-pin)** 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 1 x Front Panel Audio Connector (15µ Gold Audio Connector)***** 1 x Right Angle Front Panel Audio Connector***** 1 x Clear CMOS Switch 1 x Dr. Debug with LED 1 x Power Switch with LED 1 x Reset Switch with LED 1 x CPU Xtreme OC Switch * Each header supports up to 12V/3A, 36W LED Strip. ** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *** The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. **** CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use. ****** Connect the audio device to either one of the audio connectors. |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |

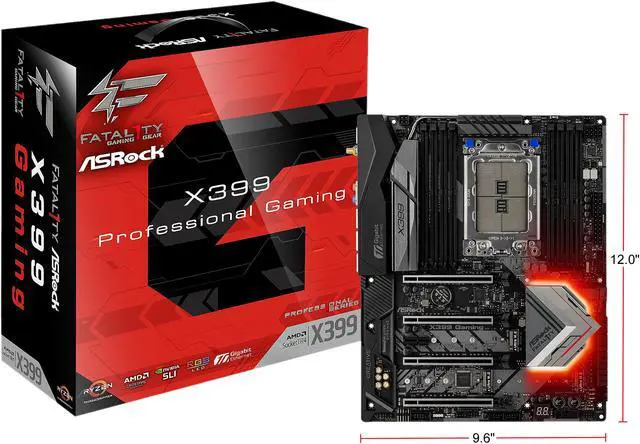

| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) 1 x 4-pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) 1 x 6-pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card) |
| Features | Gaming Armor: Power - Hi-Density Power Connectors (24-pin for Motherboard, 8+4-pin for Motherboard, 6-pin for PCIe Slot) - IR Dr. MOS Memory - 15µ Gold Contact in DIMM Slots VGA Card - 15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4) Internet - AQUANTIA 10G LAN - Intel LAN Cooling - XXL Aluminum Alloy Heatsink - 8 Layer PCB - 2oz Copper PCB - Heat Pipe Design Audio - Creative Sound Blaster Cinema 3 Unique Feature: ASRock USB 3.1 Gen2 - ASRock USB 3.1 Gen2 Type-A Port (10Gb/s) - ASRock USB 3.1 Gen2 Type-C Port (10Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - IR3555M Dr. MOS 60A - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB AQUANTIA 10G LAN Intel 802.11 ac Wi-Fi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Software and UEFI: Software - ASRock F-Stream - ASRock RGB LED - ASRock Key Master - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Crashless BIOS - ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar OS: - Microsoft Windows 10 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| First Listed on Newegg | June 24, 2018 |
|---|
