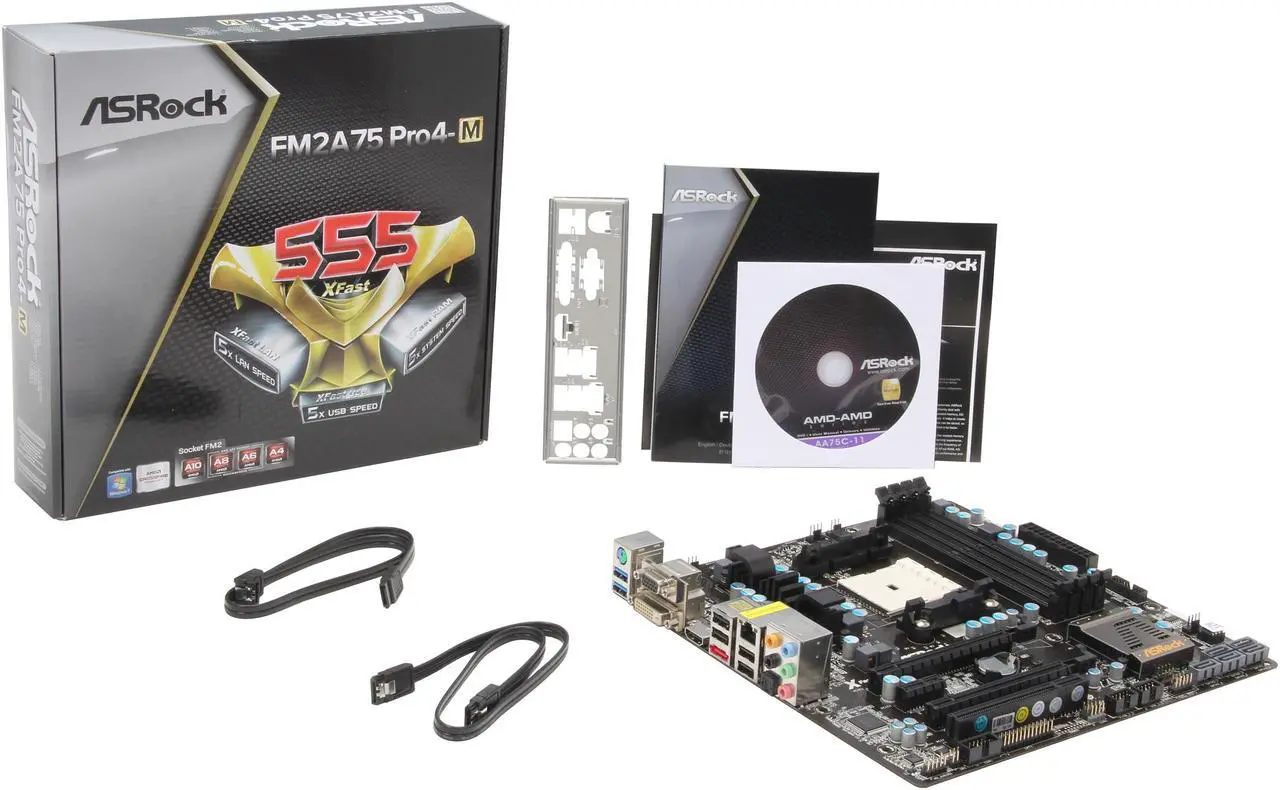

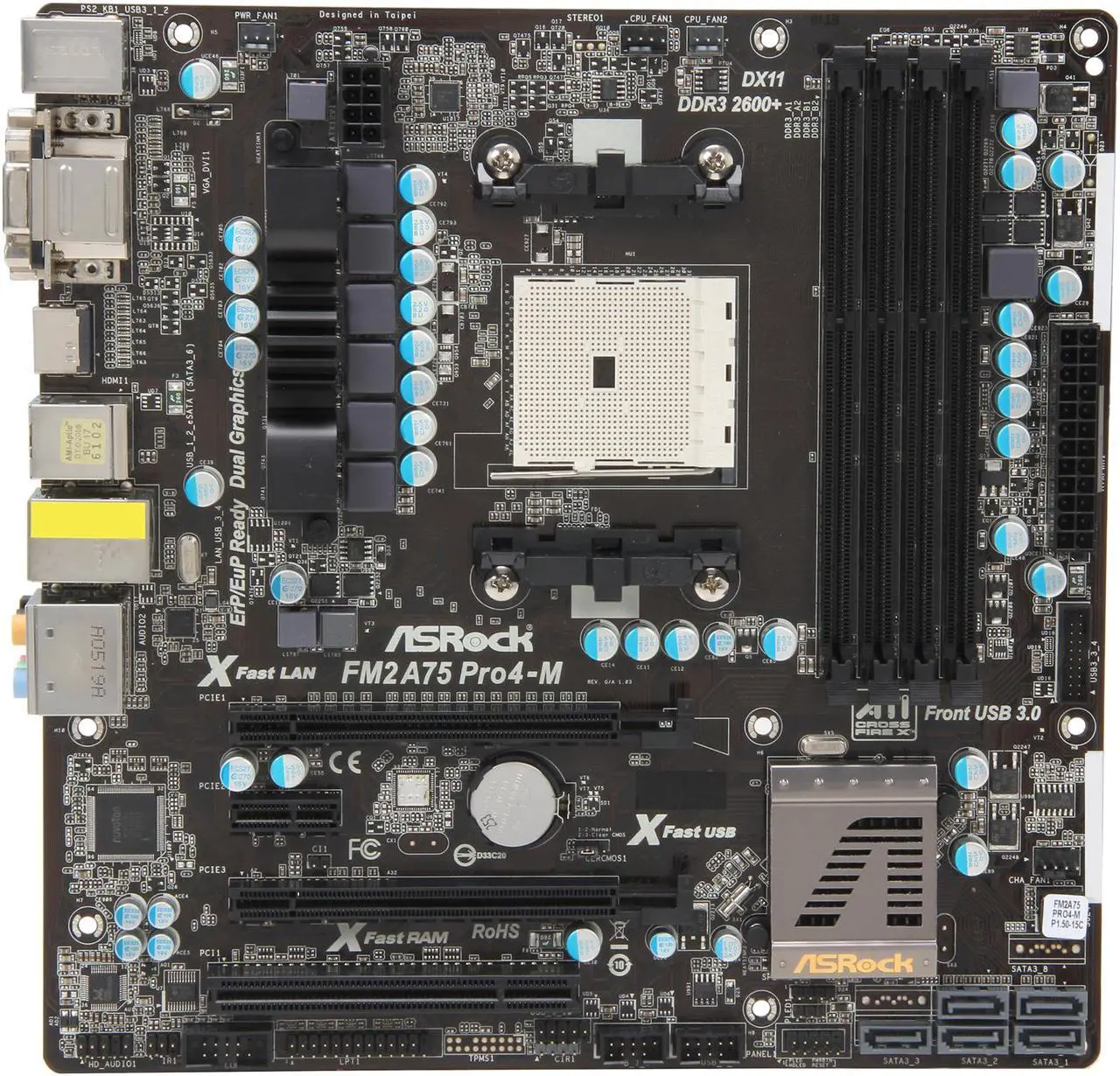

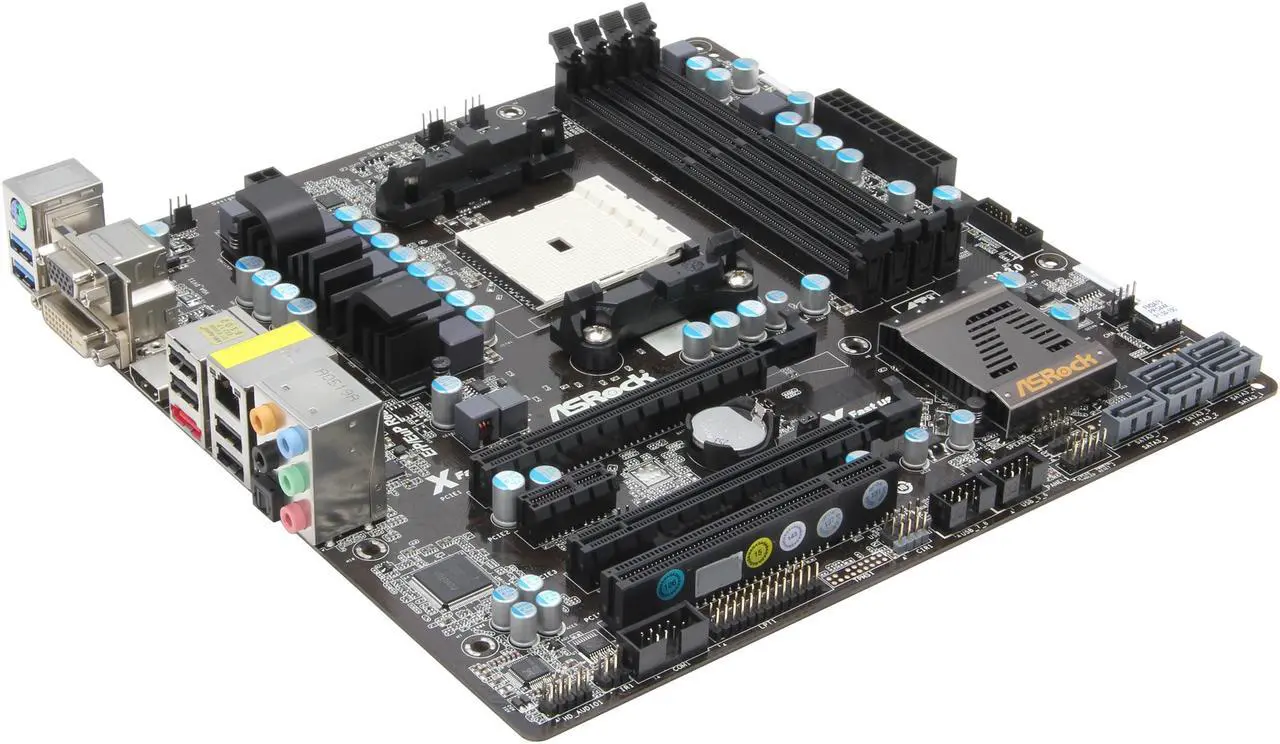

ASRock FM2A75 Pro4-M FM2 AMD A75 (Hudson D3) SATA 6Gb/s USB 3.0 HDMI Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD A75 (Hudson D3)
  • APU (FM2 Socket)
  • DDR3 2600+(OC)/2400(OC)
Specs
Reviews

Learn more about the ASRock FM2A75 Pro4-M

Model
Brand ASRock
Model FM2A75 Pro4-M
Supported CPU
CPU Socket Type FM2
CPU Type APU (FM2 Socket)
Chipsets
Chipset AMD A75 (Hudson D3)
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066/800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16, x4)
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 6Gb/s 5 x SATA 6Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps

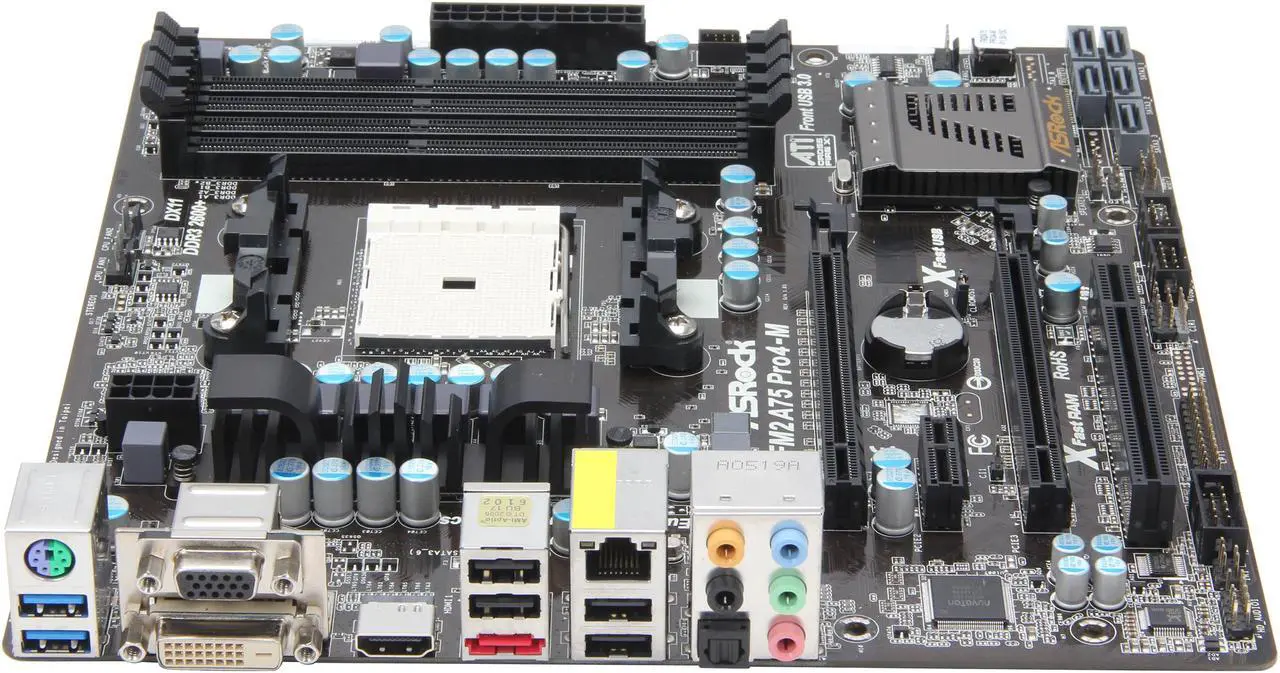

Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
eSATA 1 x eSATA 6Gb/s
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 6 x USB 2.0
Other Connectors 1 x CIR header
1 x Print port header
1 x COM port header
1 x Power LED header
1 x Chassis Intrusion header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
1 x Chassis Fan connector (4-pin)
1 x Power Fan connector (3-pin)
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features Support for Socket FM2 100W processors

AMD A75 Hudson D3 Chipset Supports Native 6 x SATA3, 4 x USB 3.0 Ports

Supports Dual Channel DDR3 2600+(OC)

Supports Intel XMP 1.3/1.2 and AMD Memory Profile

Supports AMD Quad CrossFireX, CrossFireX and Dual Graphics

Built-in AMD Radeon HD 7000 series graphics, DX 11, PS 5.0

Multi-VGA Output : D-Sub, DVI-D and HDMI

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio

Supports ASRock XFast 555, OMG, Dehumidifier, Easy RAID Installer, Interactive UEFI , AMD Steady Video 2.0

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Additional Information
Date First Available October 01, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
