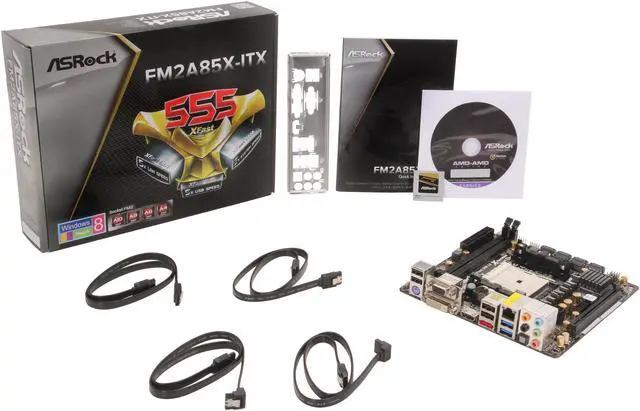

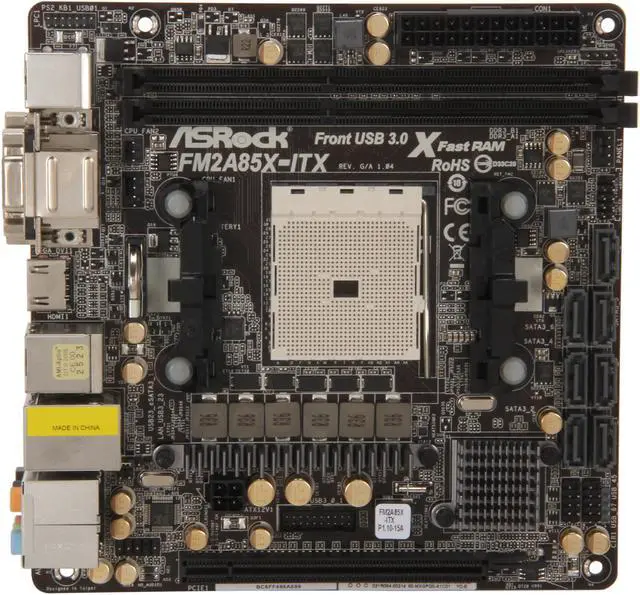

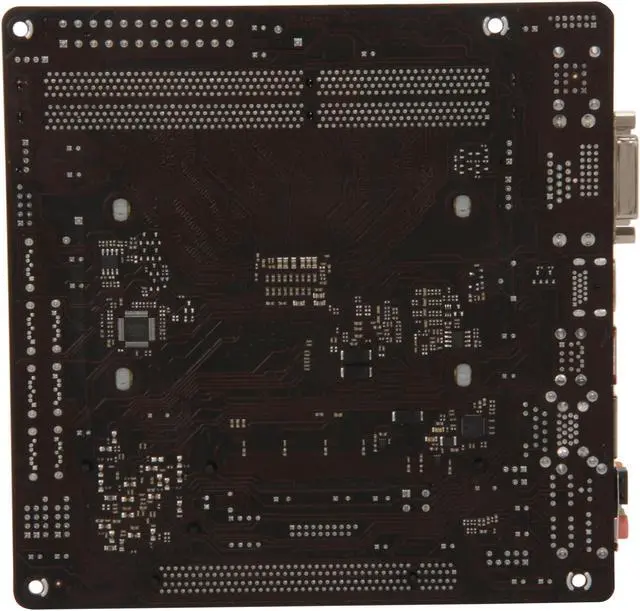

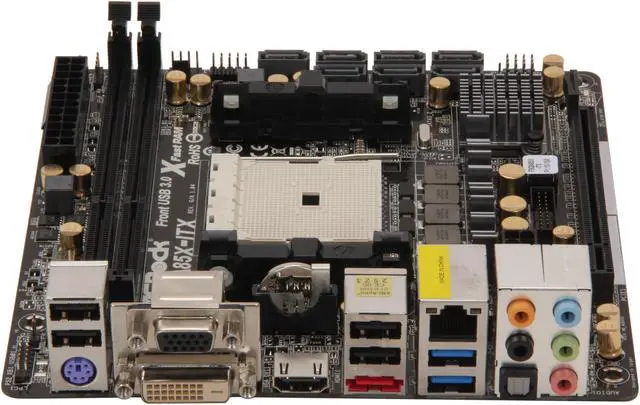

ASRock FM2A85X-ITX FM2 AMD A85X (Hudson D4) SATA 6Gb/s USB 3.0 HDMI Mini ITX AMD Motherboard with UEFI BIOS
- AMD A85X (Hudson D4)
- APU (FM2 Socket)
- DDR3 2400+(OC)/2133(OC)
Specs
Reviews
Learn more about the ASRock FM2A85X-ITX
| Brand | ASRock |
|---|---|
| Model | FM2A85X-ITX |
| CPU Socket Type | FM2 |
|---|---|
| CPU Type | APU (FM2 Socket) |
| Chipset | AMD A85X (Hudson D4) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 |
| Maximum Memory Supported | 32GB |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|
| SATA 6Gb/s | 7 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x PS/2 / 2 x HDMI / 2 x USB 3.1 Gen 1 / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI-In / 1x HDMI-Out |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| eSATA | 1 x eSATA 6Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x CIR header 1 x HDMI_SPDIF header 1 x Chassis Intrusion header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 1 x Chassis Fan connector (4-pin) 24 pin ATX power connector 4 pin 12V power connector Front panel audio connector |
| Form Factor | Mini ITX |
|---|---|
| Power Pin | 24 Pin |
| Features | Premium Gold Caps Dual-Stack MOSFET AMD A85X Hudson D4 Chipset Supports Native 8 x SATA3, 4 x USB 3.0 Ports Supports Dual Channel DDR3 2400+(OC) Supports Intel XMP 1.3/1.2 and AMD Memory Profile 1 x PCIe 2.0 x16, Supports AMD Dual Graphics Integrated AMD Radeon HD 7000 series graphics in A-series APU Multi VGA Output: D-Sub, DVI-D, HDMI 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio Supports ASRock X-Boost, XFast 555, Fast Boot, Restart to UEFI, OMG, Dehumidifier, Interactive UEFI, Easy RAID Installer, On/Off Play Supports AMD Steady Video 2.0 Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar |
|---|
| Date First Available | February 01, 2013 |
|---|
