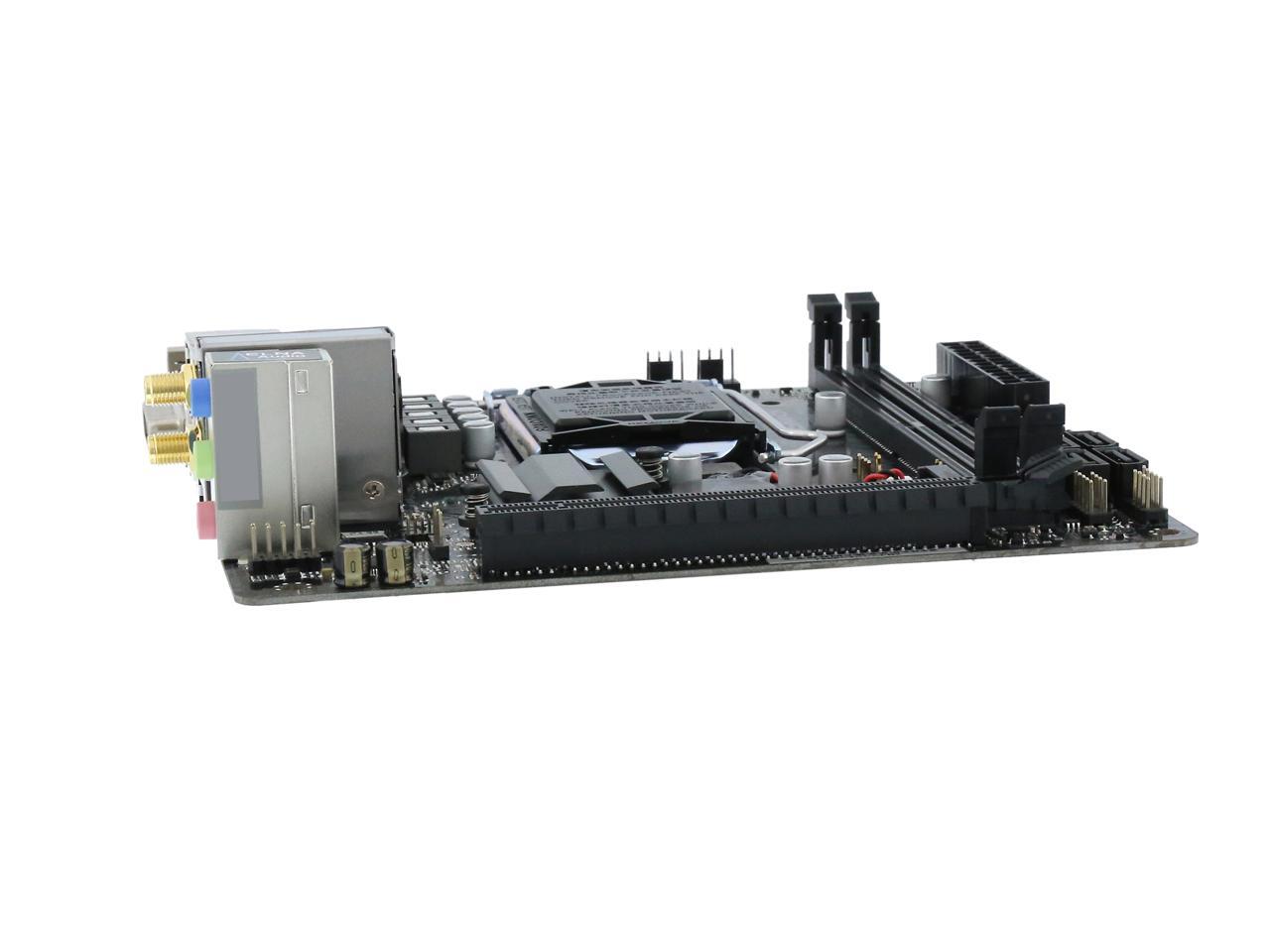

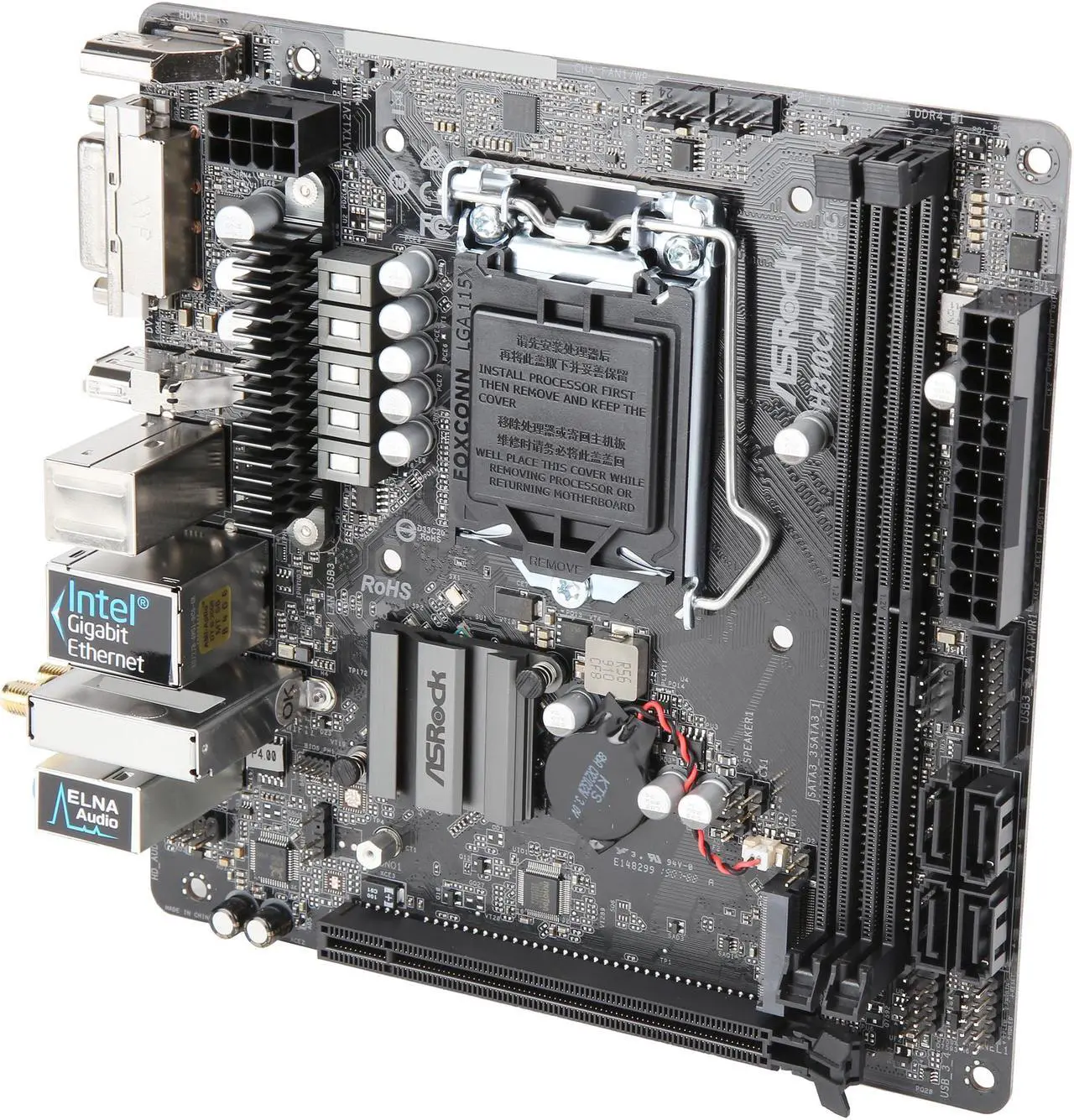

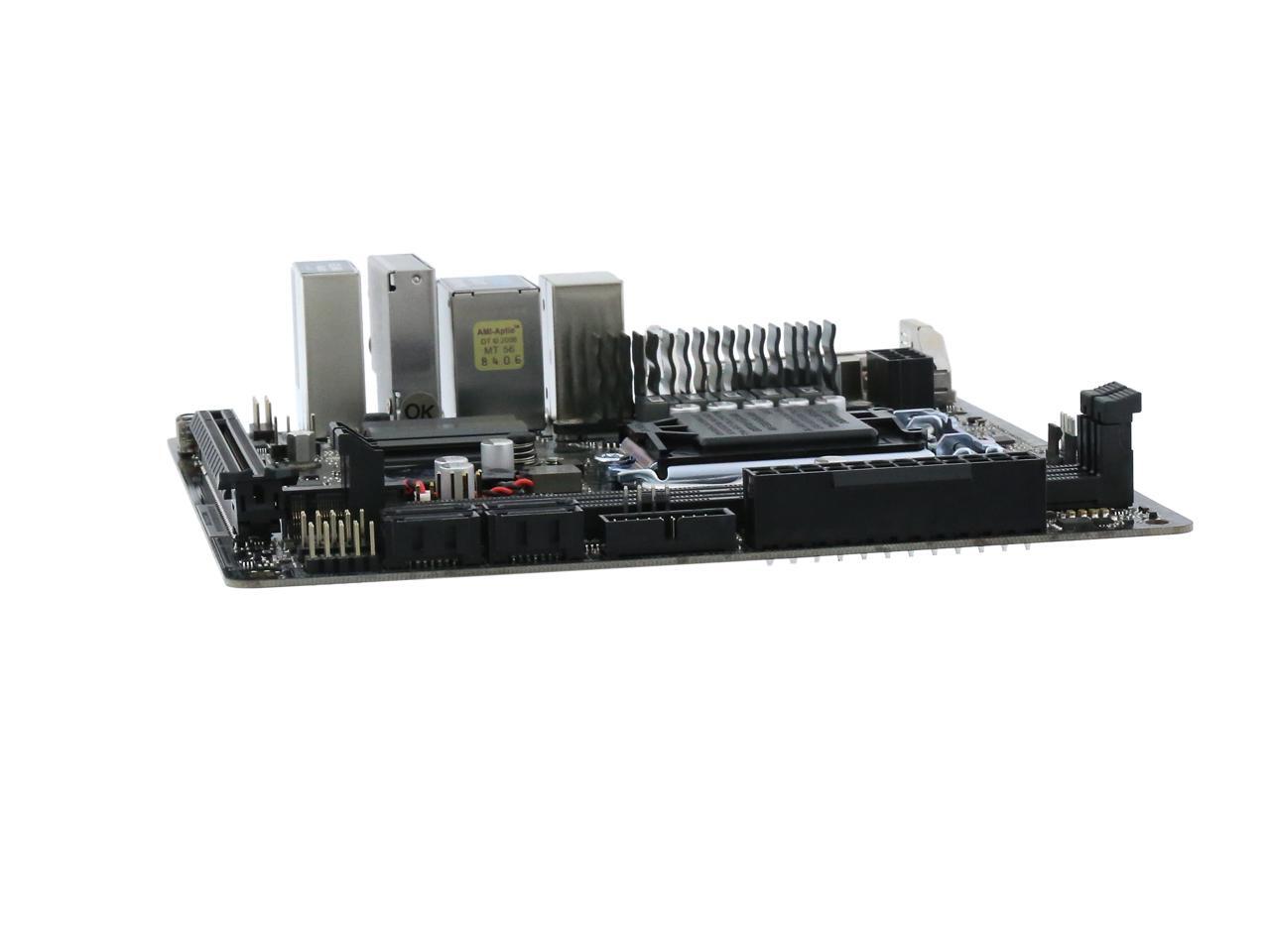

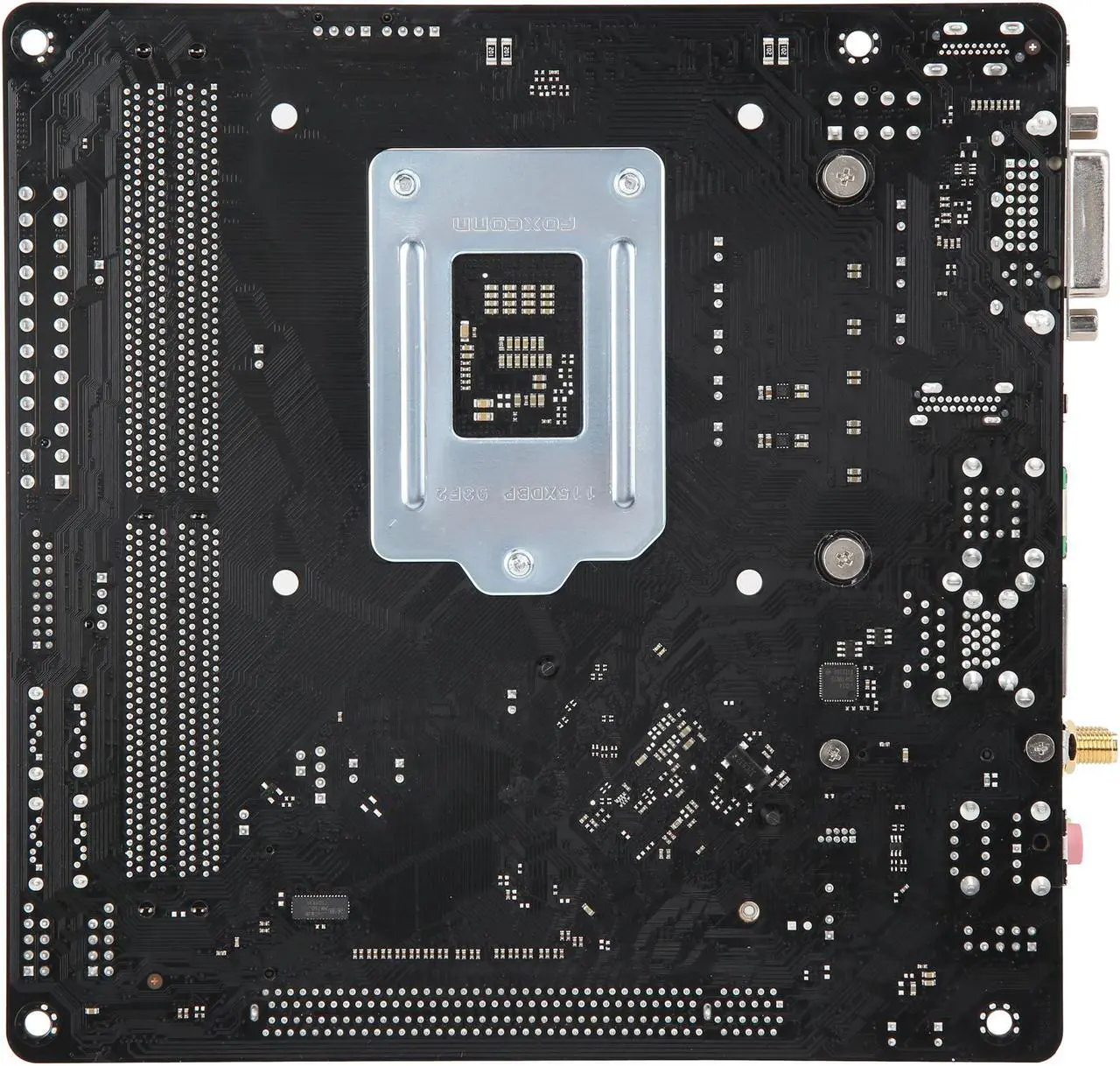

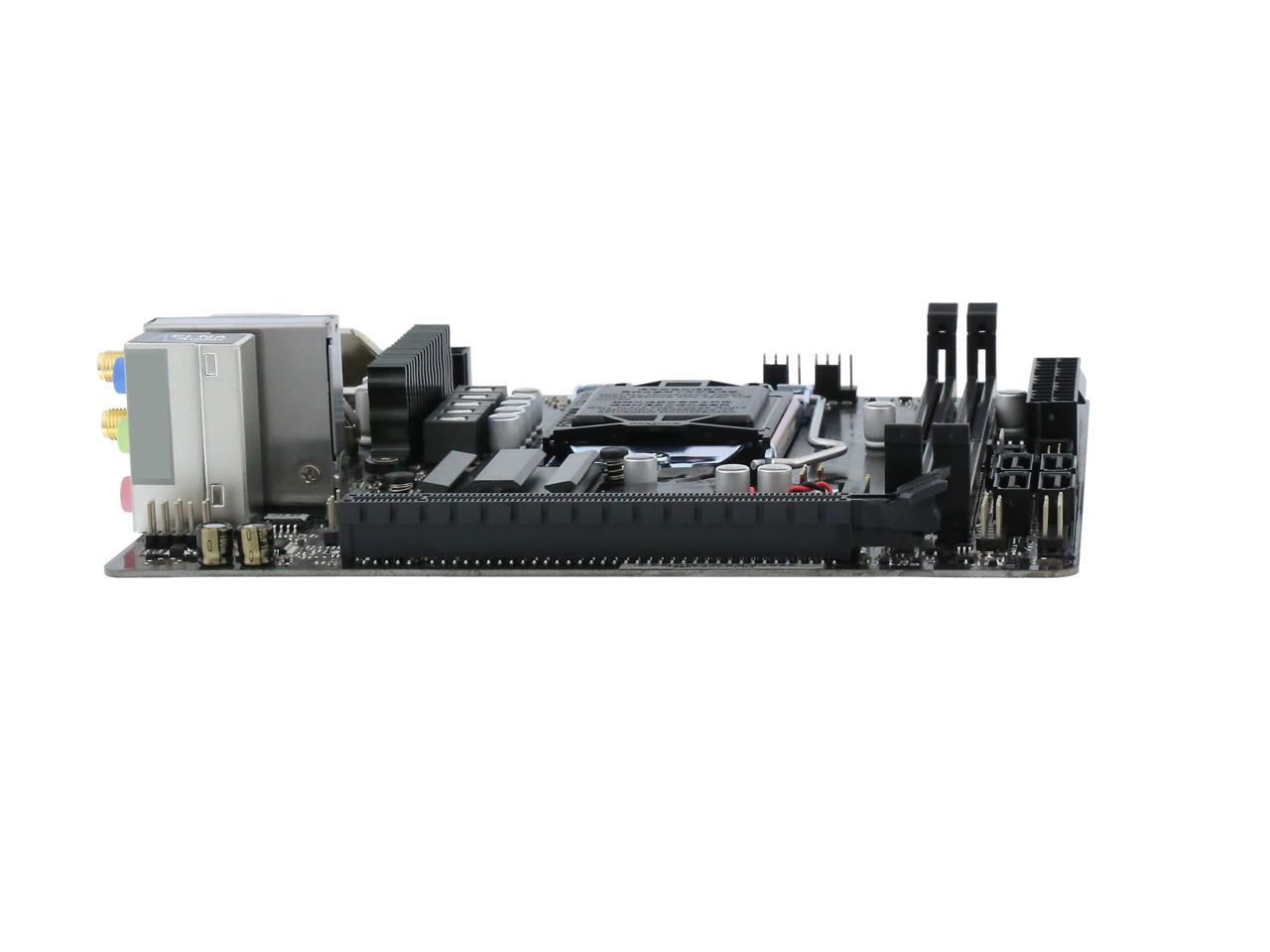

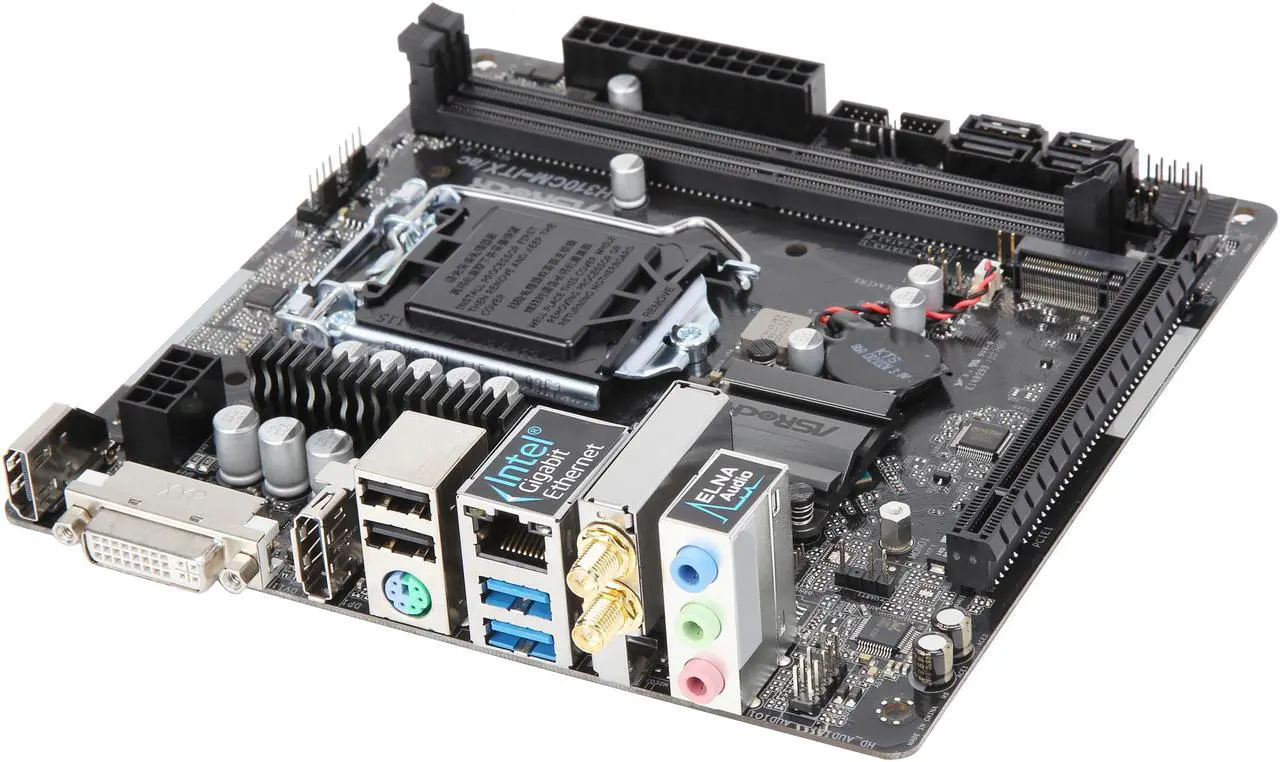

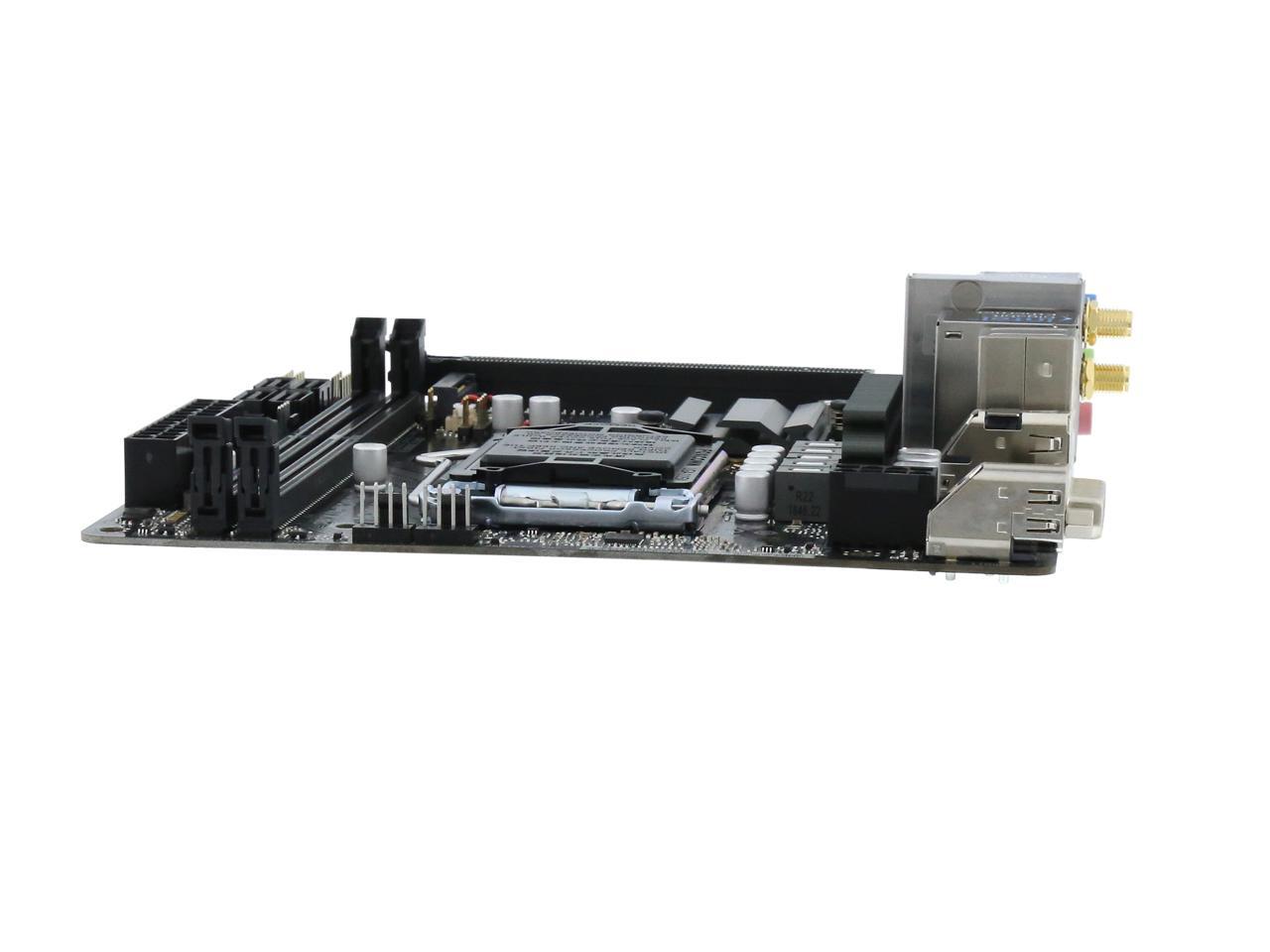

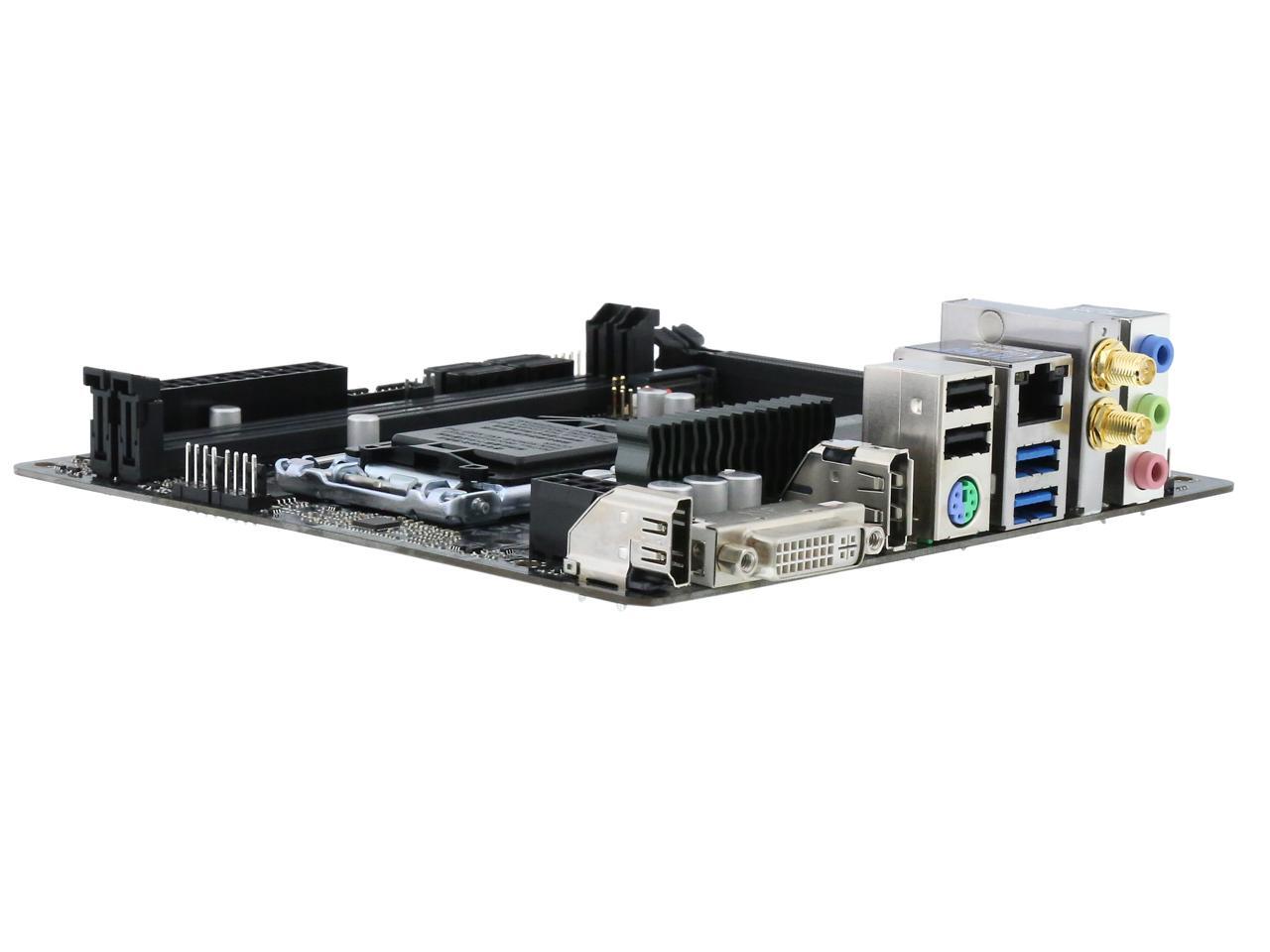

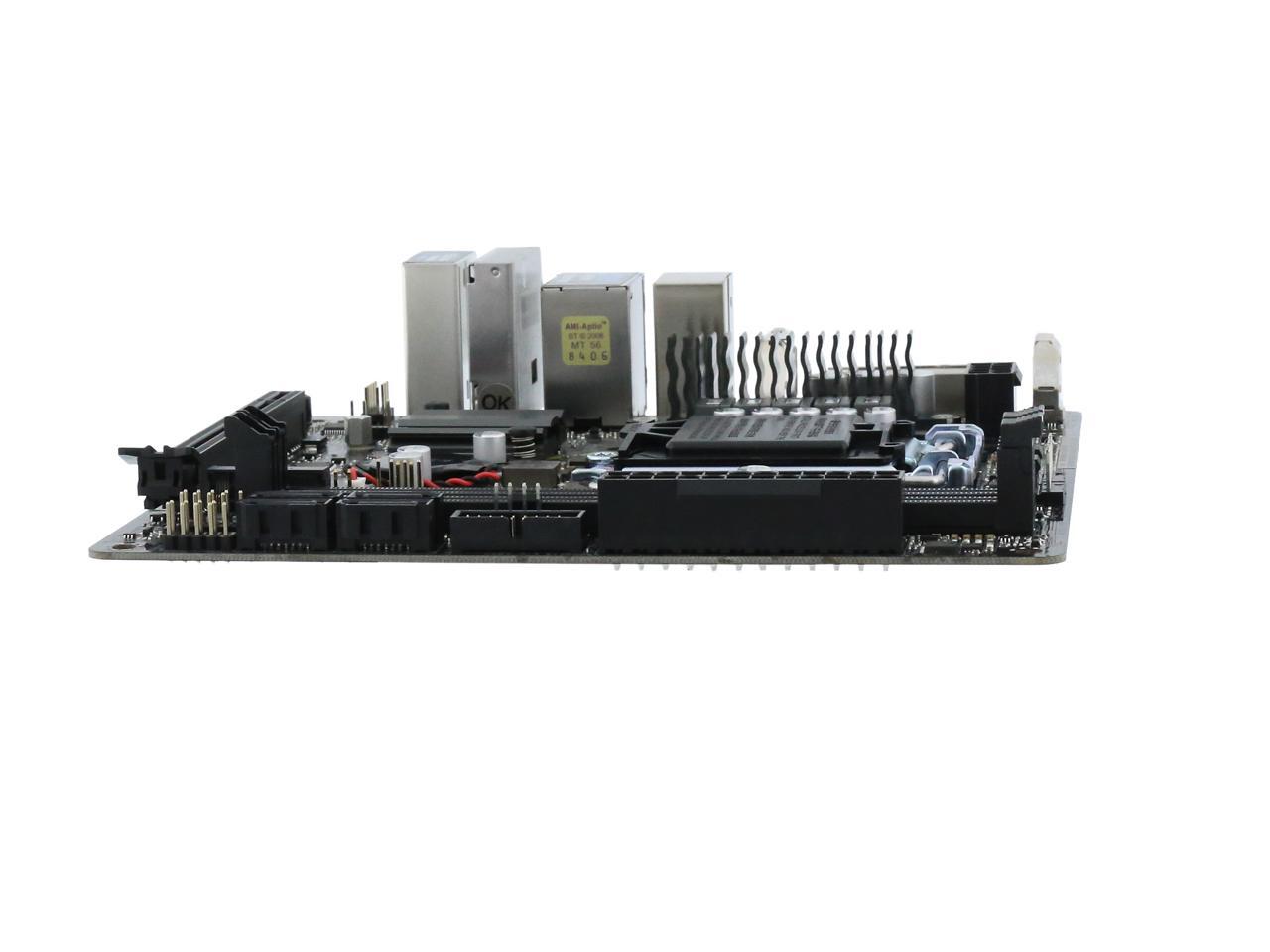

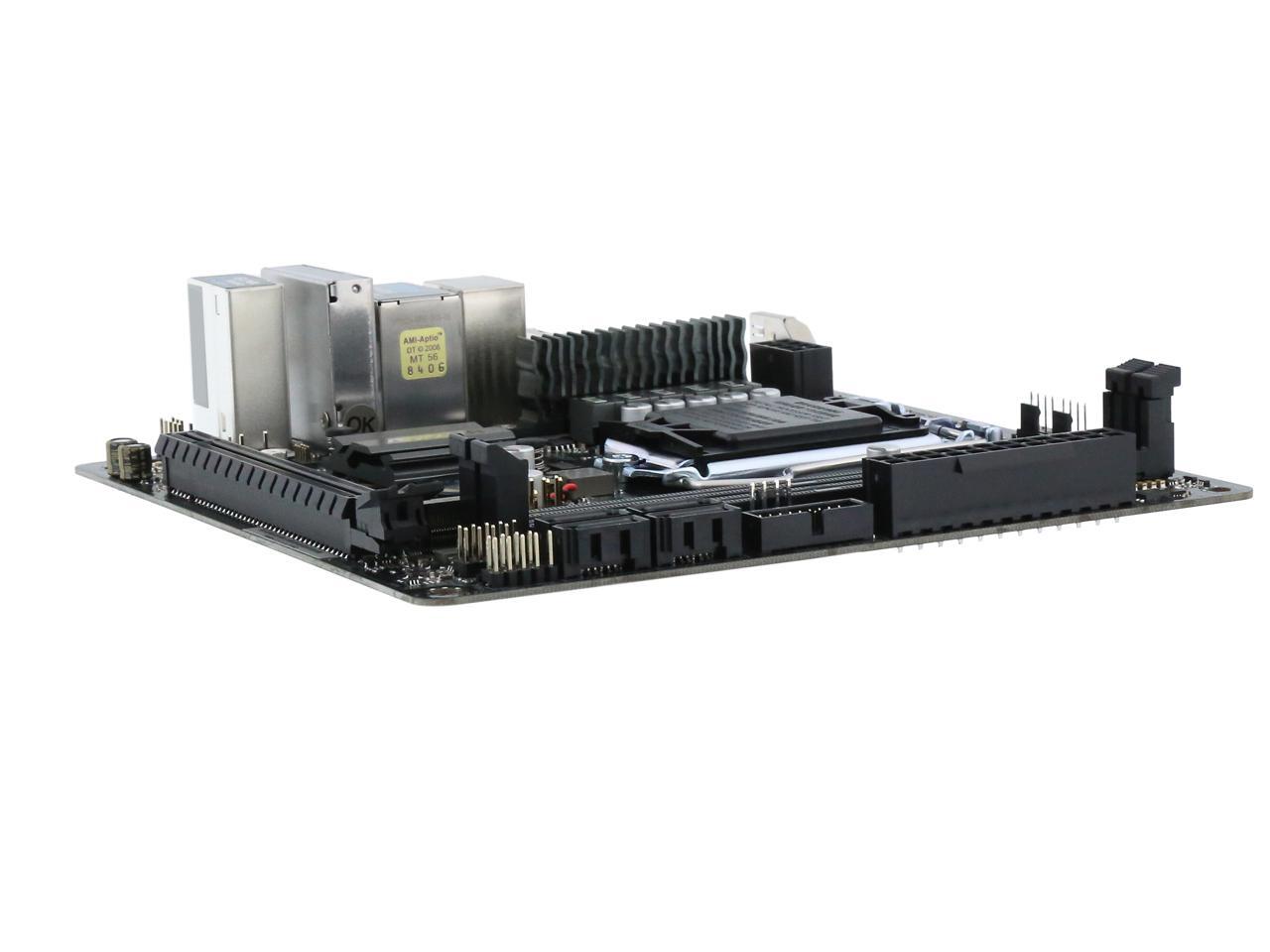

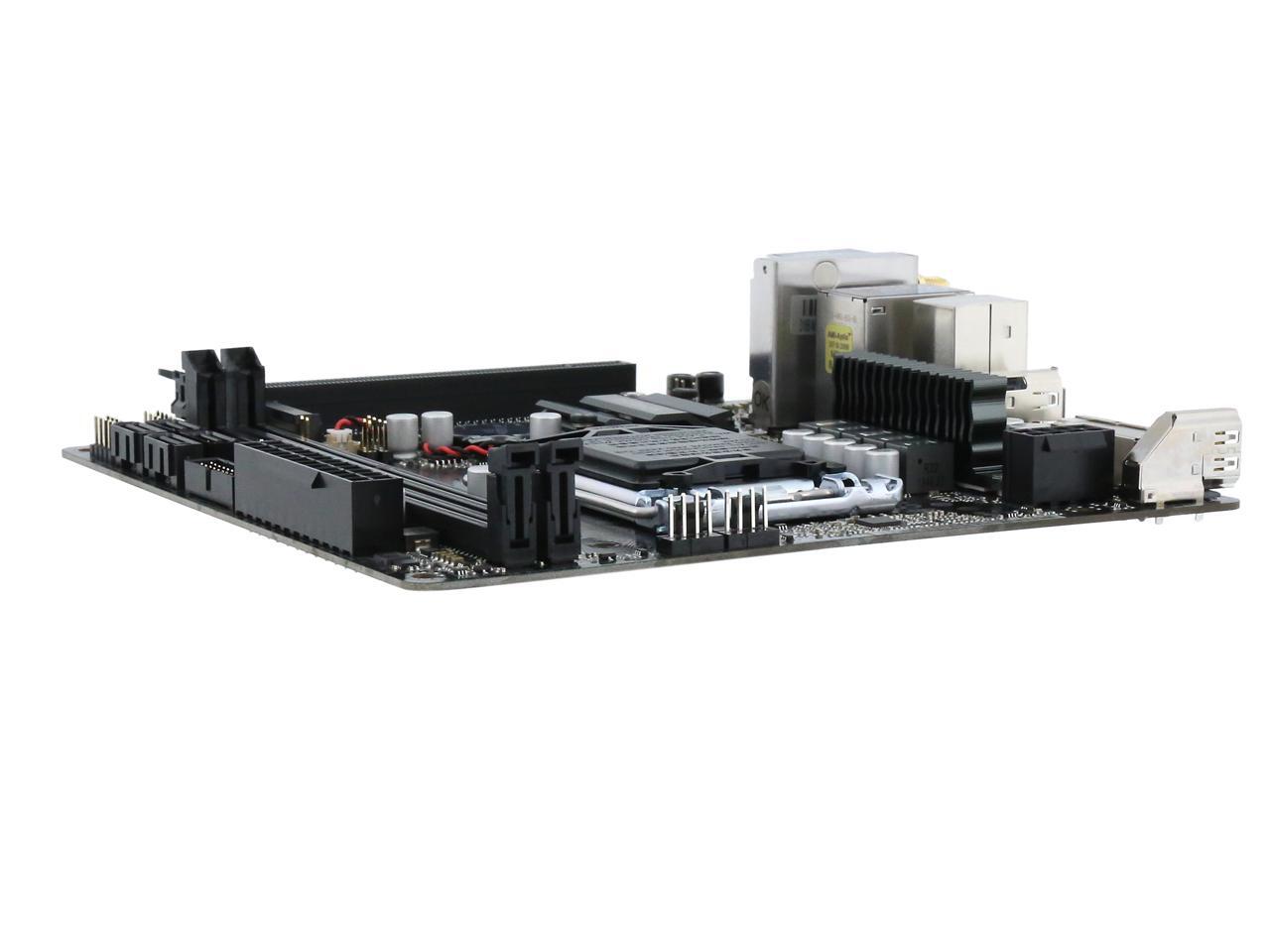

    ASRock H310CM-ITX/ac LGA 1151 (300 Series) Intel H310 Mini ITX Intel Motherboard

    (11)(1) Write a Review
    • Intel H310
    • Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
    • DDR4 2666/ 2400/ 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (11)

    Learn more about the ASRock H310CM-ITX/ac

    Model
    Brand ASRock
    Model H310CM-ITX/ac

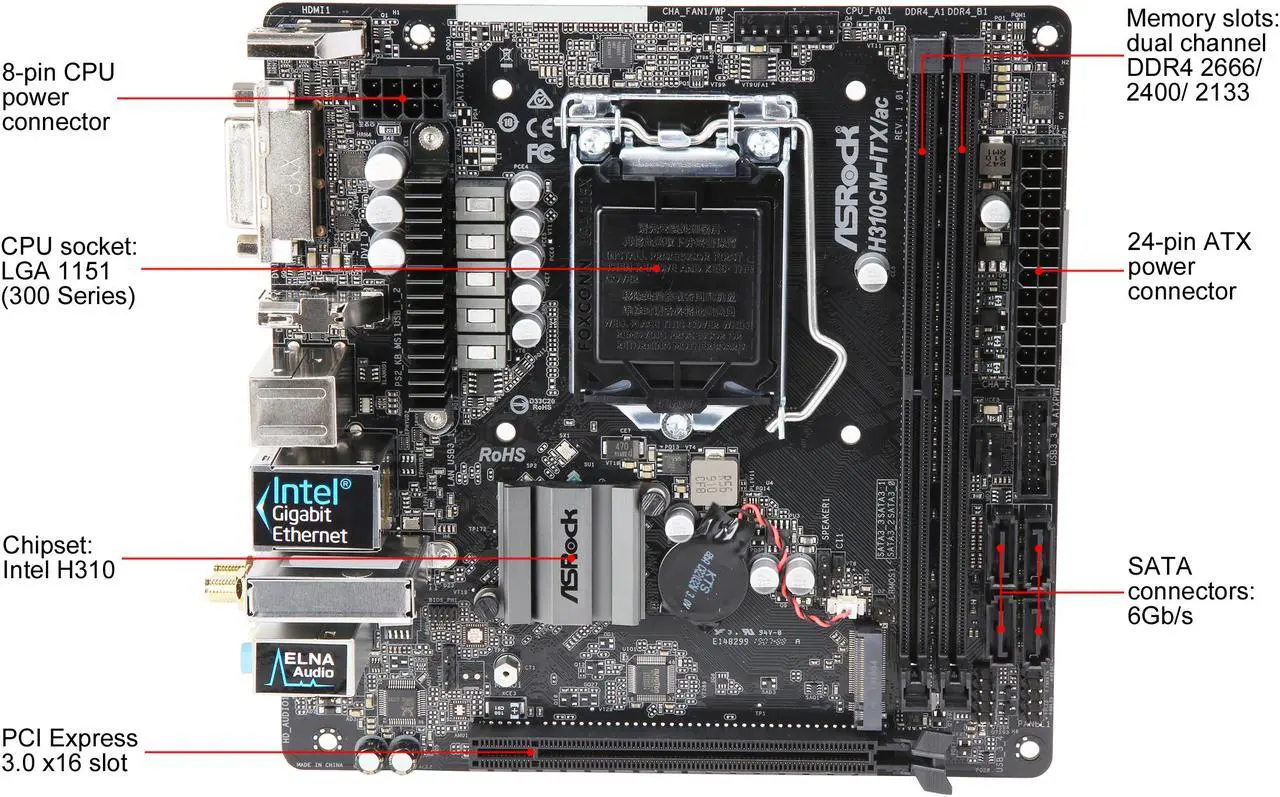

    Supported CPU
    CPU Socket Type LGA 1151 (300 Series)
    CPU Type Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
    * Not backward compatible with older generation of LGA 1151 CPUs
    Supported CPU Technologies Turbo Boost Technology 2.0
    Chipsets
    Chipset Intel H310
    Onboard Video
    Onboard Video Chipset Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
    DirectX 12
    HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
    Three graphics output options: DVI-I, HDMI and DisplayPort 1.2**
    Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    Supports HDCP 2.2 with DVI-I, HDMI 1.4 and DisplayPort 1.2 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

    * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** Supports up to 2 displays simultaneously
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 2666/ 2400/ 2133
    Maximum Memory Supported 32GB* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
    * Supports NVMe SSD as boot disks
    Other Slots 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
    Storage Devices
    Serial ATA (SATA) 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
    * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
    M.2 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen2 x4 (20Gb/s)**

    ** Supports NVMe SSD as boot disks
    ** Supports ASRock U.2 Kit
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    Onboard LAN
    LAN Chipset Intel I219-V
    Max LAN Speed 1Gbps
    Wireless LAN Intel 802.11 ac Wi-Fi Module
    Supports IEEE 802.11 a/b/g/n/ac
    Supports Dual-Band (2.4/5 GHz)
    Supports high speed wireless connections up to 433 Mbps
    Bluetooth Supports Bluetooth 4.2 / 3.0 + High speed class II

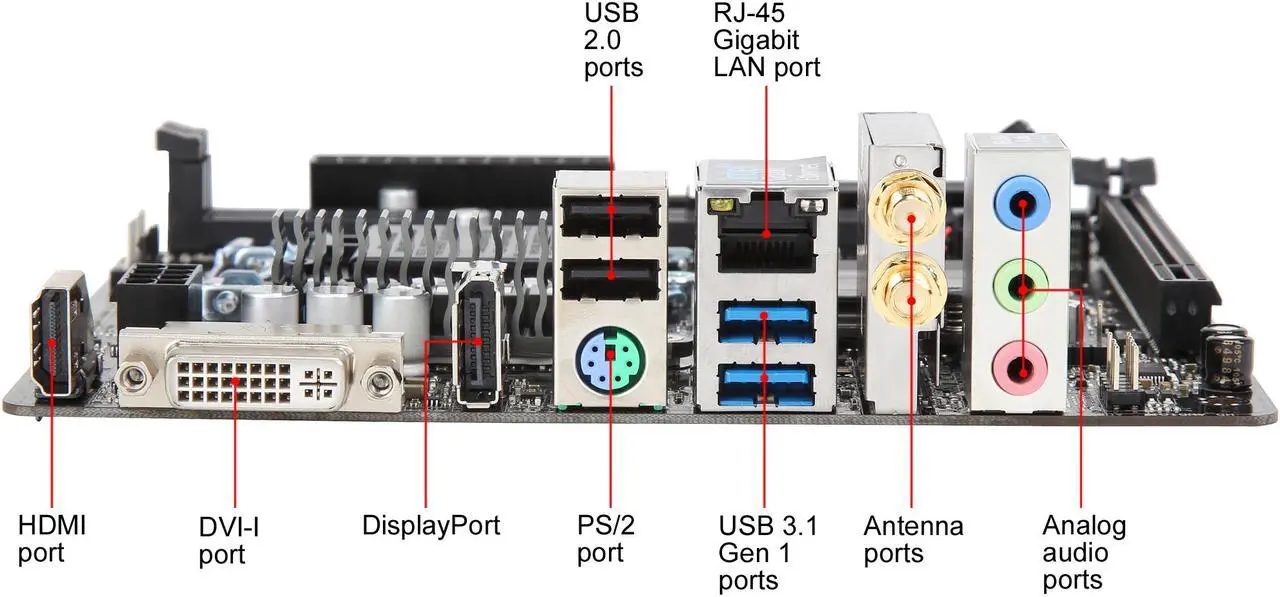

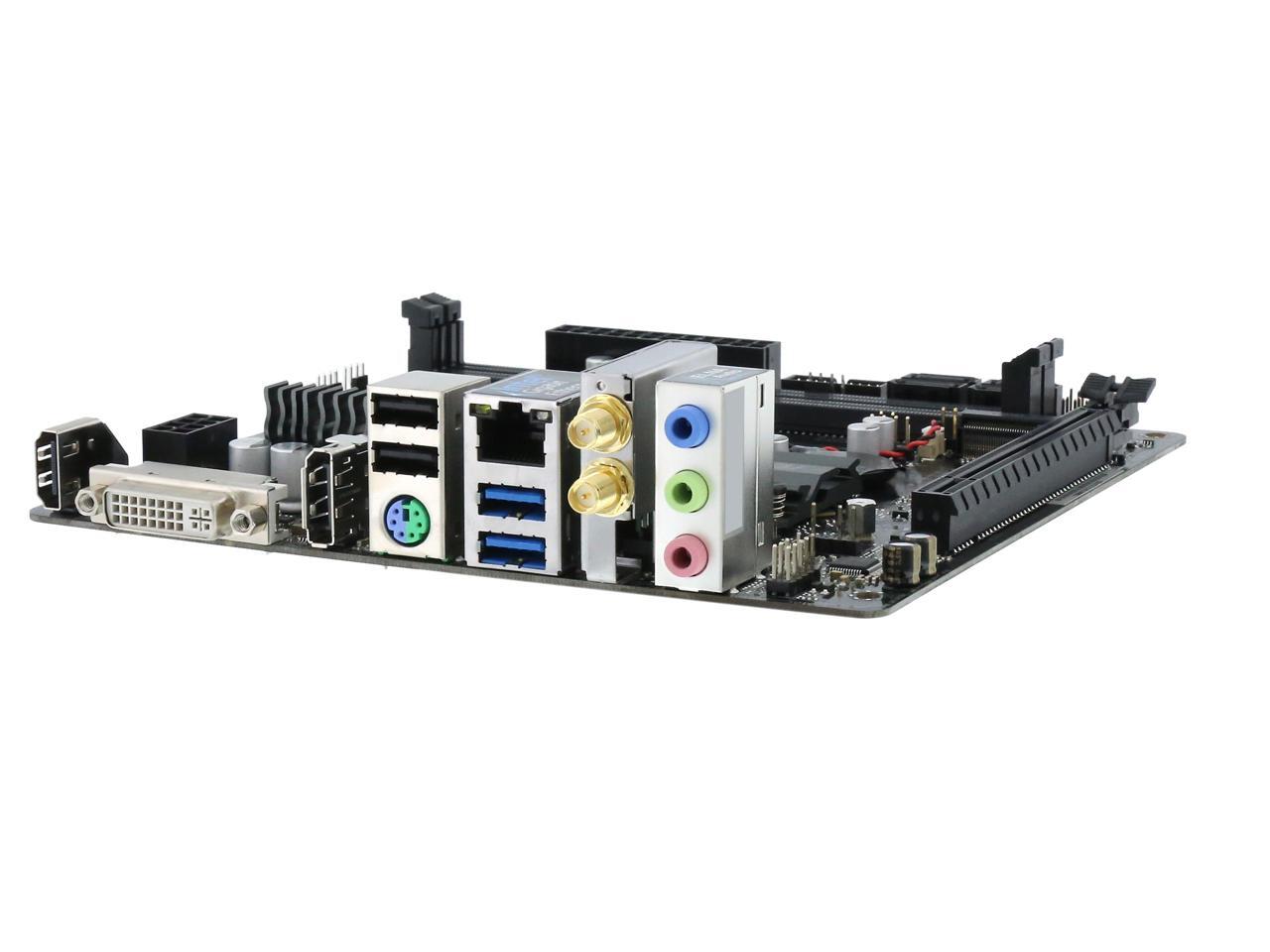

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x PS/2 Mouse/Keyboard Port
    1 x DVI-I Port
    1 x HDMI Port
    1 x DisplayPort 1.2
    2 x USB 2.0 Ports (Supports ESD Protection)
    2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
    Other Connectors 1 x Chassis Intrusion Header
    1 x CPU Fan Connector (4-pin)*
    1 x Chassis Fan Connector (4-pin)**
    1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    1 x Front Panel Audio Connector

    * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    ** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
    *** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    *** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24-pin ATX Power Connector
    1 x 8-pin 12V Power Connector
    Features
    Features Unique Feature:
    ASRock Super Alloy
    - Premium 60A Power Choke
    - Dual-Stack MOSFET (DSM)
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    Intel 802.11 ac Wi-Fi
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

    BIOS:
    - 128MB AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

    Software:
    - ASRock A-Tuning
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    * These utilities can be downloaded from ASRock Live Update & APP Shop.

    Support CD:
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

    Hardware Monitor:
    - Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

    OS:
    - Microsoft Windows 10 64-bit

    Certifications:
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    Packaging
    Package Contents Accessories:
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x ASRock Wi-Fi 2.4/5 GHz Antennas
    - 1 x Screw for M.2 Socket
    Additional Information
    Date First Available August 26, 2024
