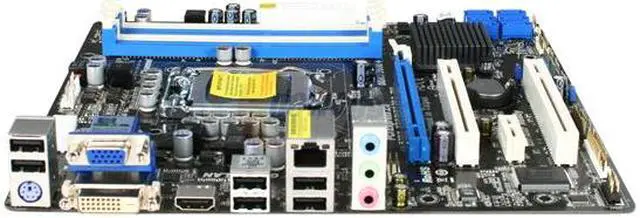

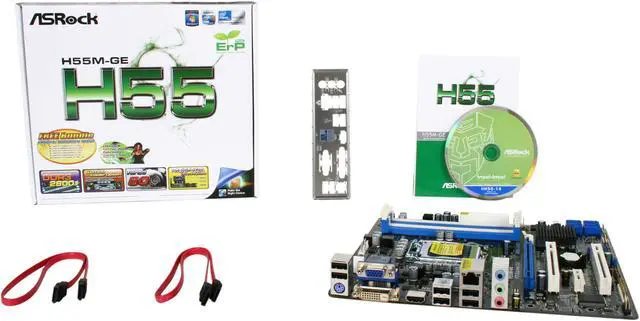

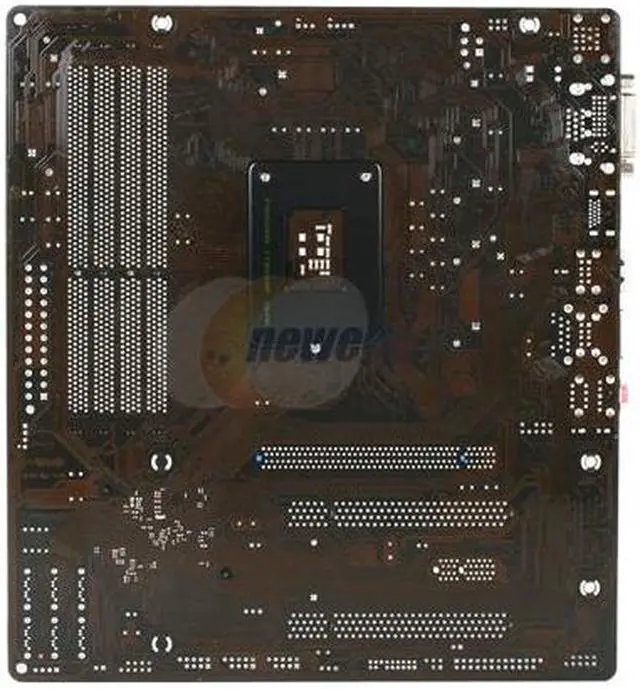

ASRock H55M-GE LGA 1156 Intel H55 HDMI Micro ATX Intel Motherboard

(10) Write a Review
  • Intel H55
  • Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
  • DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (10)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock H55M-GE

Model
Brand ASRock
Model H55M-GE
Supported CPU
CPU Socket Type LGA 1156
CPU Type Core i3 / Core i5 / Core i7 / Intel Core 1st Gen (LGA 1156) / Pentium
Supported CPU Technologies Intel Turbo Boost Technology
Hyper-Threading Technology
Untied Overclocking Technology
EM64T CPU
Chipsets
Chipset Intel H55
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Onboard Audio
Audio Chipset VIA VT1705
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x HDMI / 1 x PS/2 / 6 x USB 2.0/1.1
PS/2 1 x PS/2 Keyboard Port
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.7"
Power Pin 24 Pin
Features
Features Multi VGA Output options: D-Sub, DVI-D and HDMI

Supports ASRock Instant Boot, Instant Flash, OC DNA, Good Night LED, Multi-Speed Fan Control, OC Tuner, IES

Supports Turbo 50 / Turbo 100 Technology

Combo Cooler Option (C.C.O.)

ErP / EuP Ready
Additional Information
Date First Available September 09, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
