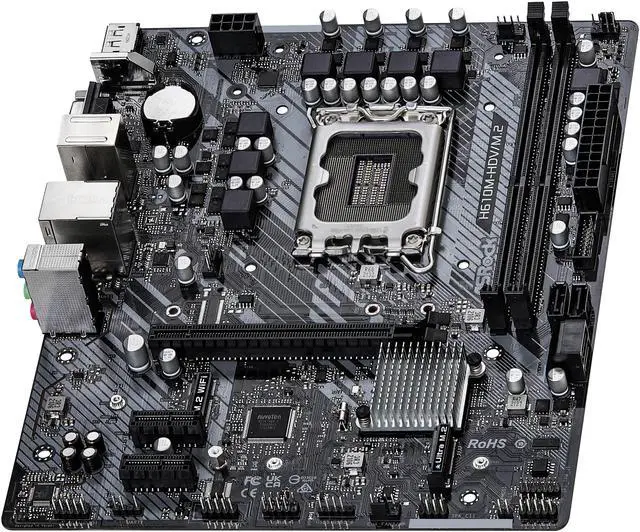

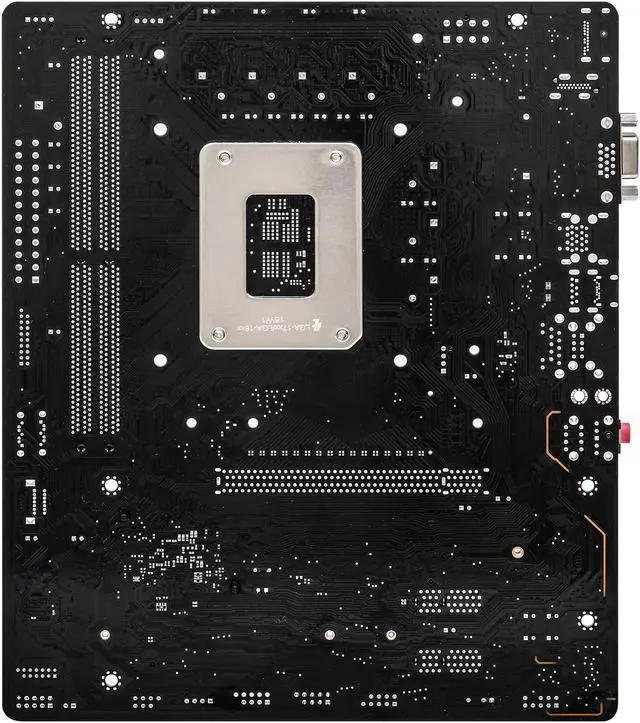

ASRock H610M-HDV/M.2 LGA 1700 Intel H610 SATA 6Gb/s DDR4 Micro ATX Motherboard
- Supports 12th Gen Intel Core Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Intel Gigabit LAN
+
+
Specs
Reviews (24)
Learn more about the ASRock H610M-HDV/M.2
| Brand | ASRock |
|---|---|
| Model | H610M-HDV/M.2 |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel H610 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Serial ATA (SATA) | 4 x SATA 6Gb/s* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
|---|---|
| M.2 | 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| Audio Chipset | Realtek ALC897/887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

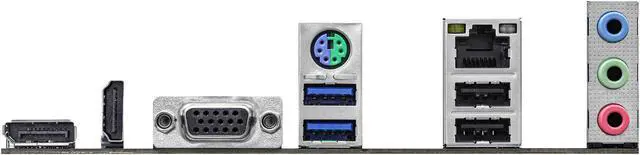

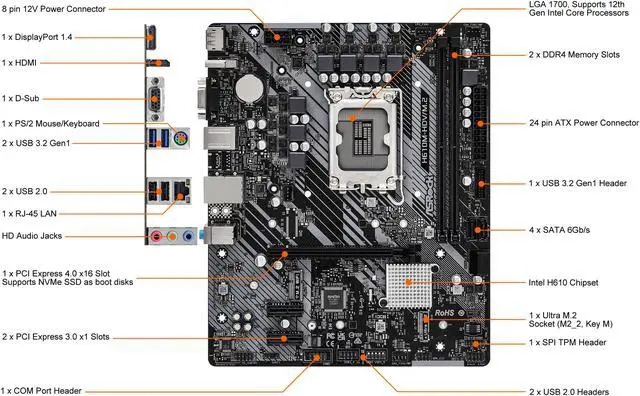

| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector |
| Windows 11 | Ready |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | None RGB |
| Dimensions (W x L) | 9.6" x 7.9" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version) Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash Hardware Monitor: - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V OS: - Microsoft Windows 10 64-bit / 11 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|

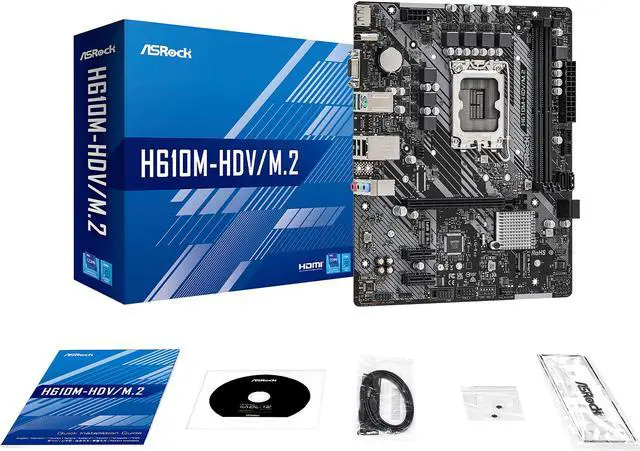

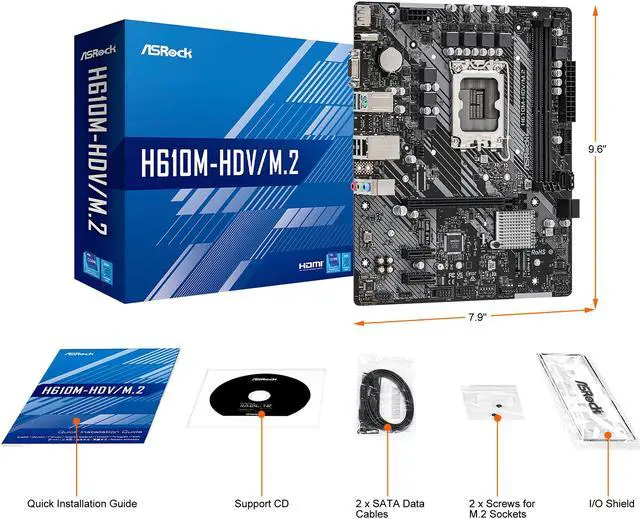

| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
|---|
| First Listed on Newegg | June 27, 2025 |
|---|
