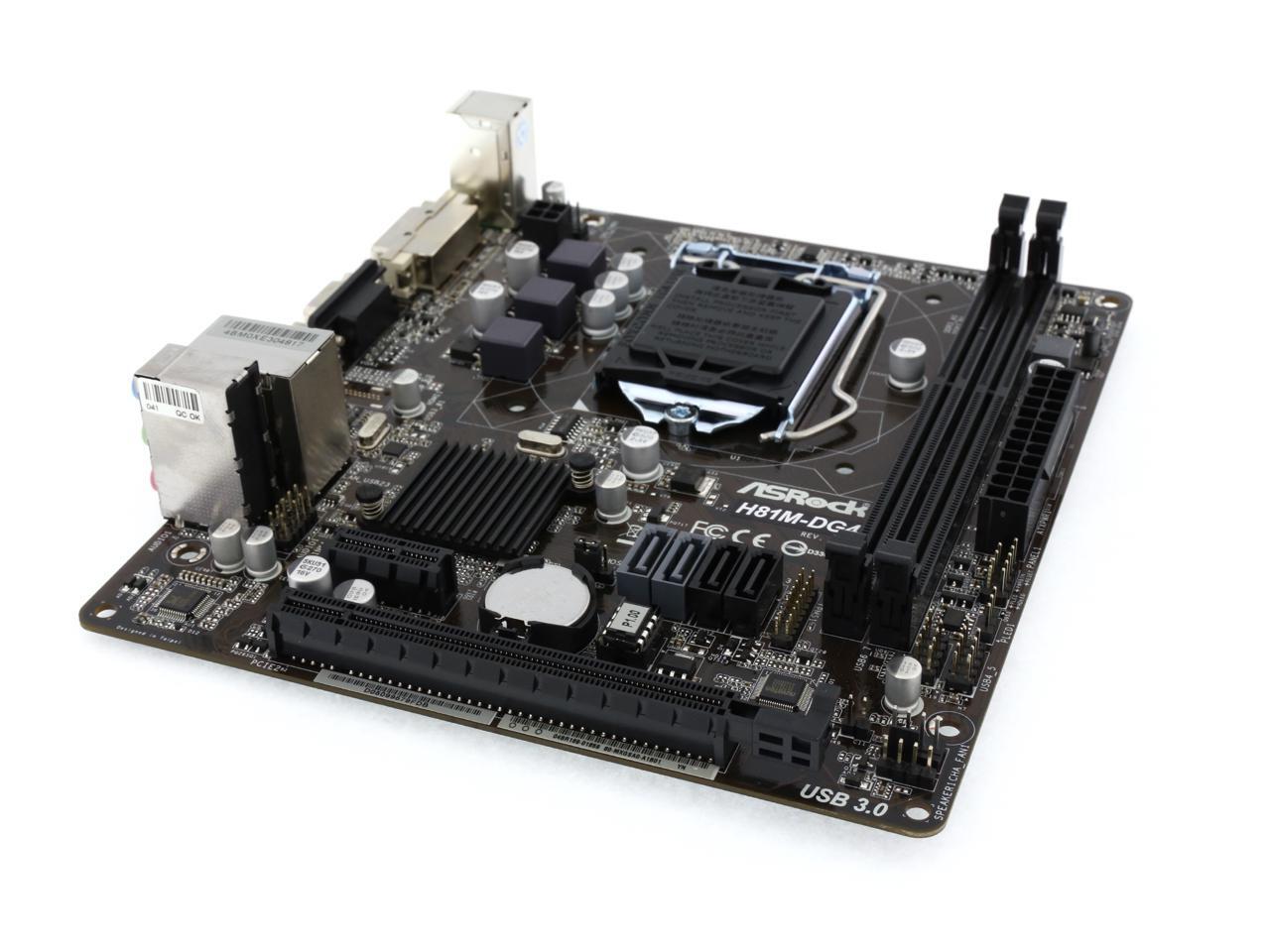

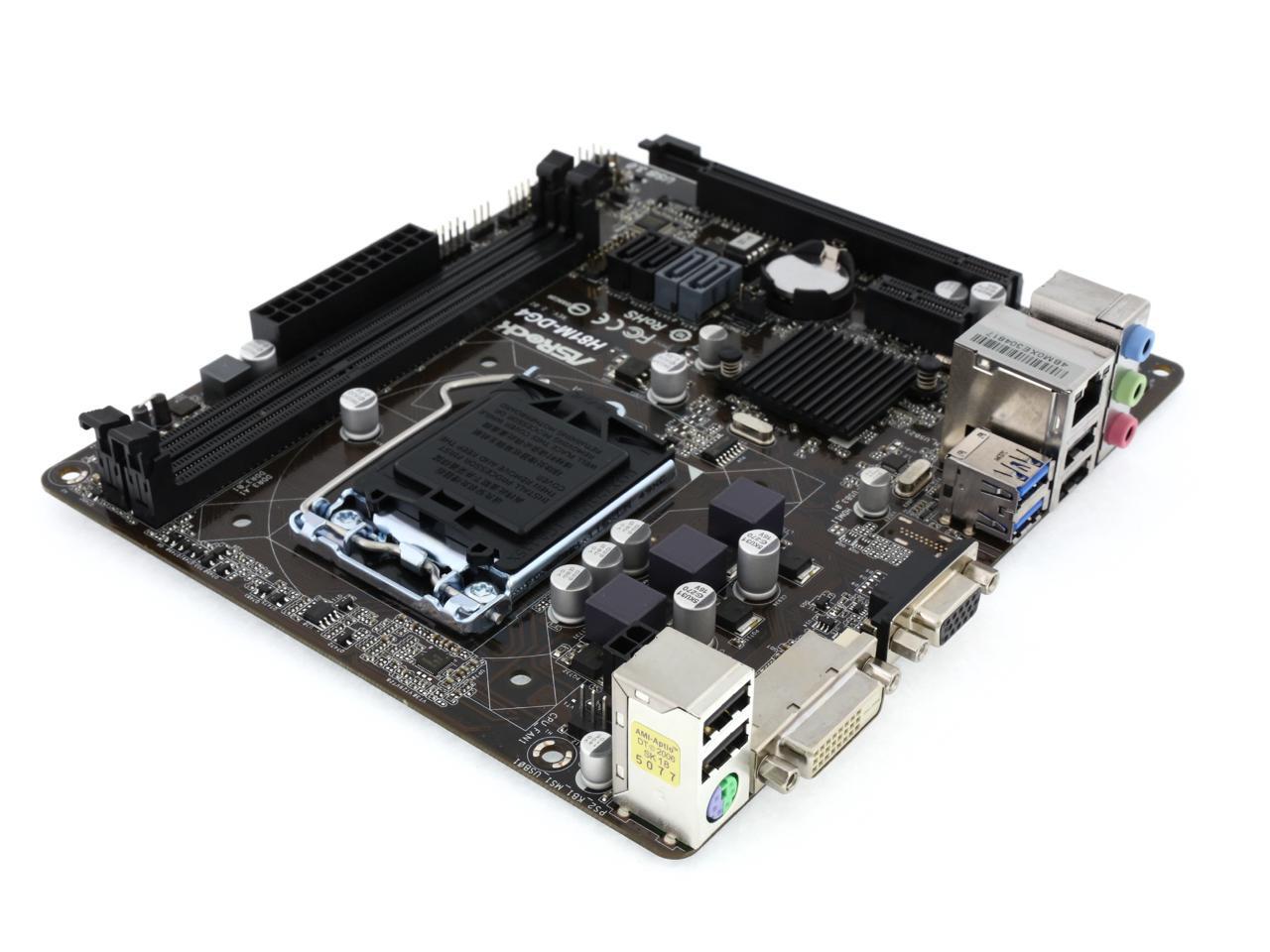

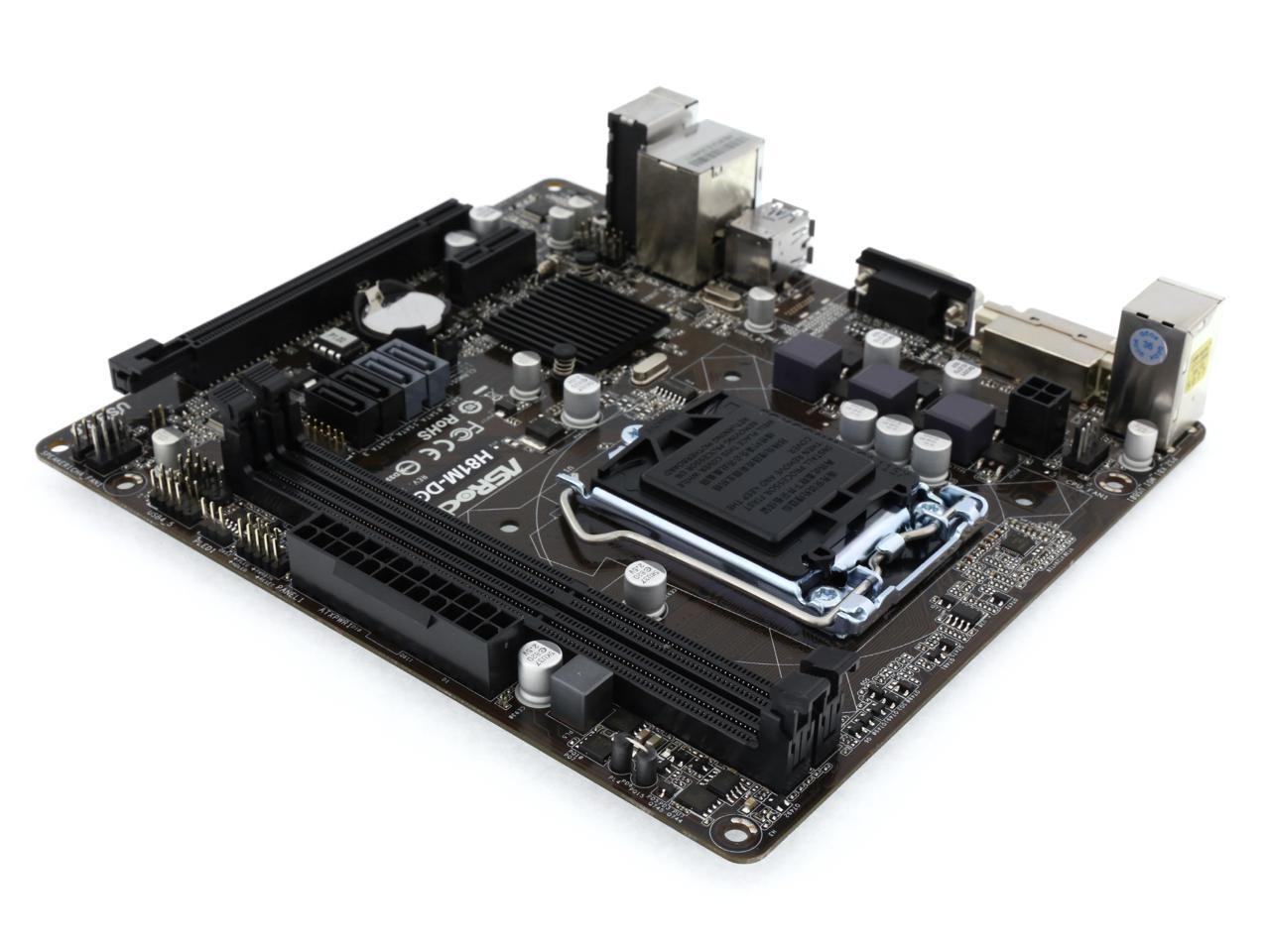

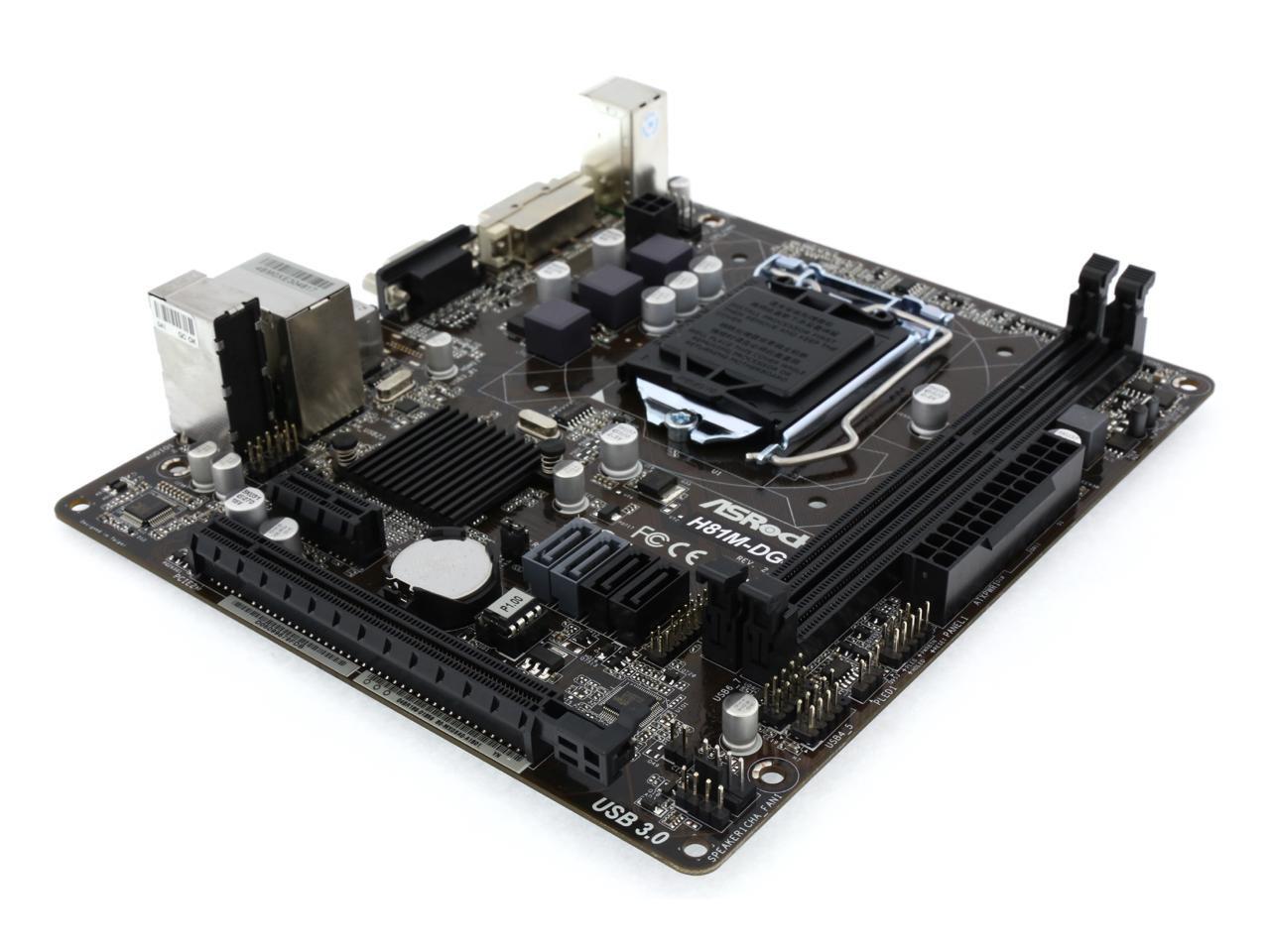

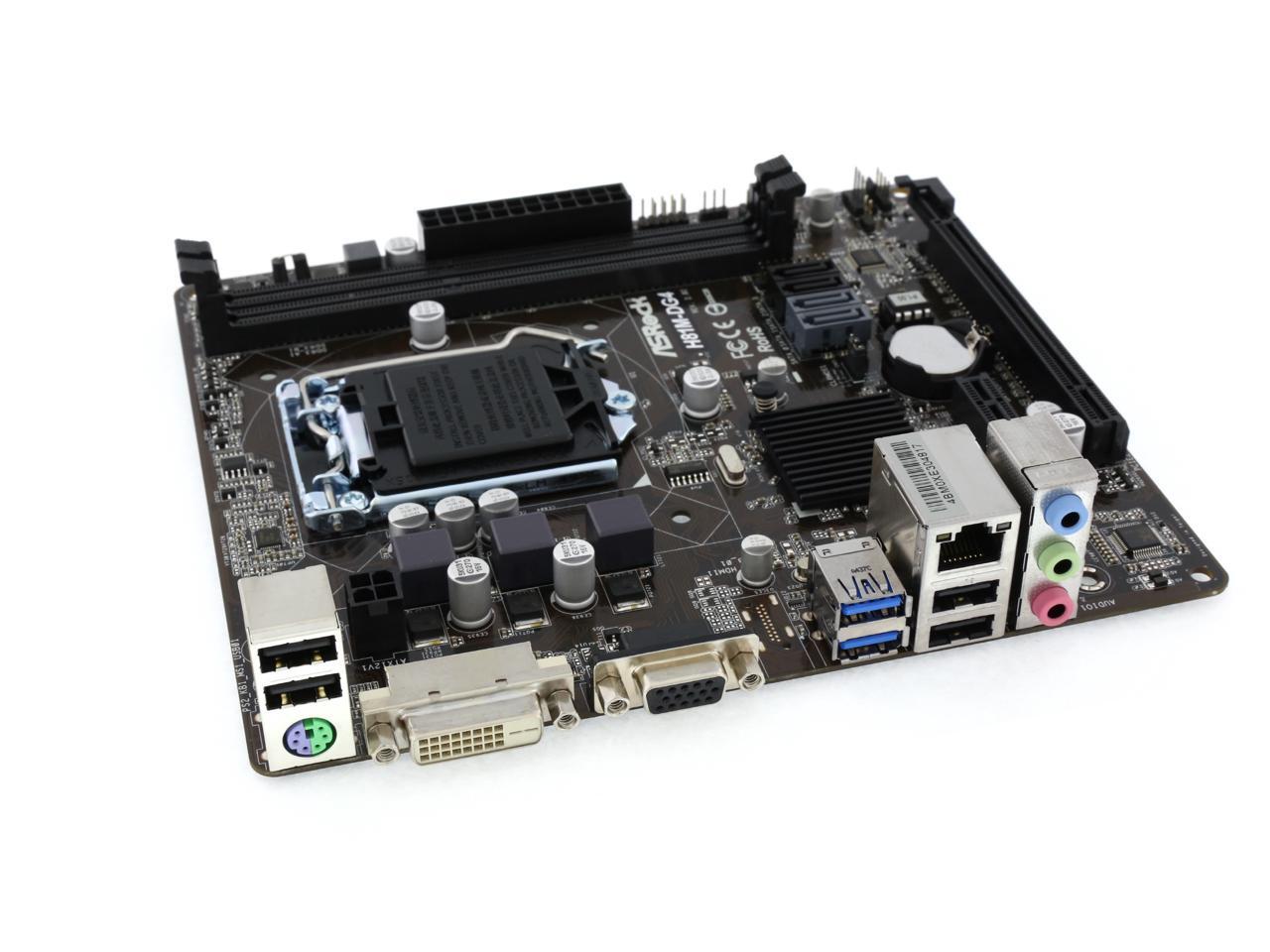

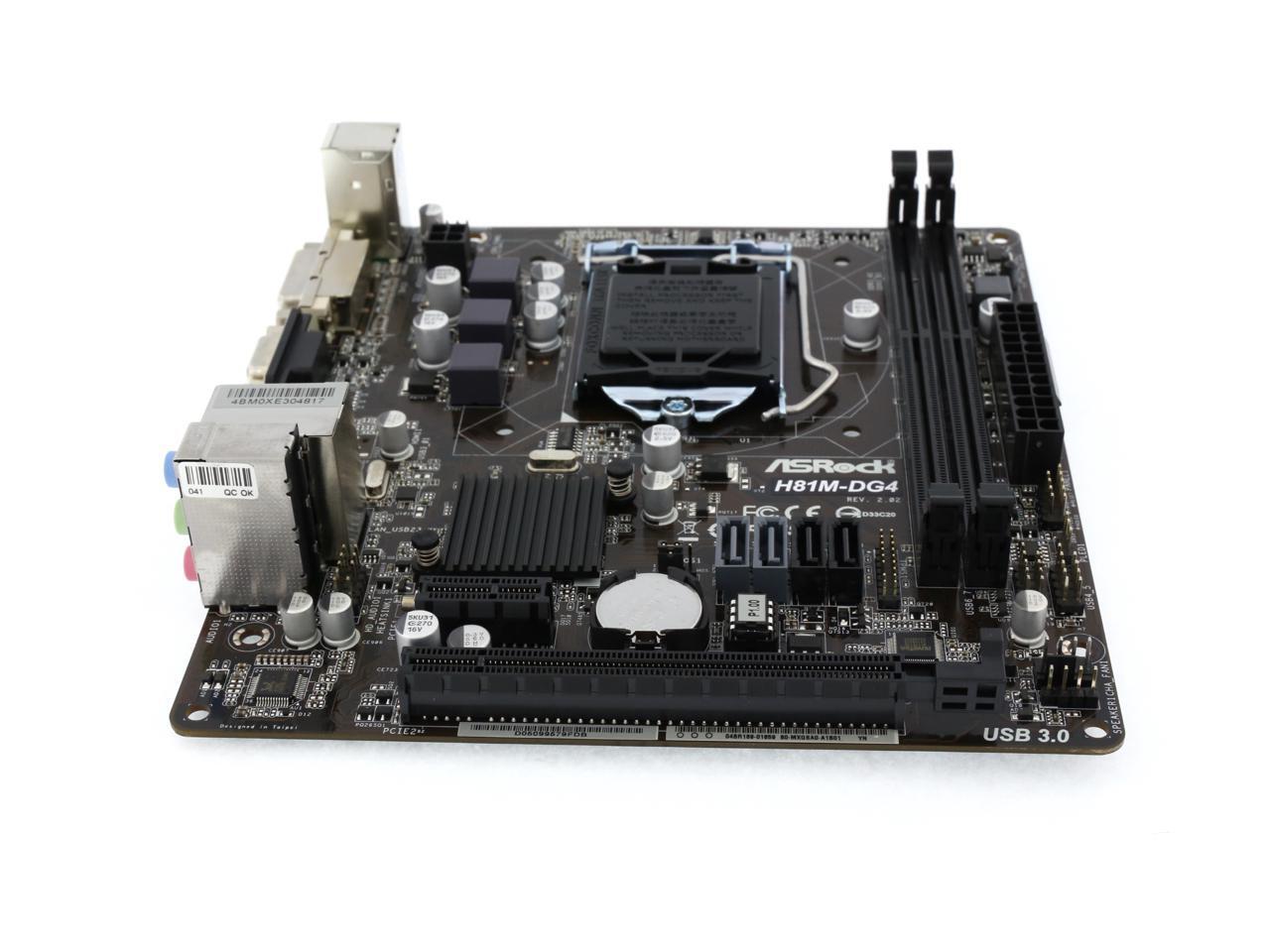

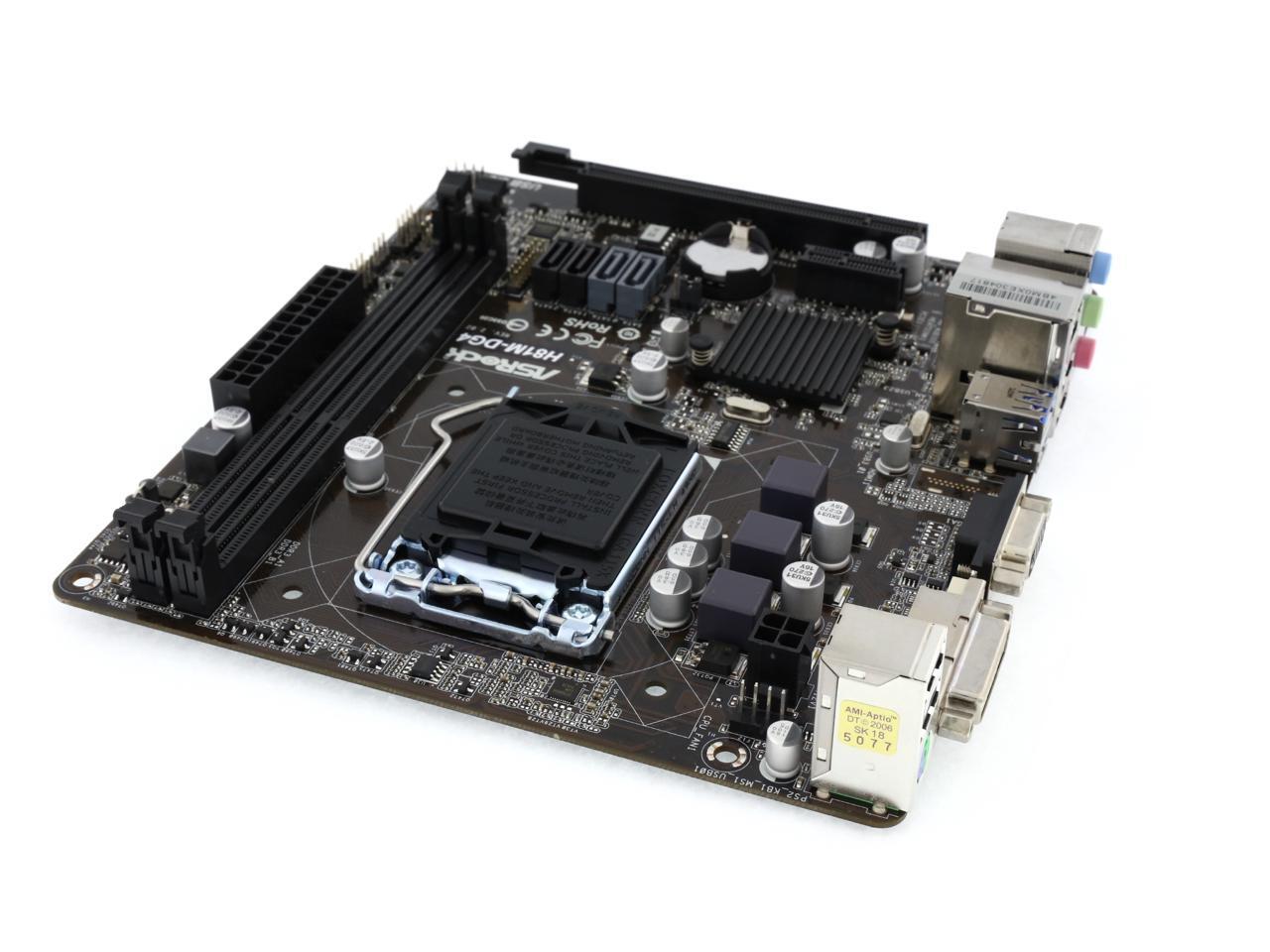

ASRock H81M-DG4 LGA 1150 Intel H81 USB 3.0 Micro ATX Intel Motherboard
- Intel H81
- New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron (Socket 1150)
- DDR3 1600/ 1333/ 1066 non-ECC, un-buffered
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock H81M-DG4
| Brand | ASRock |
|---|---|
| Model | H81M-DG4 |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron (Socket 1150) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel H81 |
|---|
| Onboard Video Chipset | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Max. shared memory 1792MB Dual graphics output: support DVI-D and D-Sub ports by independent display controllers Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports HDCP with DVI-D Port Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port *Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8/ 8 64-bit/ 7/ 7 64-bit. ***Intel InTru 3D is only supported under Windows 8/ 8 64-bit/ 7/ 7 64-bit. |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333/ 1066 non-ECC, un-buffered |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Serial ATA (SATA) | 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Realtek RTL8111GR |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| Audio Ports | HD Audio Jack: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x Power LED Header 1 x Chassis Intrusion Header 1 x TPM Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector |
| Form Factor | Micro ATX |
|---|
| Features | Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150) 100% All Solid Capacitor design Supports Dual Channel DDR3 1600 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1 Graphics Output Options: DVI-D, D-Sub Realtek Gigabit LAN 5.1 CH HD Audio (Realtek ALC662 Audio Codec) 2 x SATA3, 2 x SATA2, 2 x USB 3.0, 8 x USB 2.0 (4 Front, 4 Rear) Supports ASRock Full Spike Protection, APP Shop, FAN-Tastic Tuning, USB Key BIOS: - 32Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 support - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment Unique Feature Software: - ASRock A-Tuning - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Interactive UEFI - ASRock UEFI Guide - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Tachometer - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS: Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Package Contents | Accessories: Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables |
|---|
| First Listed on Newegg | March 31, 2015 |
|---|
