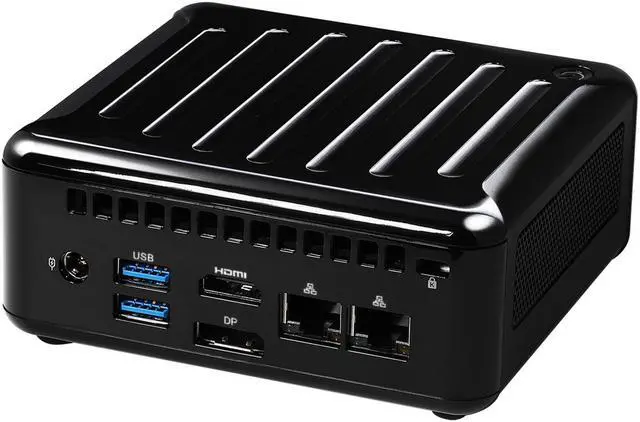

    ASRock Industrial NUC NUC BOX-1340P/D4 Barebone Systems - Mini-PC (with Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P CPU, 2 x Intel 2.5 Gigabit LAN,Supports Quad display,TPM 2.0 onboard IC)

    (34)(5) Write a Review
    • NUCS Box-1340P/D4
    • NUC Box-1360P/D4
    • NUC Box-1340P/D4
    • NUC Box-1260P
    • NUC Box-1220P
    • NUC Box-1165G7
    • NUC Box-J6412
    • Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
    • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
    • 1 x USB 4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
    • 2 x Intel 2.5 Gigabit LAN
    • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type C)
    • TPM 2.0 onboard IC
    • 19V/90W Power Adapter
    • 110.0 x 117.5 x 47.85mm, Fanned Barebone
    +
    +
    Specs
    Reviews (34)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock Industrial NUC BOX-1340P/D4

    General
    Brand ASRock Industrial
    Series NUC
    Model NUC BOX-1340P/D4
    Part Number NUC BOX-1340P/D4
    Color Black
    CPU Supported
    CPU Type Intel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
    CPU Socket Intel Socket LGA1700
    Memory Supported
    Memory installed No Memory
    Memory slot 2 x 260Pin SO-DIMM
    Memory Type Supported DDR4 3200
    Max Memory Supported 64GB
    Dual Channel Memory Supported Yes
    Storage
    Serial ATA 1 x SATA3.0 (6.0 Gb/s)
    M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
    *M.2 Key M 2280(Supported by bracket)
    Graphics
    Intergrated Graphics Intel® Iris® Xe Graphics
    Communications
    LAN 2 x 2.5 Gigabit LAN
    Max LAN Speed Intel® I226LM with 10/100/1000/2500 Mbps
    Wireless LAN 1 x Wi-Fi 6E 802.11ax (2.4Gbps)
    Bluetooth BT 5.2

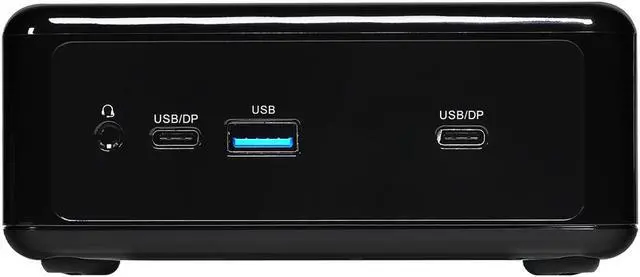

    Front Panel Ports
    Front USB 1 x USB 3.2 Gen2 (Type A)
    1 x USB 4 (Supports DP 1.4a display output)
    1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
    Front Audio Ports 1 (headphone & microphone jack)

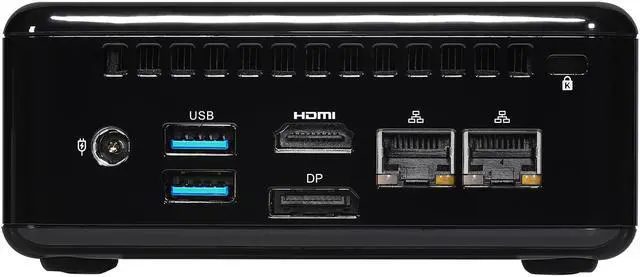

    Back Panel Ports
    HDMI 1 x HDMI 2.0b
    DisplayPort 1 x DP 1.4a
    Rear USB 2 x USB 3.2 Gen2 (Type-A)
    RJ45 2 x 2.5 Gigabit LAN
    Power Supply
    Input 19V/90W Power Adapter
    Physical SPEC
    Dimensions 110.0 x 117.5 x 47.85mm
    Weight Net Weight:1.0Kg
    Material Plastic with sheet metal
    Features
    Features TPM 2.0 onboard IC
    OS support Windows 10/11
    HDMI 2.0b
    Max resolution up to 4096x2160@60Hz
    DisplayPort 1.4a, DP++
    Max resolution up to 4096x2160@60Hz
    Quad-Display (Included 2 outputs from Type-C)
    Watchdog Timer (Output :From Super I/O to drag RESETCON# ; interval 256 Segments, 0, 1, 2, ...255sec )
    Packaging
    Packaging 1 x 19V/90W Power Adapter
    1 x Screw Package
    1 x VESA mounting bracket
    Additional Information
