ASRock Industrial NUC NUC BOX-1360P/D4 Barebone Systems- Mini-PC (with Intel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P,2 x Intel 2.5 Gigabit LAN ,TPM 2.0 onboard IC)

(34)(5) Write a Review
  • NUC Box-1340P/D5
  • NUCS Box-1340P/D4
  • NUC Box-1360P/D4
  • NUC Box-1220P
  • NUC Box-1165G7
  • NUC Box-J6412
  • NUC Box-N97
  • Intel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P
  • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
  • 1 x USB 4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type C)
  • TPM 2.0 onboard IC
  • 19V/90W Power Adapter
  • 110.0 x 117.5 x 47.85mm, Fanned Barebone
+
+
Specs
Reviews (34)

Learn more about the ASRock Industrial NUC BOX-1360P/D4

General
Brand ASRock Industrial
Series NUC
Model NUC BOX-1360P/D4
Part Number NUC BOX-1360P/D4
Color Black
CPU Supported
CPU Type Intel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P
CPU Socket Intel Socket LGA1700
Memory Supported
Memory installed No Memory
Memory slot 2 x 260Pin SO-DIMM
Memory Type Supported DDR4 3200
Max Memory Supported 64GB
Dual Channel Memory Supported Yes
Storage
Serial ATA 1 x SATA3.0 (6.0 Gb/s)
M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
Graphics
Intergrated Graphics Intel® Iris® Xe Graphics
Communications
LAN 2 x 2.5 Gigabit LAN
Max LAN Speed Intel® I226LM with 10/100/1000/2500 Mbps
Wireless LAN 1 x Wi-Fi 6E 802.11ax (2.4Gbps)
Bluetooth BT 5.2

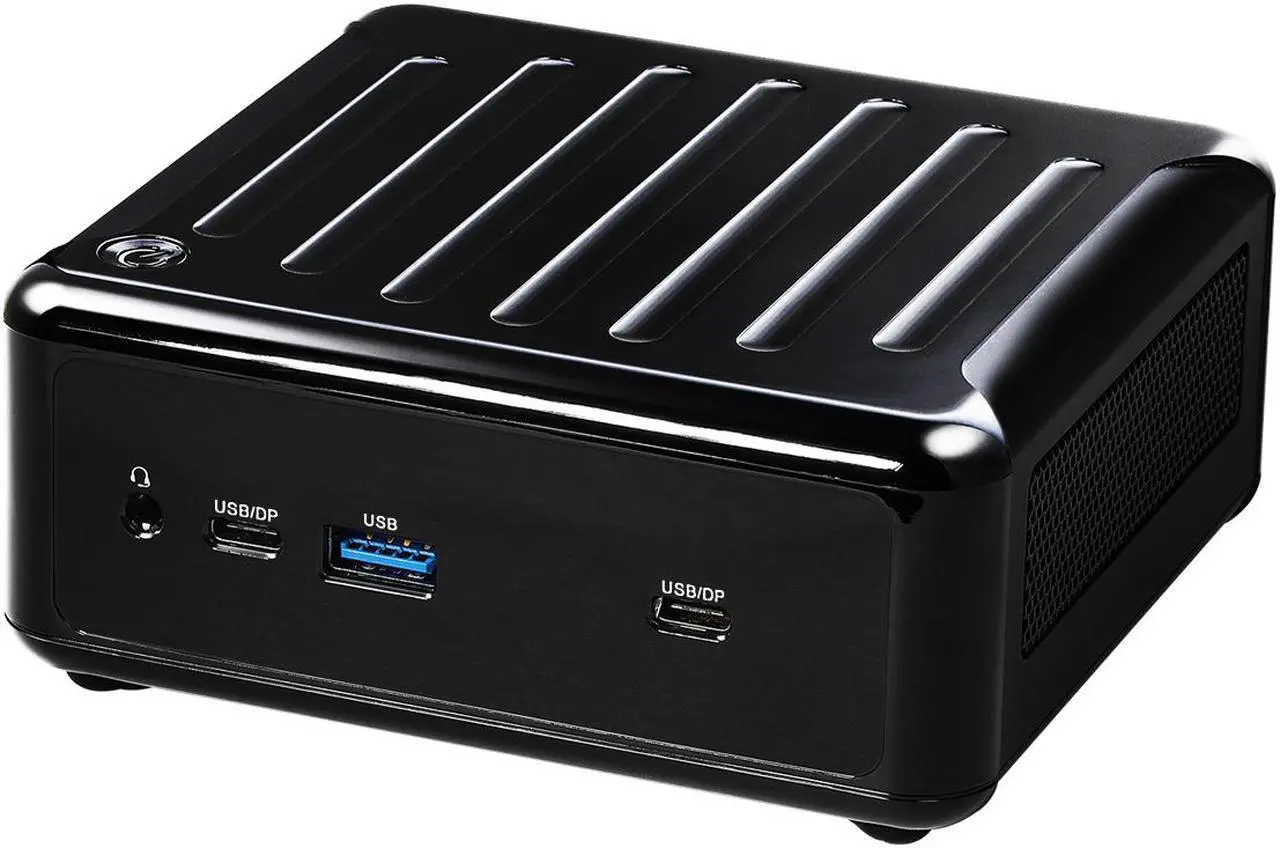

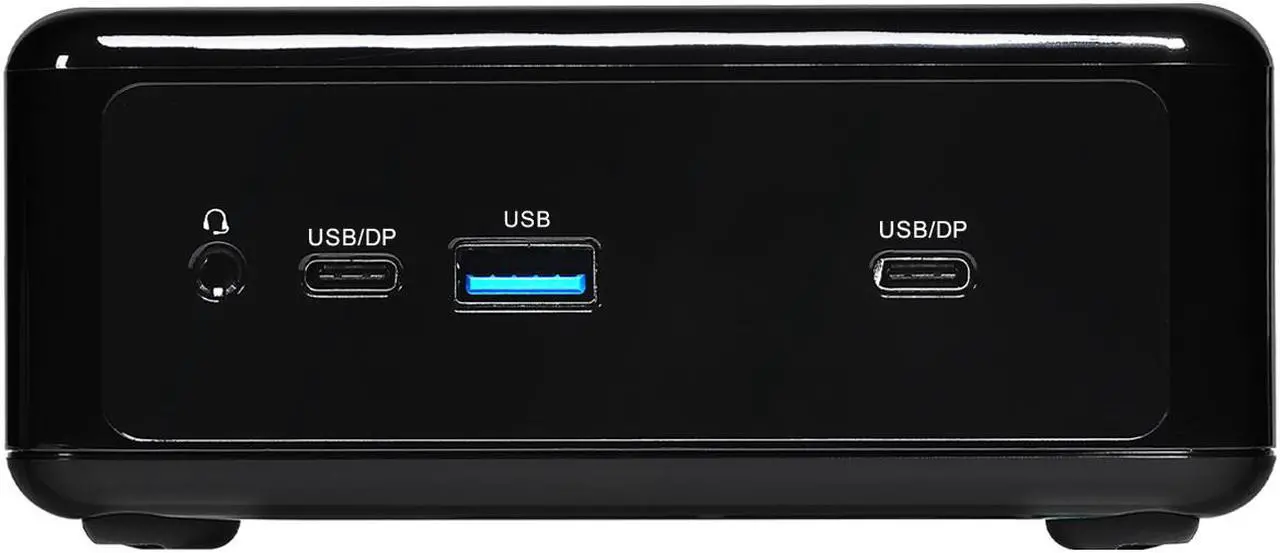

Front Panel Ports
Front USB 1 x USB 3.2 Gen2 (Type A)
1 x USB 4 (Supports DP 1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
Front Audio Ports 1 (headphone & microphone jack)

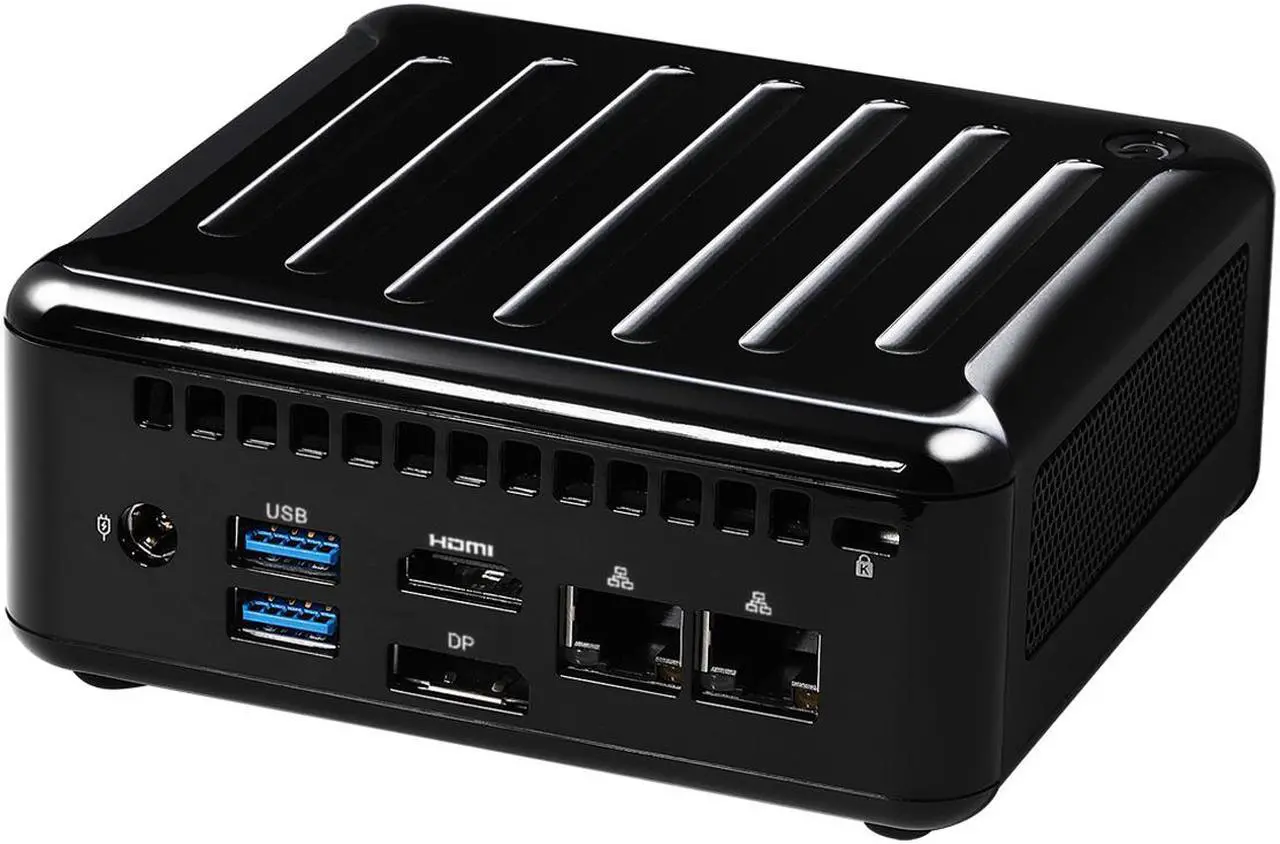

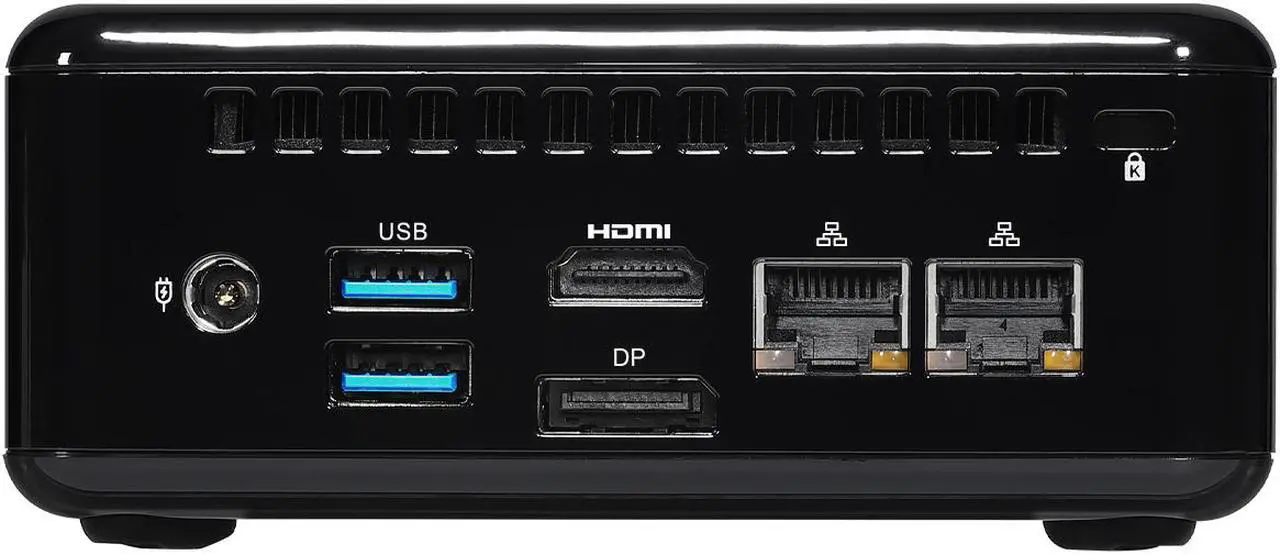

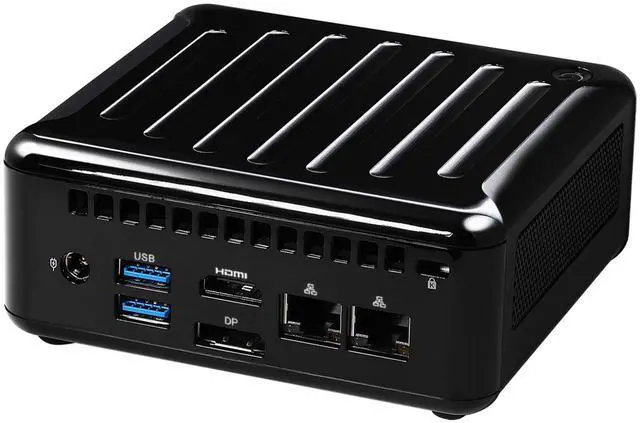

Back Panel Ports
HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
Rear USB 2 x USB 3.2 Gen2 (Type-A)
RJ45 2 x 2.5 Gigabit LAN
Power Supply
Input 19V/90W Power Adapter
Physical SPEC
Dimensions 110.0 x 117.5 x 47.85mm
Weight Net Weight:1.0Kg
Material Plastic with sheet metal
Features
Features TPM 2.0 onboard IC
OS support Windows 10/11
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
Quad-Display (Included 2 outputs from Type-C)
Watchdog Timer (Output :From Super I/O to drag RESETCON# ; interval 256 Segments, 0, 1, 2, ...255sec )
Packaging
Packaging 1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Additional Information
Date First Available April 13, 2023
