What form factor SSD fits inside the case?

The case supports M.2 Key M SSDs in sizes 2242, 2260, and 2280.

Does the case hold a standard slim SSD drive with SATA interface inside?

I didn't see any sata ports in there, just the m.2 slot as far as storage goes. You might want to get one of the shorter ones, I've got a standard length one, and it barely fit with the screw. I don't think there's enough space inside for a slim sata ssd in there anyways.

Does the power adapter support 240V input ?

Dear Raman, ASRock Industrial Support team appreciate your inquiry. According to ASRock 4X4 BOX-5800U specification, it could support 12V~19V DC-In power input. Kindly remind there is a power adapter in accessories, which could support 100-240V AC input and 19V/90W DC output. If you have any questions during testing, please feel free to contact us at [Technical Support] of ASRock Industrial official website We will assist you shortly. Thank you very much. ASRock Industrial Technical Support Team

Backordered

$549^.99

Limit 20 per customer.

About Backordered Items

Price alert

Add to wish list(Found on 2 wish lists)

Sold by Newegg

Shipped by Newegg

Sponsored Products

MINISFORUM Venus Series UN1250 Mini PC Core i5-1250P(12C/16T, up to 4.4GHz) 16GB RAM 1T SSD, HDMI/DP/USB-C 4K@60Hz Triple Outputs, 2.5G LAN, WiFi6E, 4X USB Port Desktop Computer

$375^.00 –
Save: 20%

MINISFORUM NAB6 Lite Mini PC Core i5-12600H(12C/16T, up to 4.5 GHz) Mini Computer 16GB RAM + 500GB SSD, 2xHDMI + 2xUSB-C 4K@60Hz Outputs, 2x2.5G LAN, 4xUSB3.2, Intel Iris Xe Graphics Desktop Computer

$399^.00 –
Save: 20%

MINISFORUM MS-01 Mini Workstation Core i9-13900H Barebone Version Mini PC, HDMI + 2xUSB4 8K Display, 2x10G SFP+ Port, 2x2.5G LAN Port, Support M.2 2280/22110/U.2 SSD/RTX 3050 Graphics Cards

$639^.00 –
Save: 27%

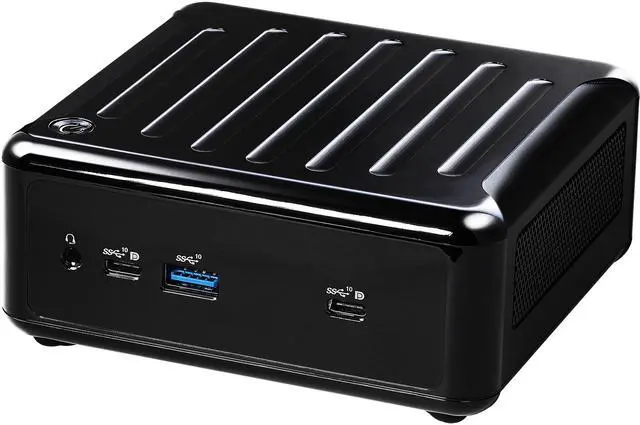

Main image of ASRock Industrial 4x4 BOX-5800U SoC Fanned Embedded BOX PC (Include AMD Ryzen 5800U, TPM 2.0 Onboard IC, Supports Quad display, 1 x HDMI 2.0a, 3 x DP (2 from Type C))

Alt view image 2 of 4 - ASRock Industrial 4x4 BOX-5800U SoC Fanned Embedded BOX PC (Include AMD Ryzen 5800U, TPM 2.0 Onboard IC, Supports Quad display, 1 x HDMI 2.0a, 3 x DP (2 from Type C))

Alt view image 3 of 4 - ASRock Industrial 4x4 BOX-5800U SoC Fanned Embedded BOX PC (Include AMD Ryzen 5800U, TPM 2.0 Onboard IC, Supports Quad display, 1 x HDMI 2.0a, 3 x DP (2 from Type C))

Alt view image 4 of 4 - ASRock Industrial 4x4 BOX-5800U SoC Fanned Embedded BOX PC (Include AMD Ryzen 5800U, TPM 2.0 Onboard IC, Supports Quad display, 1 x HDMI 2.0a, 3 x DP (2 from Type C))

Customer images

Shop All ASRock Industrial Products

ASRock Industrial 4x4 BOX-5800U SoC Fanned Embedded BOX PC (Include AMD Ryzen 5800U, TPM 2.0 Onboard IC, Supports Quad display, 1 x HDMI 2.0a, 3 x DP (2 from Type C))

(68)(3) Write a Review

Options: 4X4 BOX-5800U

4X4 Box-7735U/D5
4X4 BOX-5800U
4X4 BOX-5600U

AMD Ryzen 5800U, 8Cores, Max Speed up to 4.4GHz
AMD Radeon Graphics
2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3
1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
Wifi 6E supports 6 GHZ band
Dual storage and Memory support
TPM 2.0 onboard IC
Fanned Barebone

Overview

Specs

Reviews (68)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Best Seller Ranking	#65 in Mini-PC Barebone

General
Brand	ASRock Industrial
Model	4x4 BOX-5800U

CPU Supported
CPU Type	AMD Ryzen 7 5800U, 8Cores, Max Speed up to 4.4GHz

Chipset
North Bridge	SoC

Memory Supported
Memory installed	No Memory
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 3200
Max Memory Supported	64GB
Dual Channel Memory Supported	Yes

Storage
Hard Drive Installed	No Hard Drive
Serial ATA	1 x SATA 6.0Gb/s
M.2	1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD * M.2 Key M 2280(Supported by bracket).

Graphics
Integrated Graphics	AMD Radeon Graphics

Audio
Onboard Audio	Realtek ALC233

Communications
LAN	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111FPV with 10/100/1000 Mbps, support DASH function
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN	Wi-Fi 6E 802.11ax
Bluetooth	Bluetooth 5.2

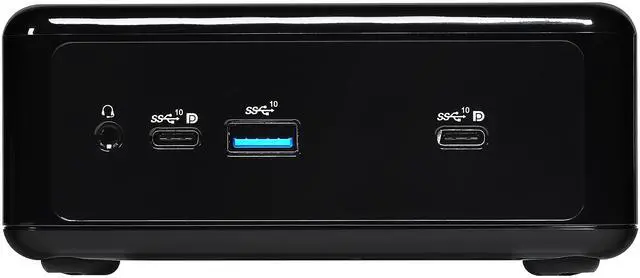

Front Panel Ports
Front USB	1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output)
Front Audio Ports	1 (headphone & microphone jack)

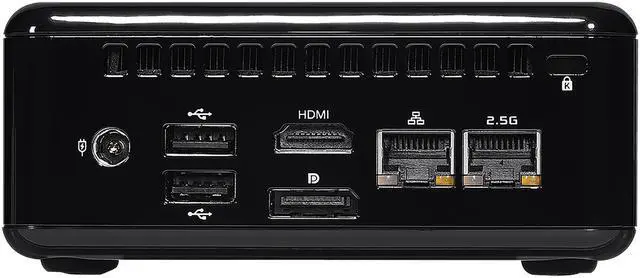

Back Panel Ports
HDMI	1 x HDMI 2.0a
DisplayPort	1 x DP 1.2a
Rear USB	2 x USB 2.0
RJ45	2
Other Rear Ports	1 x DC Jack

Power Supply
Power Supply	1 x 19V/90W Power Adapter

Physical SPEC
Dimensions	1.88" x 4.63" x 4.33"
Weight	2.20 lbs.

Features
Features	AMD Ryzen 5000U-Series 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C) TPM 2.0 onboard IC 19V/90W Power Adapter 110.0 x 117.5 x 47.85mm, Fanned Barebone

Packaging
Packaging	Accessories: 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket 1 x Bracket for M.2 2280 support

Additional Information
First Listed on Newegg	May 31, 2022
