ASRock Industrial NUC BOX-J6412 Black Mini / Booksize Barebone System
- Intel Celeron J6412
- 2 x 260Pin SO-DIMM DDR4 3200
+
+
Learn more about the ASRock Industrial NUC BOX-J6412
| Brand | ASRock Industrial |
|---|---|
| Model | NUC BOX-J6412 |
| Color | Black |
| CPU Type | Intel Celeron J6412 |
|---|
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 260Pin SO-DIMM |
| Memory Type Supported | DDR4 3200 |
| Max Memory Supported | 32GB |
| Dual Channel Memory Supported | Yes |
| Other | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 |
|---|
| Hard Drive Installed | No Hard Drive |
|---|---|
| Serial ATA | 1 x SATA 6.0Gb/s |
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD * M.2 Key M 2280(Supported by bracket). |
| Integrated Graphics | Intel UHD Graphics |
|---|
| Onboard Audio | Realtek ALC233 |
|---|
| LAN | Realtek RTL8111G-CG/RTL8111H-CG |
|---|---|
| Max LAN Speed | Dual 10/100/1000Mbps |

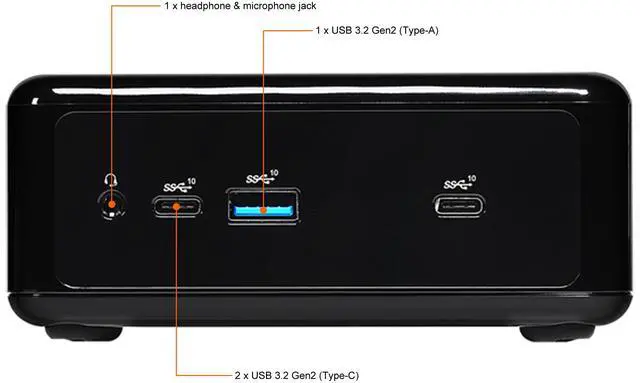

| Front USB | 1 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C) |
|---|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP1.4 |

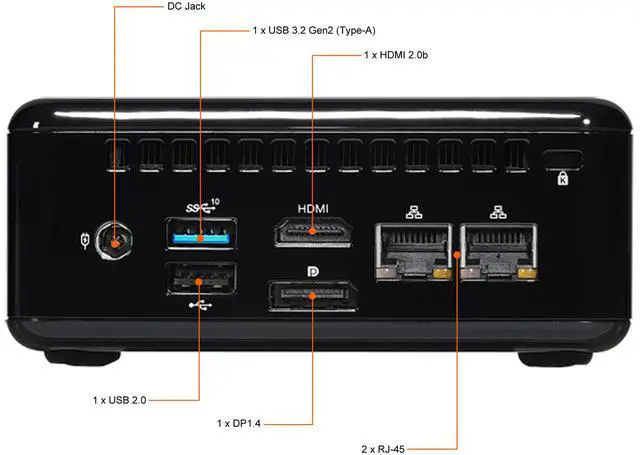

| Rear USB | 1 x USB 2.0 1 x USB 3.2 Gen2 (Type-A) |
| RJ45 | 2 |
| Other Rear Ports | DC Jack |
| Power Supply | 1 x 19V/65W Power Adapter |
|---|

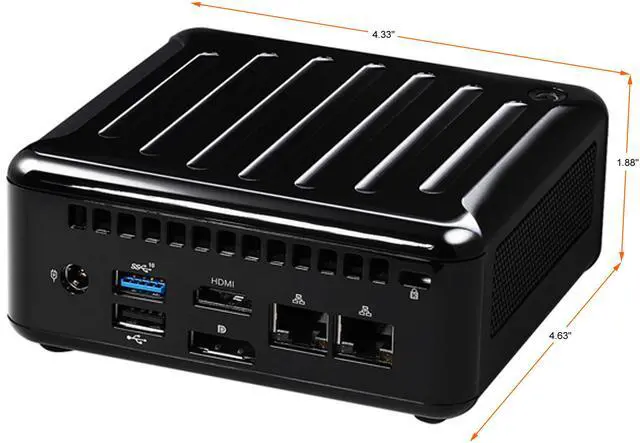

| Dimensions | 1.88" x 4.63" x 4.33" |
|---|
| Features | Intel ElkHart Lake SoC Processors 2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz 4 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3 2 x Realtek 1 Gigabit LAN Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.4 TPM 2.0 onboard IC 19V/65W Power Adapter 110.0 x 117.5 x 47.85mm, Fanned Barebone |
|---|
| Packaging | Accessory: 1 x 19V/65W Power Adapter 1 x Screw Package 1 x VESA mounting bracket |
|---|
| First Listed on Newegg | March 02, 2022 |
|---|
