What type of memory does this mini-PC support and what's the maximum capacity?

This mini-PC supports DDR5 6400 memory with a maximum capacity of 96GB (48GB per DIMM).

What type of graphics does this mini-PC use?

The mini-PC uses Intel Arc Graphics.

What kind of ports are available on this mini-PC for peripheral devices?

This mini-PC offers several ports for peripherals: on the front, there are 2 USB 3.2 Gen2 (Type A), 1 USB4/Thunderbolt 4 (supports DP2.1 display output), and 1 USB3.2 Gen2x2 (Type-C, supports DP1.4a display output) ports; on the back, there are 2 USB 3.2 Gen2 (Type-A) ports.

Does this mini-PC come with any pre-installed storage or memory?

No, this mini-PC does not come with pre-installed storage or memory.

Can I connect this mini-PC to a Wi-Fi network?

Yes, this mini-PC supports Wi-Fi connectivity as it features 802.11ax wireless LAN.

BOSGAME P3 Plus Mini PC, AMD Ryzen 7 7840HS, 16GB DDR5 1TB SSD, 2*RJ45 LAN, USB Type-C Full Function, Triple 4K Display, WiFi 6E & BT 5.2

(2)

$489^.00 –
Save: 16%

$739^.99

Free 30-day Returns

Limit 5 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Sponsored Products

$699^.00 –
Save: 46%

MINISFORUM NAB6 Lite Mini PC Core i5-12600H(12C/16T, up to 4.5 GHz) Mini Computer 16GB RAM + 500GB SSD, 2xHDMI + 2xUSB-C 4K@60Hz Outputs, 2x2.5G LAN, 4xUSB3.2, Intel Iris Xe Graphics Desktop Computer

$509^.00 –
Save: 36%

MINISFORUM MS-01 Mini Workstation Core i9-13900H Barebone Version Mini PC, HDMI + 2xUSB4 8K Display, 2x10G SFP+ Port, 2x2.5G LAN Port, Support M.2 2280/22110/U.2 SSD/RTX 3050 Graphics Cards

$669^.00 –
Save: 44%

Main image of ASRock Industrial NUCS BOX-255H Black Mini-PC Barebone

Alt view image 2 of 4 - ASRock Industrial NUCS BOX-255H Black Mini-PC Barebone

Alt view image 3 of 4 - ASRock Industrial NUCS BOX-255H Black Mini-PC Barebone

Alt view image 4 of 4 - ASRock Industrial NUCS BOX-255H Black Mini-PC Barebone

Shop All ASRock Industrial Products

ASRock Industrial NUCS BOX-255H Black Mini-PC Barebone

(1) Write a Review

CPU Type: Intel Core Ultra 7 255H

Intel Core Ultra 7 255H
Intel Core Ultra 5 225H

Options: 1 Ethernet Port

1 Ethernet Port
2 Ethernet Ports

Intel Core Ultra 7 255H
2 x 262Pin SO-DIMM DDR5 6400

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

ASRock Industrial NUCS BOX-225H Black Mini-PC Barebone

Brand	ASRock Industrial
Model	NUCS BOX-255H
Color	Black
AI Features	AI Accelerated

Memory installed	No Memory
Memory slot	2 x 262Pin SO-DIMM
Memory Type Supported	DDR5 6400
Max Memory Supported	96GB (48 GB per DIMM)
Dual Channel Memory Supported	Yes

Storage Installed	No Hard Drive
Serial ATA	1 x SATA 6.0Gb/s
M.2 Slot	1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD

LAN	Intel I226LM
Max LAN Speed	2.5Gbps
Wireless LAN	802.11ax
WiFi Generation	Wi-Fi 6E
Bluetooth	Bluetooth 5.3

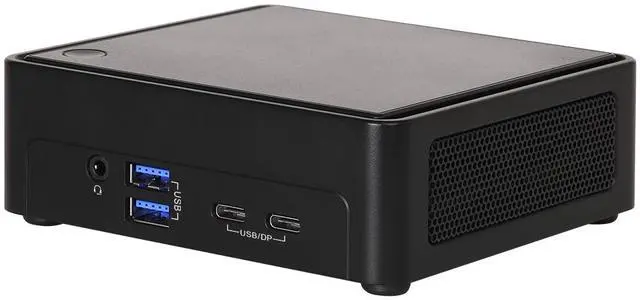

Front USB	2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt 4 (Supports DP2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
Front Audio Ports	1 (headphone & microphone jack)

Sponsored Products

ASRock Industrial NUCS BOX-255H Black Mini-PC Barebone

Learn more about the ASRock Industrial NUCS BOX-255H

Customer Reviews of the ASRock Industrial NUCS BOX-255H

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

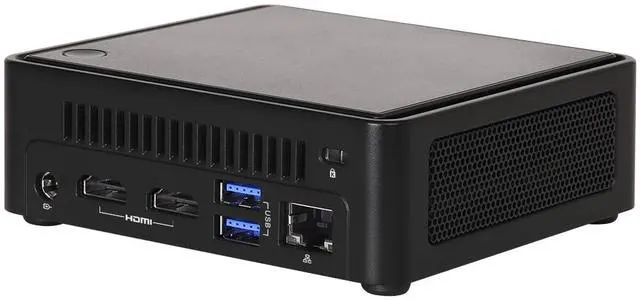

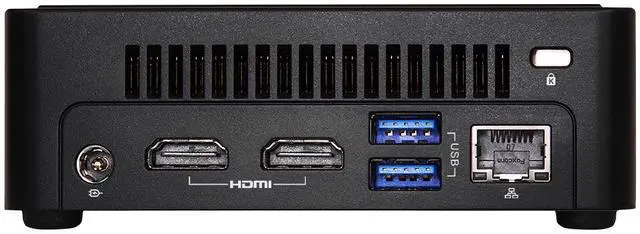

HDMI	2 x HDMI 2.1 TMDS
Rear USB	2 x USB 3.2 Gen2 (Type-A)
RJ45	1 x 2.5 Gigabit LAN

Power Supply
Input	12V~24V DC-In Jack
Power Supply	19V/120W

Physical SPEC
Dimensions	4.63" x 4.33" x 1.50"
Weight	2.2 lbs.

Item#: N82E16856179015
