Brand | ASRock |
---|---|

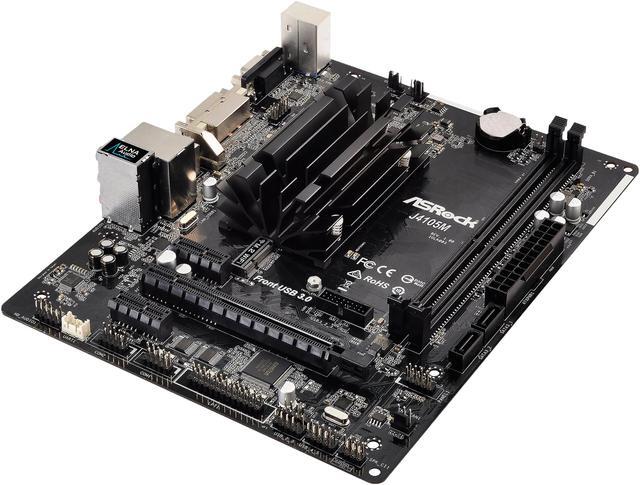

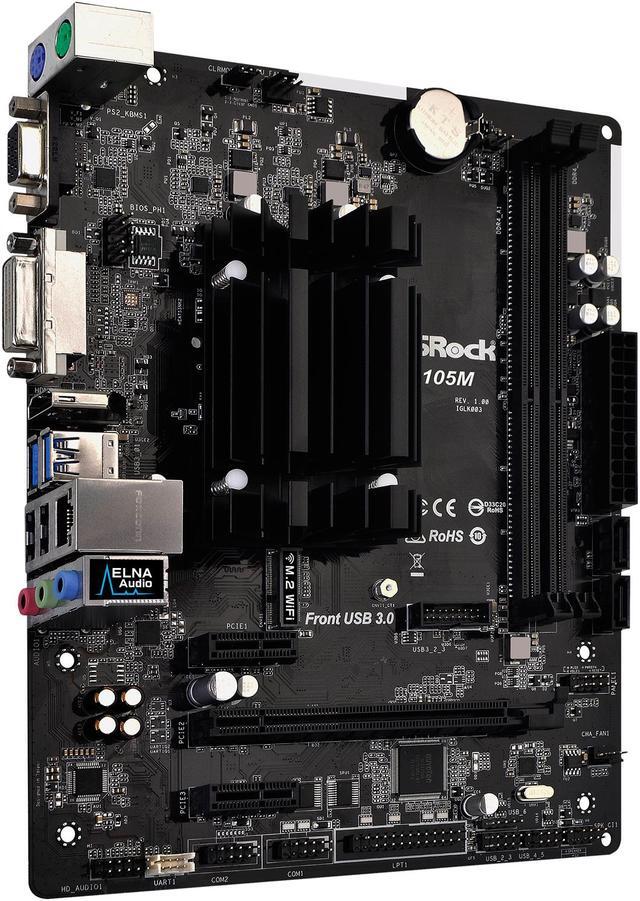

Model | J4105M |
Combo Type | Motherboard / CPU Combo |
CPU | Intel Celeron Quad-Core Processor J4105 (up to 2.5 GHz) |
---|
Number of Memory Slots | 2×288pin *2GB DRAM per module is not supported. |
---|---|
Memory Standard | DDR4 2400/ 2133 |
Maximum Memory Supported | 8GB *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode) |
---|---|
PCI Express x1 | 2 x PCI Express 2.0 x1 Slots |
Other Slots | 1 x M.2 Socket (Key E), supports type 2230 Intel CNVi (Integrated Wi-Fi/BT)* *M.2 PCI Express module is not supported |
SATA | 2 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug |
---|
Onboard Video Chipset | Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750 MHz) DX12, OpenGL 4.3, OGL ES 3.0, OpenCL 2.0 HW Acceleration Decode: HEVC (H.265) 8-bit, HEVC (H.265) 10-bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8-bit, VP9 10-bit HW Acceleration Encode: HEVC (H.265) 8-bit, HEVC (H.265) 10-bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8-bit Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, xvYCC and HBR (High-bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports |
---|
Audio Chipset | Realtek ALC887 |
---|---|
Audio Channels | 7.1 Channels Supports Surge Protection *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN Chipset | Realtek RTL8111E |
---|---|
LAN Speed | 10/100/1000Mbps |
PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
---|---|
Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
HDMI | 1 x HDMI |
RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection) |
USB 3.0 | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
Onboard USB | 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
---|---|
Other Connectors | 1 x Print Port Header 2 x COM Port Headers 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (3-pin) 1 x Chassis Fan Connector (3-pin) 1 x 24-pin ATX Power Connector 1 x Front Panel Audio Connector |
Features | Unique Feature: ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 compliant wake up events - Supports jumperfree - SMBIOS 3.0 support Software and UEFI: Software - ASRock XFast LAN UEFI - ASRock Instant Flash - ASRock Internet Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS: - Microsoft Windows 10 64-bit* *Supports UEFI mode only Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
---|
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 8.9" x 7.0" |

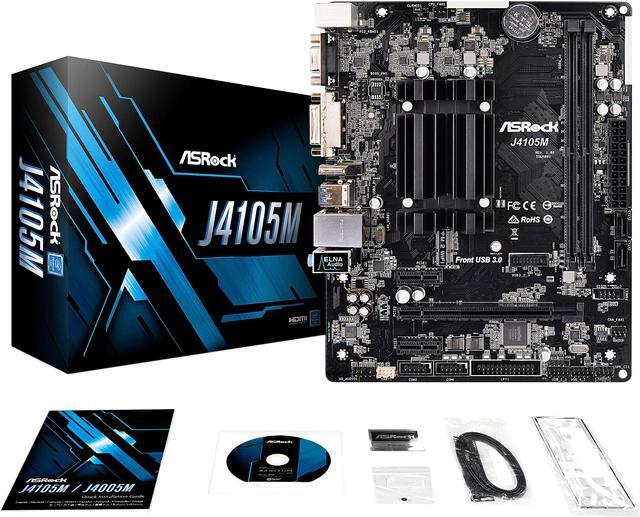

Package Contents | Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
---|
Date First Available | April 09, 2018 |
---|
