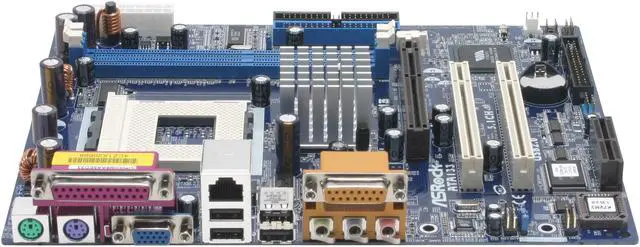

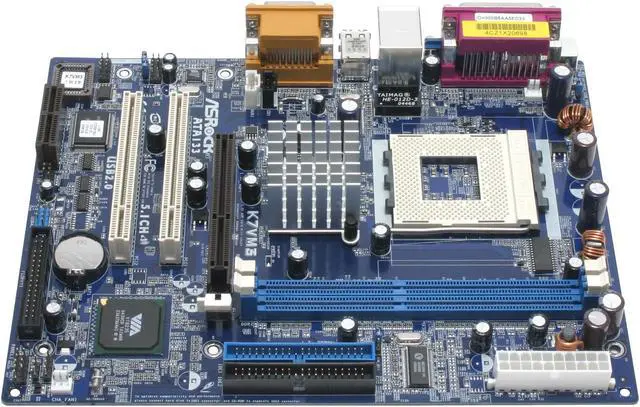

ASRock K7VM3 462(A) VIA KM266Pro Micro ATX AMD Motherboard
- VIA KM266Pro
- Athlon XP / Athlon / Duron / Sempron
- DDR 333
Specs
Reviews (153)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock K7VM3
| Brand | ASRock |
|---|---|
| Model | K7VM3 |
| CPU Socket Type | 462(A) |
|---|---|
| CPU Type | Athlon XP / Athlon / Duron / Sempron |
| FSB | 333/266/200MHz |
| Chipset | VIA KM266Pro |
|---|---|
| South Bridge | VIA VT8235 |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 333 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 2X / 4X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x AMR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Onboard Video Chipset | S3 Graphics UniChrome 2D/3D |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Game/MIDI Ports | 1 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 2.0 connector suppots 2 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.8" |
| Power Pin | 20 Pin |
| Features | AMI 2MB Flash ROM with ACPI, SM BIOS 2.3.1, PnP |
|---|

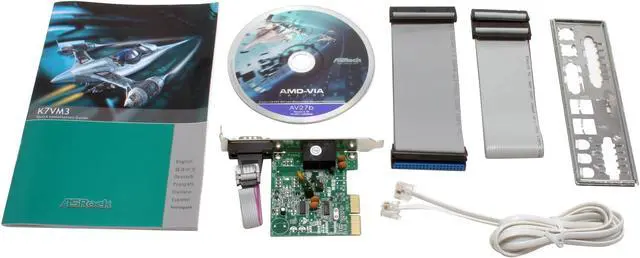

| Package Contents | K7VM3 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable AMR Card RJ45 Cable |
|---|
| First Listed on Newegg | February 01, 2005 |
|---|
