ASRock K8NF4G-SATA2 754 NVIDIA GeForce 6100 Micro ATX AMD Motherboard
- NVIDIA GeForce 6100
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (91)
Learn more about the ASRock K8NF4G-SATA2
| Brand | ASRock |
|---|---|
| Model | K8NF4G-SATA2 |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | NVIDIA GeForce 6100 |
|---|---|
| South Bridge | NVIDIA nForce 410 |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x AMR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Chipset | Realtek ALC850 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.0" |
| Power Pin | 20 Pin |

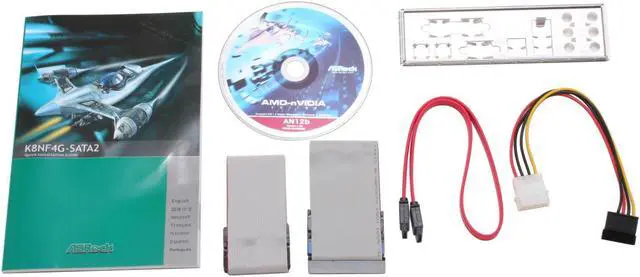

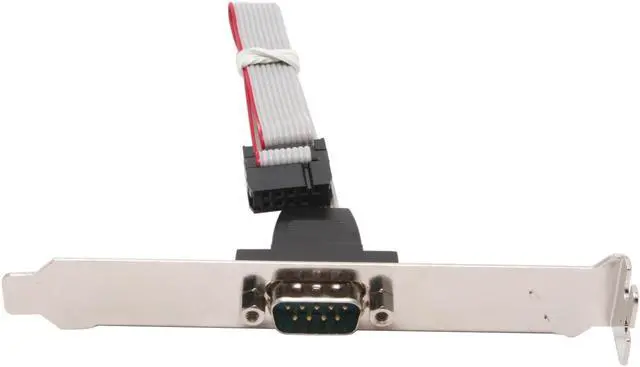

| Package Contents | K8NF4G-SATA2 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable Power Cable Serial/COM Bracket |
|---|
| Date First Available | October 13, 2005 |
|---|
