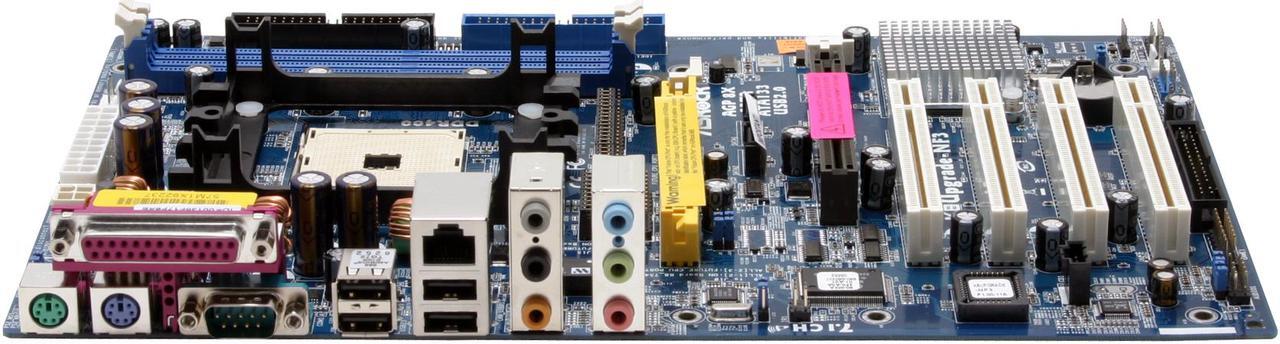

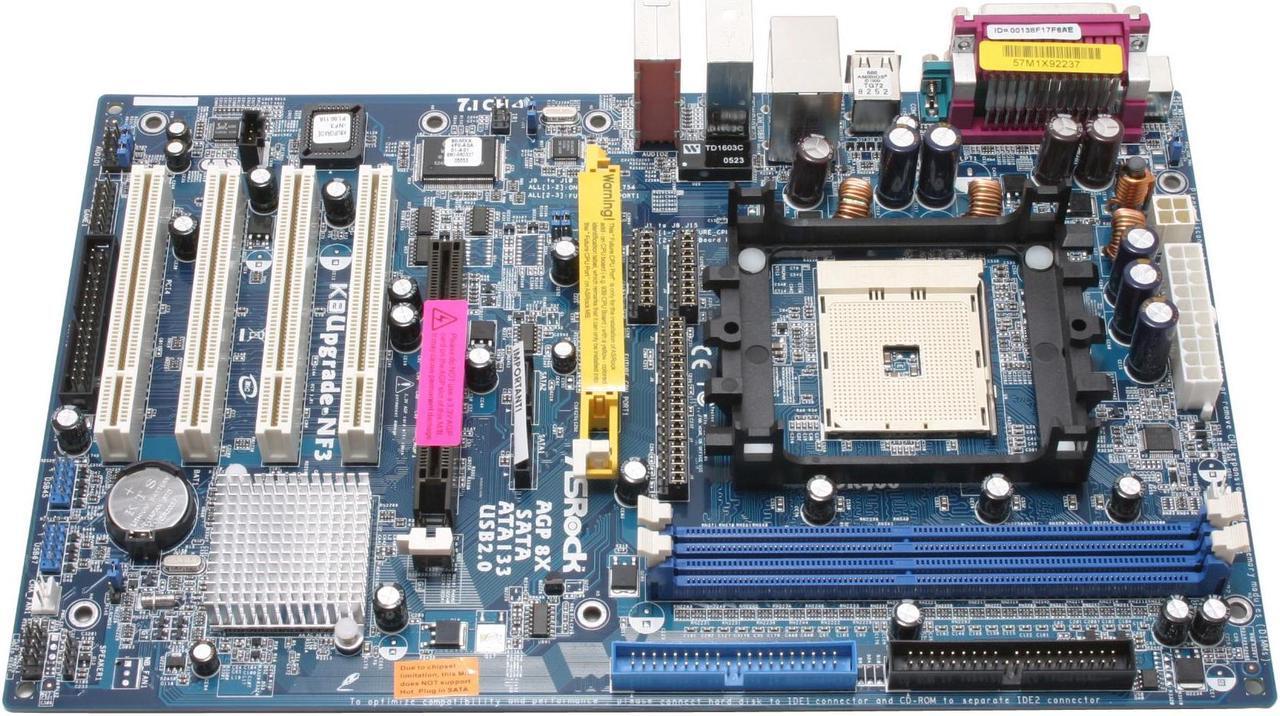

ASRock K8Upgrade-NF3 754 NVIDIA nForce3 250 ATX AMD Motherboard

(40) Write a Review
  • NVIDIA nForce3 250
  • Athlon 64 / Sempron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (40)

Learn more about the ASRock K8Upgrade-NF3

Model
Brand ASRock
Model K8Upgrade-NF3
Supported CPU
CPU Socket Type 754
CPU Type Athlon 64 / Sempron
FSB 800 MHz
Chipsets
Chipset NVIDIA nForce3 250
Memory
Number of Memory Slots 2x184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 4 x PCI Slots
Other Slots ASRock Future CPU Port (Yellow): Flexible Socket 939 upgrade interface for ASRock 939CPU board
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC850
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps

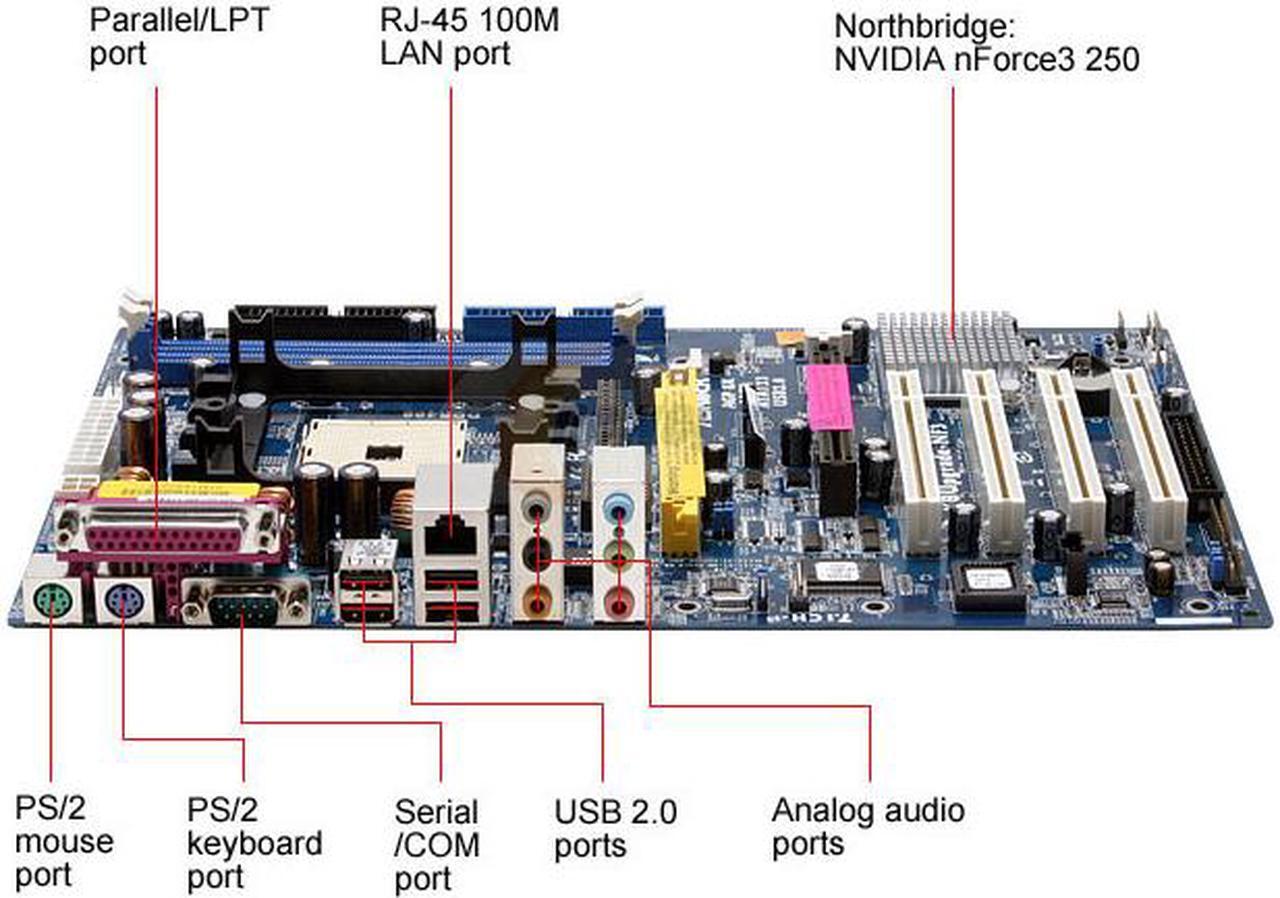

Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 7.5"
Power Pin 20 Pin
Packaging

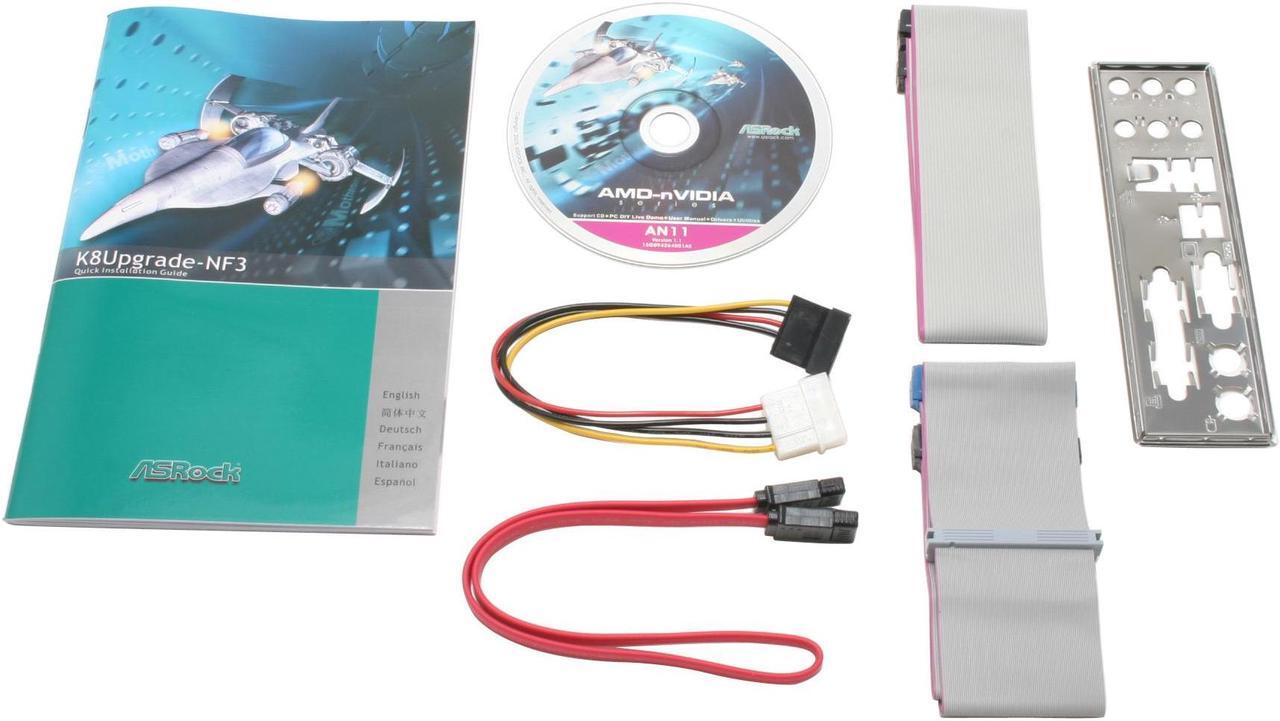

Package Contents K8Upgrade-NF3
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
Power Cable
Additional Information
Date First Available August 05, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
