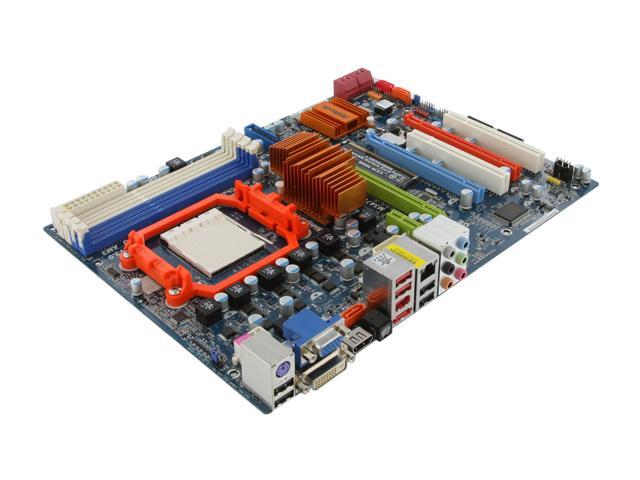

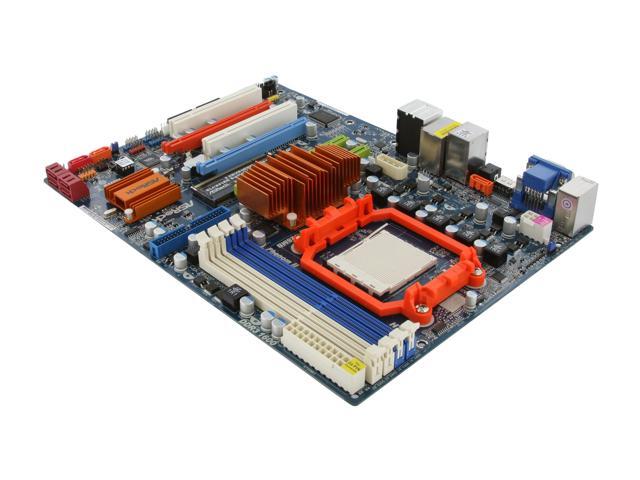

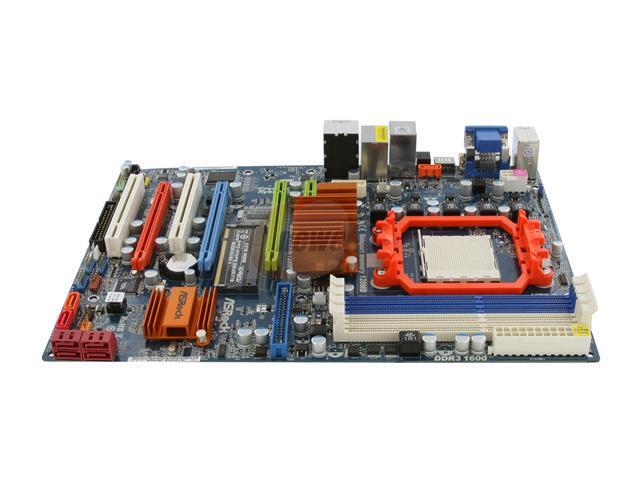

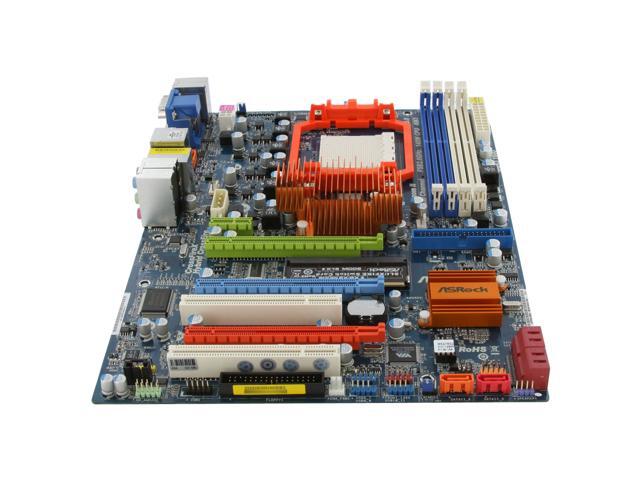

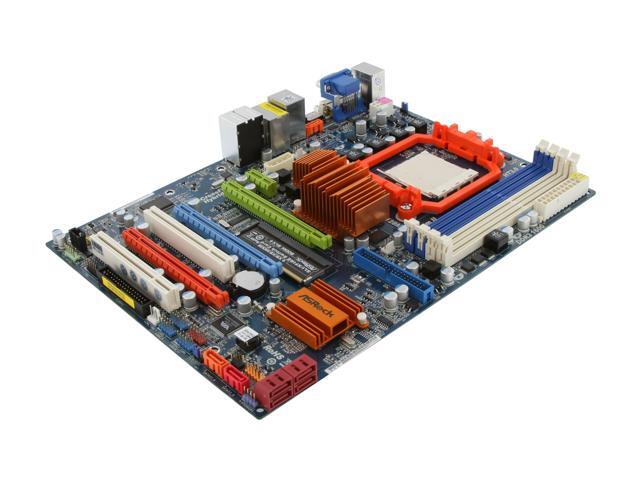

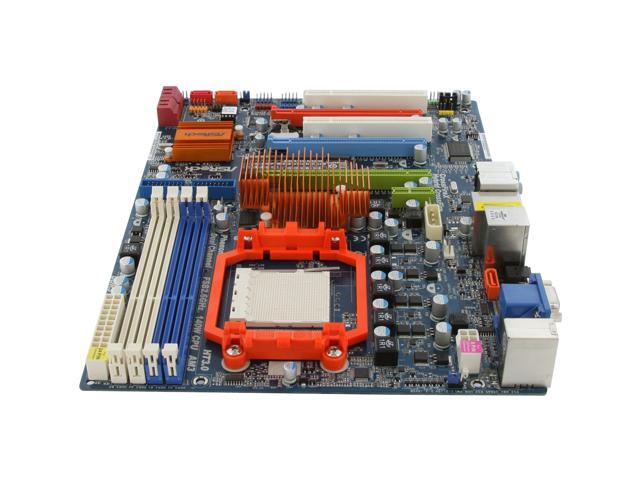

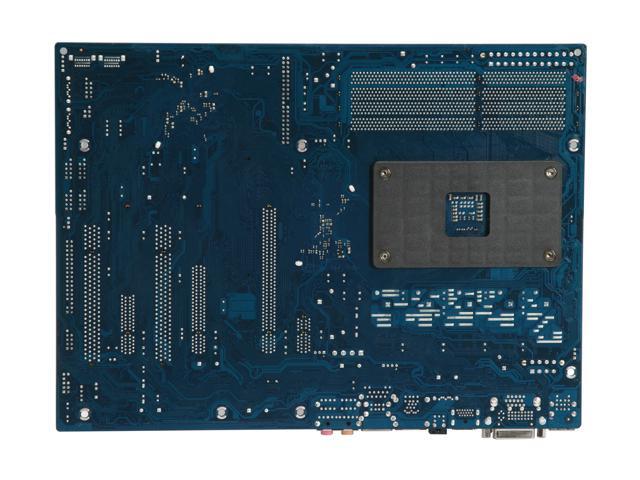

ASRock M3A785GXH/128M AM3 AMD 785G HDMI ATX AMD Motherboard
- AMD 785G
- Phenom II / Athlon II / Sempron 100 Series (except 920 / 940)
- DDR3 1600(OC) / 1333 / 1066 / 800
Specs
Reviews (48)
Learn more about the ASRock M3A785GXH/128M
| Brand | ASRock |
|---|---|
| Model | M3A785GXH/128M |
| CPU Socket Type | AM3 |
|---|---|
| CPU Type | Phenom II / Athlon II / Sempron 100 Series (except 920 / 940) |
| FSB | 2600 MHz |
| Chipset | AMD 785G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600(OC) / 1333 / 1066 / 800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 3 (green @ x16 mode, blue @ x8 mode, orange @ x4 mode) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10/JBOD |
| Onboard Video Chipset | Integrated AMD Radeon HD 4200 graphics, built-in 128MB DDR3 1333(OC)/1200MHz SidePort Memory |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.8" |
| Power Pin | 24 Pin |
| Features | ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors Supports ATI CrossFireX, Hybrid CrossFireX and 3-Way CrossFireX |
|---|
| Date First Available | August 14, 2009 |
|---|
