ASRock B850M Rock WiFi AM5 AMD B850 Micro ATX Motherboard
Free ASRock AIO with purchase, limited offer
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 6+1+1 Power Phase, Dr.MOS for VCore
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 8200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
- 1 USB 3.2 Gen1 Type-C (Front)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11axe WiFi 6E + Bluetooth
+
+
Learn more about the Detailed Specifications
| Brand | ASRock |
|---|
| CPU Socket Type | AM5 |
|---|
| Chipset | AMD B850 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 8200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP / AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| Other Slots | 1 x M.2 Socket (Key E) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | AMD RDNA |
|---|
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Bluetooth | Yes |

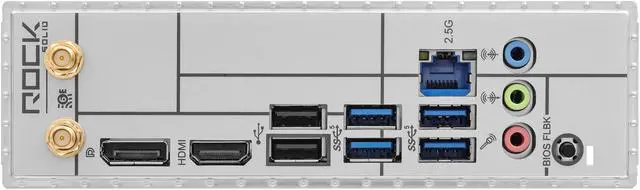

| Back I/O Ports | 2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, 3 x HD Audio Jacks |
|---|---|
| S-Video | No |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 3.2 + 5 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 8.9" |
| Power Pin | 24 Pin |
| First Listed on Newegg | February 23, 2026 |
|---|
