What M.2 storage interfaces does this motherboard provide?

It has one PCIe Gen5 x4 M.2 slot, one PCIe Gen4 x4 M.2 slot, and one PCIe Gen4 x2 M.2 slot. These slots support NVMe SSDs as boot disks.

Which AMD Ryzen processor series are compatible with this motherboard's AM5 socket?

It supports AMD Ryzen 7000, 8000, and 9000 Series processors.

$109^.99

Free 91-day Returns

Limit 99999 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

Corn Electronics

Top Rated

4.2 (14,728 total ratings)

$209^.99
+ FREE SHIPPING

Main image of ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 2 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 3 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 4 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 5 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 6 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 7 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Alt view image 8 of 8 - ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Shop All ASRock Products

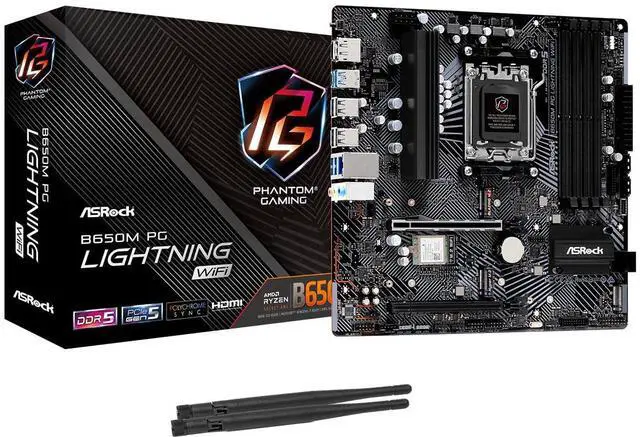

ASRock B650M PG Lightning WiFi AMD RYZEN 8000 and 7000 Series Socket AM5 DDR5 ATX 7200+(OC) HDMI Type-C SATA3 6.0 Gb/s 2.5G LAN

Be the first to review this product...

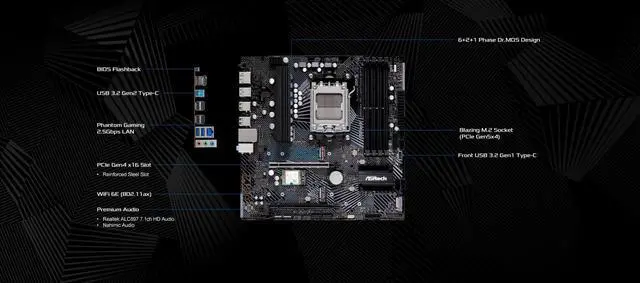

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
6+2+1 Power Phase, Dr.MOS
4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
Graphics Output: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
Phantom Gaming 2.5G LAN

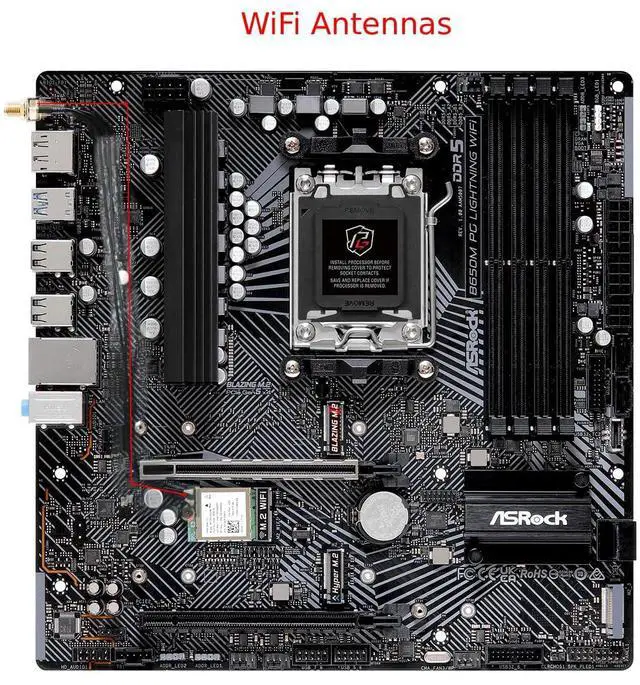

802.11ax WiFi 6E + Bluetooth
Supports ASRock Auto Driver Installer, BIOS Flashback

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Combo Up Savings Up To $830+

The more you add, the more you'll save!

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Main

Specifications

Product Description
ASRock B650M PG Lightning WiFi - motherboard - micro ATX - Socket AM5 - AMD B650
Product Type
Motherboard - micro ATX
Chipset Type
AMD B650
Processor Socket
1 x Socket AM5
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max RAM Size
192 GB
RAM Supported
4 DIMM slots - DDR5, ECC (operate in non-ECC mode), unbuffered
Storage Ports
4 x SATA-600 (RAID), 1 x M. 2, 1 x Hyper M. 2, 1 x Blazing M. 2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)

Model
Brand	ASRock
Model	B650M PG LIGHTNING WIFI
Part Number	90-MXBMW0-A0UAYZ

Supported CPU
CPU Socket Type	AM5

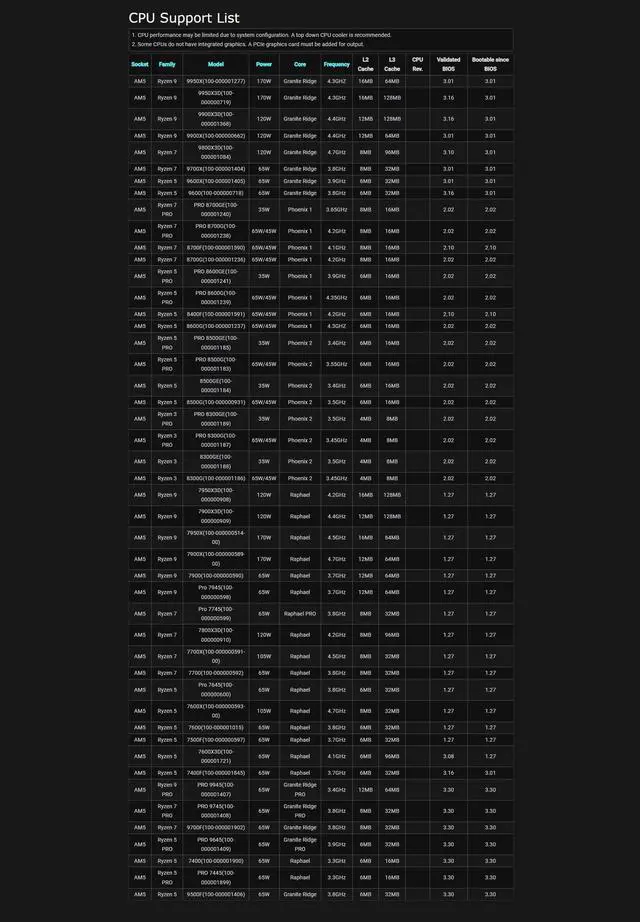

CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 up to 7200+(OC)
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0 / AMD EXPO
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* * Supports NVMe SSD as boot disks
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 be

Rear Panel Ports

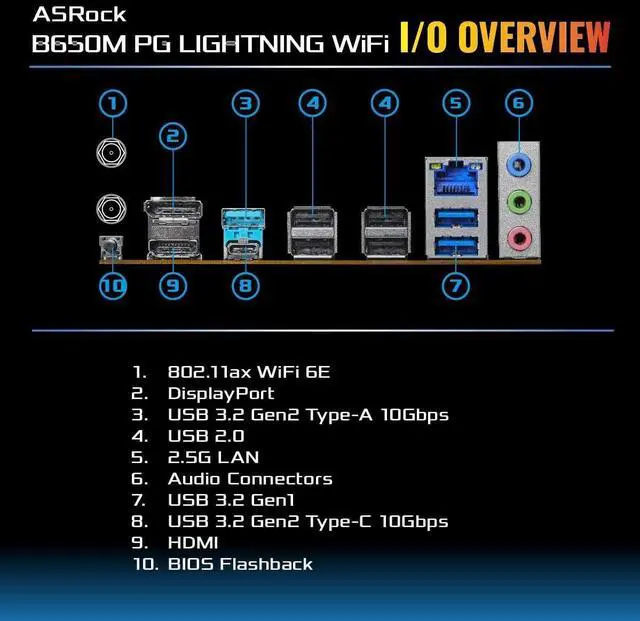

Back I/O Ports	1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 1 Type-A / 3 x Audio Jacks / 4 x USB 2.0/1.1

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). ** CPU_FAN2/WP supports the fan power up to 2A (24W). *** CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	ATX

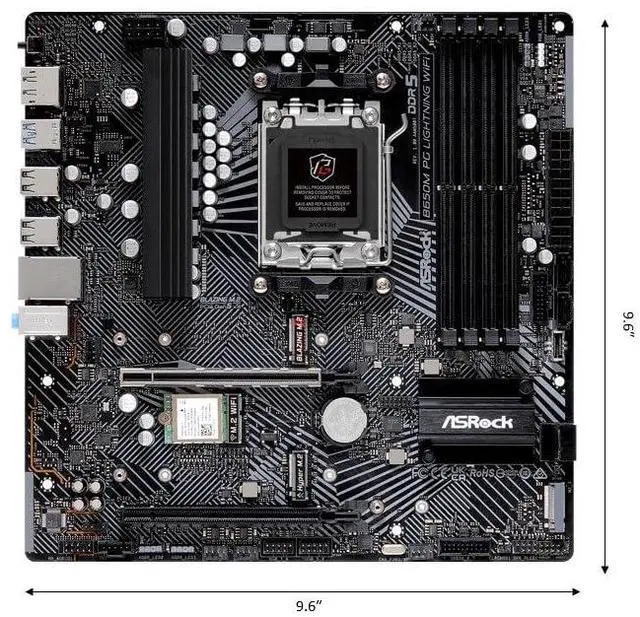

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
