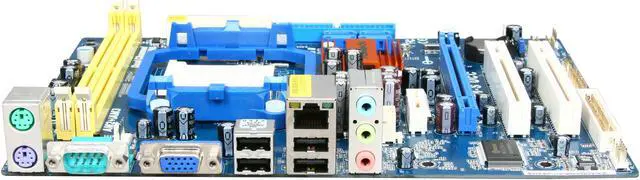

ASRock N68-S UCC AM3/AM2+/AM2 NVIDIA GeForce 7025 / nForce 630a Micro ATX AMD Motherboard
- NVIDIA GeForce 7025 / nForce 630a
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron
- DDR2 1066(OC)/800/667/533
Specs
Reviews (76)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the ASRock N68-S UCC
| Brand | ASRock |
|---|---|
| Model | N68-S UCC |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 1066(OC)/800/667/533 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/0+1/5/JBOD |
|---|
| Onboard Video Chipset | NVIDIA GeForce 7025 |
|---|
| Audio Chipset | VIA VT1708S / VT1705 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek PHY RTL8201EL / 8201CL |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.0" |
| Power Pin | 24 Pin |
| Features | Phenom II X6 6-Core CPU Ready Maximum CPU TDP (Thermal Design Power) : 95Watt Supports UCC feature (Unlock CPU Core) Hyper Transport 2000 MT/s Supports Dual Channel DDR2 1066 Integrated NVIDIA GeForce 7025 graphics, DX9.0 VGA, Pixel Shader 3.0, Max. shared memory 256MB Supports ASRock Instant Boot, Instant Flash, OC DNA, ASRock OC Tuner (Up to 132% CPU frequency increase) Supports Intelligent Energy Saver (Up to 20% CPU Power Saving) |
|---|
| First Listed on Newegg | May 25, 2010 |
|---|
