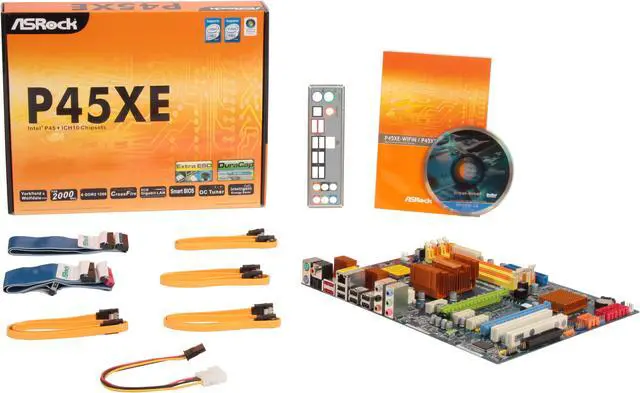

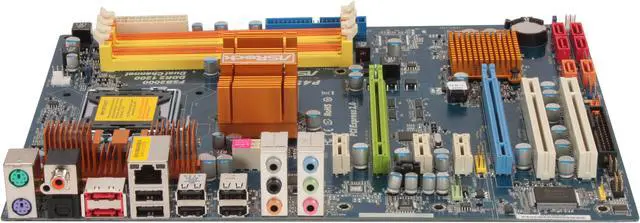

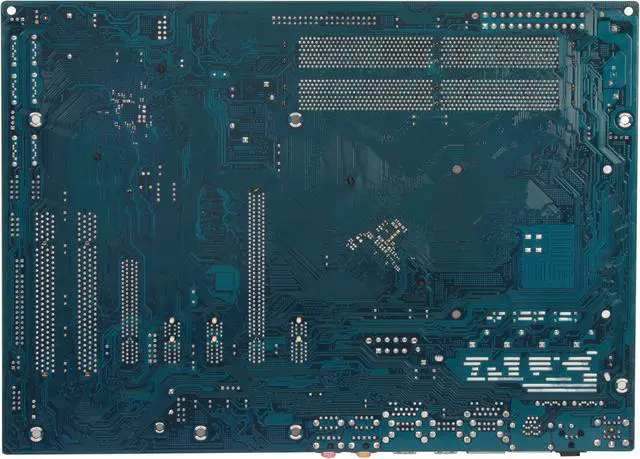

ASRock P45XE LGA 775 Intel P45 ATX Intel Motherboard
- Intel P45
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1200(O.C)/1066
Specs
Reviews (28)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock P45XE
| Brand | ASRock |
|---|---|
| Model | P45XE |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| Chipset | Intel P45 |
|---|---|
| South Bridge | Intel ICH10 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1200(O.C)/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode) |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111C/Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 2 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.8" |
| Power Pin | 24 Pin |
| First Listed on Newegg | November 03, 2008 |
|---|
