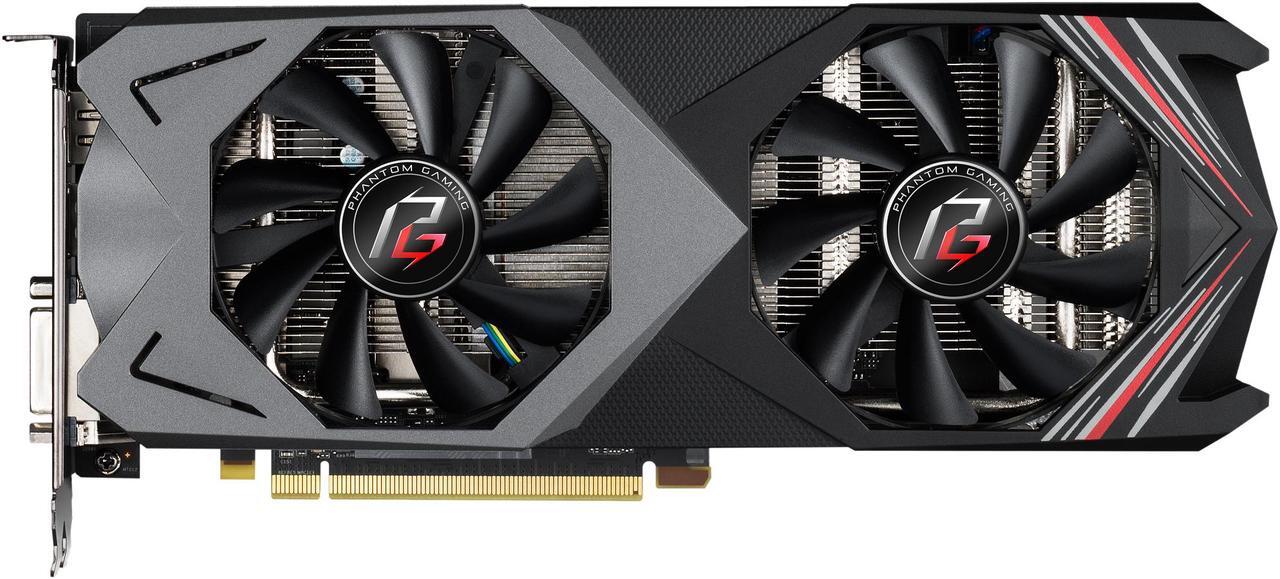

Product Overview
Core Clock/Memory
- OC Mode: 1591MHz / 8032MHz
- Default Mode: 1560MHz / 8000MHz
- Silent Mode: 1498MHz / 7968MHz
Key Specifications
- AMD Radeon RX 590 Graphics
- GPU with FinFET 12 Process Technology
- 8GB 256-Bit GDDR5

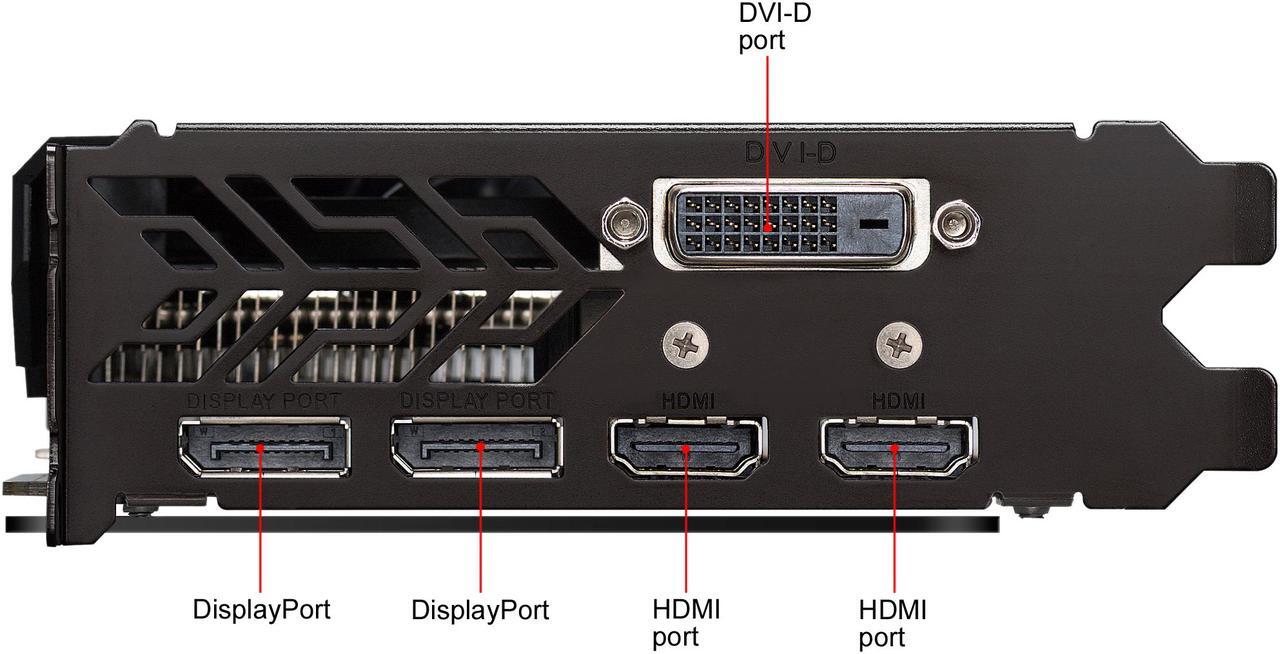

- 2x DisplayPort / 2x HDMI / 1x DVI
- 278.81mm x 126.78mm x 41.91mm
Key Features
- 3-Phase Motor Fan with Double Ball Bearings
- XXL Aluminum Alloy Hearsink & Heat-Pipe Design
- Stylish Metal Backplate
- 0dB Silent Cooling
- Phantom Gaming Tweak

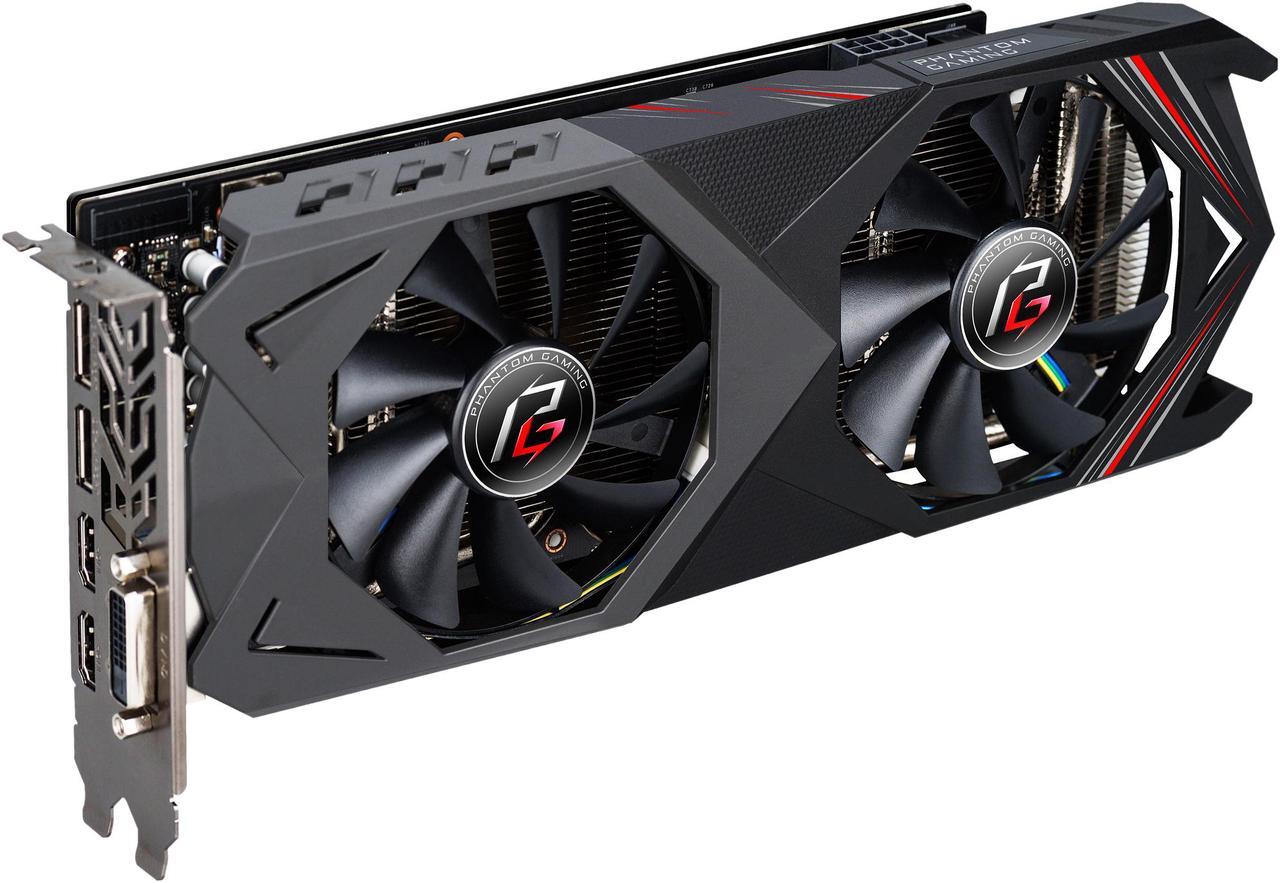

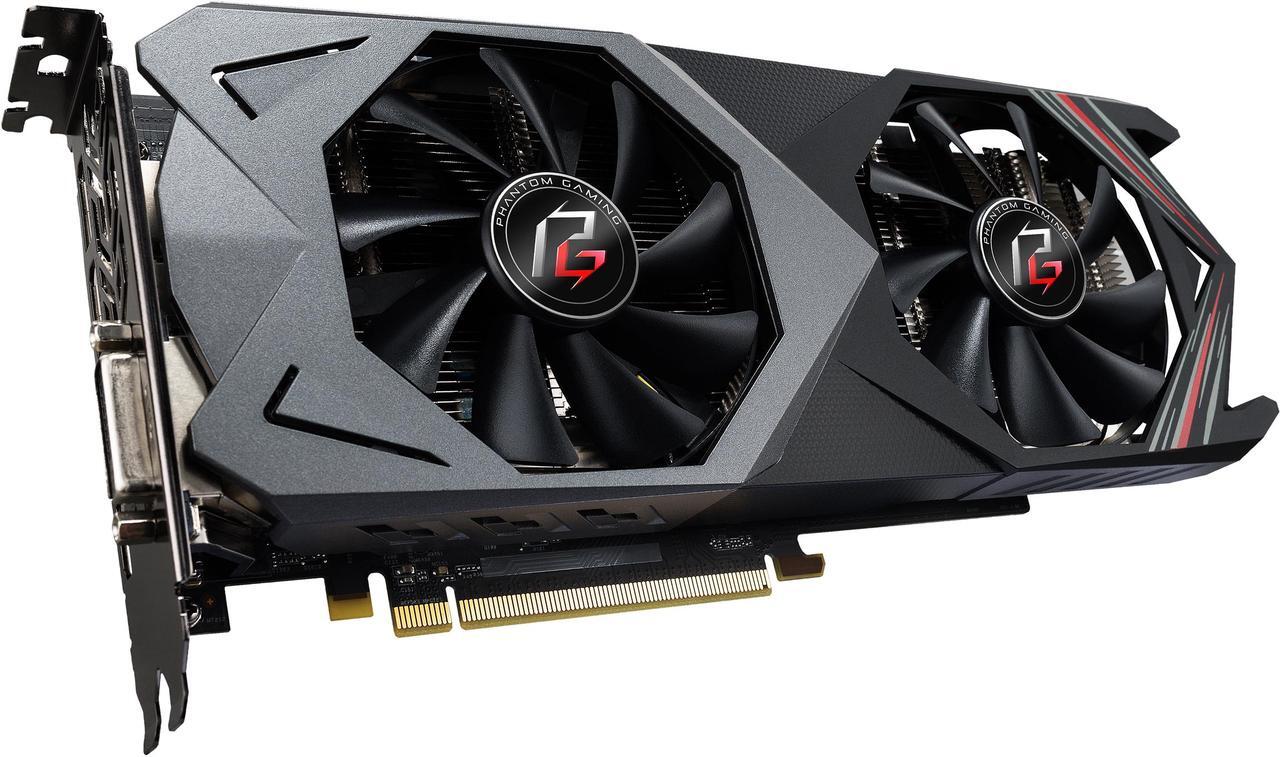

DUAL-FAN DESIGN
Two fans provide extreme cooling for an optimized system.
Armor Your VR Machine
High-performance hardware is required to experience and enjoy the impressive world of Virtual Reality, ASRock provides the perfect VR-ready components for your system, bringing the games alive with the best performance and an extremely realistic VR experience.

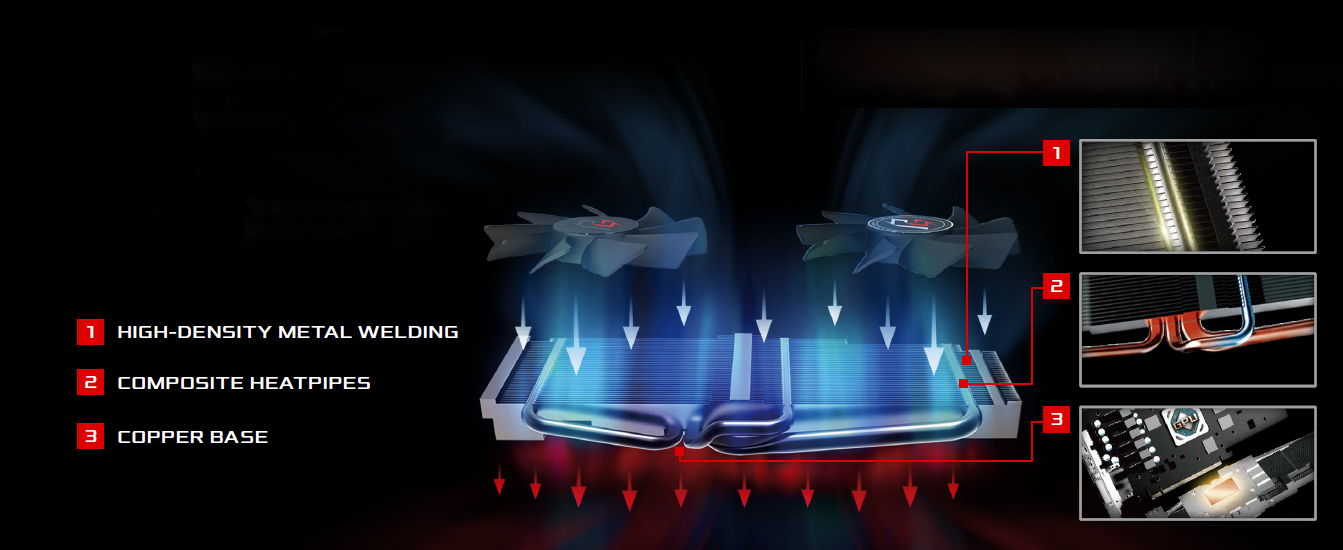

XXL ALUMINUM ALLOY HEATSINK & HEAT-PIPE DESIGN
Equipped with huge heatsink and heat-pipe designs to improve thermal transfers effectively.
Specifications are subject to change without notice. Brand and product names mentioned herein are trademarks of their respective companies. Any configuration other than the original product's specifications is not guaranteed.
3-PHASE MOTOR FAN
The 3-phase motor fan delivers a higher airflow for better cooling capacity.

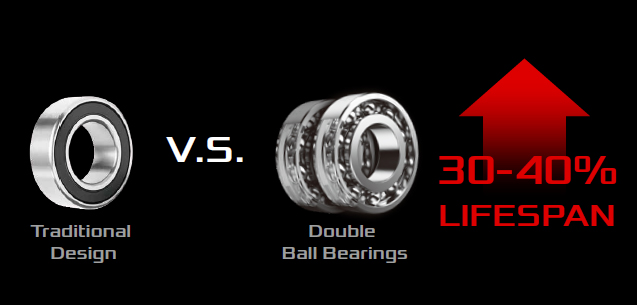

DOUBLE BALL-BEARINGS FAN DESIGN
Compared to traditional designs with oil leakage problems, these double ball-bearing fans improve lifespan and cooling efficiency.
STYLISH METAL BACKPLATE
The stylish metal backplate makes the graphics card fancy, cool and solid.
0DB SILENT COOLING
0dB Silent Cooling technology makes the fan stop completely under light workloads for no noise.

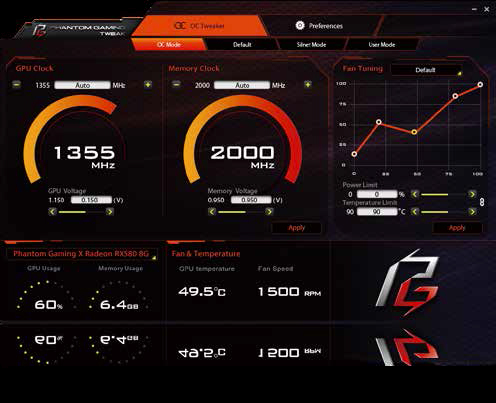

PHANTOM GAMING TWEAK
Get Smart fan-speed control and instant performance tweaking.
AMD RADEON Software ADRENALIN EDITION
Specification |
|
| Graphics Engine | AMD Radeon RX 590 |
|---|---|
| Bus Standard | PCI Express x16 Gen3 |
| DirectX | 12 |
| OpenGL | OpenGL® 4.5 |
| Video Memory | GDDR5 8GB |
| Engine Clock | 1560MHz |
| Stream Processors | 2304 |
| Memory Clock | 8000MHz |
| Memory Bus | 256-Bit |
| Resolution | Digital Max Resolution: 8K (7680x4320) |
| Interface | 1x Dual-Link DVI-D |
|---|---|
| 2x HDMI 2.0b | |
| 2x Display Port 1.4 | |
| HDCP Support | Yes |
| Multi-view | 5 |
| Power Connectors | 1x 8-Pin |

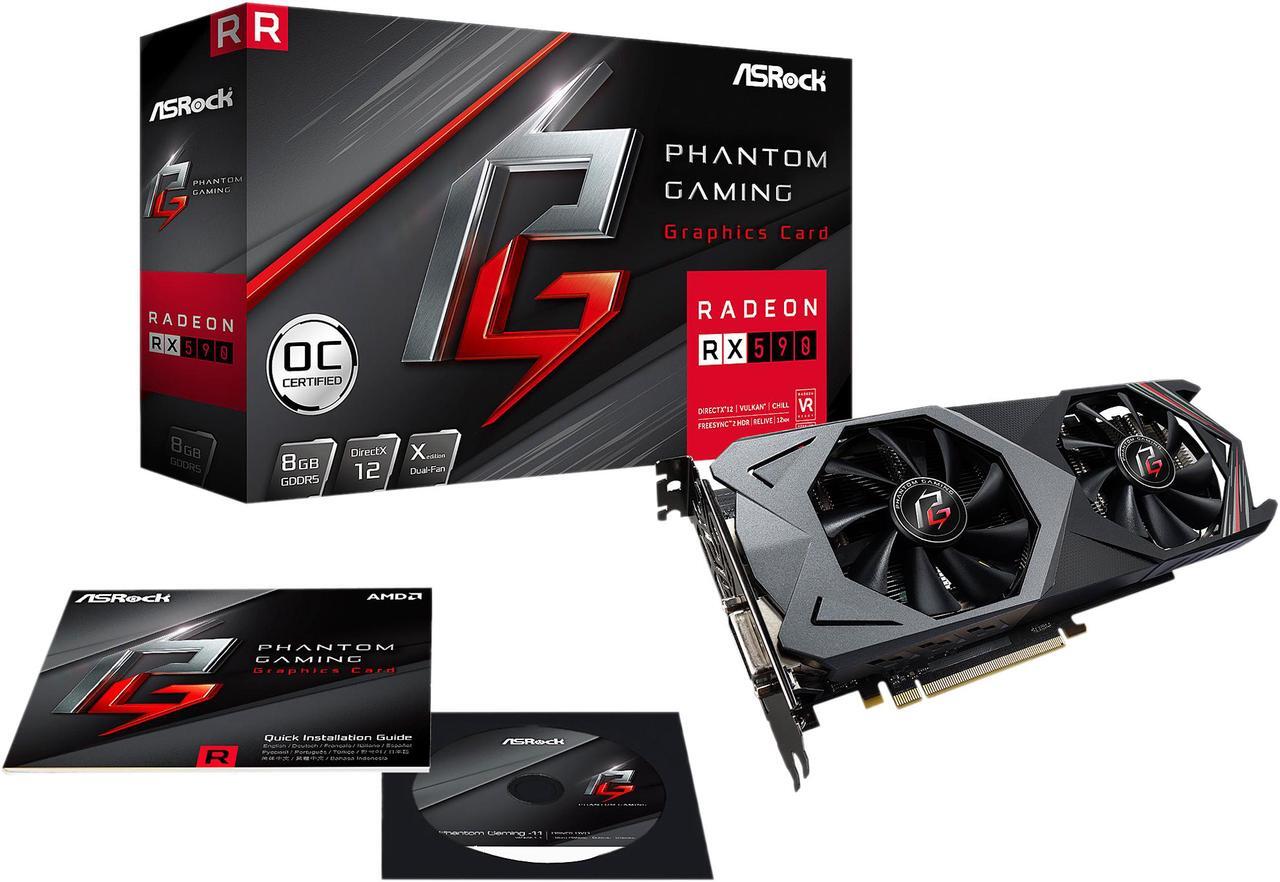

| Accessories | 1x Support CD |
| 1x Quick Installation Guide | |
| Dimensions | 278.81mm x 126.78mm x 41.91mm |
