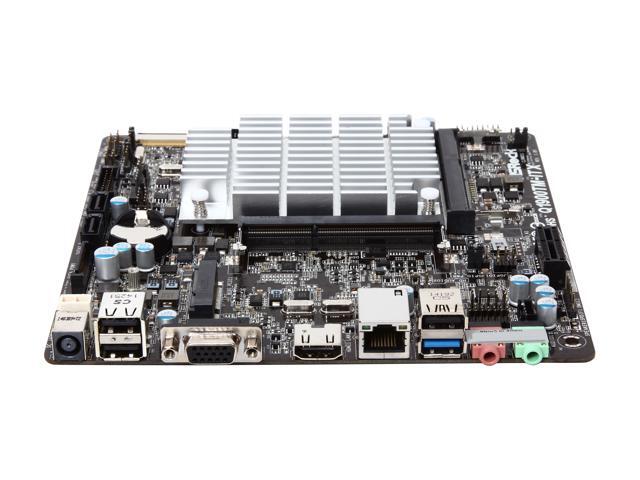

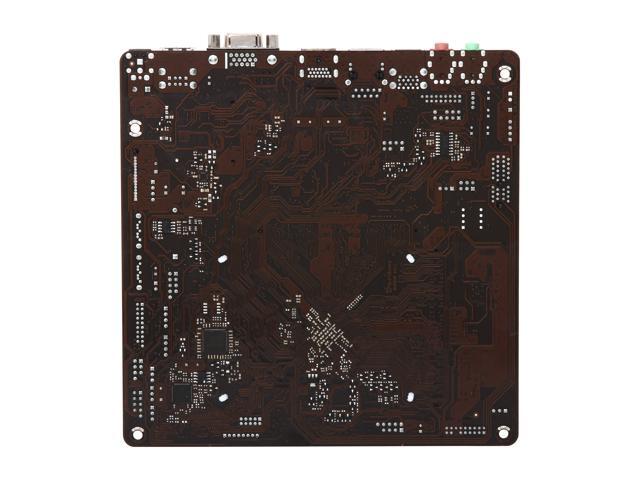

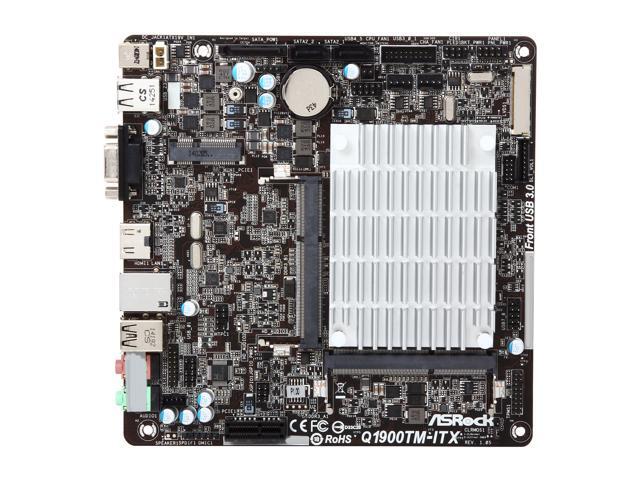

ASRock Q1900TM-ITX Intel Quad-Core Processor J1900 (2 GHz) Thin Mini-ITX Motherboard / CPU / VGA Combo

OUT OF STOCK.
  • Celeron
  • DDR3/DDR3L 1333/1066 non-ECC, un-buffered
  • Intel 7th generation (Gen 7) graphics (Supports Intel Quick Sync Video)
Specs
Reviews

Learn more about the ASRock Q1900TM-ITX

Model
Brand ASRock
Model Q1900TM-ITX
Combo Type Motherboard / CPU / VGA Combo
Bundle
CPU Intel Quad-Core Processor J1900 (2 GHz)
With Cooler Yes
Supported CPU
CPU Type Celeron
Memory
Number of Memory Slots 2×204pin SO-DIMM
Memory Standard DDR3/DDR3L 1333/1066 non-ECC, un-buffered
Maximum Memory Supported 16GB
Expansion Slots
PCI Express x1 1 x PCI Express 2.0 x1 Slot
Mini Card Slots 1 x mini-PCI Express Slot (Bluetooth function in WiFi module is not supported)
Storage Devices
SATA 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Onboard Video
Onboard Video Chipset Intel 7th generation (Gen 7) graphics (Supports Intel Quick Sync Video)
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Atheros AR8171
LAN Speed 10/100/1000Mbps
Rear Panel Ports
Video Ports 1 x D-Sub
HDMI 1 x HDMI
USB 1.1/2.0 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
USB 3.0 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports HD Audio Jacks: Microphone / Front Speaker (Supports SPDIF Optical)
Internal I/O Connectors
Onboard USB 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors - 1 x Backlight Power Selection Jumper
- 1 x Panel Power Selection Jumper
- 1 x Backlight Control Header
- 1 x Digital Input / Output Pin Header
- 1 x Digital Input / Output Power Selection Jumper
- 1 x Home Theater PC Header
- 1 x Monitor Switch Header
- 1 x Digital MIC Header
- 1 x 3W Audio AMP Output Wafer Header
- 1 x LVDS Connector
- 1 x CIR Header
- 1 x COM Port Header
- 1 x Power LED Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x SATA Power Connector
- 1 x Front Panel Audio Connector
Features
Features Intel Quad-Core Processor J1900 + Thin Mini-ITX Motherboard

ASRock DuraCap (2.5 x longer life time)

Supports DDR3/DDR3L 1333 memory, 2 SO-DIMM slots

1 PCIe 2.0 x1, 1 mini-PCIe

Graphics Output Options : D-Sub, HDMI, LVDS

Built-in Intel 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

2 SATA2, 3 USB 3.0 (2 Front, 1 Rear), 8 USB 2.0 (5 Front, 3 Rear)

1 x COM Port Header, 1 x DC-In Jack (Compatible with 19V power adapter)

Supports A-Tuning, XFast LAN, XFast RAM, USB Key
Physical Spec
Form Factor Thin Mini-ITX

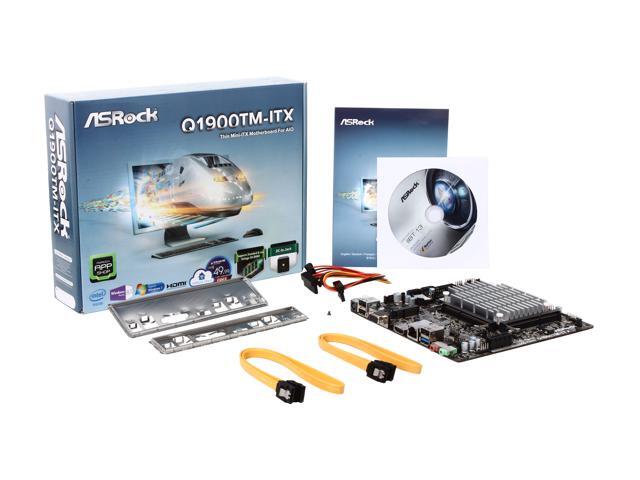

Package Contents
Package Contents Accessories
- Quick Installation Guide, Support CD, I/O Shields
- 2 x SATA Data Cables
- 1 x SATA 1 to 2 Power Cable
- 1 x WiFi Module Screw
Additional Information
Date First Available July 30, 2014
