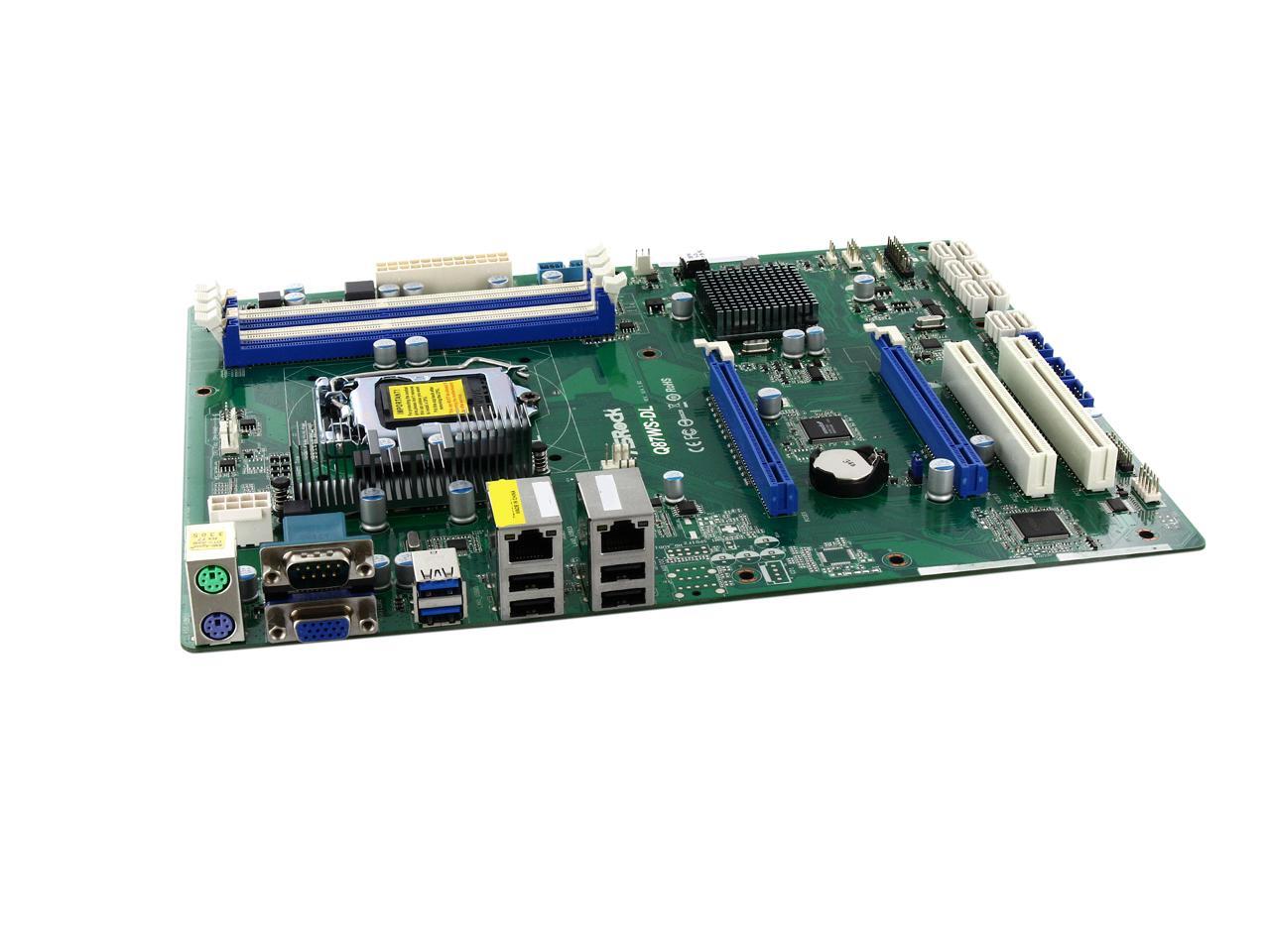

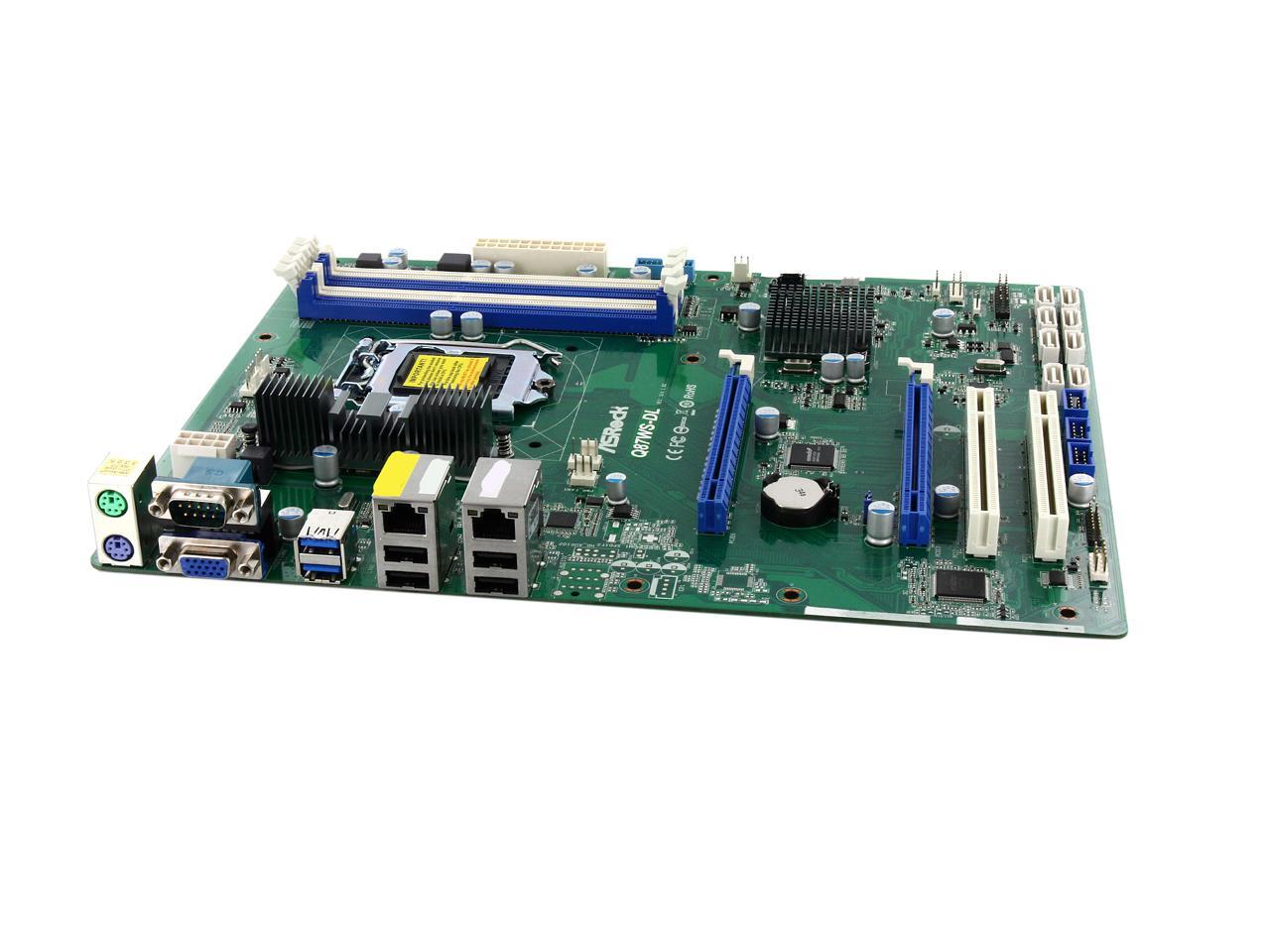

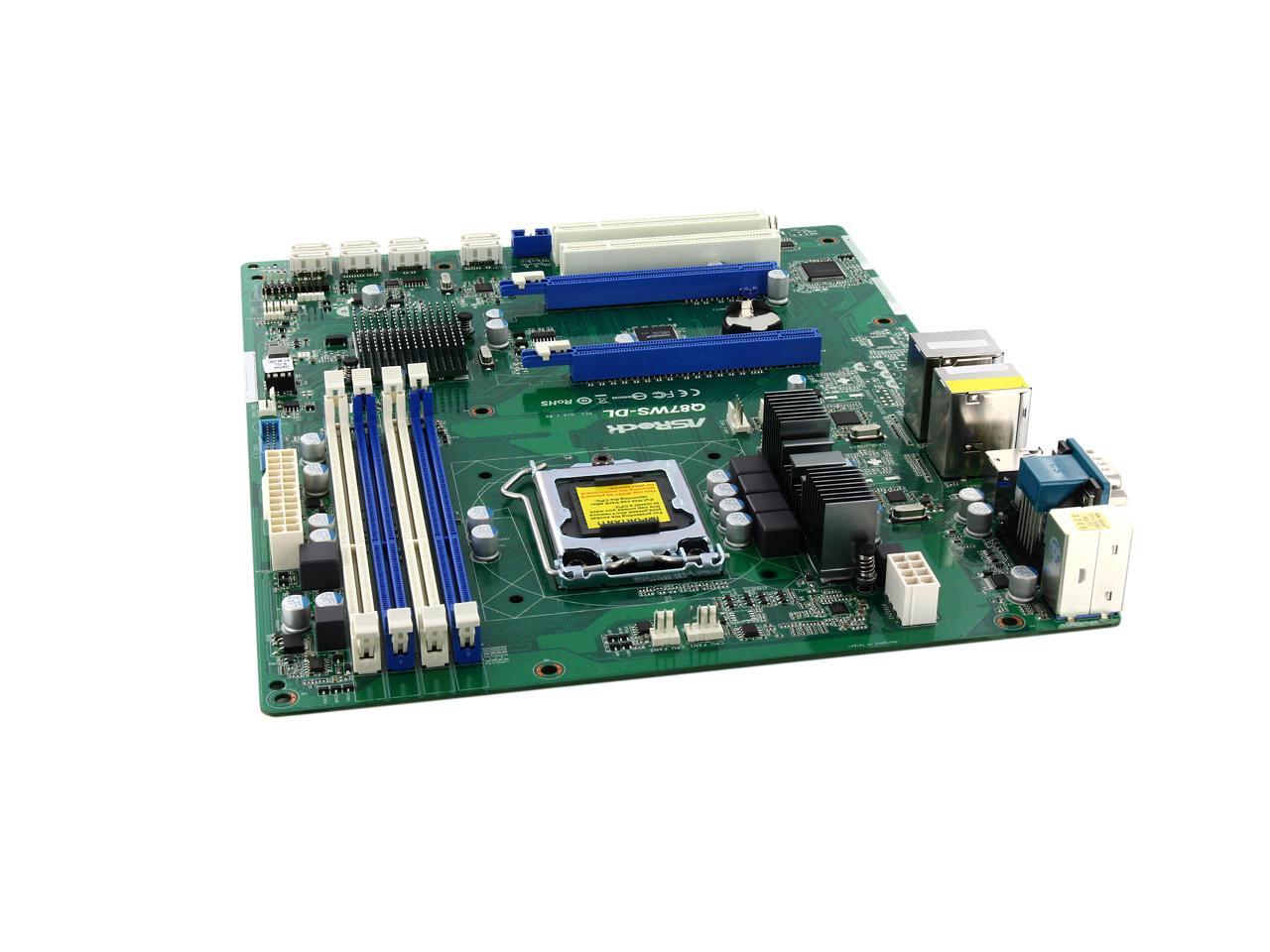

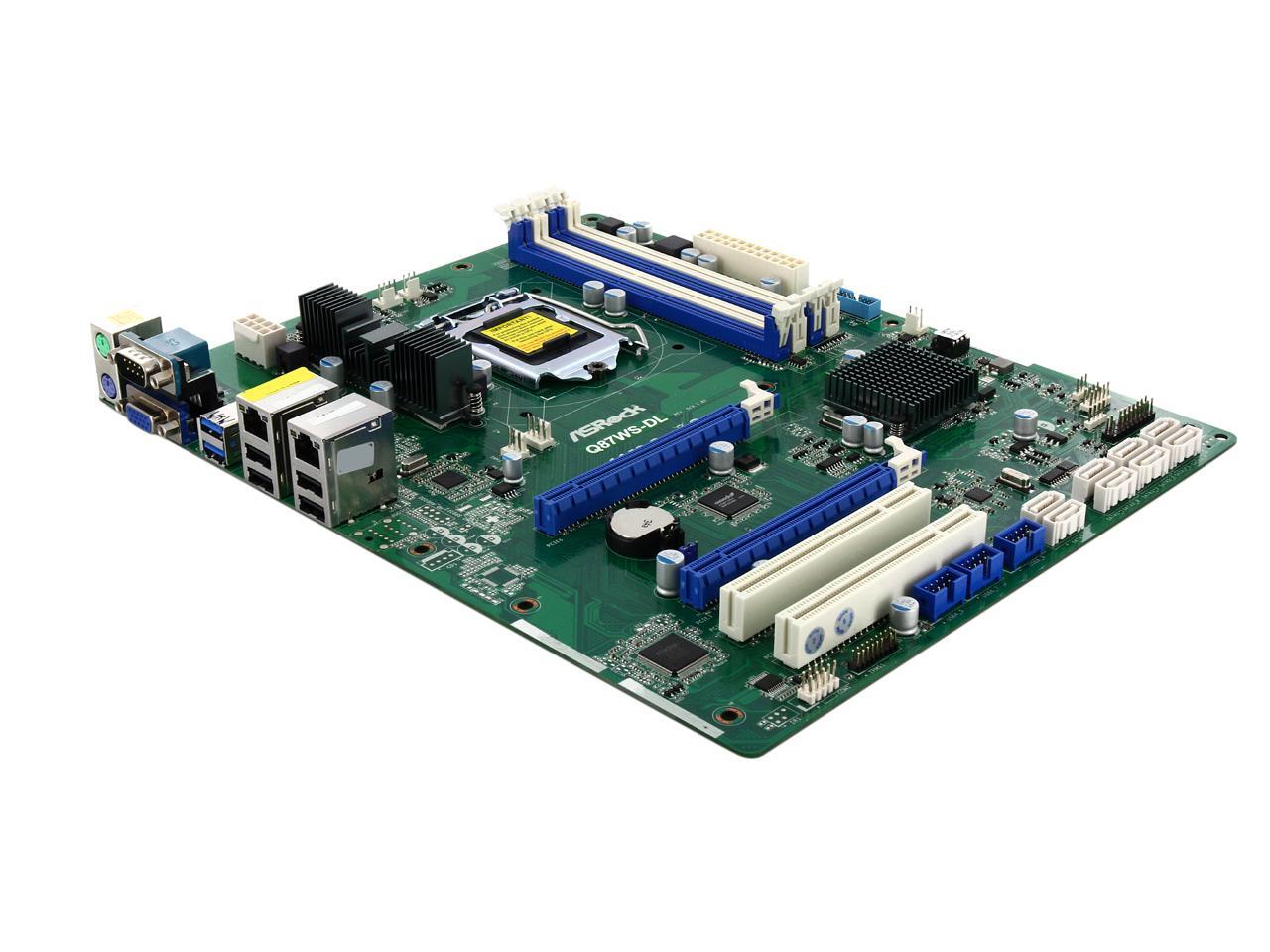

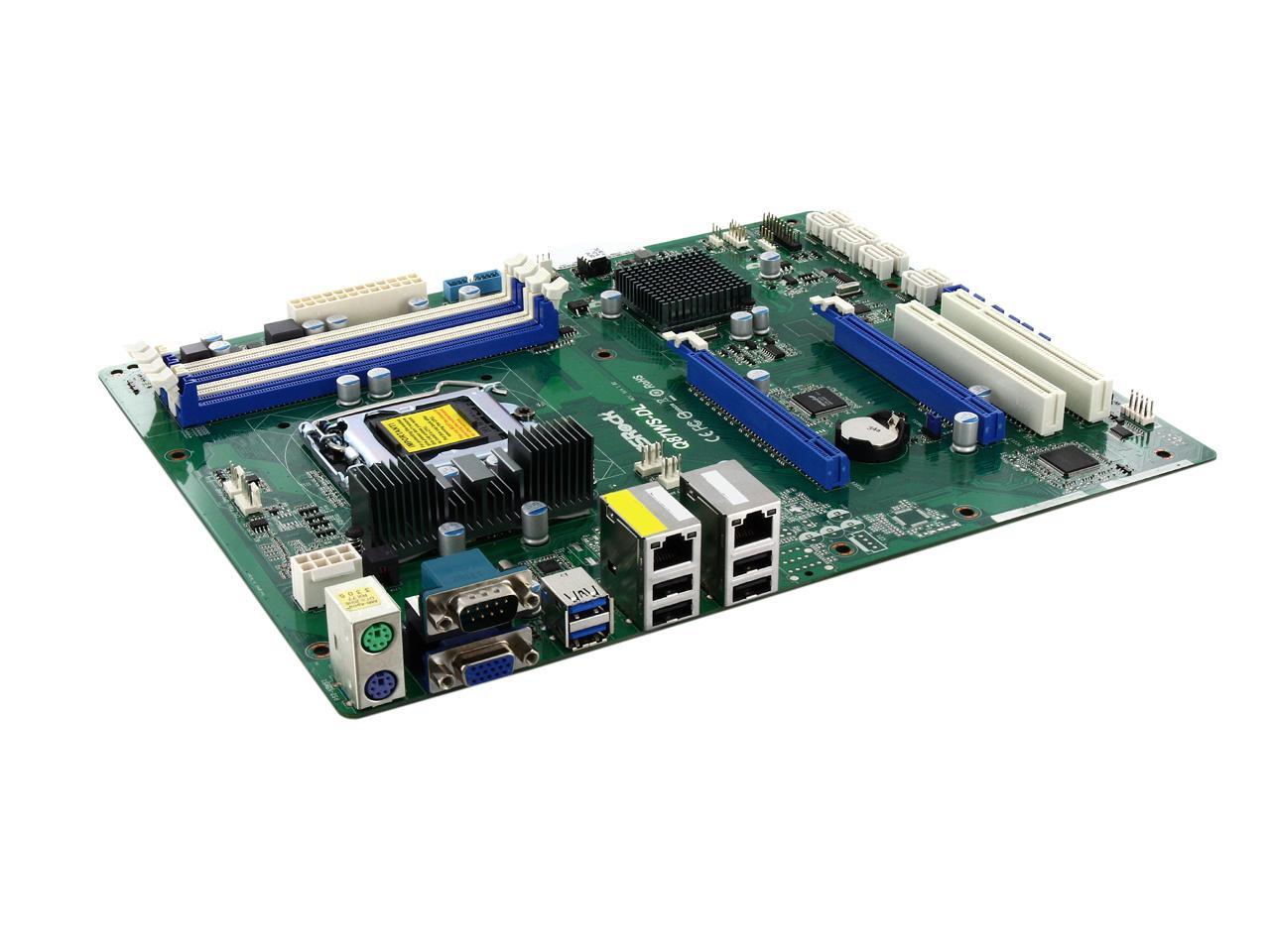

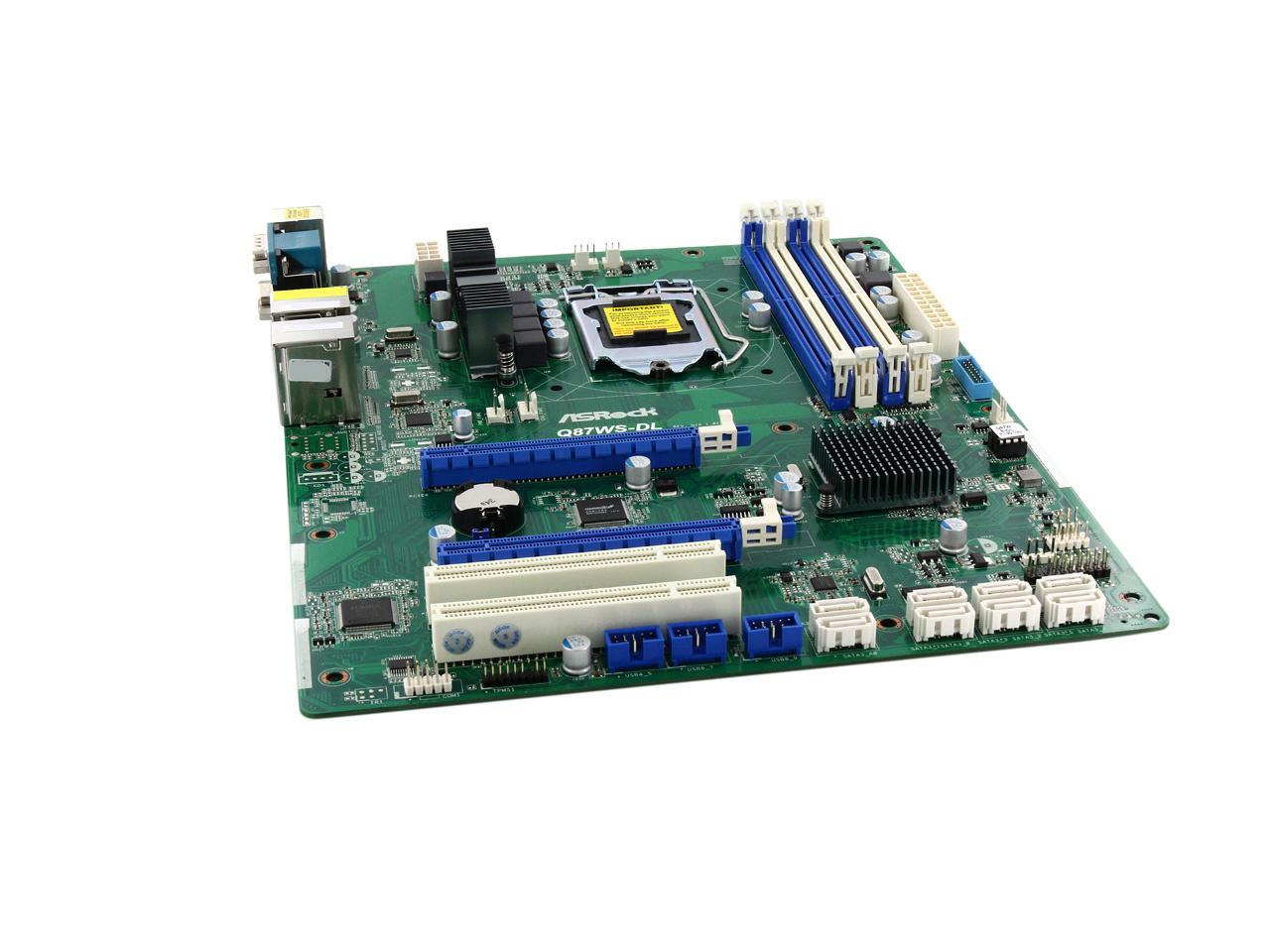

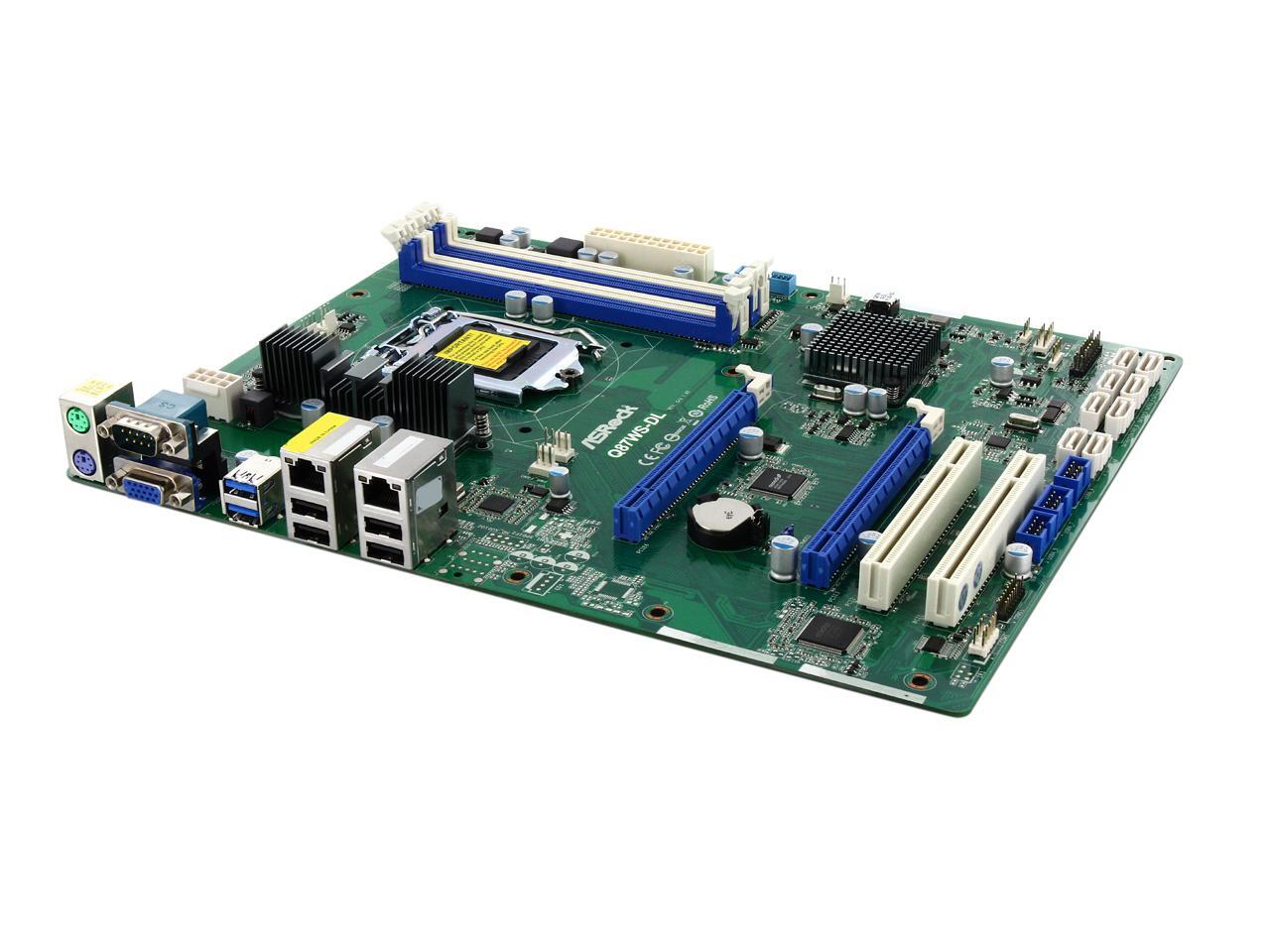

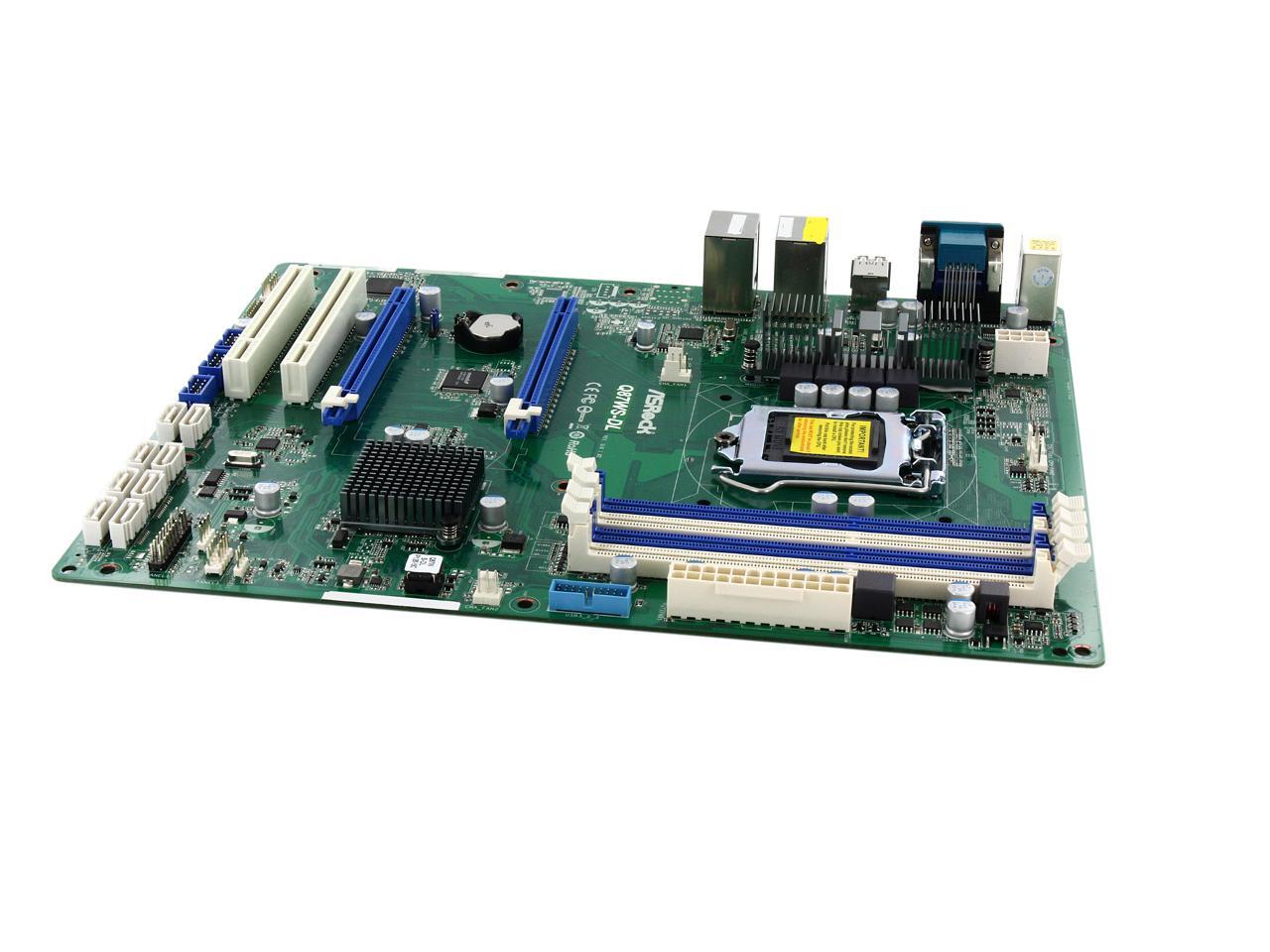

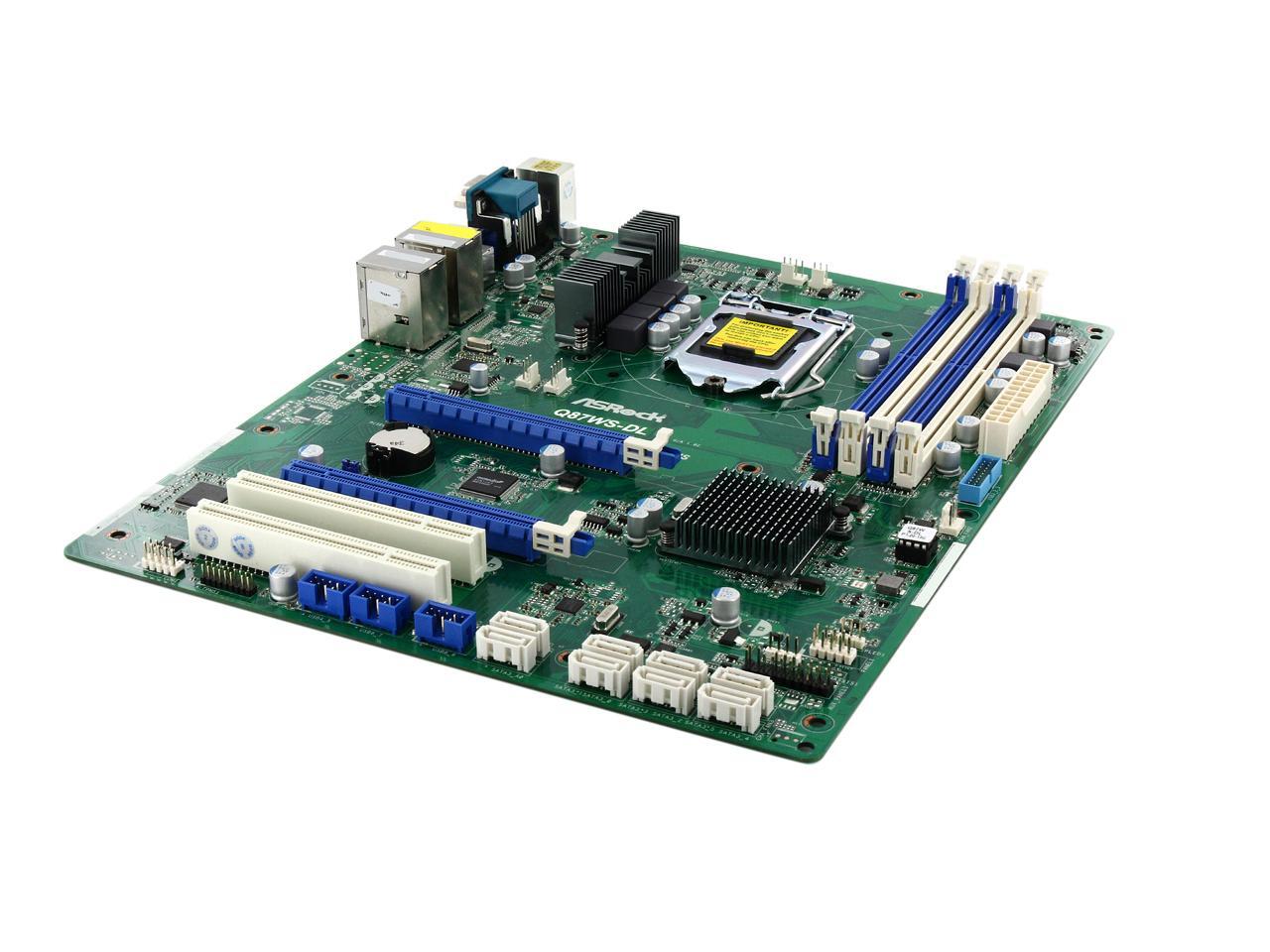

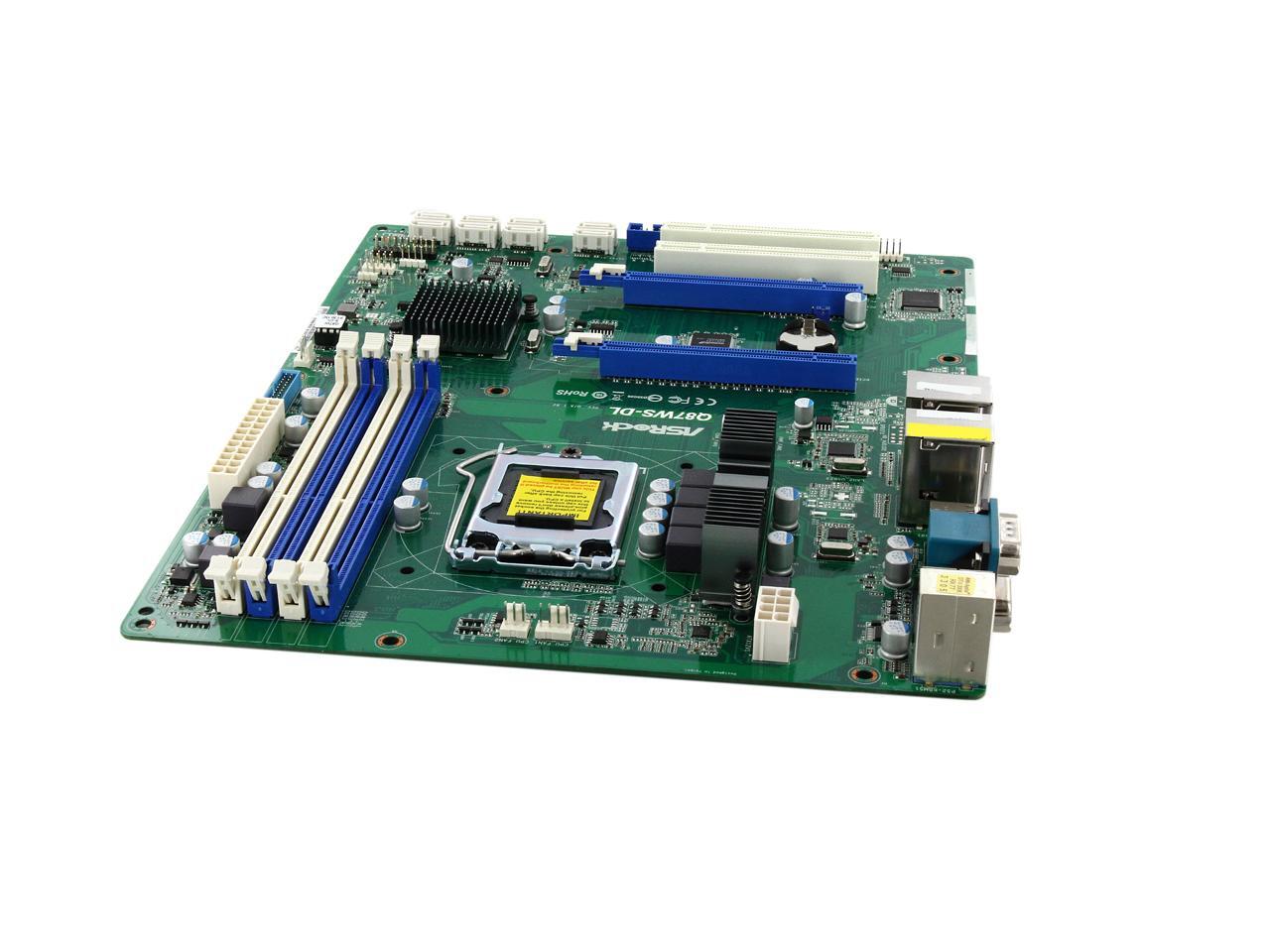

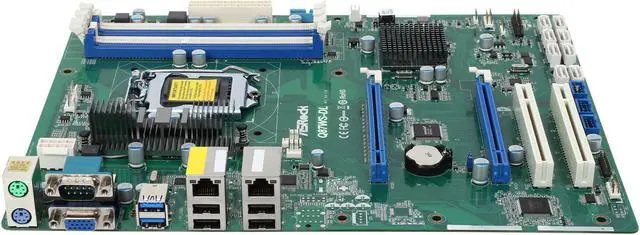

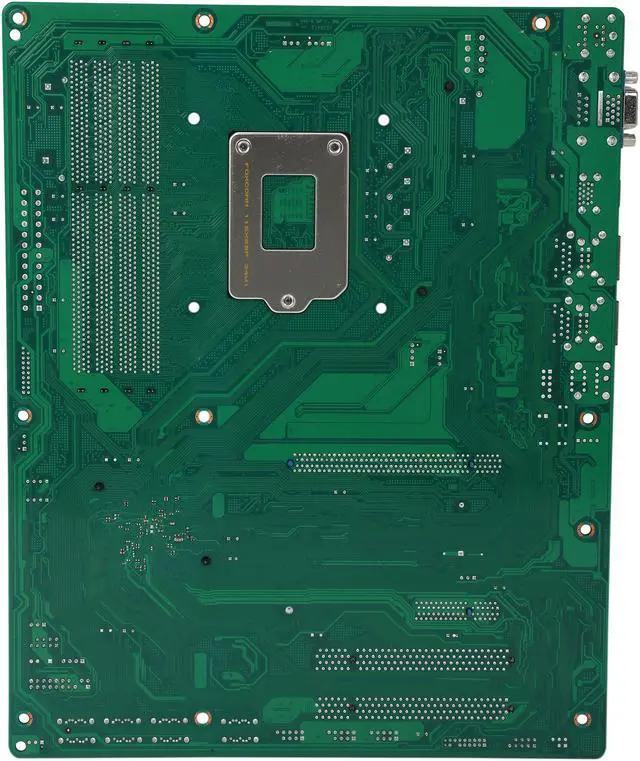

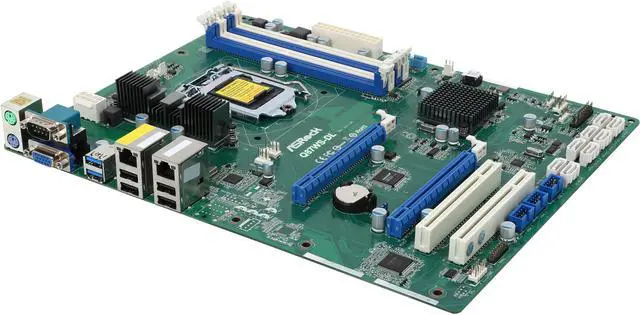

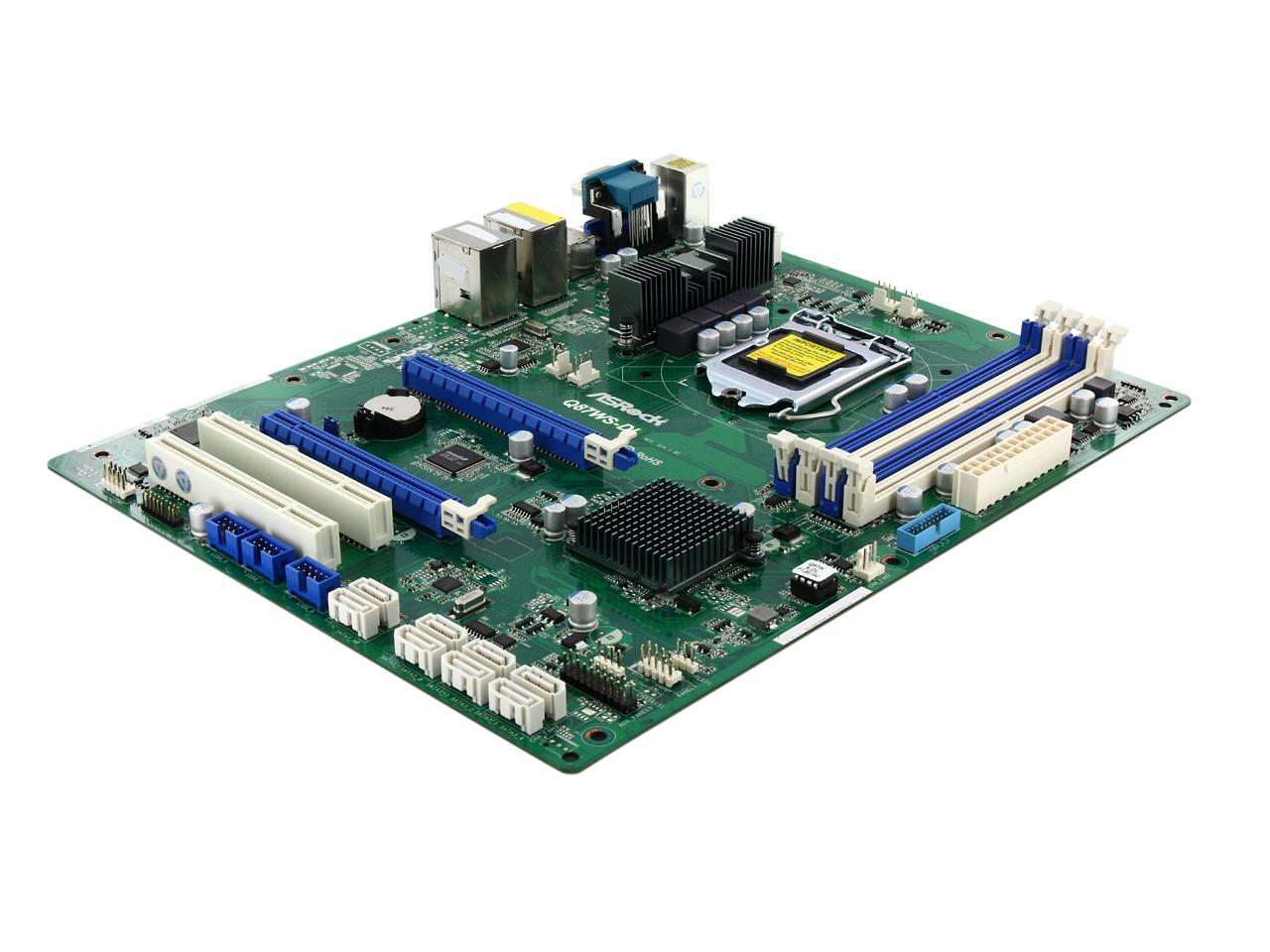

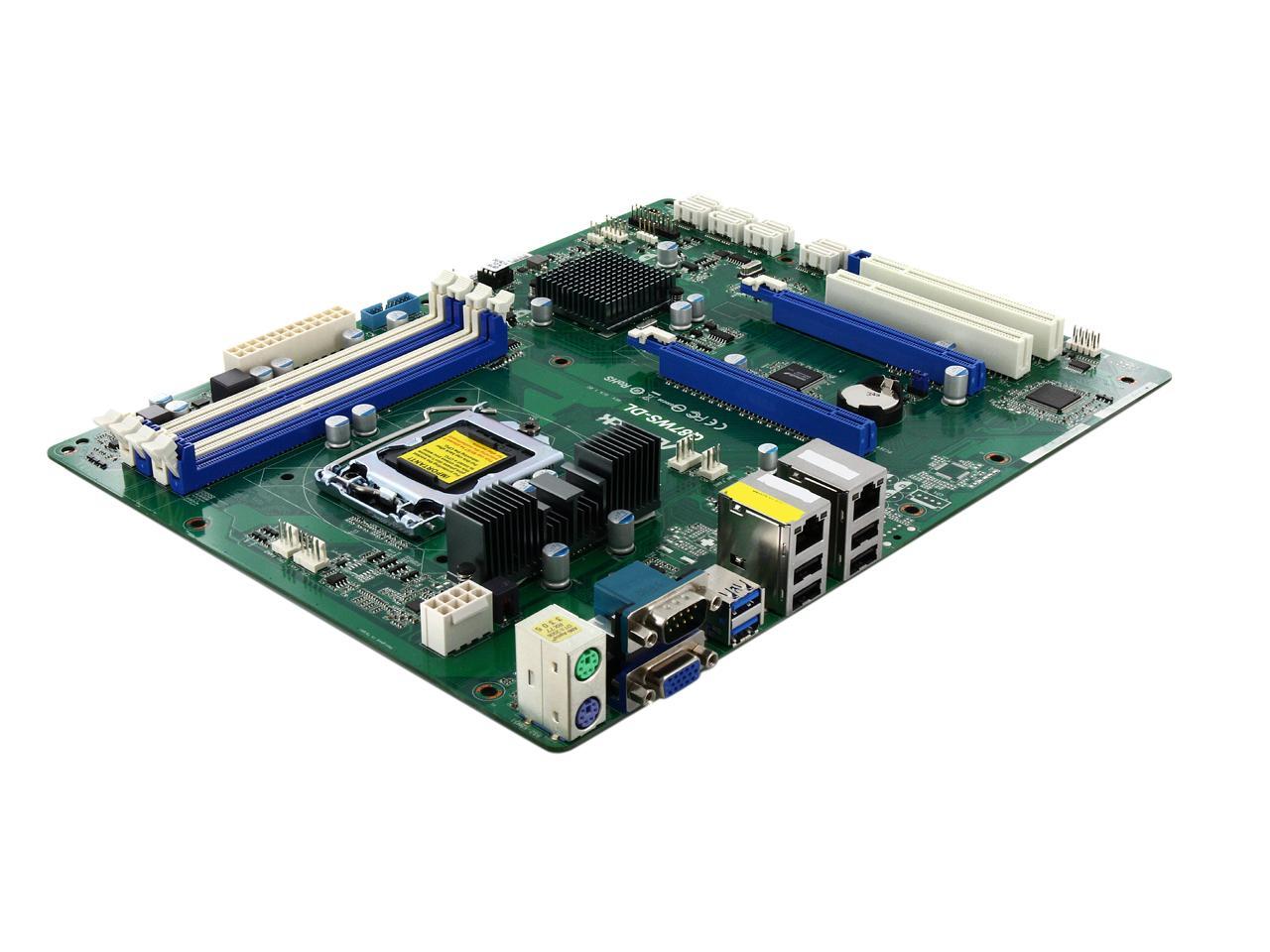

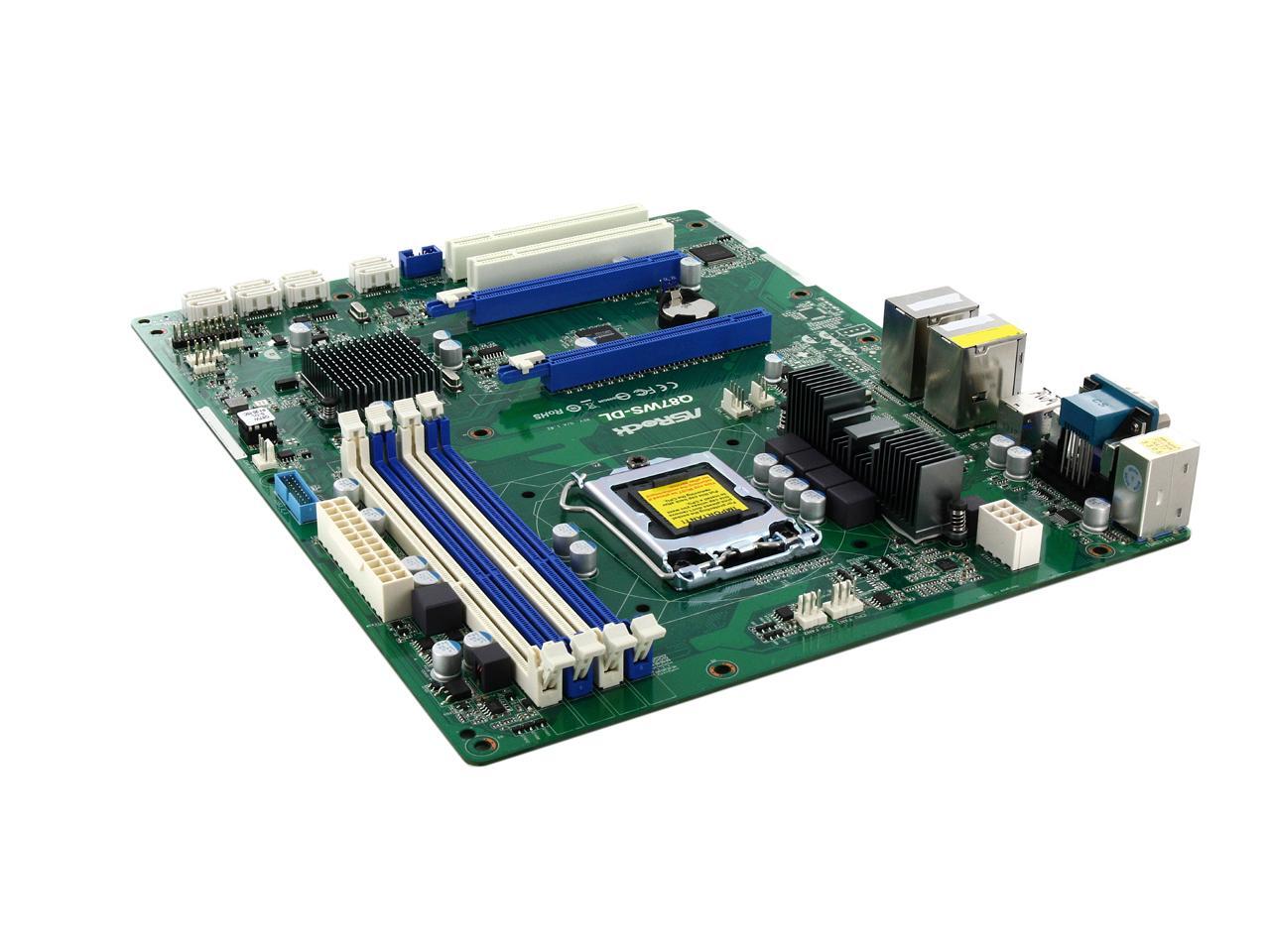

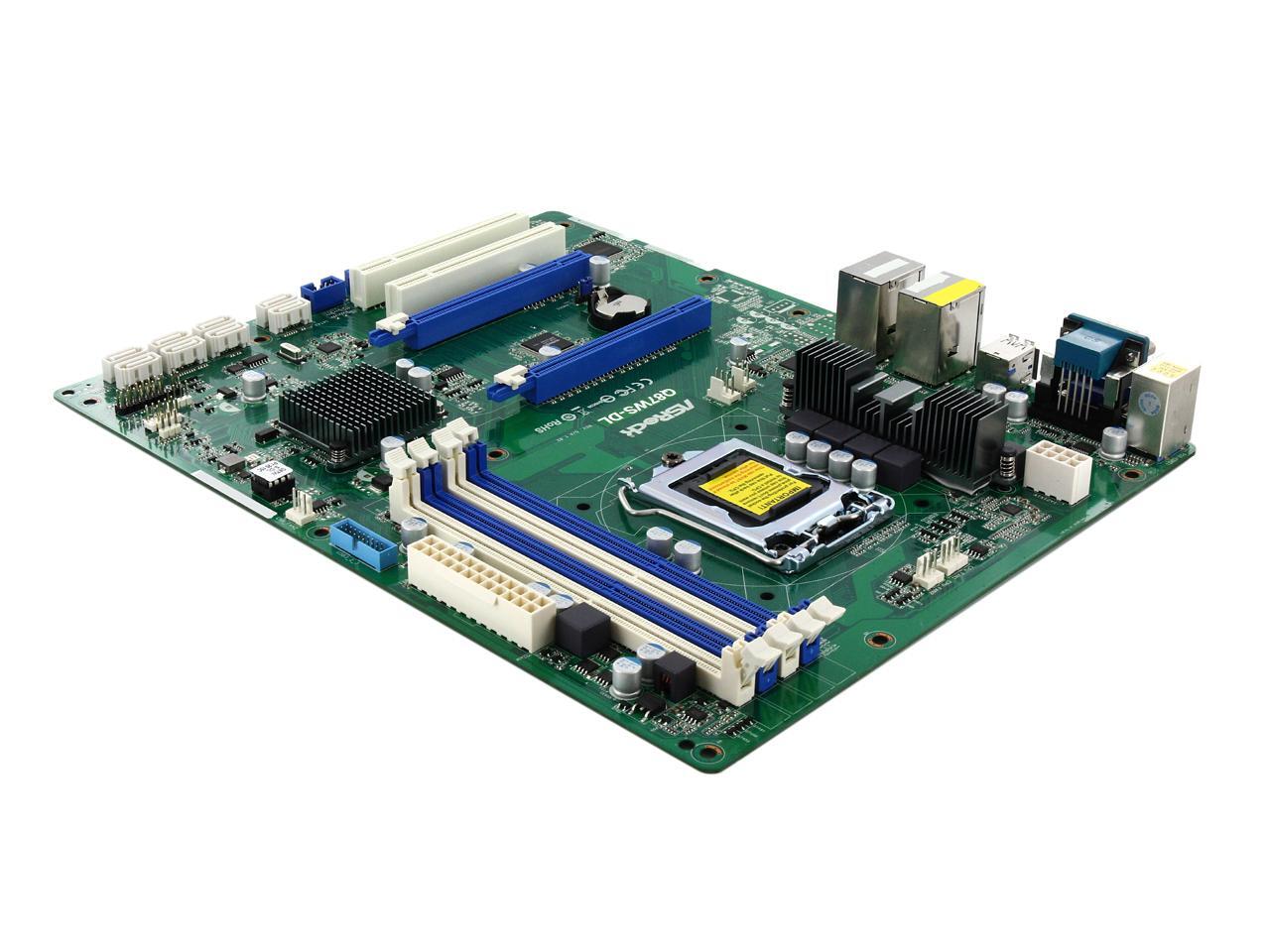

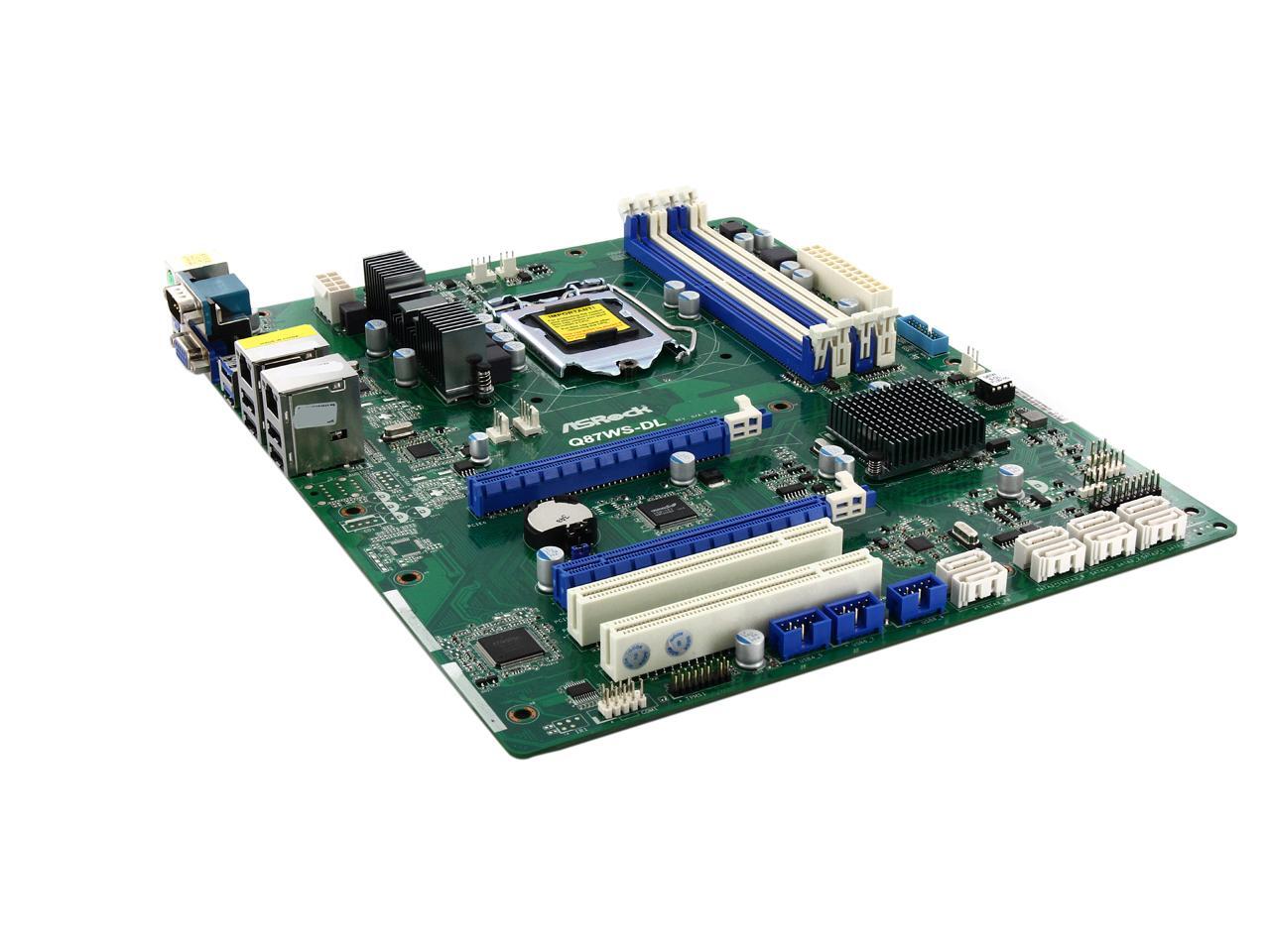

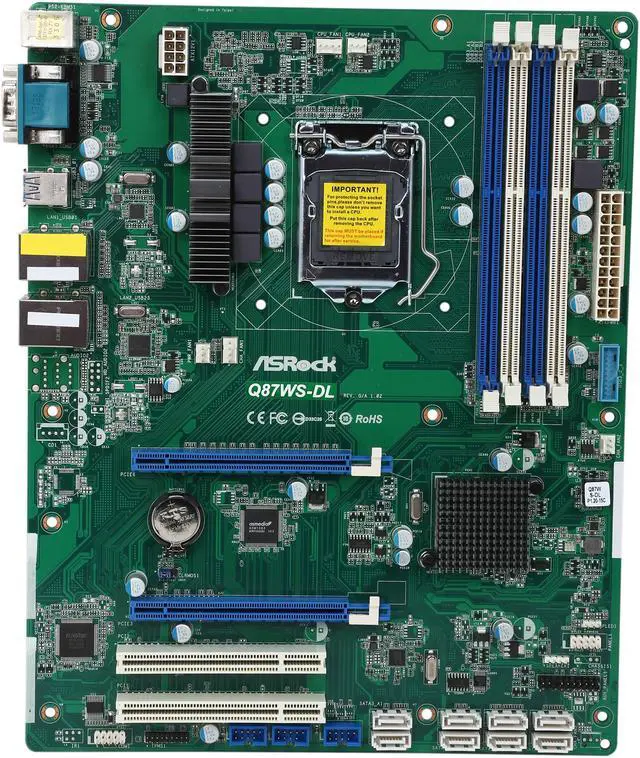

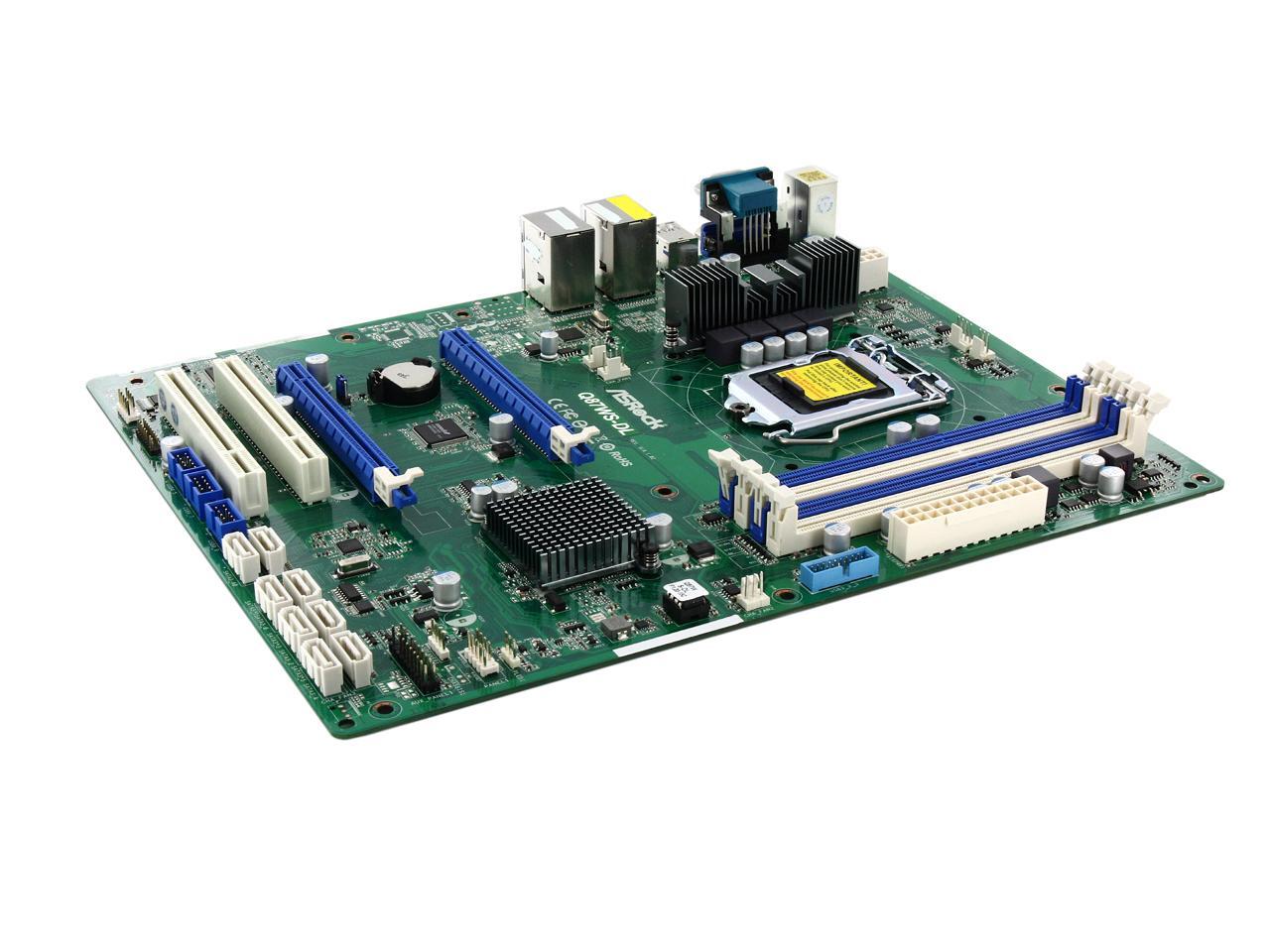

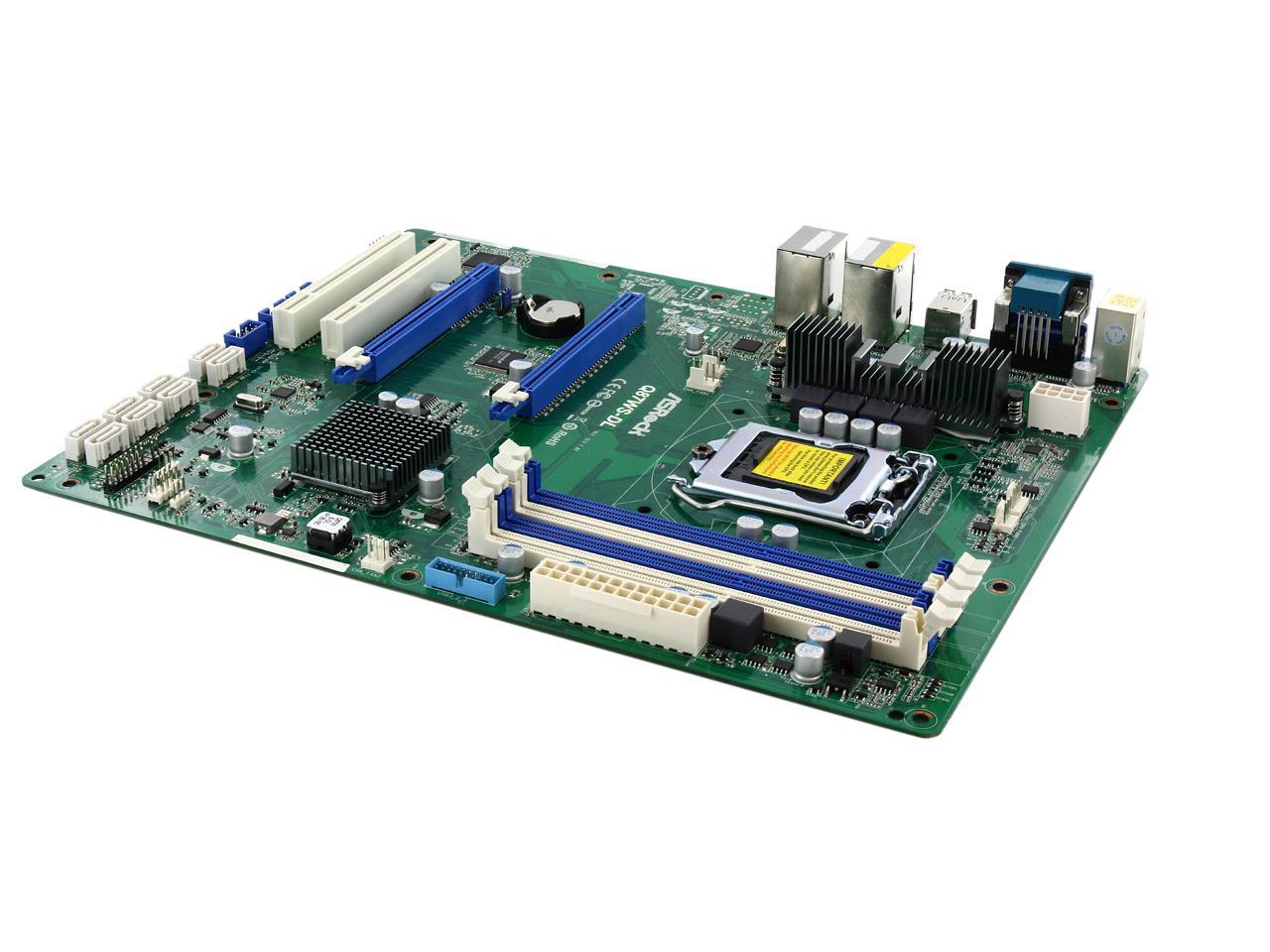

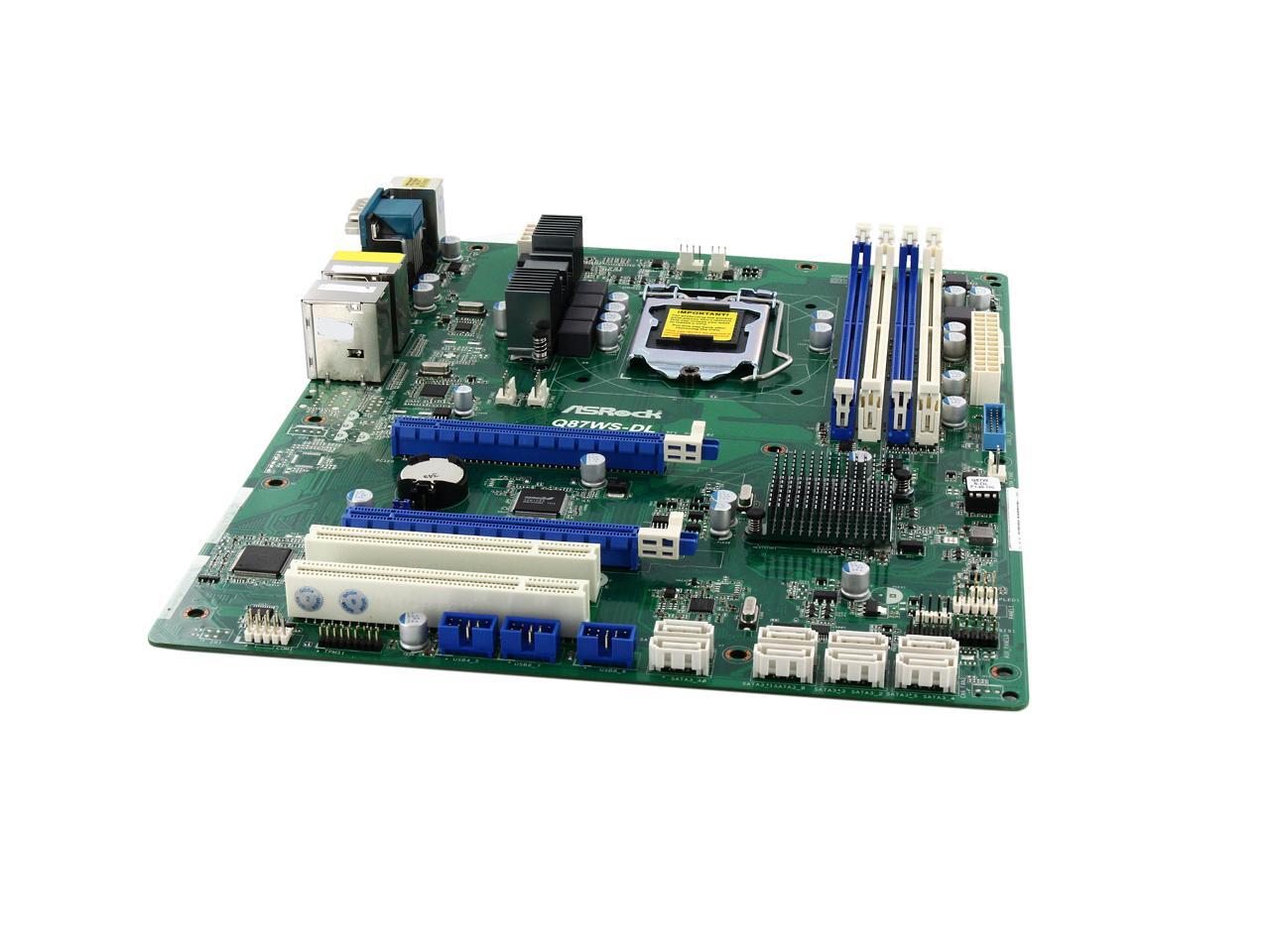

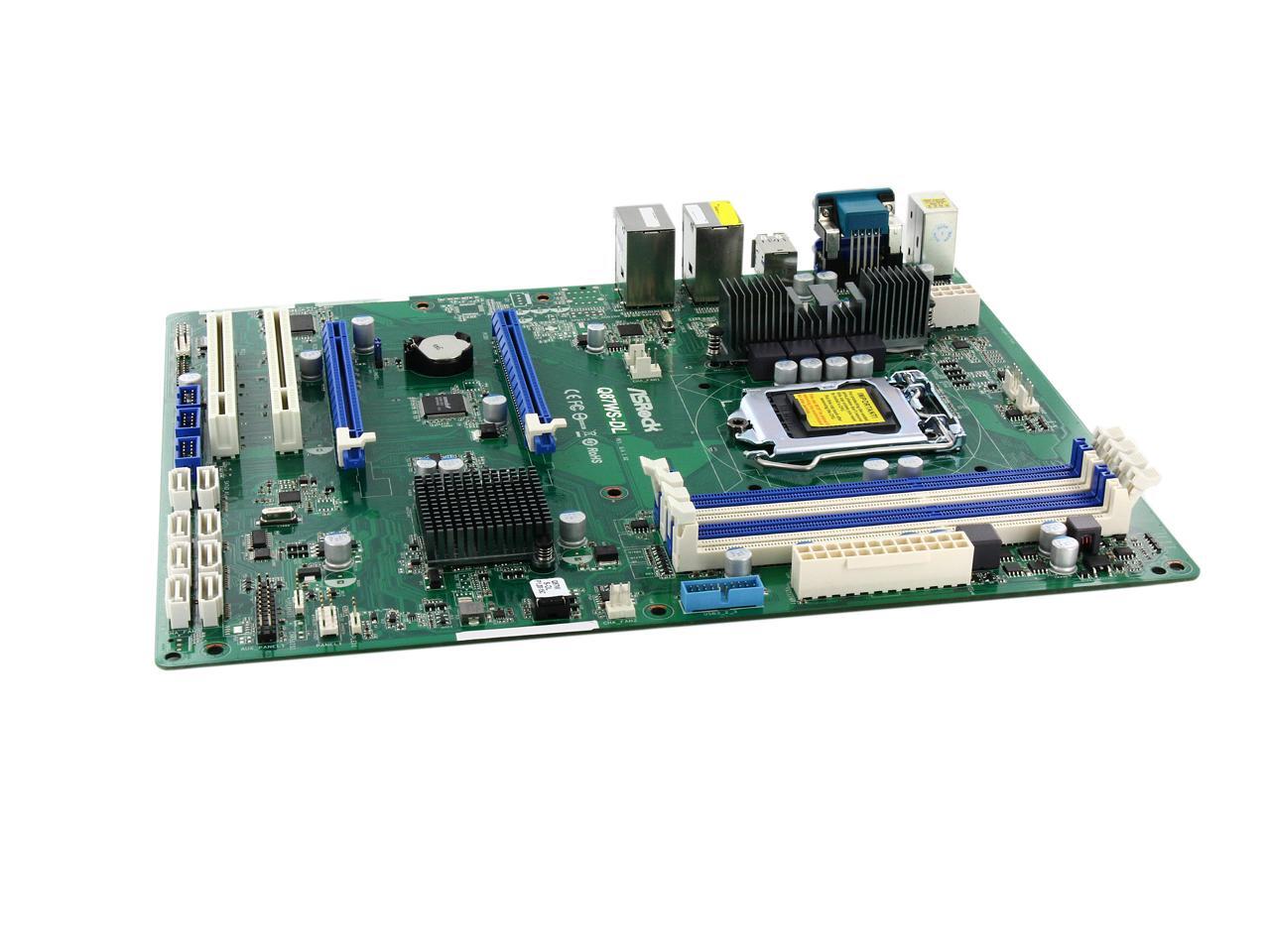

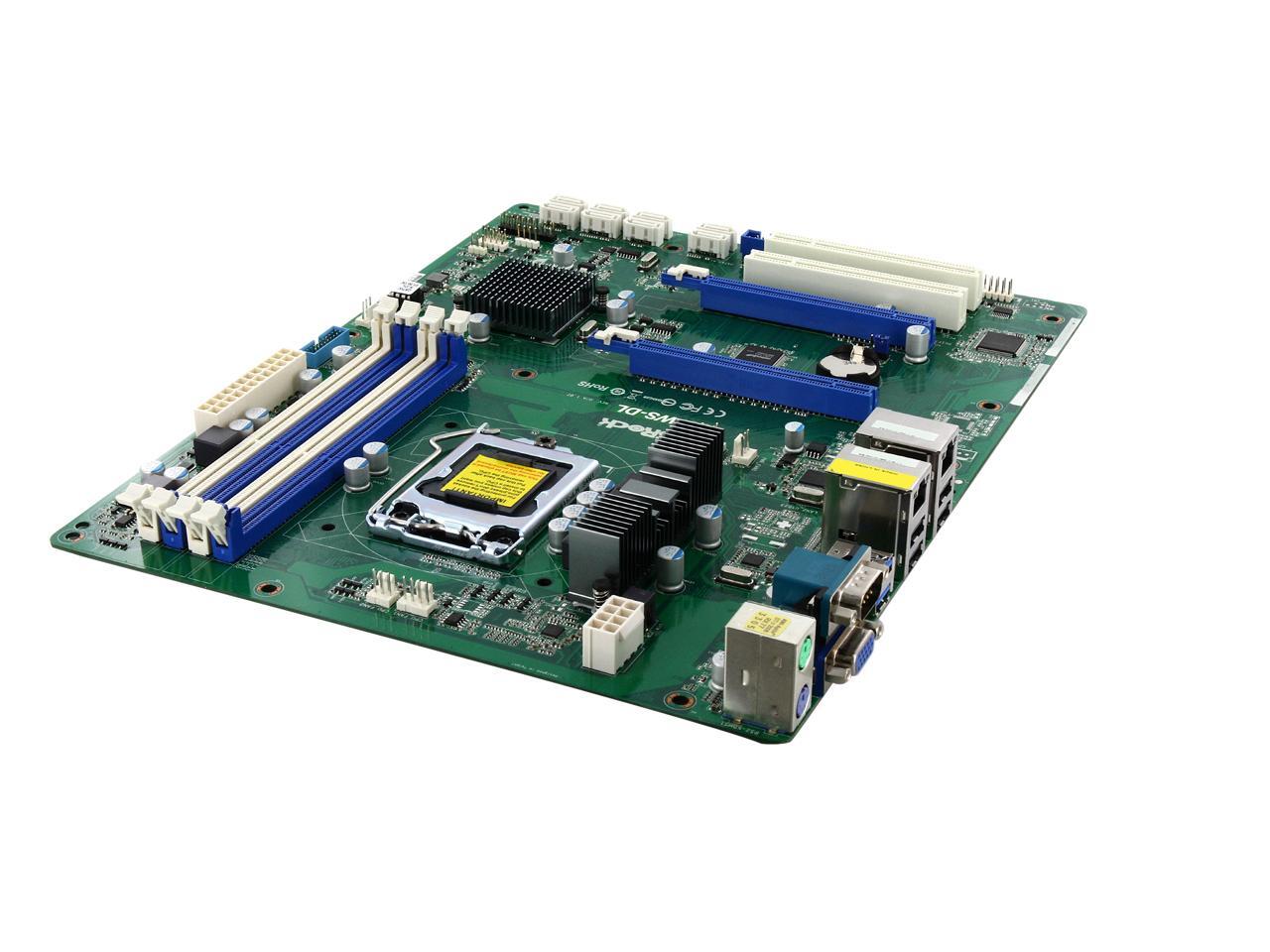

ASRock Q87WS-DL ATX Server Motherboard LGA 1150 Intel Q87 DDR3 1600/1333
- LGA 1150
- Intel Q87
- 4 x 240pin
Overview
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Q87WS-DL
Features
- ATX 12 x 9.6"
- Single socket H3 (LGA 1150)
- Supports Intel Haswell i7, i5, i3 processors
- 4 x DIMM DDR3 1600/1333 UDIMM, max. 32GB
- 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCI
- 6 x SATA3 by Intel Q87, support RAID 0, 1, 5, 10
- 2 x SATA3 by ASMedia 1061
- Intel i210 + Intel i217LM (support vPro function)
- 4 x USB 3.0 ports (2 rear + 2 via header)
- 10 x USB 2.0 ports (4 rear + 6 via header)
Specifications
MB Physical Stats
| Form Factor | ATX |
|---|---|
| Dimensions | 12 x 9.6" (30.5 x 24.4cm) |
Processor System
| CPU | Supports Intel® Haswell i7, i5, i3 processors
Supports Hyper-Threading Technology Supports Intel® Turbo Boost 2.0 Technology *Xeon processor E3-1200 v3 series processor support is an extended advantage provided by ASRock Rack. It is out of warranty, user's discretion is required. |
|---|---|
| Socket | Single socket H3 (LGA1150) |
| Chipset | Intel® Q87
Supports Intel® vPro™ Technology Supports Intel® Active Management Technology 9.0 |
System Memory
| Capacity | 4 x 240-pin DDR3 DIMM slots
Support up to 32GB, un-buffered DIMM |
|---|---|
| Type | Dual Channel DDR3 1600/1333 UDIMM
Supports DDR3 1600/1333 |
| Voltage | 1.5V, 1.35V |
Expansion Slots
| PCIe 3.0 x 16 | 1 slot (PCIE6: x16 mode) |
|---|---|
| PCIe 2.0 x 16 | 1 slot (PCIE2: x4 mode) |
| PCI | 2 slots |
Storage
| SATA Controller | Intel® Q87: 6 x SATA3 6.0Gbps, support RAID 0, 1, 5, 10 |
|---|---|
| Additional Storage Controller | ASMedia 1061: 2 x SATA3 6.0Gbps |
Ethernet
| Interface | Gigabit LAN 10/100/1000Mbps |
|---|---|
| LAN Controller | 1 x Intel® i210 + 1 x Intel® i217LM (with vPro support)
Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports PXE |
Graphics
| Controller | Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated |
|---|

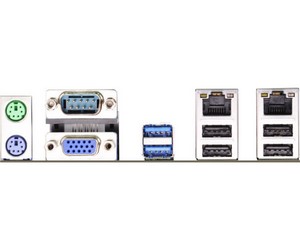

Rear Panel I/O
| PS/2 KB/Mouse | 2 |
|---|---|
| VGA Port | D-sub x 1 |
| USB 2.0 Port | 4 |
| USB 3.0 Port | 2 |
| Lan Port | 2 x RJ45 Gigabit Ethernet LAN ports
LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | 1 |
Internal Connector
| COM Port Header | 1 (COM1) |
|---|---|
| Power LED Header | 1 |
| Auxiliary Panel Header | 1 (include chassis intrusion, front LAN LED) |
| TPM Header | 1 |
| Fan Header | 6 (2 x 4-pin, 4 x 3-pin) |
| ATX Power | 1 (24-pin) + 1 (8-pin) |
| USB 2.0 Header | 3 (each supports 2 USB 2.0) |
| USB 3.0 Header | 1 (each supports 2 USB 3.0) |
System BIOS
| BIOS Type | 64Mb AMI UEFI Legal BIOS |
|---|---|
| BIOS Features |
|
Hardware Monitor
| Temperature | CPU Temperature Sensing
System Temperature Sensing |
|---|---|
| Fan | CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
Supported Operating Systems
| Operating Systems |
|
|---|
Feature
| Unique Features | ASRock Instant Flash |
|---|
Environment
| Temperature | Operation temperature: 50 - 95°F (10 - 35°C) / Non operation temperature: -40 - 158°F (-40 - 70°C) |
|---|
