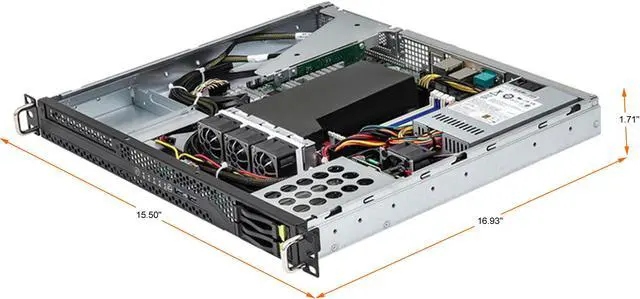

AsRock Rack 1U2E-X570 Server Barebone Supports AMD Ryzen 5000 (PGA 1331) X570 1U 2 Hot-swap 2.5'' SATA/NVMe
- 1U Rackmount with single 315W PSU
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 2 x Hot-swap 2.5'' SATA/NVMe drive bays + 1 x fixed 3.5'' SATA drive bays or 1 Slim ODD (optional)
- Support 1 x M.2 (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 + 1 x M.2 (PCIe4.0 x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH]
- Support 4 x DIMM slots (2DPC), supports DDR4 ECC/ non-ECC UDIMM
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated IPMI LAN
- Support VGA and HDMI
- General Purpose for SMB/Web Hosting/Edge Appliances
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack 1U2E-X570
| Best Seller Ranking | #31 in Server Barebones |
|---|
| Brand | ASRock Rack |
|---|---|
| Model | 1U2E-X570 |
| Form Factor | 1U Rackmount |
| Workload | Edge Server |
| CPU Type | Supports: AMD Ryzen 5000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen 5000 Series Desktop Processors AMD Ryzen 4000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen PRO 5000, 4000 and 3000 Series Desktop Processors 3rd Gen AMD Ryzen Desktop Processors 2nd Gen AMD Ryzen Processors with Radeon Graphics |
|---|---|
| CPU Socket | AM4 |
| Installed CPU | No CPU Installed |
| North Bridge | AMD X570 |
|---|
| Memory Slots | 4 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 128GB |
| Memory Type Supported | 3rd Gen AMD Ryzen Processors: up to 3200 MHz 2nd Gen AMD Ryzen Processors with Radeon Graphics: up to 2666 MHz |
| ECC Supported | ECC support varies by CPU. |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] * Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics. |
| GPU/VPU | Aspeed AST2500 |
|---|
| First LAN | 2 Intel i210 |
|---|---|
| Max. LAN Speed | Dual 1 Gigabit |
| 3.5" Bays | 1 fixed 3.5'' SATA drive bay or 1 Slim ODD (optional) |
|---|---|
| Hot-Swap Bays | 2 Hot-swap 2.5" SATA/NVMe drive bays |
| Front USB | 2 USB3.0 ports |
|---|---|
| COM | 1 |
| VGA | 1 |
| Rear USB | 2 (USB3.2 Gen2) Type-A |
| RJ45 | 2 RJ45 (1GbE) by Intel i210 1 dedicated IPMI |
| Other Ports | 1 HDMI |
| Max. Power | 315W |
|---|
| Dimensions | 1.71" x 15.50" x 16.93" |
|---|
| Date First Available | January 19, 2022 |
|---|
