AsRock Rack B550D4U Micro-ATX Server Motherboard AMD AM4 (PGA1331) Ryzen 5000 Series Processors Dual 1G RJ45
- Micro-ATX (9.6" x 9.6")
- Support AMD Ryzen 5000 Series Desktop Processors
- Support 4 x DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- Support 1 x PCIe4.0 x16 + 1 x PCIe4.0 x4
- Support 1 x M.2 (PCIe3.0 x4 or SATA 6Gb/s) + 1 x M.2 (PCIe3.0 x2)
- Support 6 x SATA 6Gb/s
- Support 2 x RJ45 (1GbE) by Intel i210 + 1 x dedicated IPMI
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack B550D4U
| Brand | AsRock Rack |
|---|---|
| Model | B550D4U |
| CPU Socket Type | Socket AM4 |
|---|---|
| CPU Type | Supports: AMD Ryzen 5000 and 4000 G-Series Desktop Processors with Radeon Graphics AMD Ryzen 5000 and 3000 Series Desktop Processors AMD Ryzen PRO 5000, 4000 and 3000* Series Desktop Processors * Not compatible with AMD Ryzen PRO 3000 Series Desktop Processors with Radeon Graphics |
| North Bridge | AMD B550 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | Up to 3200 MHz* * AMD Ryzen 3000 G-Series Desktop Processors with Radeon Graphics support up to 2666 MHz |
| PCI Express 4.0 x16 | SLOT6: Latch PCIe4.0* x16 [CPU] *Supports PCIe3.0 when using AMD Ryzen 5000, 4000 G-Series Desktop Processors with Radeon Graphics |
|---|---|
| PCI Express x4 | SLOT4: PCIe4.0* x4 [CPU] *Supports PCIe3.0 when using AMD Ryzen 5000, 4000 G-Series Desktop Processors with Radeon Graphics |
| SATA | 4 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| M.2 | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242 form factor [FCH] 1 M-key (PCIe3.0 x2), supports 22110/2280/2260/2242 form factor [FCH] |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Back I/O Ports | UID Button/LED: 1 UID button w/ LED VGA Port: 1 DB15 Serial Port: 1 DB9 USB 3.2 Gen2 Port: 2 Type-A (USB3.2 Gen2) RJ45: 2 RJ45 (1GbE), 1 dedicated IPMI HDMI: 1 |
|---|
| Other Connectors | Auxiliary Panel Header: 1 (19-pin): chassis intrusion, system fault LED, LAN activity LED System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Video output: 1 Speaker Header: 1 (4-pin) Buzzer: 1 Fan Header: 4 (6-pin), 2 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) SMBus header: 1 PMB header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V) |
|---|
| Form Factor | Micro ATX |
|---|---|

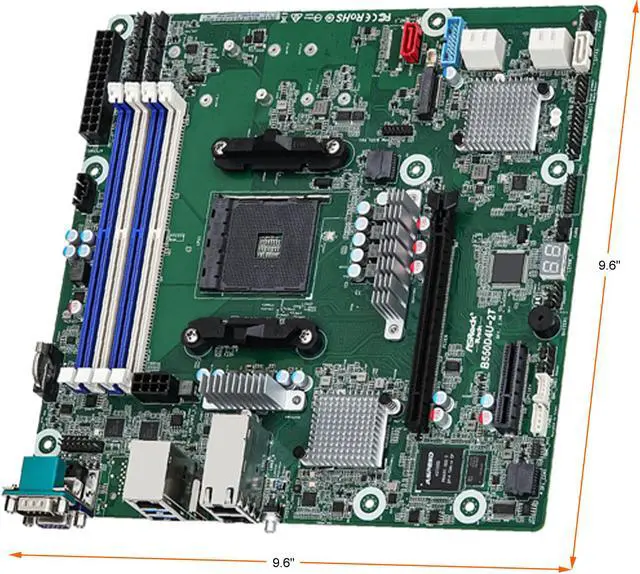

| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | March 09, 2022 |
|---|
