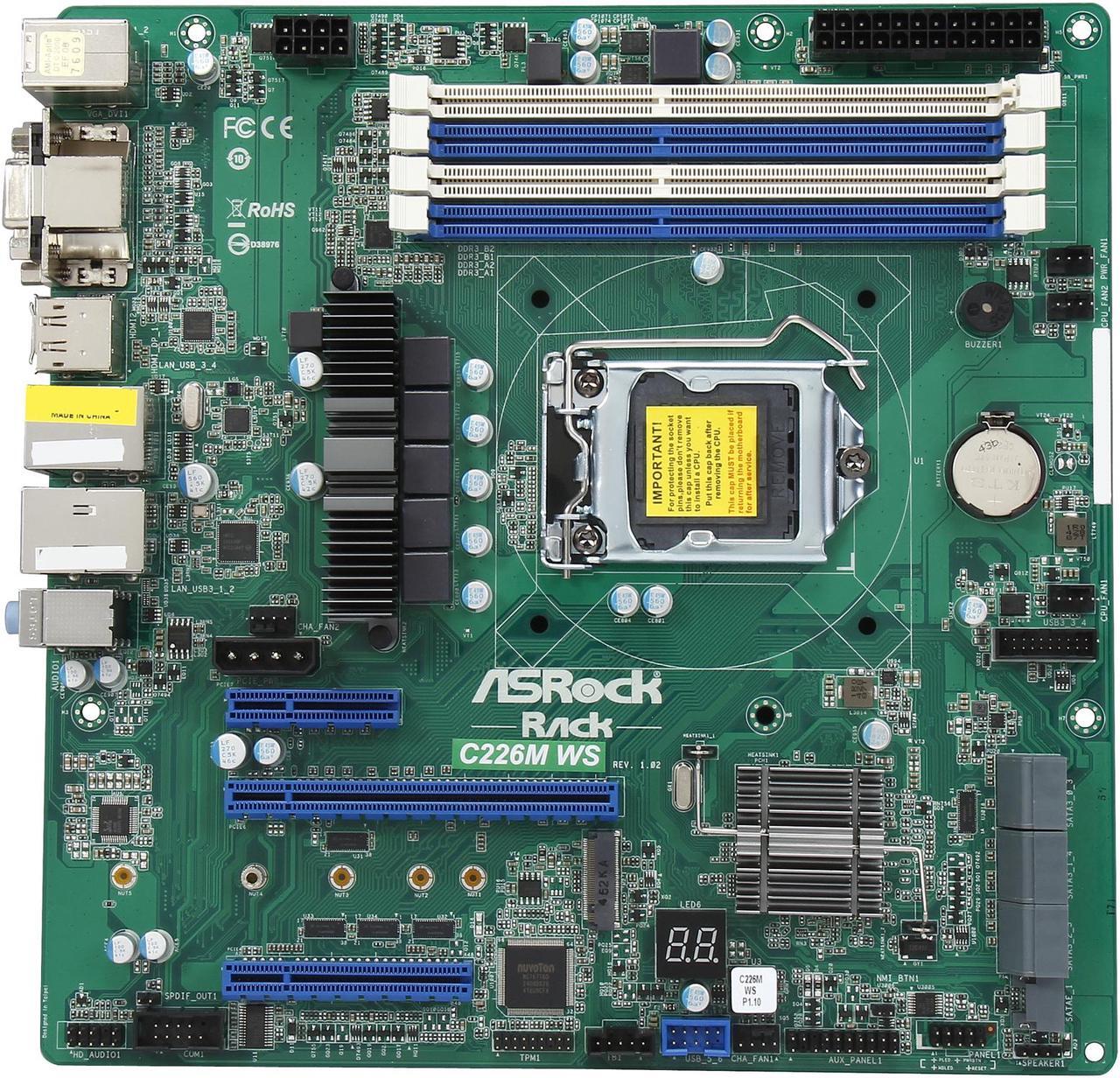

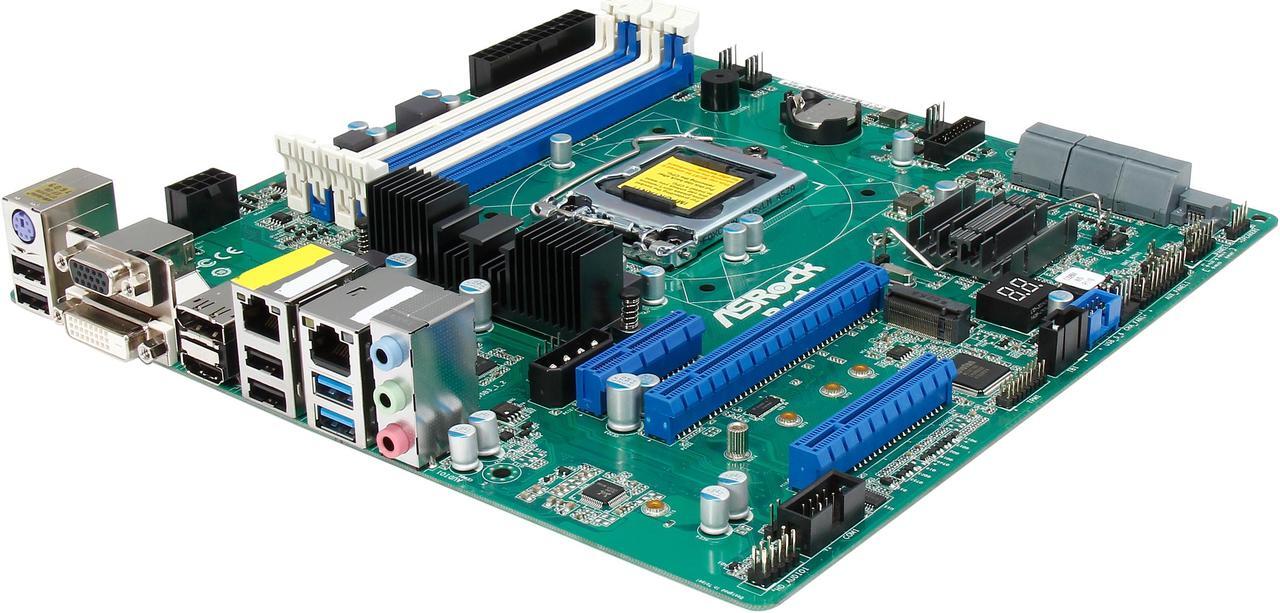

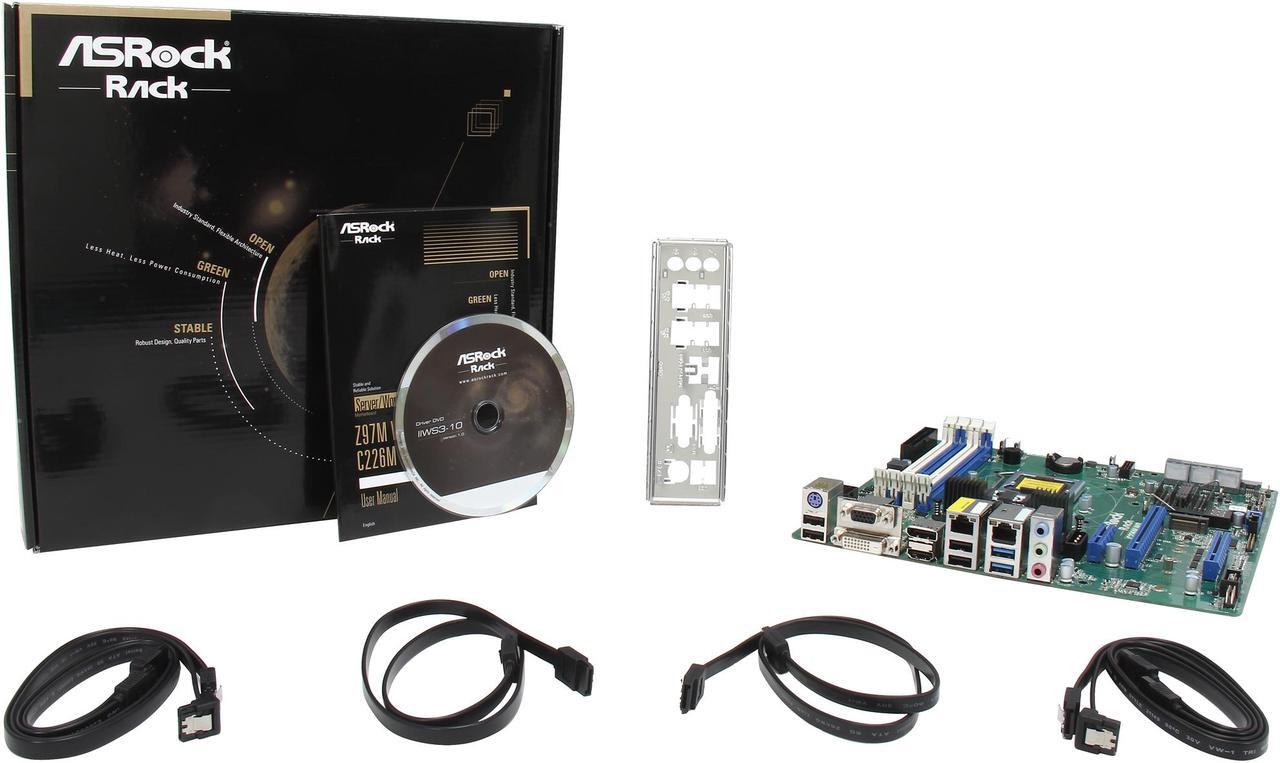

ASRock C226M WS Micro ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

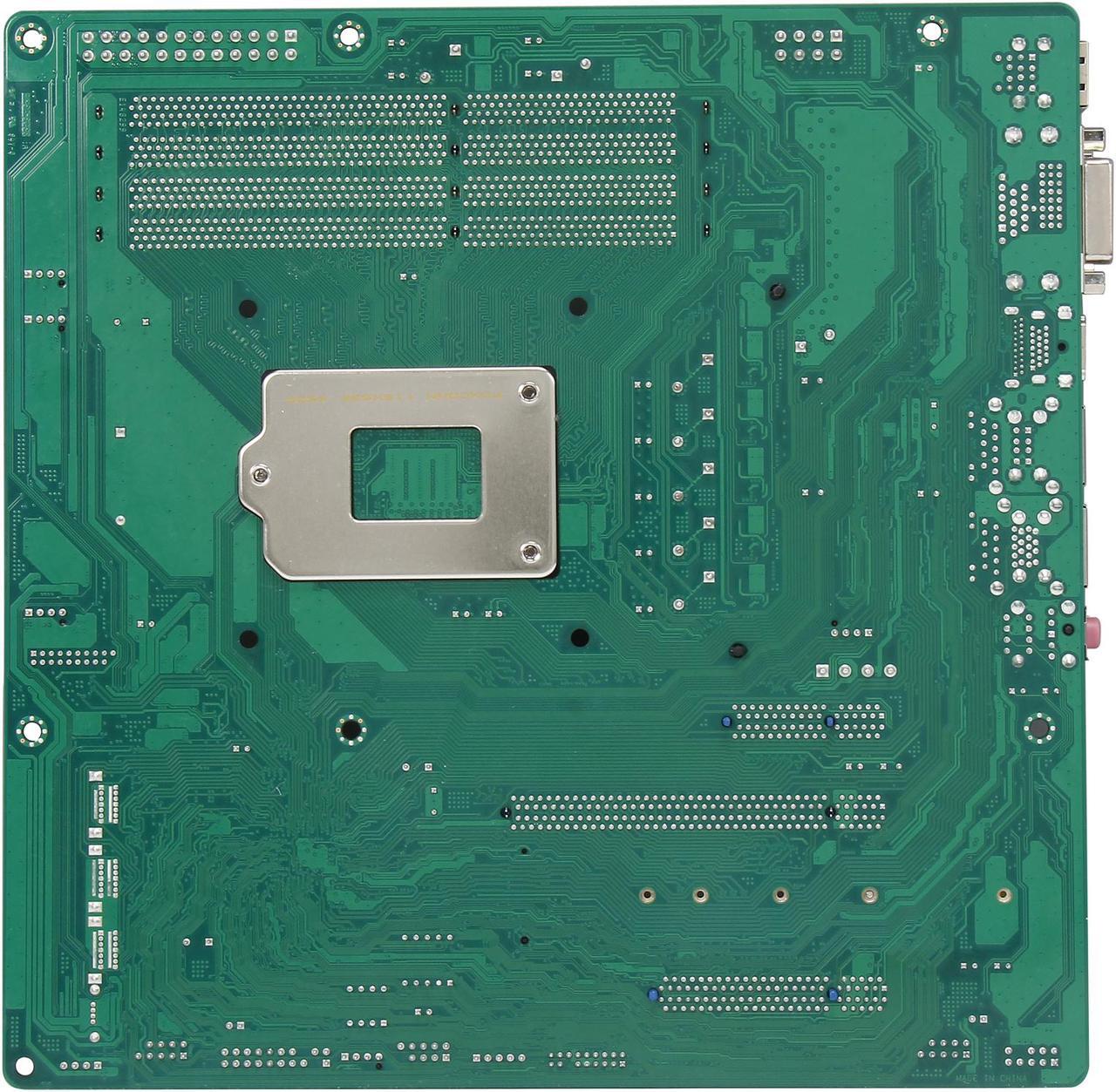

Motherboard Physical Stats

Form Factor	Micro ATX
Dimensions	9.6 x 9.6" (24.4 x 24.4cm)

---

Processor System

CPU	Supports Intel® Xeon Processor E3-1200 v3 Product Family & Haswell i3 HDMI only works with certain Intel® E3 v3 CPUs(E3-1276 v3 /E3-1246 v3 /E3-1226v3 /E3-1275L v3 /E3-1286 v3/E3-1286L v3) Haswell i5/i7 Processor support is an extended advantage provided by ASRock Rack. When out of warranty, user's discretion is required.
Socket	Single socket H3 (LGA1150)
Chipset	Intel® C226

---

System Memory

Capacity	4 x 240-pin DDR3 DIMM slots Supports up to 32GB, unbuffered DIMM
Type	Dual Channel DDR3 1600/1333 UDIMM & ECC UDIMM Supports DDR3 1600/1333
Voltage	1.5V, 1.35V

---

Expansion Slots

PCIe 3.0 x16	1 slot (x16 or x8, switch with x8 slot)
PCIe 3.0 x8	1 slot (x0 or x8, switch with x16 slot)
PCIe 2.0 x4	1 slot
M.2	1 slot (shared with SATA Port 4 & Port 5)

---

Storage

SATA Controller	Intel® C226: 6 x SATA3 6.0Gbps Connectors, supports RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug Support SATA Express (SATA Port 5 & Port 4, shared with M.2 slot)

---

Audio

Audio Codec	Realtek ALC892

---

Ethernet

Interface	Gigabit LAN 10 / 100 / 1000Mbps
LAN Controller	Intel® i210 + Intel® i217LM (with Intel® vPro support) Supports Wake-On-LAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE

---

Graphics

Controller	Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated
VRAM	Max. shared memory 1792MB
Output	Supports D-Sub with max. resolution up to 1920 x 1200 @ 60Hz

---

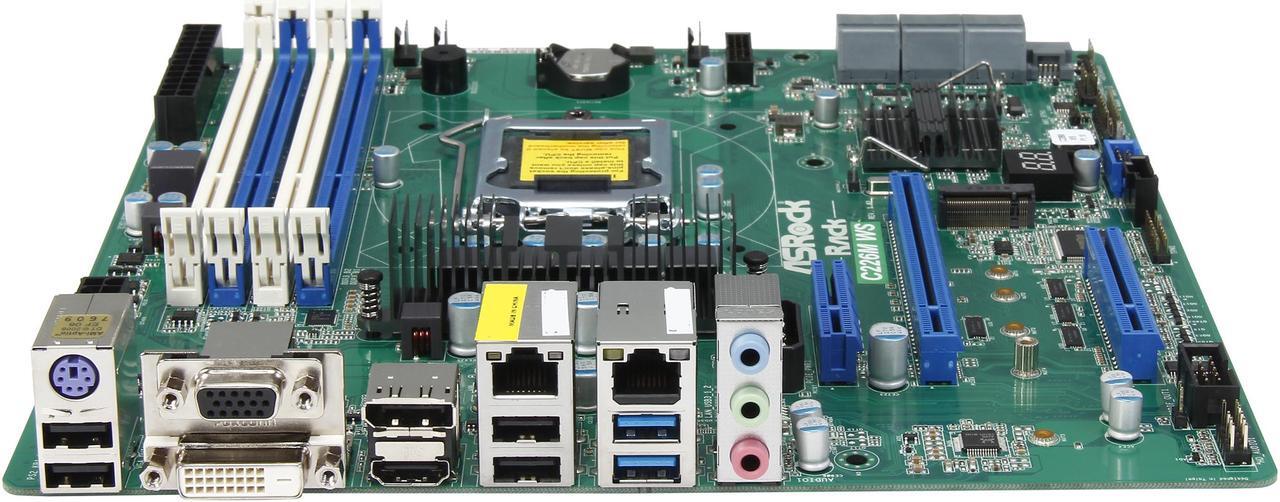

Rear Panel I/O

PS/2 KB/Mouse	1
VGA Ports	D-sub x 1, DVI x 1, HDMI x 1, Display port x 1
USB 3.0 Ports	2
USB 2.0 Ports	4
LAN Ports	2 x RJ45 Gigabit Ethernet LAN ports LAN Ports with LED (ACT/LINK LED and SPEED LED)
Audio	3 Jacks

---

Internal Connectors

COM Port Header	1 (COM1)
Power LED Header	1
Auxiliary Panel Header	1 (Includes chassis intrusion, front LAN LED)
TPM Header	1
Fan Header	5 x 4-pin
ATX Power	1 (24-pin) + 1 (8-pin)
USB 3.0 Headers	1 (each supports 2 USB 3.0)
USB 2.0 Headers	1 (each supports 2 USB 2.0)

---

System BIOS

BIOS Type	128Mb AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP) ACPI 1.1 Compliance Wake Up Events SMBIOS 2.3.1 Support DRAM Voltage Multi-adjustment CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

---

Hardware Monitor

Temperature	CPU Temperature Sensing System Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control
Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

---

Supported Operating Systems

Operating System	Microsoft Windows Windows 7 (32- & 64-bit) Windows 8 (32- & 64-bit) Windows 8.1 (32- & 64-bit) Server 2012 R2 (64-bit)

---

Feature

Unique Features	ASRock Instant Flash

---

Environment

Temperature	Operation temperature: 32 - 95°F (10 - 35°C) / Non operation temperature: -40 - 158°F (-40 - 70°C)

---
