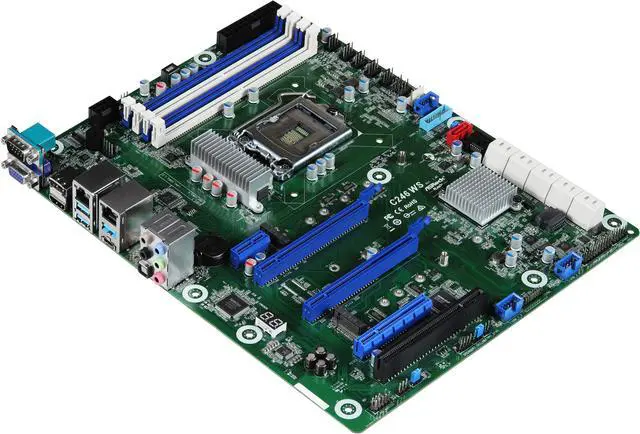

AsRock Rack C246 WS ATX Server Motherboard LGA 1151 Intel C246
- ATX 12" x 9.6"
- Support Intel Xeon E-2100 Series Processors
- Support 4 x DDR4 DIMM slots, Dual channel DDR4 2133 / 2666 / 2400 ECC and non-ECC U DIMM max 64 GB
- Support 8 x SATA3 (included 1 x SATA DOM) + 4 x SATA3 by Marvell 9172
- Support 2 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x1 + 1 xPCI + 2 x M.2
- Support 2 x RJ45 GLAN by Intel i210 + Intel i219LM
- Suppost Audio Jack 5+1 + 1 x HDMI + 1 x Display port + 1 x D-sub + 1 x COM port
- Workstation Motherboard
+
+
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack C246 WS
| Brand | AsRock Rack |
|---|---|
| Model | C246 WS |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Supports Intel Xeon E-2100 / E-2200 Series Processors |
| North Bridge | Intel C246 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | Non-ECC UDIMM: 2666 / 2400 / 2133 MHz ECC UDIMM: 2666 / 2400 / 2133 MHz |
| Maximum Memory Supported | Support up to 64GB DDR4 ECC / non-ECC UDIMM |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | SLOT6: Gen3 x16 link, auto switch to x8 link if SLOT4 is occupied SLOT4: Gen3 x16 link (ME), Gen3 x8 link(EE) |
|---|---|
| PCI Express x8 | SLOT2: Gen3 x8 link (ME), Gen3 x4 link(EE); shared with M2_2 |
| PCI Express x1 | 1 x PCIe 3.0 (SLOT7) |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Additional SATA | Marvell SE9172: 4 x SATA3 6.0 Gb/s |
| Additional SATA RAID | 0/1/5/10 |
| Number of LAN | 2 x RJ45 GLAN by Intel i210 + Intel i219LM |
|---|---|
| LAN Chipset | Intel I210 |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I219-LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

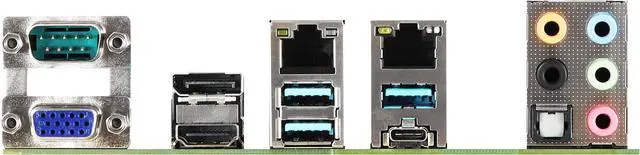

| Video Ports | 1 x D-Sub +1 x HDMI + 1 x Display Port |
|---|---|
| RJ45 | RJ45: 2 x GLAN (by Intel i210 + Intel i219LM) LAN Ports with LED (ACT / LINK LED and SPEED LED) |
| USB 3.1 | 3 x TypeA + 1 x TypeC ports |
| Features | Supports Intel Xeon E-2100 Series Processors Supports Dual channel DDR4 2133 / 2666 / 2400 ECC and non-ECC U DIMM max 64 GB Support 8 x SATA3 by C246 (included 1 x SATA DOM), 4 x SATA3 by Marvell 9172 Supports 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x1, 1 x PCI, 2 x M.2 Supports Intel i210 & i219LM Supposts Audio Jack 5+1, 1 x HDMI / 1 x Display port / 1 x D-sub / 1 x COM port |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | August 11, 2021 |
|---|
