Asrock Rack D1541D4U-2O8R Server Motherboard Intel Xeon D1541 SFP DDR4 ECC DIMM

  • Intel Xeon D1541 Processor
  • Dual channel DDR4 2133 / 1866 ECC DIMM max 64 / 64 / 128GB
  • 6 x SATA3 by D1541 + 8 x SAS3 by LSI3008
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 2 x M.2 slots
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • 2 x SFP+ by Cortina CS4227
+
+
Overview
Specs
Reviews
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

ASRock Rack D1541D4U-2O8R

ASRock Rack D1541D4U-2O8R

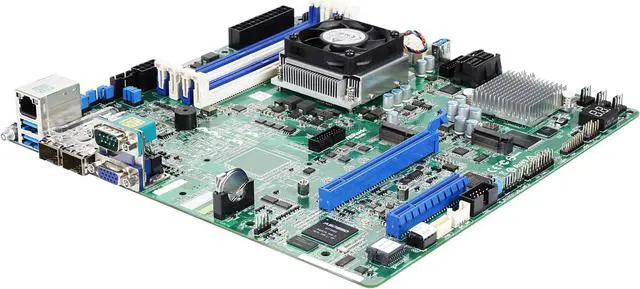

ASRock Rack D1541D4U-2O8R uATX server motherboard supports Intel Xeon D1541 processor, and provides the performance and expandability you need to propel your business forward.

Packed with Performance

The Intel Xeon D1541 processor utilizes its eight cores and 16 threads to deliver the computing power that handles demanding tasks like a breeze. Only 45 W of TDP also helps you cut energy cost.


Massive Memory Support

Four DDR4 DIMM slots let you install up to 128GB of DDR4 ECC RDIMM, or up to 64 GB of DDR4 ECC/non-ECC UDIMM.


Future-ready Storage Expansion

In addition to six SATA 3 ports, the motherboard offers two M.2 slots that support solid-state drive installation.


Great LAN Controller

2 x 10G fiber SFP+ powered by Cortina CS4227 ensures superior network performance. With integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E), administrators can conduct out-of-band management of computer systems and monitoring their operation.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...

The ASRock Rack D1541D4U-2O8R is a uATX server motherboard for Intel Xeon D1541 systems, combining ECC memory support, 10Gb SFP+ networking, and IPMI 2.0 management for compact servers and infrastructure builds.

Recommended For

  • Home or small-business NAS builders who need multiple SAS/SATA drive connections, ECC memory support, and room for storage expansion without adding a separate SAS controller.
  • Homelab operators building a virtualization or server host who want onboard 10GbE SFP+, IPMI remote management, ECC memory, and two PCIe expansion slots on one motherboard.
  • Administrators who need to manage a server remotely can use its IPMI and KVM-over-IP instead of relying on a monitor and keyboard at the machine.
  • Builders connecting a storage server to an SFP+ 10GbE network who want those ports onboard rather than using a separate network card.

Spec Summary

AttributeValue
Best ForServer builds using an Intel Xeon D1541 processor, ECC DDR4 memory, SAS/SATA storage, and 10GbE SFP+ networking
Processor And PlatformSupports the Intel Xeon D1541 processor on a system-on-chip platform
Memory ConfigurationDual-channel DDR4-2133/1866 with two memory slots; supports up to 128GB ECC RDIMM or up to 64GB ECC/non-ECC UDIMM
Expansion And M.2One PCIe 3.0 x16 slot operating at x8, one PCIe 3.0 x8 slot, and two M.2 slots
Storage ConnectivitySix SATA3 6Gb/s ports from the D1541 and eight SAS3 ports via the LSI3008 controller
NetworkingTwo 10G SFP+ ports using the Cortina CS4227, plus dedicated 10/100/1000Mbps LAN for IPMI
Management, Video And I/OIntegrated IPMI 2.0 with KVM; Aspeed AST2400 video with one D-Sub port, two USB 3.0 ports, and one COM port
Audio ConnectivityOptical S/PDIF connector
Form FactoruATX motherboard measuring 9.6 × 9.6 inches
Model IdentifiersASRock Rack D1541D4U-2O8R
