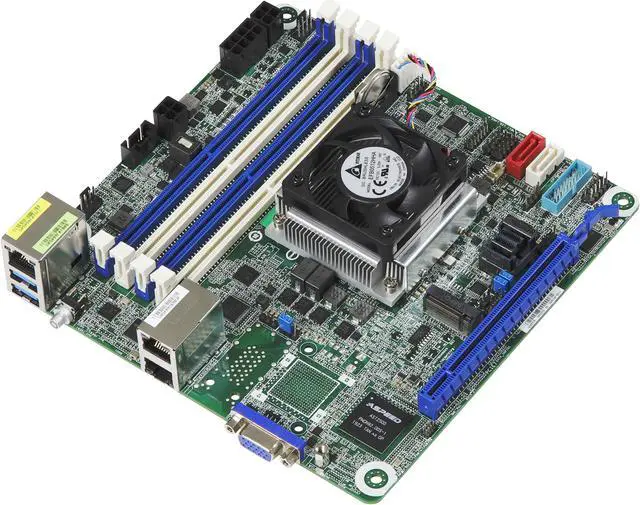

ASRock Rack D1622D4I Mini-ITX SoC Server Motherboard Intel® Xeon® D 1600 Processor PCIe 3.0 Dual 1G LAN
- Mini-ITX
- Support 4 x DDR4 RDIMM, ECC UDIMM, non-ECC UDIMM
- Support 6 x SATA 6Gb/s including 1x SATA DOM
- Support 2 x 1GbE by Intel® i210
- Support 1 x PCIe3.0 x16
- Support 1 x M.2 (PCIe3.0 x4)
- Support both 12V DC and ATX power input
- Support Remote management (IPMI)
+
+
Learn more about the ASRock Rack D1622D4I
| Brand | AsRock Rack |
|---|---|
| Model | D1622D4I |
| CPU Type | Supports Intel Xeon D 1600 Processor |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2133 |
| Maximum Memory Supported | 128GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | SLOT7: PCIe3.0 x16 |
|---|
| M.2 | 1 x M.2 |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X557-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Intel I210 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 10Gbps + 2 x 1Gbps |
| Back I/O Ports | 1 x D-Sub / 2 x USB 3.2 Gen 1 Type-A / 4 x LAN (RJ45) |
|---|
| Onboard USB | USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB 3.2 Gen1) |
|---|---|
| Other Connectors | Power Connector: 1 x (4-pin) + 1 x (8-pin) support 12V DC-IN Other Power Connectors: 1 (4-pin,SATA Power for DC-IN mode), 1 (3-pin, SATA DOM Power) *Caution: Misconnection between the ATXPWR1 and the HDDPWR1 con- nectors may permanently damage the motherboard. Auxiliary Panel Header: 1 (includes chassis intrusion, 2 front LAN LED, System LED) System Panel: 1 Speaker Header: 1 Fan Header: 4 TPM Header: 1 SGPIO Header: 1 PMBus header: 1 Clear CMOS: 1 (short pad) |
| BIOS Feature | 16MB AMI UEFI Legal BIOS Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | December 20, 2023 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 909-590-8308
- Support Website
- View other products from ASRock Rack
LOADING...
The ASRock Rack D1622D4I is a Mini-ITX server motherboard for Intel Xeon D 1600 processors, with four DDR4 slots supporting up to 128GB and ECC memory. It suits compact servers and embedded systems that need server-class memory support and remote management.
Recommended For
- Home-NAS builders fitting a storage server into a small Mini-ITX case who want six SATA connections, including four through mini-SAS, plus an M.2 slot.
- Homelab and server operators who need to monitor or control a headless system remotely; the onboard BMC supports IPMI, including remote KVM and virtual media.
- Small-server builders seeking ECC memory and a compact board with a soldered Xeon D-1622, rather than selecting and installing a separate CPU.
- DIY server builders who want to use the single PCIe 3.0 x16 slot for a storage or network controller to tailor a compact NAS or home server.
Real-World Use Scenarios
- For a compact home or small-office NAS, users can connect SATA drives directly and run file sharing or scheduled backups in a Mini-ITX build; the board’s onboard network ports are Gigabit, so network transfer speeds depend on the rest of the setup.
- For a DIY backup server with a larger drive pool, users can add a PCIe storage controller and connect additional drives; one community build report describes using the board with an HBA and SAS drives for backup storage.
- For a home-lab or small-business server, users can run server software and experiments in a compact system with ECC memory support; the Xeon D platform and server-board design make it a fit for always-on infrastructure rather than a desktop gaming build.
- For a server installed in a closet or other location without a nearby monitor, administrators can use IPMI for remote management and remote console access, reducing the need to connect a keyboard and display for routine maintenance.
- For a small network or edge server, users can host lightweight network services in a compact chassis; the board provides dual onboard Gigabit Ethernet, so deployments needing faster-than-Gigabit networking would need an added network card.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Compact server builds using Intel Xeon D 1600 processors, with support for up to 128GB of DDR4 memory and multi-speed Ethernet |
| Processor Support | Supports Intel Xeon D 1600 processors |
| Memory Configuration | Four 288-pin DDR4 slots, supporting DDR4 2133 and up to 128GB; ECC and registered memory are supported |
| Expansion And Storage | One PCIe 3.0 x16 slot and one M.2 slot |
| Networking | Four RJ-45 LAN ports: two 10Gbps ports using Intel X557-AT2 and two 10/100/1000Mbps ports using Intel I210 |
| Video And Rear I/O | Onboard ASpeed AST2500 video with one D-Sub output; rear I/O also includes two USB 3.2 Gen 1 Type-A ports |
| Internal Headers And Connectors | Includes a USB 3.2 Gen 1 header for two ports, four fan headers, TPM and SGPIO headers, PMBus and speaker headers, system and auxiliary panel headers, and a Clear CMOS short pad |
| Power | Power connectors include 4-pin and 8-pin connections supporting 12V DC-IN, plus SATA-power connectors for DC-IN mode and SATA DOM power; avoid confusing the ATXPWR1 and HDDPWR1 connectors, as misconnection can damage the board |
| Firmware And System Compatibility | 16MB AMI UEFI BIOS with Plug and Play, ACPI 2.0 wake events, SMBIOS 2.8.0 support, and ASRock Rack Instant Flash |
| Form Factor And Dimensions | Mini-ITX, measuring 6.7 × 6.7 inches |
| Model Identifiers | ASRock Rack D1622D4I |
