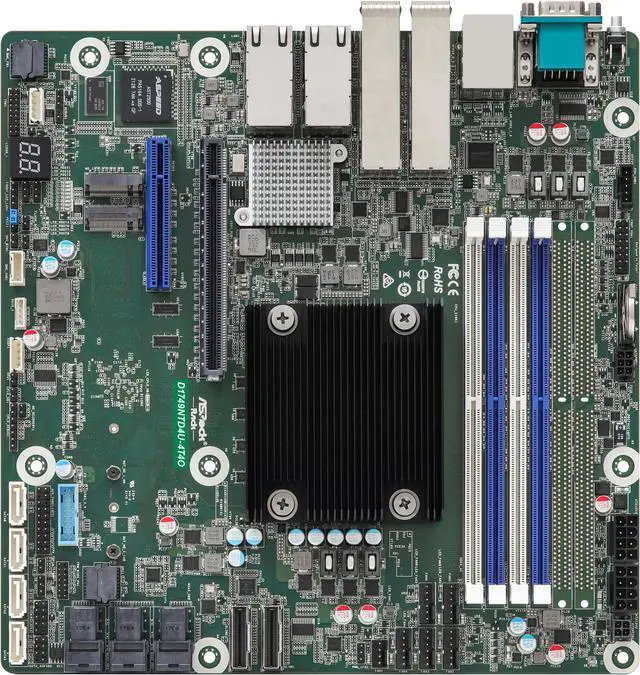

ASRock Rack D1749NTD4U-4T4O Micro-ATX SoC Server Motherboard Intel® Xeon® D-1749NT processor PCIe4.0 4 SFP28 (Up to 10GbE) 4 RJ45 (Up to 10GbE) by Intel® X557-AT4
- Micro-ATX (9.6" x 9.6")
- Intel® Xeon® D-1749NT processor
- 4 DIMM slots (2DPC), supports DDR4 RDIMM, ECC/non-ECC UDIMM
- 1 PCIe4.0 x16 or 2 SlimSAS (PCIe4.0 x8)
- 1 PCIe3.0 x8 or 2 Mini-SAS HD (4 SATA 6Gb/s)
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s) or 4 SATA 7-pin
- Up to 17 SATA 6Gb/s
- 4 SFP28 (Up to 10GbE)
- 4 RJ45 (Up to 10GbE) by Intel® X557-AT4
- Remote Management (IPMI)
+
+
Learn more about the ASRock Rack D1749NTD4U-4T4O
| Brand | AsRock Rack |
|---|---|
| Model | D1749NTD4U-4T4O |
| CPU Type | Intel Xeon D-1749NT processor |
|---|---|
| Number of Processor Support | 1 |
| CPU Features | Thermal Design Power Up to 90W |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 |
| Maximum Memory Supported | 128GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | SLOT7*: PCIe4.0 x16 [CPU] *SLOT7 shares lanes with 2 SlimSAS. -Slimline1 and Slimline2 will disable when SLOT7 (PCIe4.0 x16) is populated -Slimline1 will disable when SLOT7 (PCIe4.0 x8) is populated. |
|---|---|
| PCI Express x8 | SLOT6*: PCIe3.0 x8 [CPU] *SLOT6 shares lanes with 2 Mini-SAS HD by BIOS setting |
| Other Slots | 2 SlimSAS* (PCIe4.0 x8) [CPU] *SLOT7 shares lanes with 2 SlimSAS. -Slimline1 and Slimline2 will disable when SLOT7 (PCIe4.0 x16) is populated -Slimline1 will disable when SLOT7 (PCIe4.0 x8) is populated |
| M.2 | M2_1 (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280 form factor [CPU] M2_2* (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280 form factor [CPU] *M2_2 shares lanes with 4 SATA 7-pin; 4 SATA 7-pin will disable when M2_2 is populated |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X557-AT4 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 8 x 10Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 2 x USB 3.2 Gen 1 Type-A / 4 x LAN (RJ45) / 4 x LAN (SFP28) |
|---|
| Onboard USB | USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1) |
|---|---|
| Other Connectors | Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 ( 8-pin, ATX 12V) support 12V DC-in Other Power Connectors: 1 (6-pin, SATA power) Auxiliary Panel Header: 1 (18-pin): chassis intrusion, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED VGA header: 1 (15-pin) Fan Header: 1 (4-pin, CPU fan), 5 (6-pin, SYS fans) TPM Header: 1 (13-pin, SPI) VROC header: 1 SGPIO Header: 1 HSBP: 1 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 Others: 1 header (17-pin, external 80 debug port) NMI Header: 1 |
| BIOS Feature | AMI UEFI BIOS; 512 Mb (64MB) SPI Flash ROM Plug and Play (PnP), ACPI 3.0 and above compliance wake up events, SMBIOS 3.2 and above, ASRock Rack Instant Flash |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | November 05, 2024 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 909-590-8308
- Support Website
- View other products from ASRock Rack
LOADING...
The ASRock Rack D1749NTD4U-4T4O is a Micro-ATX server motherboard with an onboard Intel Xeon D-1749NT processor, four memory slots, and IPMI remote management. It suits compact servers and infrastructure builds that need integrated compute and remote administration.
Recommended For
- Server and storage builders creating a compact NAS or storage server who need multiple 10GbE connections and room to expand SATA storage; the board supports up to 17 SATA drives, with some storage connections sharing lanes.
- Network-appliance builders connecting several 10GbE copper and SFP28 links in one system, such as a lab router, firewall, or network-services server.
- IT teams building a remotely managed server for a rack or equipment room who want IPMI-based management and ECC memory support without a separate add-in management card.
- System integrators building compact Xeon D servers for edge or infrastructure workloads who can use a Micro-ATX board and provide adequate chassis airflow for the 90W processor.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Single-processor server builds combining Xeon D processing, ECC memory support, and multiport 10Gbps networking |
| Processor And Power | Intel Xeon D-1749NT processor for one CPU; thermal design power up to 90W |
| Memory Configuration | Four 288-pin DDR4 slots supporting DDR4-2666, up to 128GB, with ECC and registered memory support |
| Expansion Slots And Lane Sharing | PCIe 4.0 x16 slot shares lanes with two PCIe 4.0 x8 SlimSAS connectors; a PCIe 3.0 x8 slot shares lanes with two Mini-SAS HD connectors through a BIOS setting. Slot population affects SlimSAS availability |
| Storage And Expansion | Two M.2 sockets support PCIe 3.0 x4 or SATA 6Gb/s drives in 22110 or 2280 sizes; populating the second M.2 socket disables four shared SATA 7-pin connectors |
| Wired Networking | Intel X557-AT4 with four RJ45 and four SFP28 LAN ports; maximum LAN speed is 8 × 10Gbps |
| Rear I/O And USB | Rear I/O includes one COM port, one D-Sub, two USB 3.2 Gen 1 Type-A ports, four RJ45 LAN ports, and four SFP28 LAN ports; one internal USB 3.2 Gen 1 header supports two additional USB ports |
| Onboard Graphics | Aspeed AST2500 onboard video chipset |
| Power Connections | Micro-Fit 4-pin power connector with ATX 24-pin adapter cable, two 8-pin ATX 12V connectors supporting 12V DC-in, and one 6-pin SATA power connector |
| Internal Headers And System Connections | Includes CPU and system fan headers; auxiliary panel and system panel headers; VGA, TPM, VROC, SGPIO, SMBus, PMBus, IPMB, HSBP, NMI, clear-CMOS, and external 80 debug headers |
| BIOS And Firmware | AMI UEFI BIOS with 512 Mb (64MB) SPI Flash ROM, Instant Flash, SMBIOS 3.2 and above, and ACPI 3.0 and above compliance |
| Form Factor And Dimensions | Micro ATX motherboard measuring 9.6 × 9.6 inches |
| Model Identifiers | ASRock Rack D1749NTD4U-4T4O |
