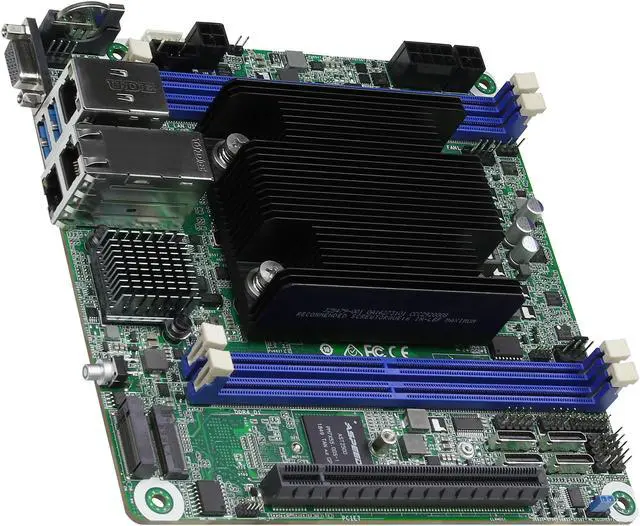

AsRock Rack D2163D4I2-2T Mini-ITX Server Motherboard Intel Xeon D-2100 Series 12 core SOC

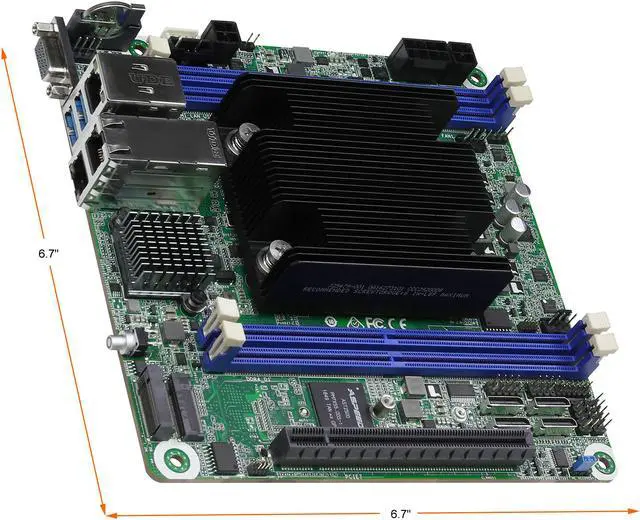

- Mini-ITX 6.7" x 6.7"
- Support Intel Xeon D-2163 Processors
- Support 4 x DIMM slot, up to 256GB DDR4 ECC RDIMM/LR DIMM
- Support 1 x PCIe 3.0 x16 + 4 x OCuLinks support PCIe3.0 x4
- Support 8 x SATAIII 6.0 Gb/s from 2 x OCulink, 2 x SATAIII 6.0 Gb/s from M.2 M-key
- Support 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2242 form factor & 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor
- Support 2 x 10GLAN by Intel X557-AT2 + 1 x Dedicated IPMI LAN
Specs
Reviews
Learn more about the ASRock Rack D2163D4I2-2T
| Brand | AsRock Rack |
|---|---|
| Model | D2163D4I2-2T |
| CPU Type | Supports Intel Xeon D-2163 Processors |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Quad Channel |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | SLOT7: PCIe3.0 x16 |
|---|
| SATA | 8 x SATAIII 6.0 Gb/s from 2 x OCulink, 2 x SATAIII 6.0 Gb/s from M.2 M-key |
|---|---|
| M.2 | 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 2242 form factor 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X557-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |
| Back I/O Ports | VGA Port: D-sub x 1 USB 3.2 Gen1 Port: 2 Lan Port: 2x 10GLAN RJ45(by Intel? X557-AT2 ) - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) UID Button/UID LED: 1 |
|---|
| Other Connectors | COM Header: 1 OCuLink: 4 x OCulinks support PCIe3.0 x4; 2 of OCulinks support 4 SATAIII 6Gb/s each Auxiliary Panel Header: 1 (include chassis intrusion, 2 front LAN LED, System LED) TPM Header: 1x (14pin) IPMB Header: 1 Fan Header: 1x CPU Fan, 2x system Fan (1 front, 1 rear) (build in CPU active fansink) ATX Power: 1x (4-pin) + 1x (8-pin) support 12V DC-IN (DC-IN mode power budget is up to 432W) SATA Power Connector: 1 (for DC-IN mode) *Caution: Misconnection may permanently damage the motherboard. |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | January 21, 2022 |
|---|
