AsRock Rack E3C242D4U Micro ATX Server Motherboard LGA 1151 Intel C242
- mATX
- Supports Intel Xeon E-2100 Series Processor
- 4 x DIMM slots Dual channel DDR4 2666 / 2400 ECC and non-ECC U DIMM max 64GB
- 6 x SATA3 by C242
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- 2 x Intel I210
+
+
Learn more about the ASRock Rack E3C242D4U
| Brand | AsRock Rack |
|---|---|
| Model | E3C242D4U |
| CPU Type | Supports Intel Xeon E-2100 / E-2200 Series Processors |
|---|
| North Bridge | Intel C242 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | Non-ECC UDIMM: 1600 / 1866 / 2133 / 2400 / 2666 MHz ECC UDIMM: 1600 / 1866 / 2133 / 2400 / 2666 MHz |
| Maximum Memory Supported | Support up to 64GB DDR4 ECC / non-ECC UDIMM |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied |
|---|---|
| PCI Express x8 | Slot 4: Gen3 x8 link |
| PCI Express x4 | Slot 5: Gen3 x4 link |
| SATA | Intel C242: 6 x SATA3 6Gb/s (SATA0-5, SATA0 supports SATA DOM, and is shared with M.2 (PCIE 3.0 (x2) ) / SATA3) |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|

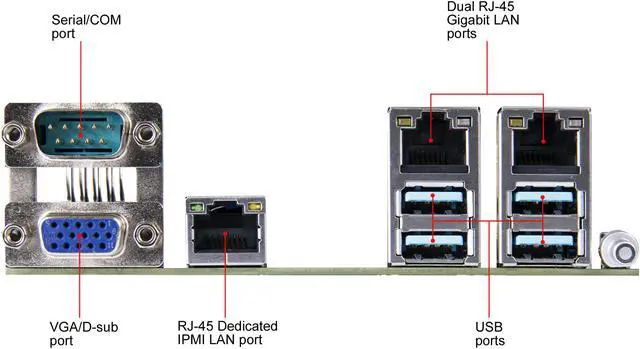

| Number of LAN | 2 x RJ45 GLAN by Intel i210 1 x RJ45 Dedicated IPMI LAN port |
|---|
| Video Ports | 1 x D-Sub |
|---|---|
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port LAN Ports with LED (ACT / LINK LED and SPEED LED) |
| USB 3.1 | 2 (Gen2) x USB 3.1, 2 (Gen1) x USB 3.1 |
| Features | Supports Intel Xeon E-2100 Series Processor Supports Dual channel DDR4 2666 / 2400 ECC and non-ECC U DIMM max 64GB Support 6 x SATA3 by C242 Supports 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4 Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E) Supports 2 x Intel I210 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | January 10, 2019 |
|---|
