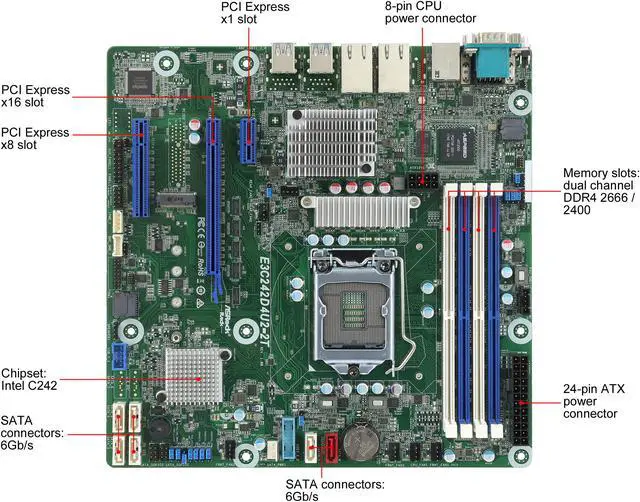

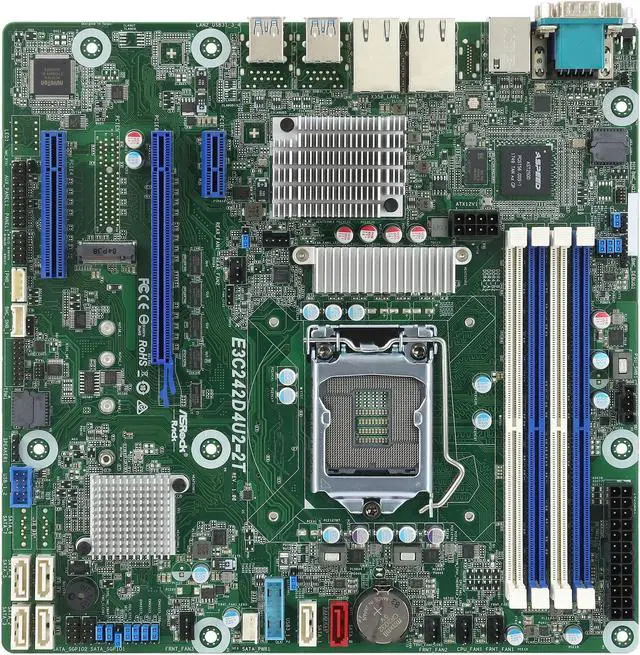

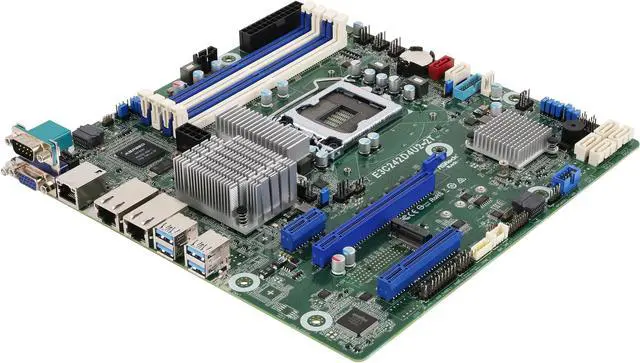

AsRock Rack E3C242D4U2-2T Micro ATX Server Motherboard LGA 1151 Intel C242 Dual 10 GLAN
- mATX 9.6'' x 9.6''
- Support Intel Xeon E-2100 Series Processors
- Support 4 x DIMM slots Dual channel DDR4 2666/2400 ECC UDIMM
- Support 5 x SATA3 + 1 x M.2 by C242
- Support 1 x PCIe 3.0x16, 1 x PCIe 3.0x8, 1 x PCIe 3.0x1
- Support 2 x 10G base-T + 1 x IPMI
- Cloud Computing / Web hosting
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack E3C242D4U2-2T
| Brand | AsRock Rack |
|---|---|
| Model | E3C242D4U2-2T |
| CPU Type | Supports Intel Xeon E-2100 / E-2200 Series Processors |
|---|
| North Bridge | Intel C242 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 / 2400 ECC / non-ECC U DIMM |
| Maximum Memory Supported | Support up to 128GB DDR4 ECC / non-ECC UDIMM |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with Slot 4) |
|---|---|
| PCI Express x8 | Slot 4: Gen3 x8 link (Physical x8, EE x0/x8 (from CPU), shared with Slot 6) |
| PCI Express x1 | Slot 7: Gen3 x1 link (Physical x1, EEx1 (from PCH)) |
| SATA | 6 x SATA3 6Gb/s (SATA0-5, SATA_0 supports SATA DOM) 5 x SATA3 6Gb/s (SATA1-5) and 1 x M.2 SSD SATA connected* *The M.2 slot (M2_1) is shared with the SATA_0 connector. When M2_1 is populated with a M.2 SATA3 module, the Pin 7 of SATA_0 is disabled. |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|

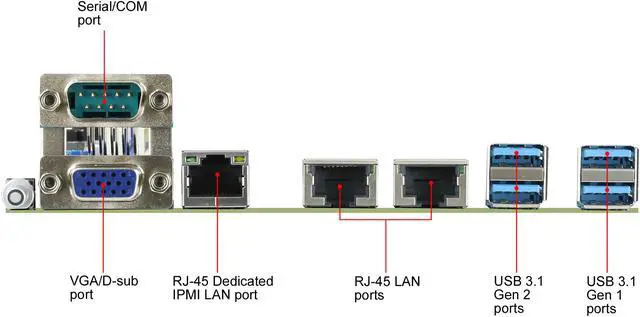

| Number of LAN | 2 x RJ45 10G base-T by Intel X550-AT2 1 x RJ45 Dedicated IPMI LAN port by RTL8211E |
|---|
| Video Ports | 1 x D-Sub |
|---|---|
| USB 3.0 | 2 x USB 3.0 |
| USB 3.1 | 2 x USB 3.1 |
| Features | Supports Intel Xeon E-2100 Series Processors Supports Dual channel DDR4 2666 / 2400 ECC UDIMM Support 6 x SATA3, 1 x M.2 by C242 Supports 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0x1 Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E) Supports 2 x 10G base-T by Intel X550-AT2 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | April 17, 2019 |
|---|
