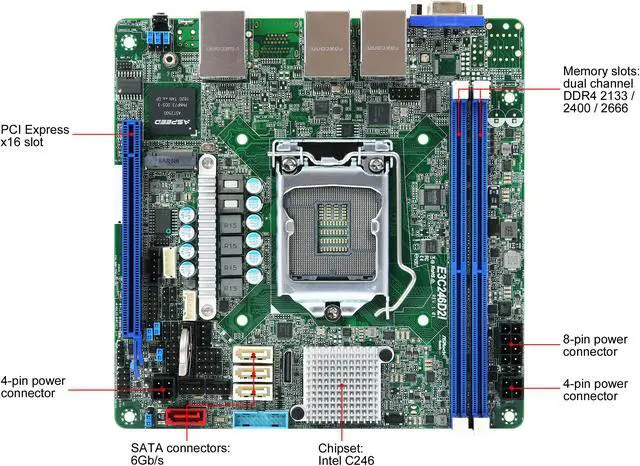

AsRock Rack E3C246D2I Mini-ITX Server Motherboard LGA 1151 Intel C246
- Mini-ITX 6.7'' x 6.7''
- Support Intel Xeon E-2100 Processors
- Support 2 x DIMM slot, Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 32 GB
- Support 8 x SATA3 by C246
- Support 1 x PCIe 3.0x16
- Support 2 x GLAN + 1 x IPMI
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack E3C246D2I
| Brand | AsRock Rack |
|---|---|
| Model | E3C246D2I |
| CPU Type | Supports Intel Xeon E-2100 / E-2200 Series Processors |
|---|
| North Bridge | Intel C246 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2133 / 2400 / 2666 ECC UDIMM* *The non-ECC UDIMMs support Client OS only. |
| Maximum Memory Supported | ECC and non-ECC UDIMM : 16GB, 8GB, 4G *Future support 2DIMM max 64GB. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | SLOT7: Gen3 x16 link |
|---|
| SATA | 1 x OCULINK (SATA_0, 1, 2, 3), 4 x SATA3 6Gb/s (SATA_4, 5, 6, 7) |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|

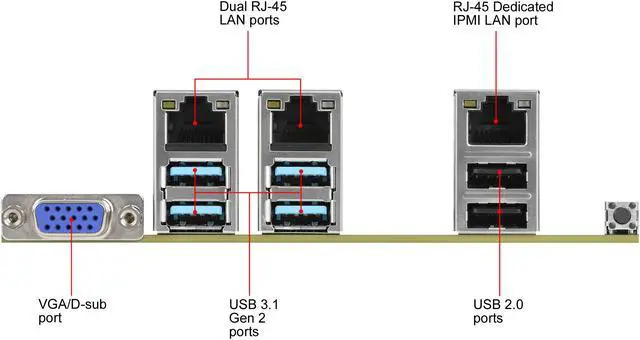

| Number of LAN | 2 x RJ45 GLAN by Intel i210+Intel i219LM 1 x IPMI LAN RJ-45 Port |
|---|
| Video Ports | 1 x D-Sub |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.1 | 4 (Type A Gen2 x4) |
| Features | Supports Intel Xeon E-2100 Processors Supports Dual channel DDR4 2666 / 2400 ECC and non-ECC U DIMM max 32GB Support 8 x SATA3 by C246 Supports 1 x PCIe 3.0 x16 Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E) Supports Intel I210& Intel i219LM |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | April 17, 2019 |
|---|
