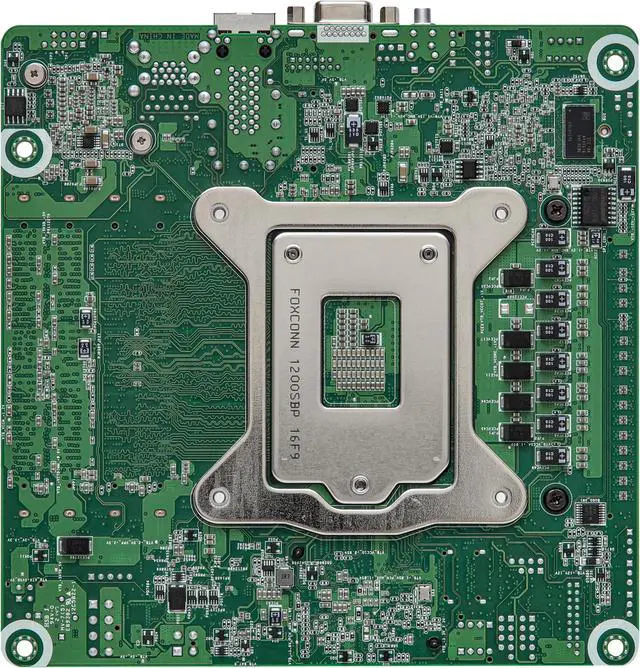

AsRock Rack E3C256D4I-2T Mini ITX Server Motherboard,Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® Series Processors,Single Socket H5 (LGA1200),Intel® C256.
- mini-ITX (6.7" x 6.7")
- Supports Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® series processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC SODIMM
- 1 PCIe4.0 x16
- 2 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
- Supports 1 M.2 (PCIe4.0 x4)
- 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X550
- Supports ATX PSU or 12V DC-in
- Remote Management (IPMI)
Specs
Reviews (3)
Learn more about the ASRock Rack E3C256D4I-2T
| Brand | AsRock Rack |
|---|---|
| Model | E3C256D4I-2T |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors |
| Number of Processor Support | 1 |
| North Bridge | Intel C256 |
|---|
| Number of DDR4 Slots | 4 DIMM slots (2DPC) |
|---|---|
| DDR4 Standard | DDR4 3200 |
| PCI Express 4.0 x16 | SLOT7: PCIe4.0* x16 [CPU] *SLOT7 supports PCIe3.0 only when installing 10th Gen Intel Pentium Series Processors |
|---|---|
| Other Slots | 2 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH] |
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M-key* (PCIe4.0x4); support 2280 form factor [CPU] *M.2 will not fuction when installing 10th Gen Intel Pentium Series Processors |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X550 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |

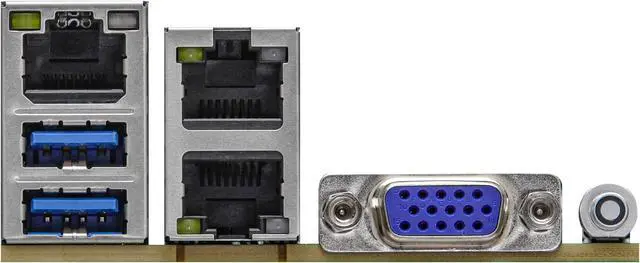

| Back I/O Ports | 1 DB15, 2 Type-A (USB3.2 Gen1), 2 RJ45 (10GbE) |
|---|
| Other Connectors | Internal Connector/Headers Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED COM Header: 1 Fan Header: 3 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 2 SMBus header: 1 PMB header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) Power Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 1 (8-pin, ATX 12V) support 12V DC-in NC-SI: 1 (9-pin) |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | March 27, 2023 |
|---|
