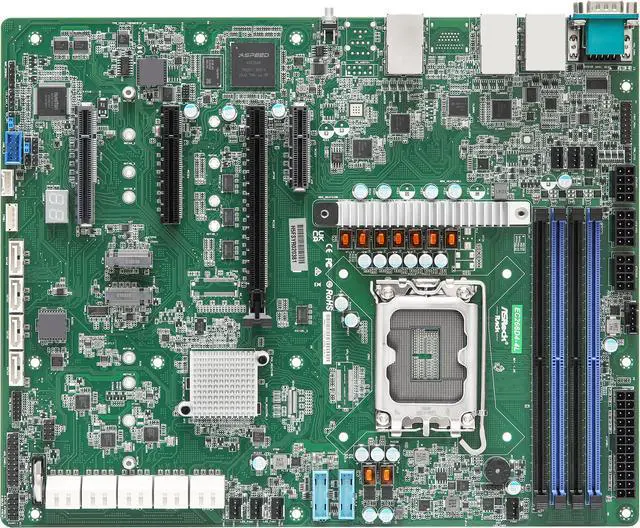

Main image of ASRock Rack Server Motherboard EC266D4-4L ATX 4x 1GLan Single Socket V1 (LGA 1700) Intel Xeon E-2400 series

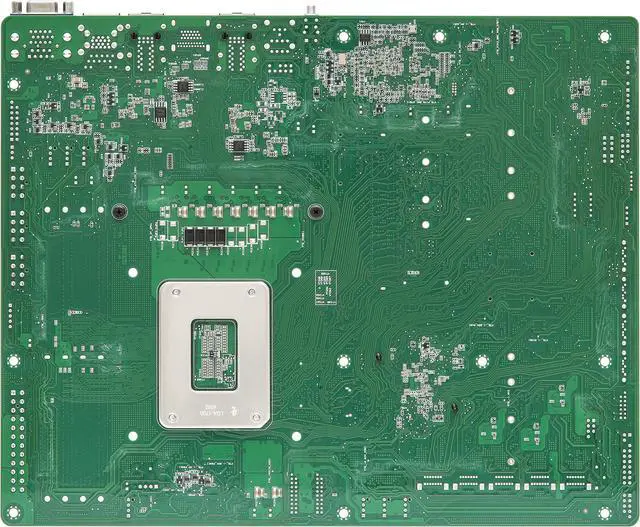

Alt view image 2 of 3 - ASRock Rack Server Motherboard EC266D4-4L ATX 4x 1GLan Single Socket V1 (LGA 1700) Intel Xeon E-2400 series

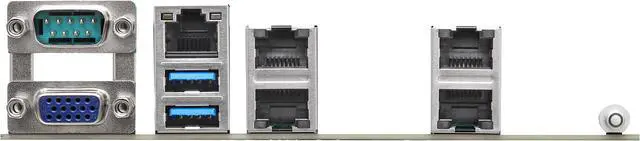

Alt view image 3 of 3 - ASRock Rack Server Motherboard EC266D4-4L ATX 4x 1GLan Single Socket V1 (LGA 1700) Intel Xeon E-2400 series

Shop All ASRock Rack Products

ASRock Rack Server Motherboard EC266D4-4L ATX 4x 1GLan Single Socket V1 (LGA 1700) Intel Xeon E-2400 series

ATX (12" x 9.6")
Support Intel Xeon E-2400 series and Intel® Pentium® Gold G7400/G7400T processors
Support 4 DIMM slots (2DPC), DDR5 ECC UDIMM
Support 1 PCIe5.0 x16, 1 PCIe5.0 x8, 2 PCIe4.0 x4
Support 2 M.2 (PCIe4.0 x4)
Support up to 14 SATA 6Gb/s
Support 4 RJ45 (1GbE) by Intel® i210
Remote Management (IPMI)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

CPU Support List

Intel Xeon E-2488(B0)	Raptor Lake-S 3.2GHz 24MB
Intel Xeon E-2478(B0)	Raptor Lake-S 2.8GHz 24MB
Intel Xeon E-2456(B0)	Raptor Lake-S 3.3GHz 18MB
Intel Xeon E-2434(B0)	Raptor Lake-S 3.4GHz 12MB
Intel Pentium Gold G7400T(H0)	Alder Lake-S 3.1GHz 6MB

Intel Xeon E-2486(B0)	Raptor Lake-S 3.5GHz 18MB
Intel Xeon E-2468(B0)	Raptor Lake-S 2.6GHz 24MB
Intel Xeon E-2436(B0)	Raptor Lake-S 2.9GHz 18MB
Intel Xeon E-2414(B0)	Raptor Lake-S 2.6GHz 12MB
Intel Pentium Gold G7400(H0)	Alder Lake-S 3.7GHz 6MB

Memory QVL

Micron MTC20C2085S1EC48BA1	32GB DDR5 4800 RDIMM
Kingston KSM48E40BS8KM-16HM	16GB DDR5 4800 RDIMM

Samsung M324R4GA3BB0-CQK0L	32GB DDR5 4800 RDIMM

TPM QVL

TPM SPI 13 pin SLB9672VU20	TPM-SPI/INFINEON*

TPM SPI 13 pin SLB9670VQ2.0	TPM-SPI/INFINEON*

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

CPU Socket Type	LGA 1700
CPU Type	Supports Intel Xeon E-2400 series and Intel Pentium Gold G7400/G7400T processors
Number of Processor Support	1
CPU Features	Thermal Design Power 95W

Memory Slots	4 x DDR5 288-pin
Memory Standard	DDR5 4400
Maximum Memory Supported	128GB
ECC Supported	Yes

PCI Express 5.0 x16	SLOT6: PCIe5.0 x16* [CPU] *SLOT6 share lanes with SLOT4. SLOT6 will switch to x8 when SLOT4 is populated
PCI Express x8	SLOT4: PCIe5.0 x8* [CPU]
PCI Express x4	SLOT7: PCIe4.0 x4 [CPU] SLOT2: PCIe4.0 x4 [PCH]

LAN Chipset	Intel I210
LAN Speed	10/100/1000Mbps
Max LAN Speed	4 x 1Gbps

Onboard USB	USB 3.2 (Gen1) Header: 2 header (19-pin, 4 USB3.2 Gen1) USB 2.0 Header: 1 header (9-pin, 2 USB2.0)
Other Connectors	Power Connector: 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V) Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED VGA header: 1 Speaker Header: 1 (4-pin) Buzzer: 1 Fan Header: 7 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 1 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) Front Lan LED Connector: 1 NMI Header: 1

ASRock Rack Server Motherboard EC266D4-4L ATX 4x 1GLan Single Socket V1 (LGA 1700) Intel Xeon E-2400 series

Learn more about the ASRock Rack EC266D4-4L

Customer Reviews of the ASRock Rack EC266D4-4L

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	AsRock Rack
Model	EC266D4-4L

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Item#: N82E16813140138
