AsRock Rack EP2C602-2L+/D16 SSI EEB Server Motherboard Dual LGA 2011 Intel C602 DDR3 1866 / 1600 / 1333 / 1066 R / LR ECC and UDIMM

  • EEB 12" x 13"
  • Dual socket LGA 2011, Supports Intel Xeon Processor E5-1600 / 2600 / 4600 & v2 Series
  • 16 x DIMM DDR3 1866 / 1600 / 1333 / 1066 LR / Registered / ECC / UDIMM, max. 512GB
  • 2 x PCIe 3.0 x16
  • 2 x SATA3, 8 x SATA2 (from 2 x mini SAS 8087 connector) by Intel C602 support RAID 0, 1, 5, 10
  • 1 x Intel i350 support Dual GLAN
  • ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
  • 9 x USB 2.0 ports (4 x rear + 4 x via header + 1 x Type A)
Overview
Specs
Reviews (1)
c0l_asrock_rack

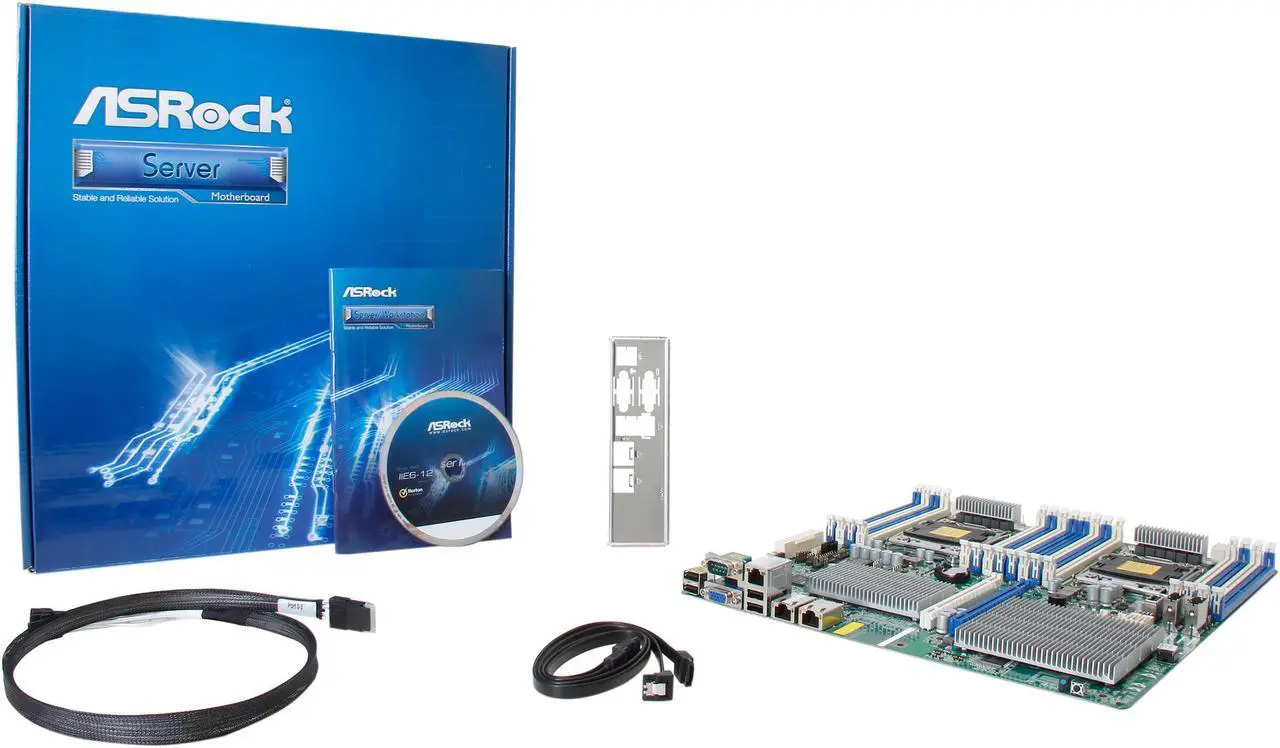

ASRock EP2C602-2L+D16 Main Motherboard Image

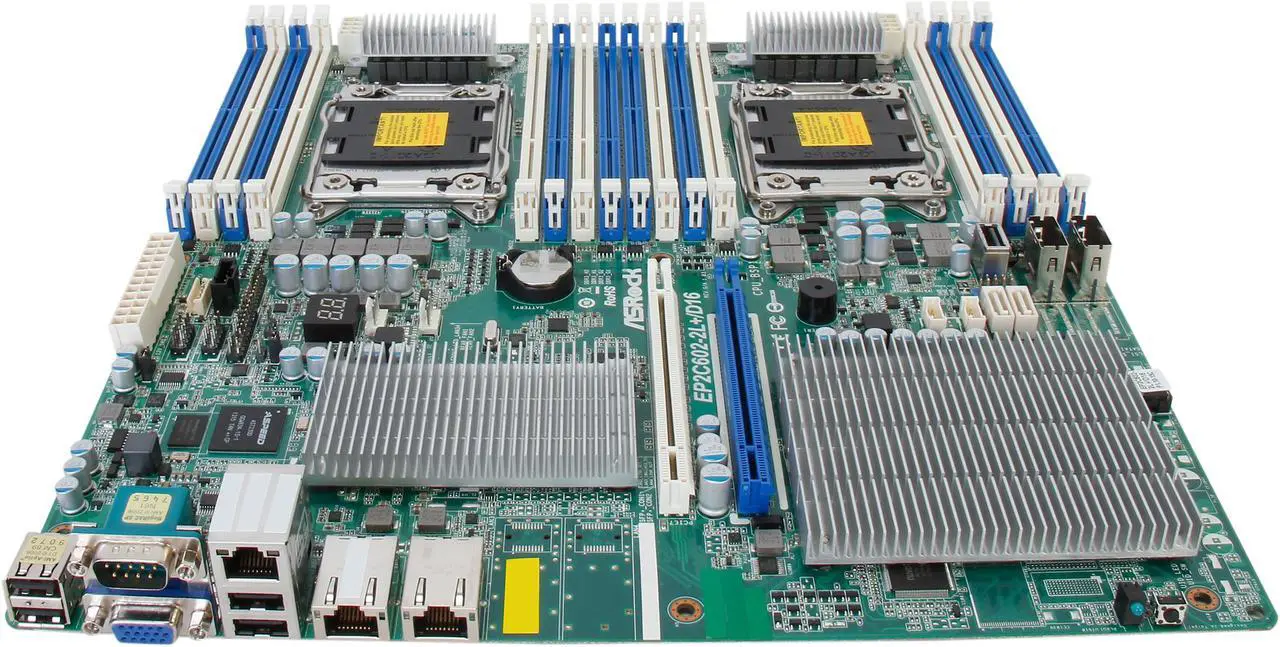

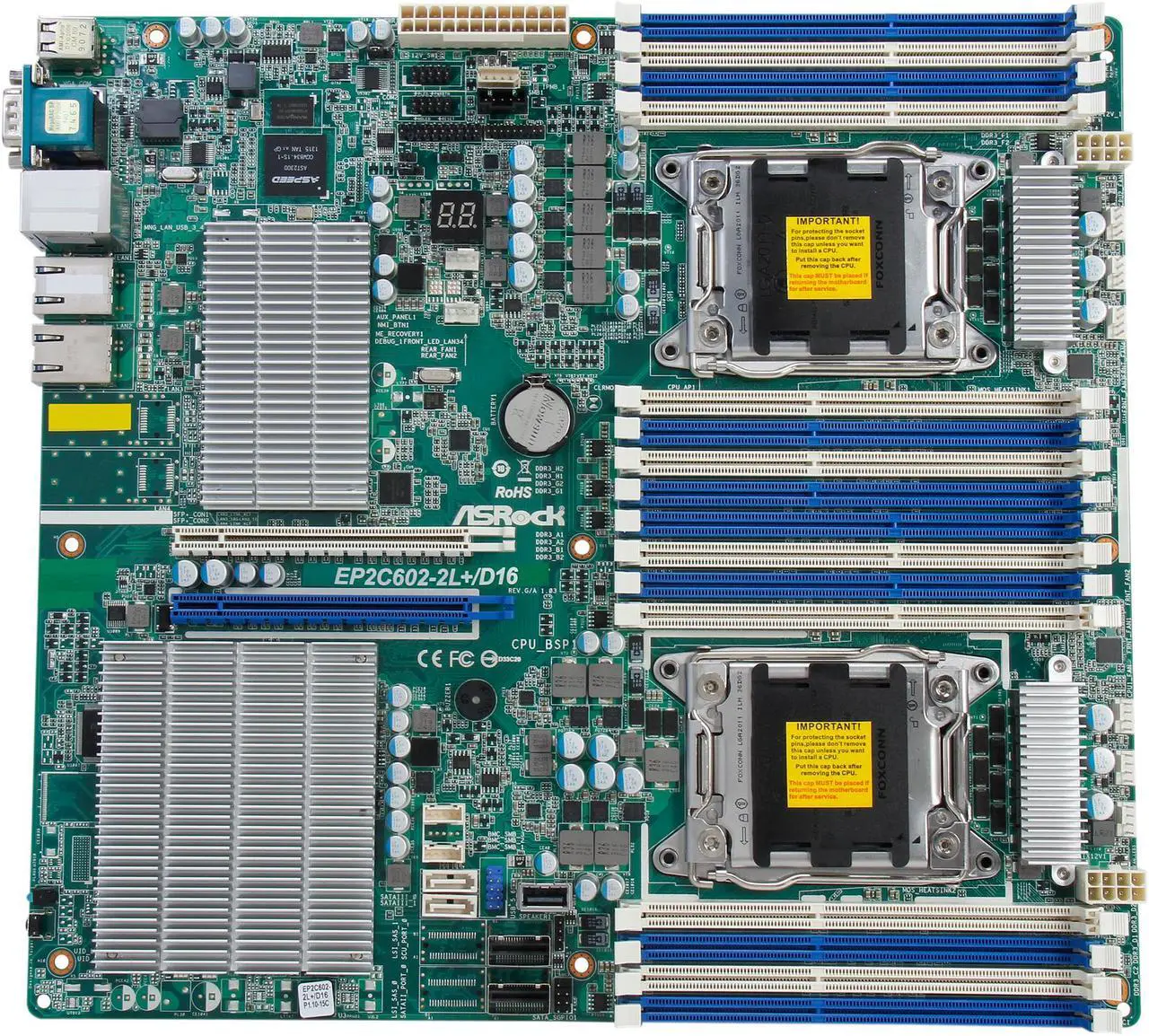

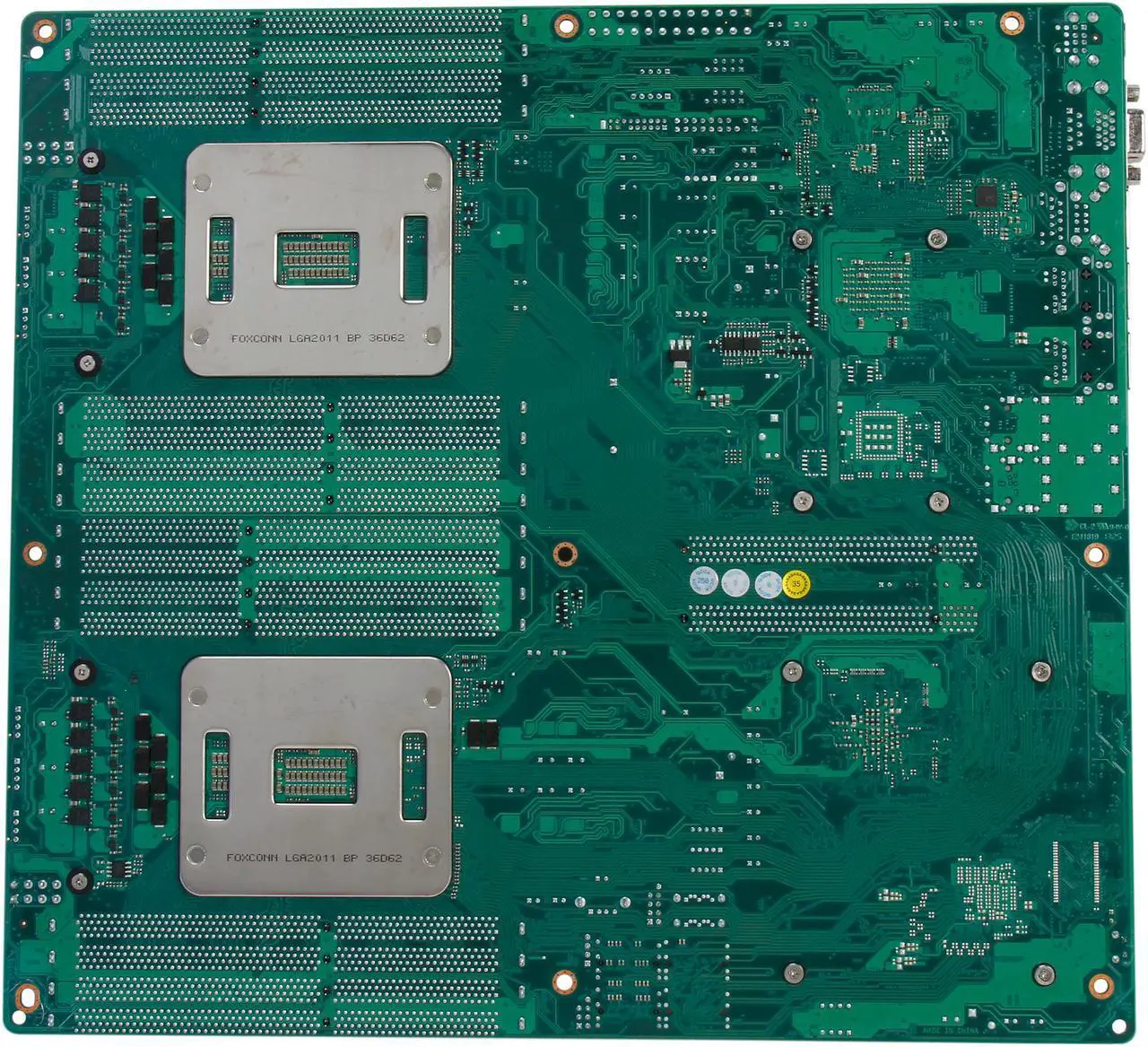

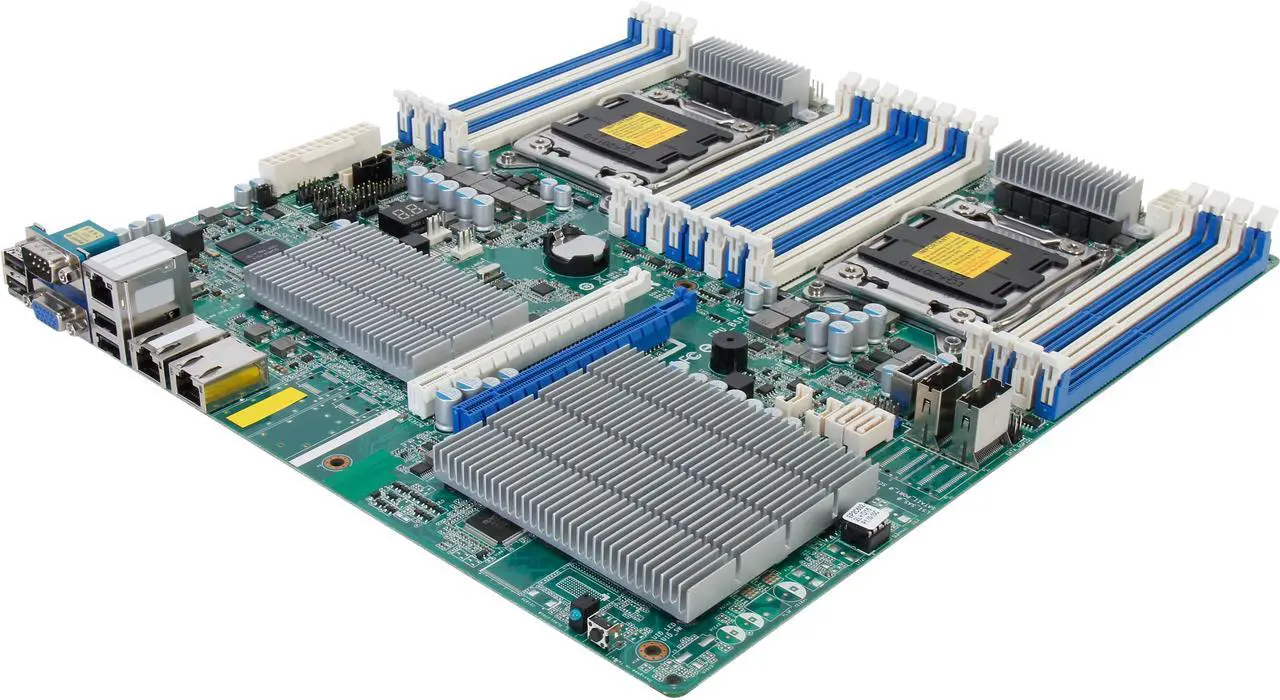

ASRock EP2C602-2L+/D16 Server Motherboard

The ASRock EP2C602-2L+/D16 is a dual-socket motherboard in SSI (server system infrastructure) EEB form factor that offers a solid foundation for small business/SOHO servers or workstations. Based on the Intel C602 chipset, this board supports Intel Xeon E5-1600*/2600/4600 & v2 series processors, and accommodates up to 512GB of DDR3 R/LR DIMM or 128GB ECC/non-ECC unbuffered UDIMM via its 16 memory slots. It also offers two PCIe x16 slots, two Gigabit LAN ports and a dedicated IPMI port, plus an array of SATA and USB ports for your storage and peripherals. Two large heat sinks on the chipset provide sufficient heat dissipation and a solid feel. Additionally, a debug LED provides POST codes for easy troubleshooting.

  • EEB 12x13"
  • Dual-socket LGA 2011 supports Intel Xeon Processor E5-1600/2600/4600* & v2 Series
  • 16x DIMM DDR3 1866/1600/1333/1066 LR-Registered ECC, UDIMM & a maximum 512GB
  • 2x PCIe 3.0 x16
  • 2x SATA3, 8x SATA2(from 2x mini SAS 8087 connectors) via Intel C602 support RAID 0, 1, 5 and 10
  • 1x Intel i350 and support for Dual GLAN
  • ASPEED 2300 for BMC controller and Realtek RTL8211E for dedicated IPMI GLAN
  • 9x USB 2.0 ports (4 rear + 4 via header + 1 Type-A)

* E5-1600 supports single socket.
