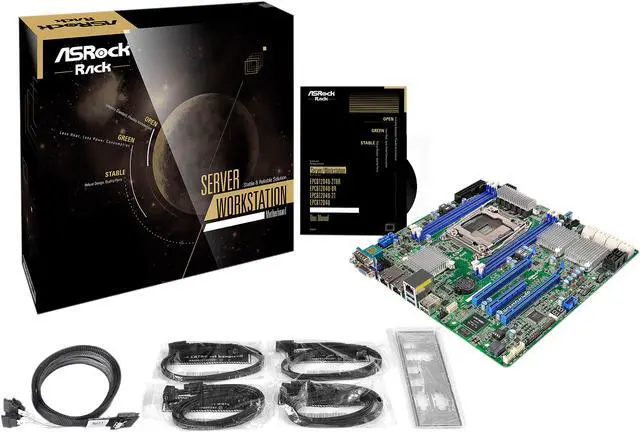

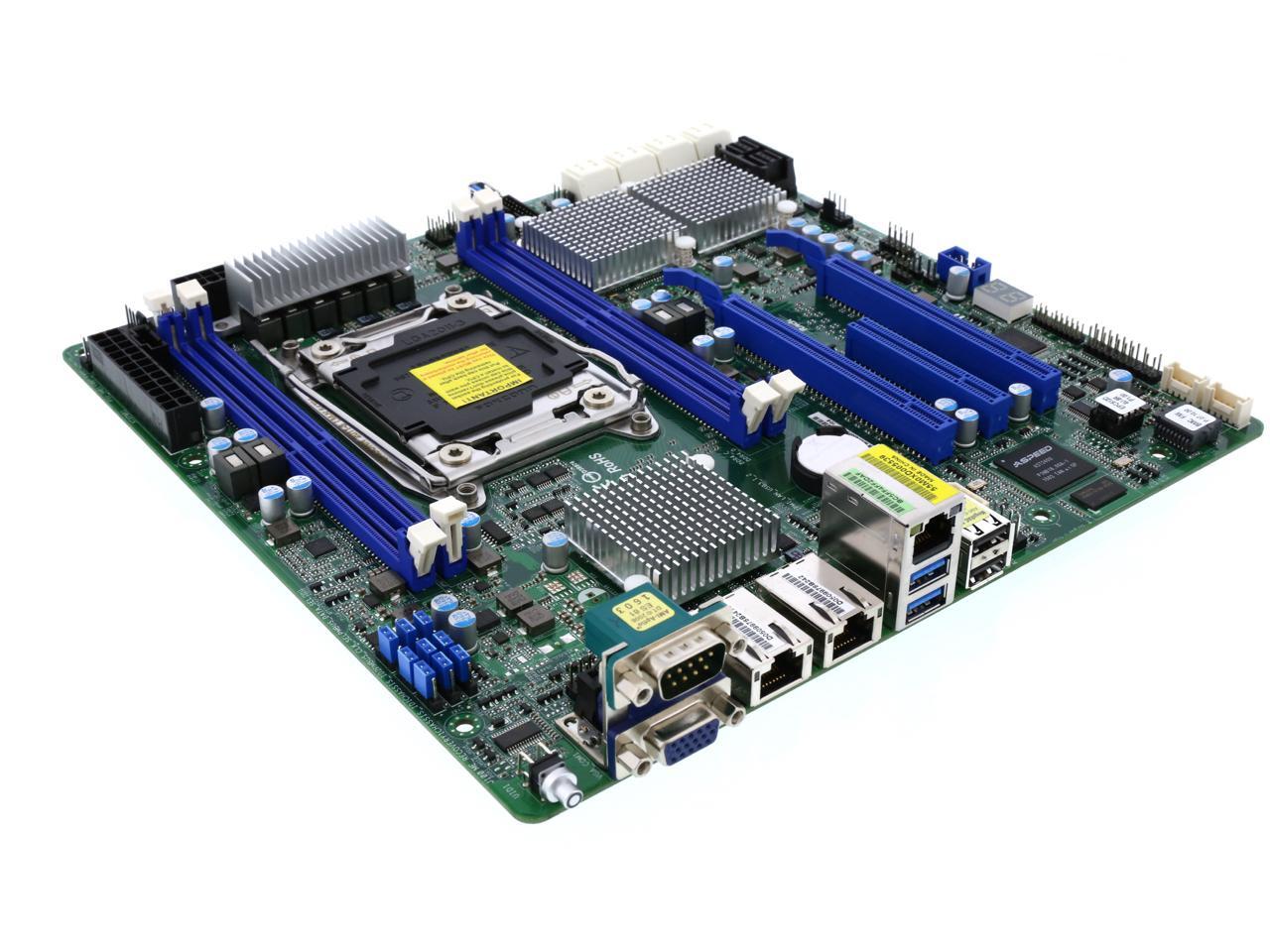

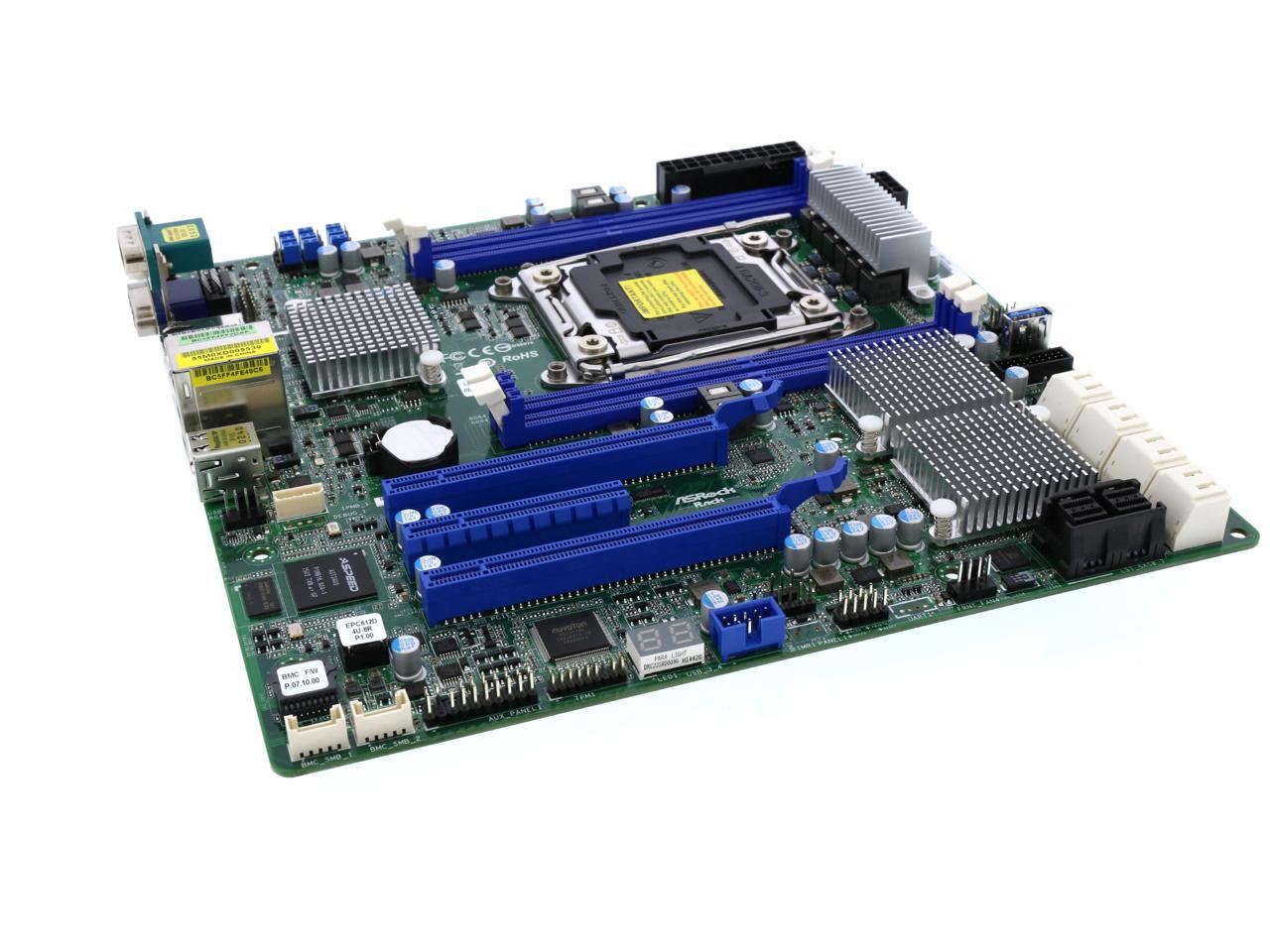

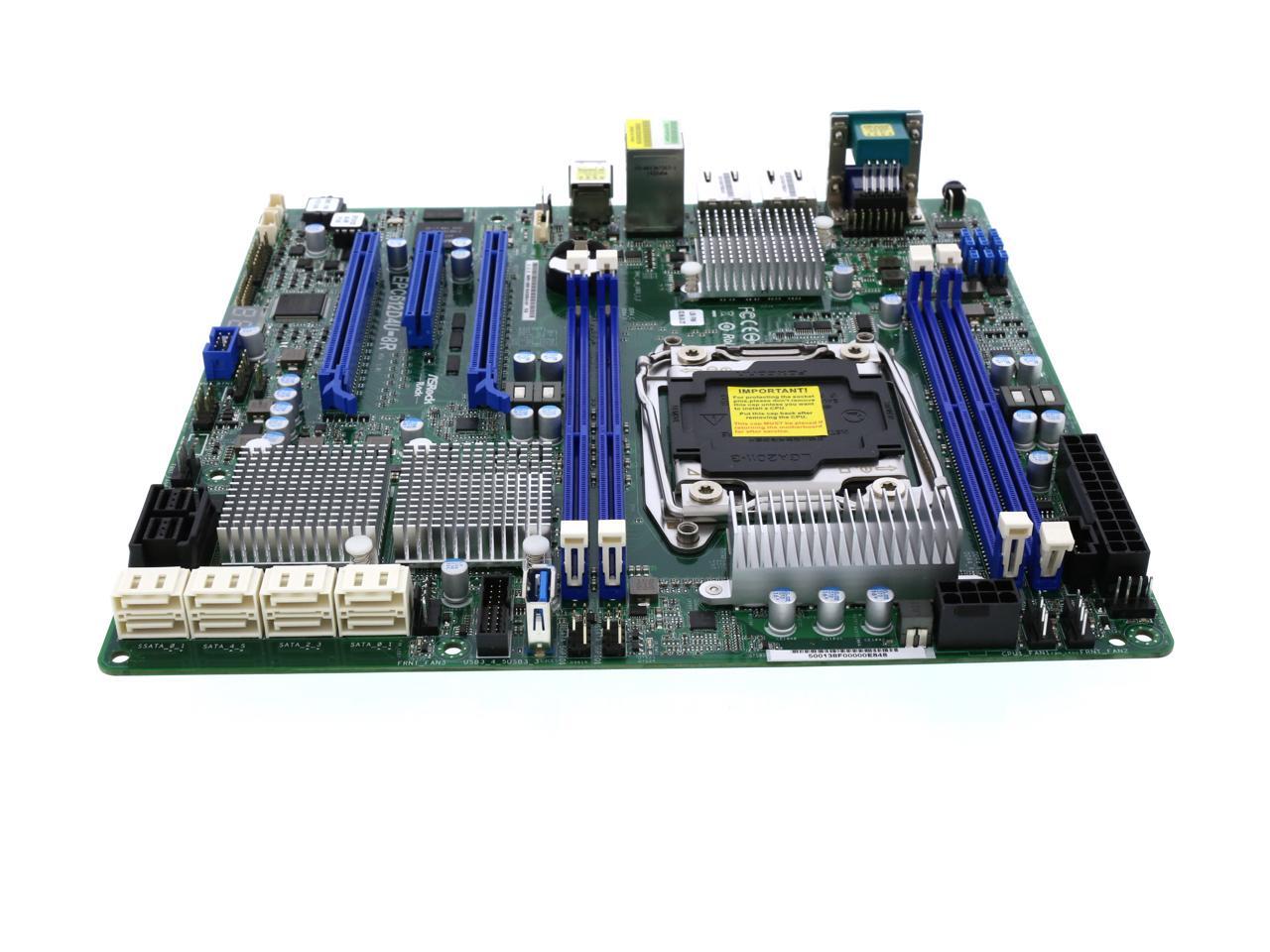

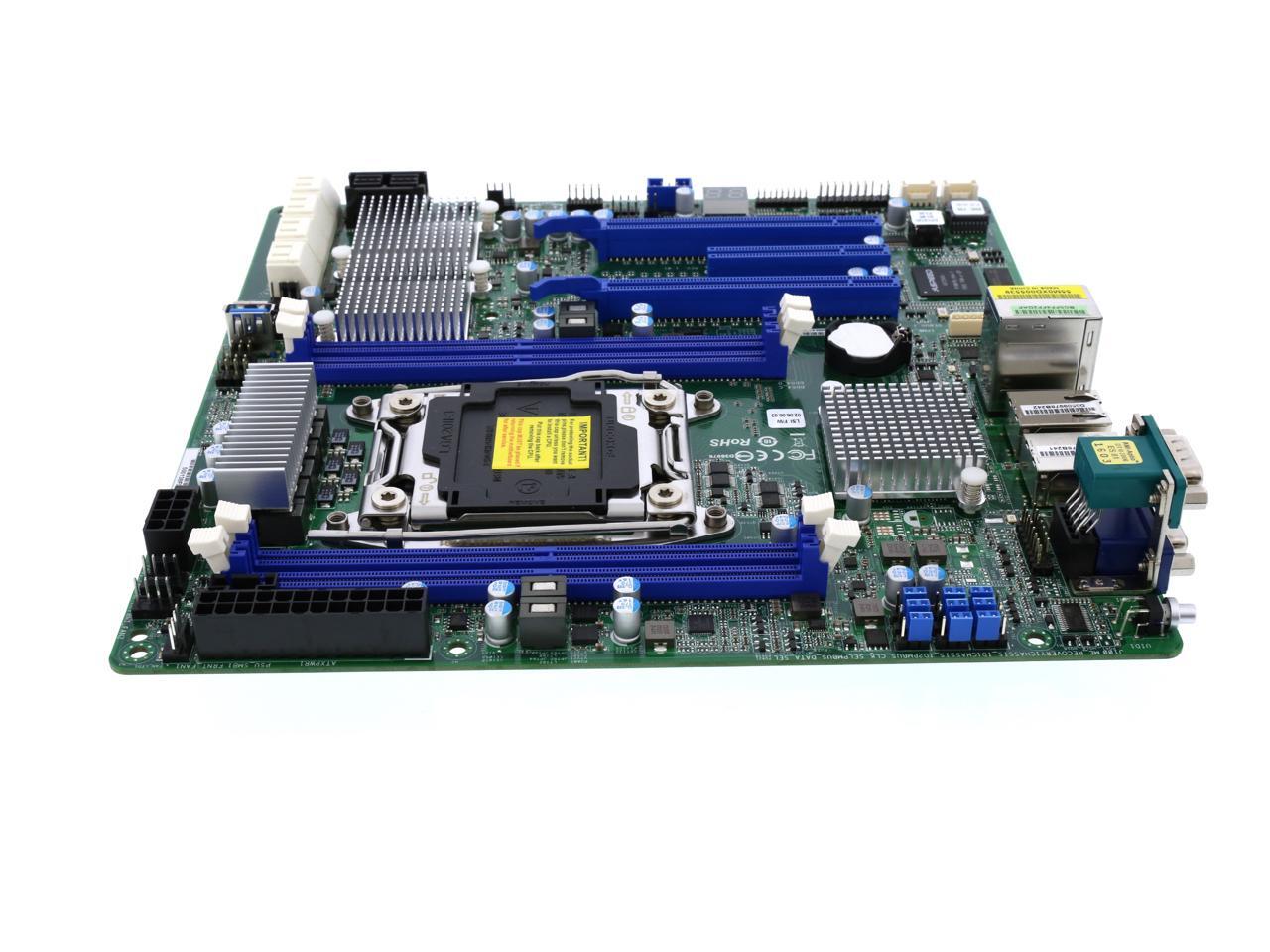

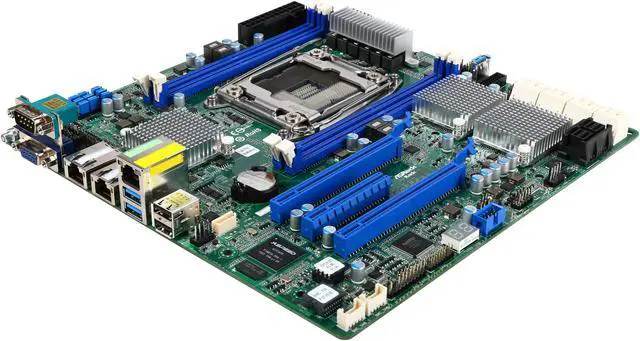

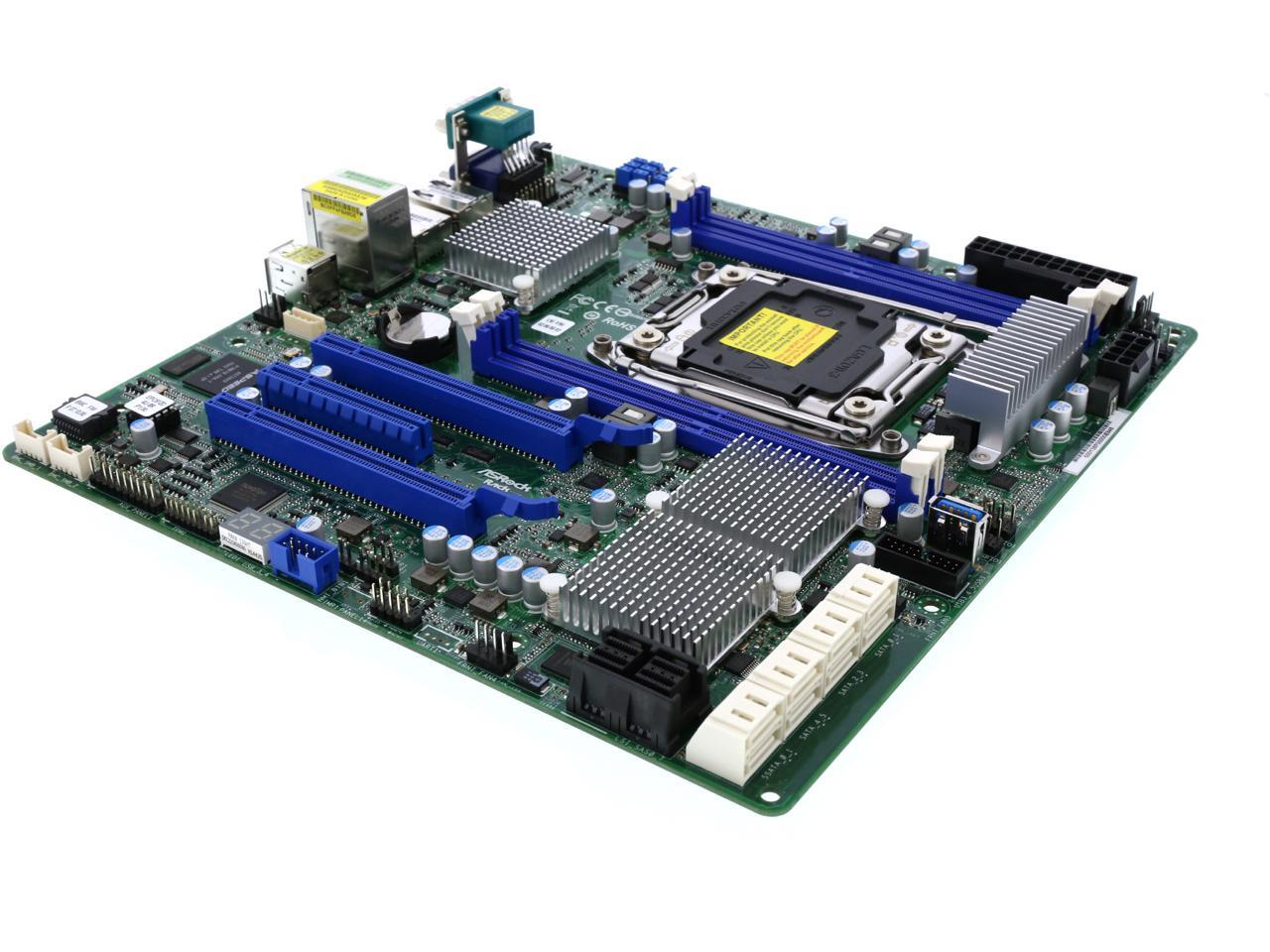

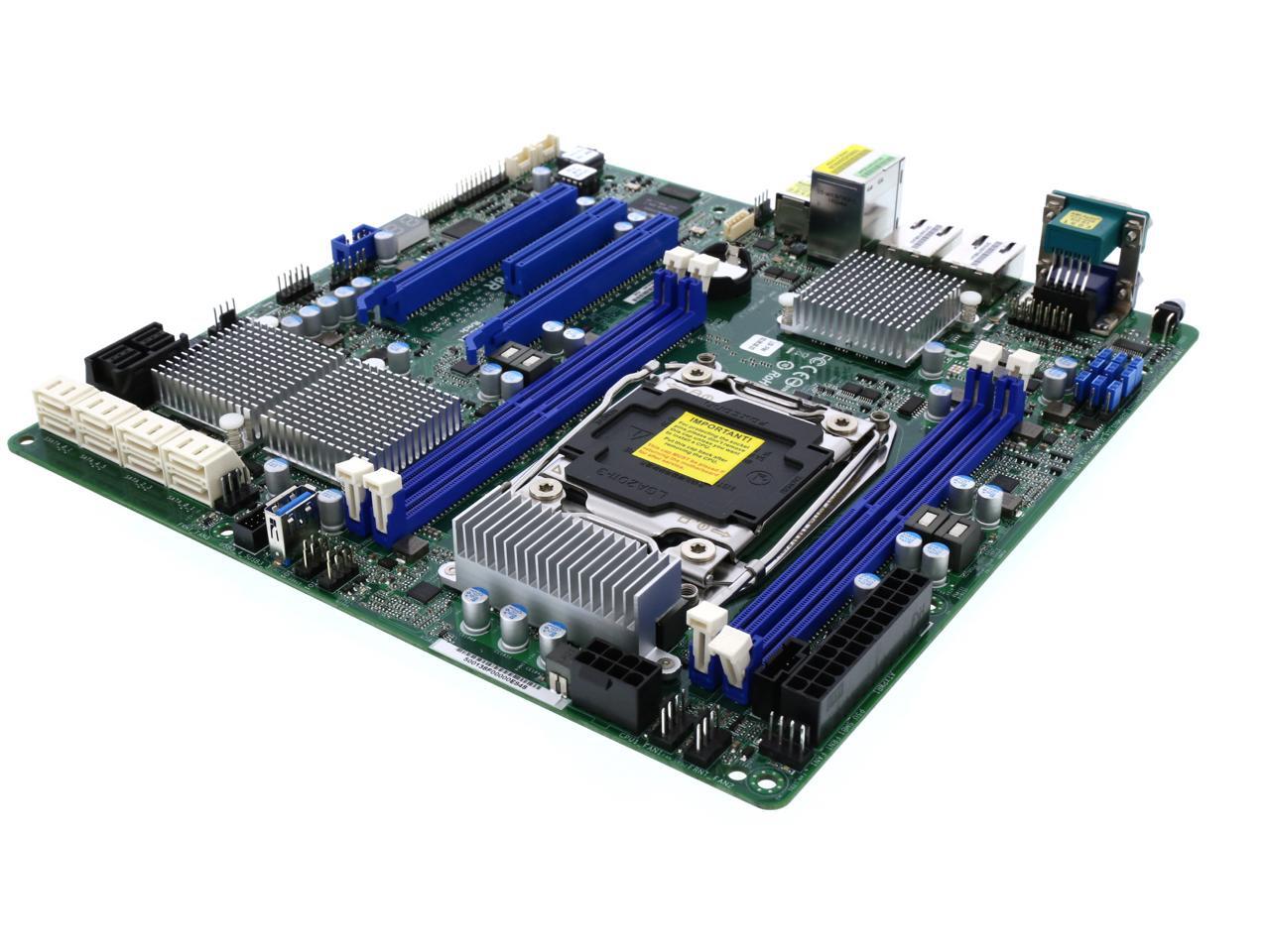

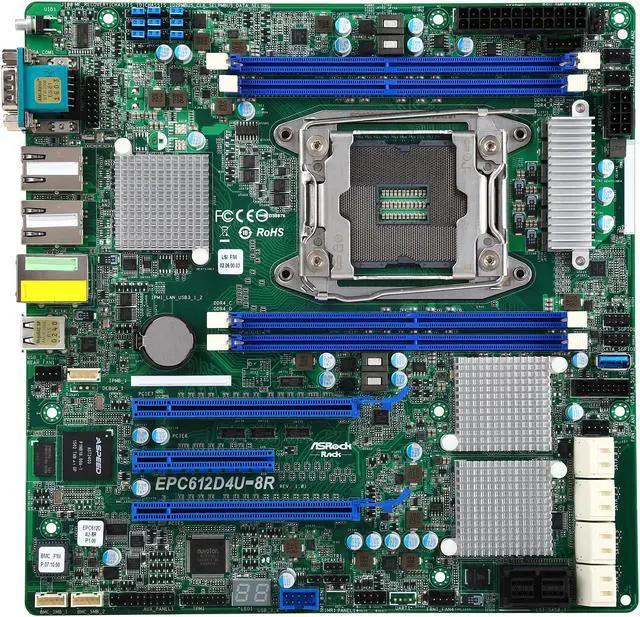

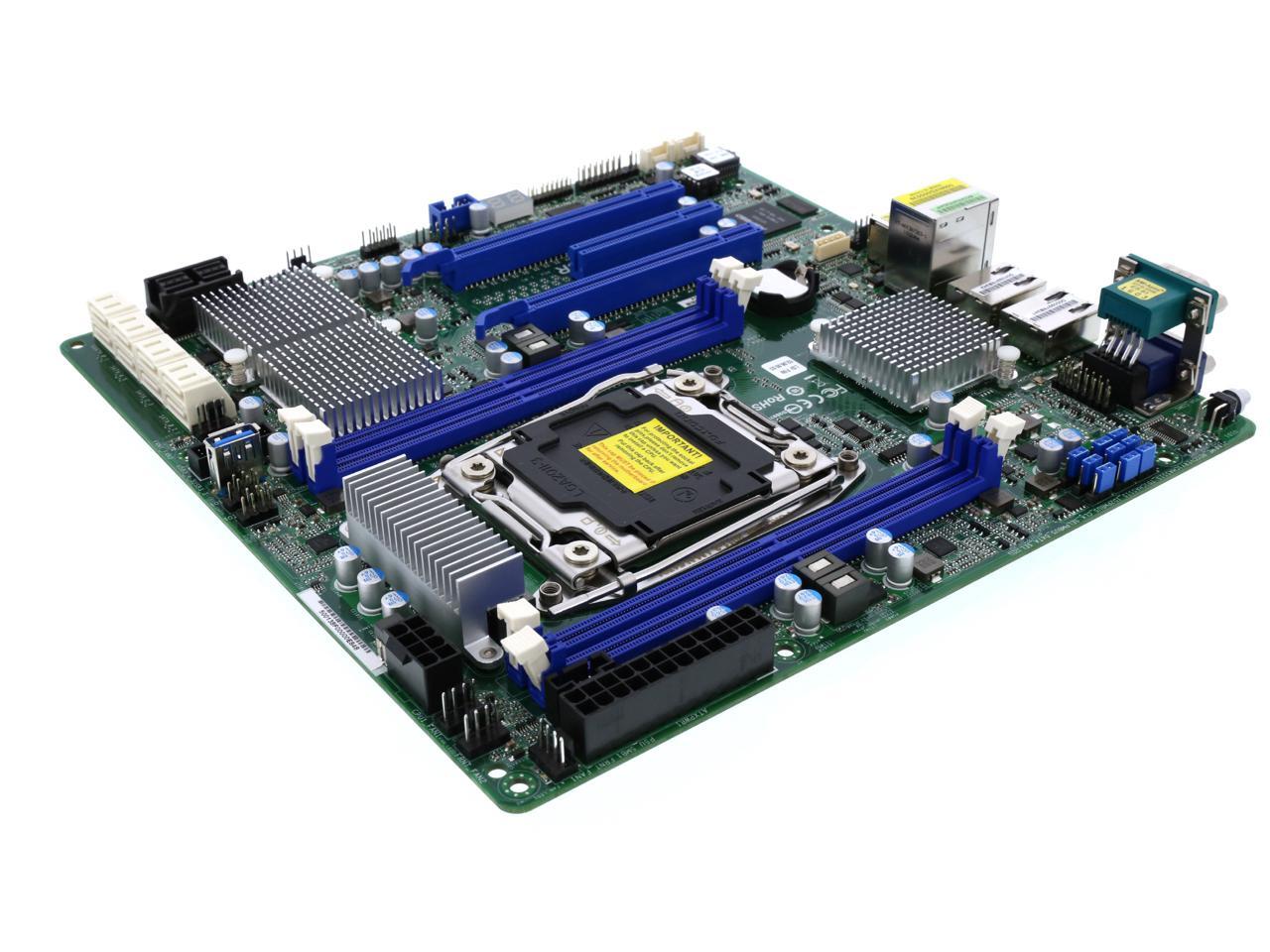

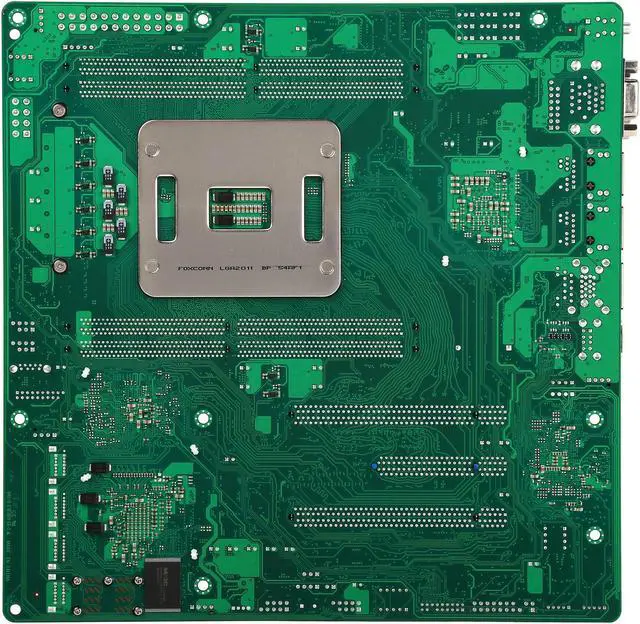

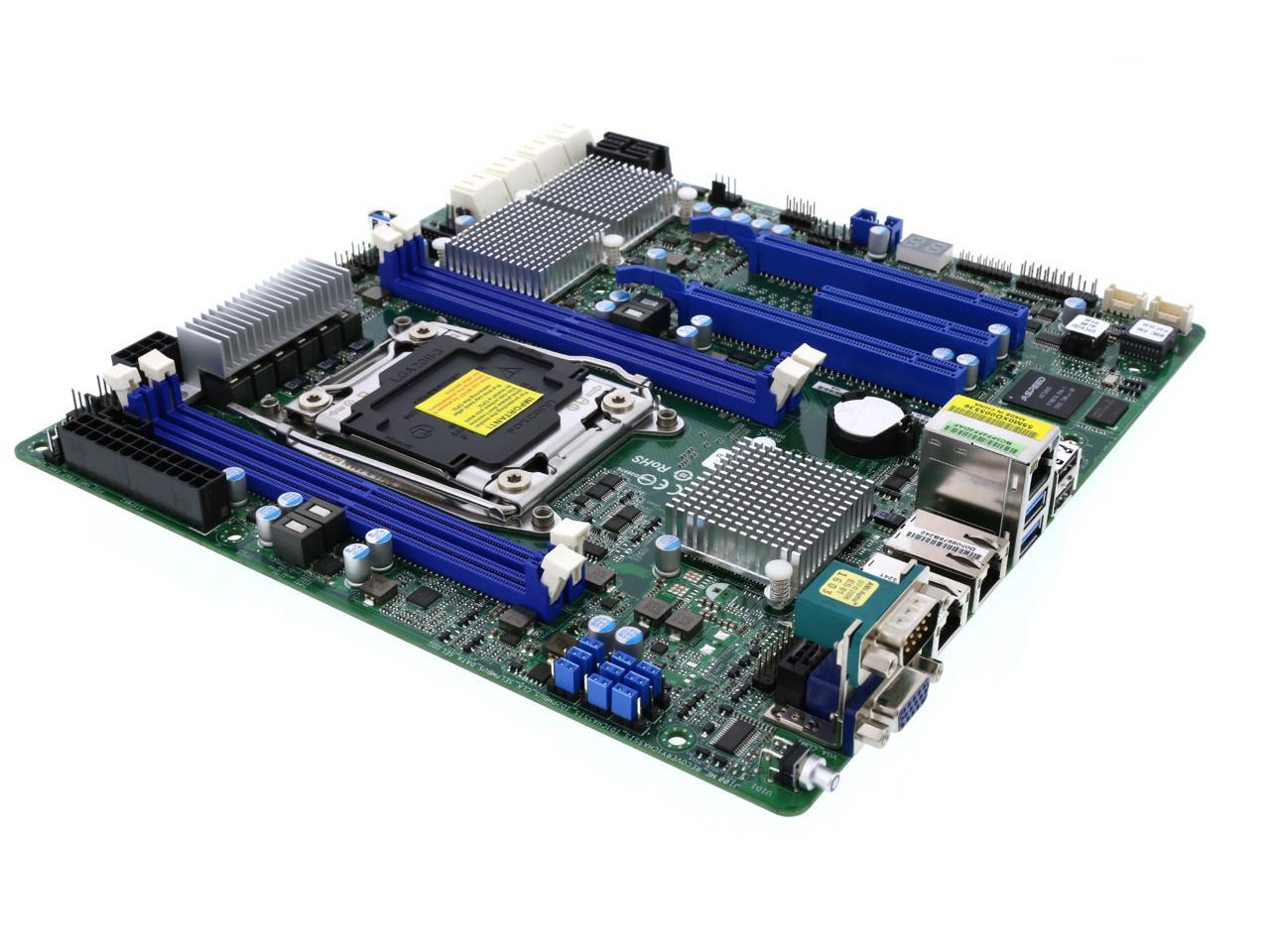

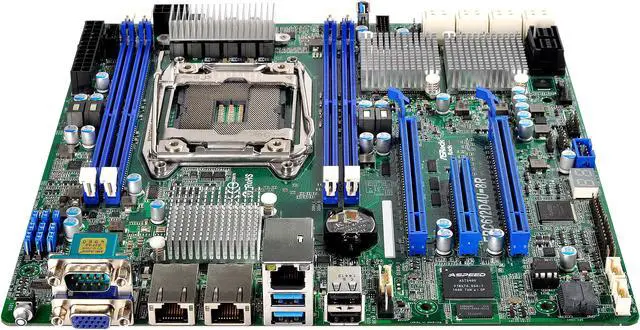

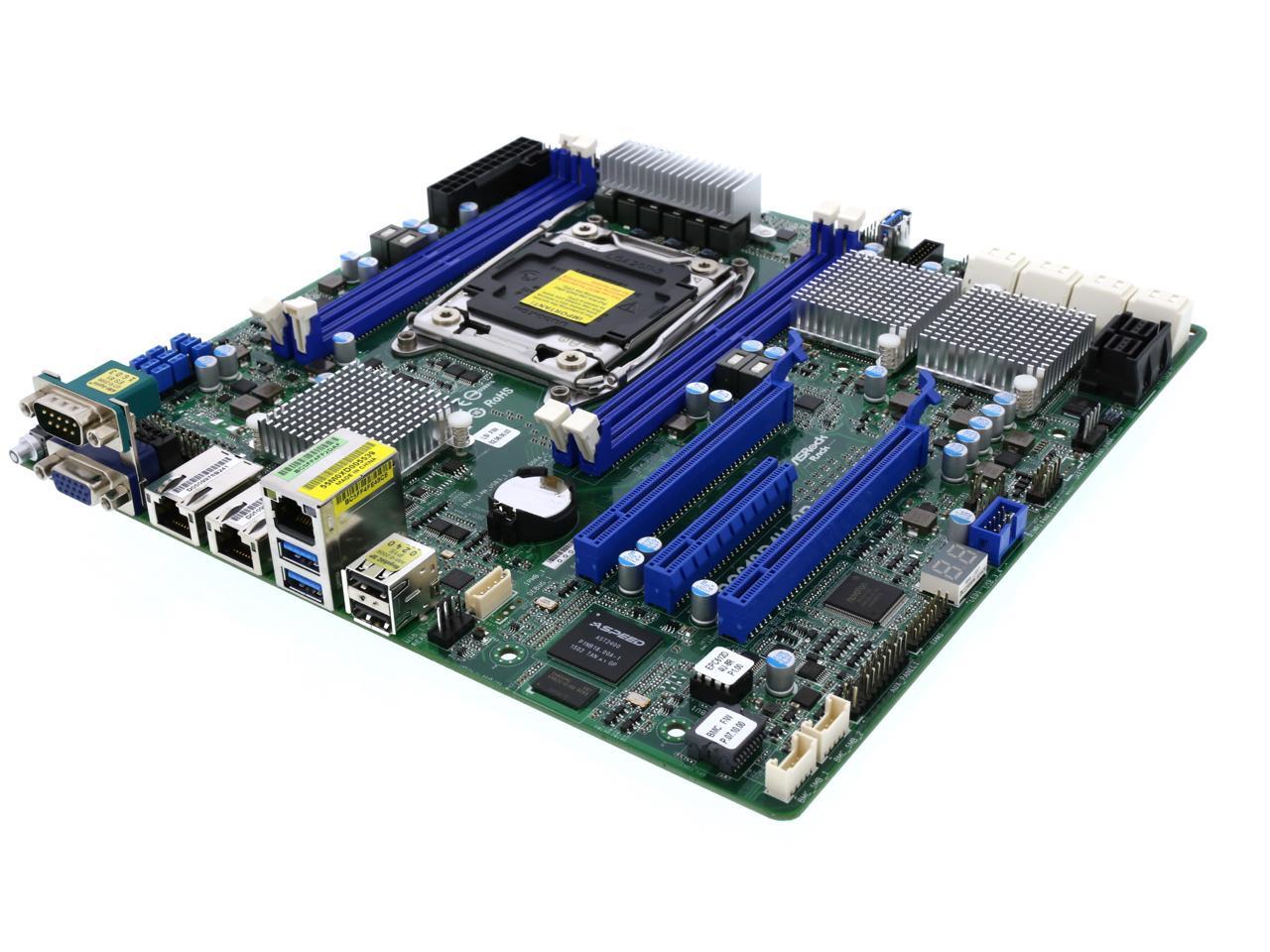

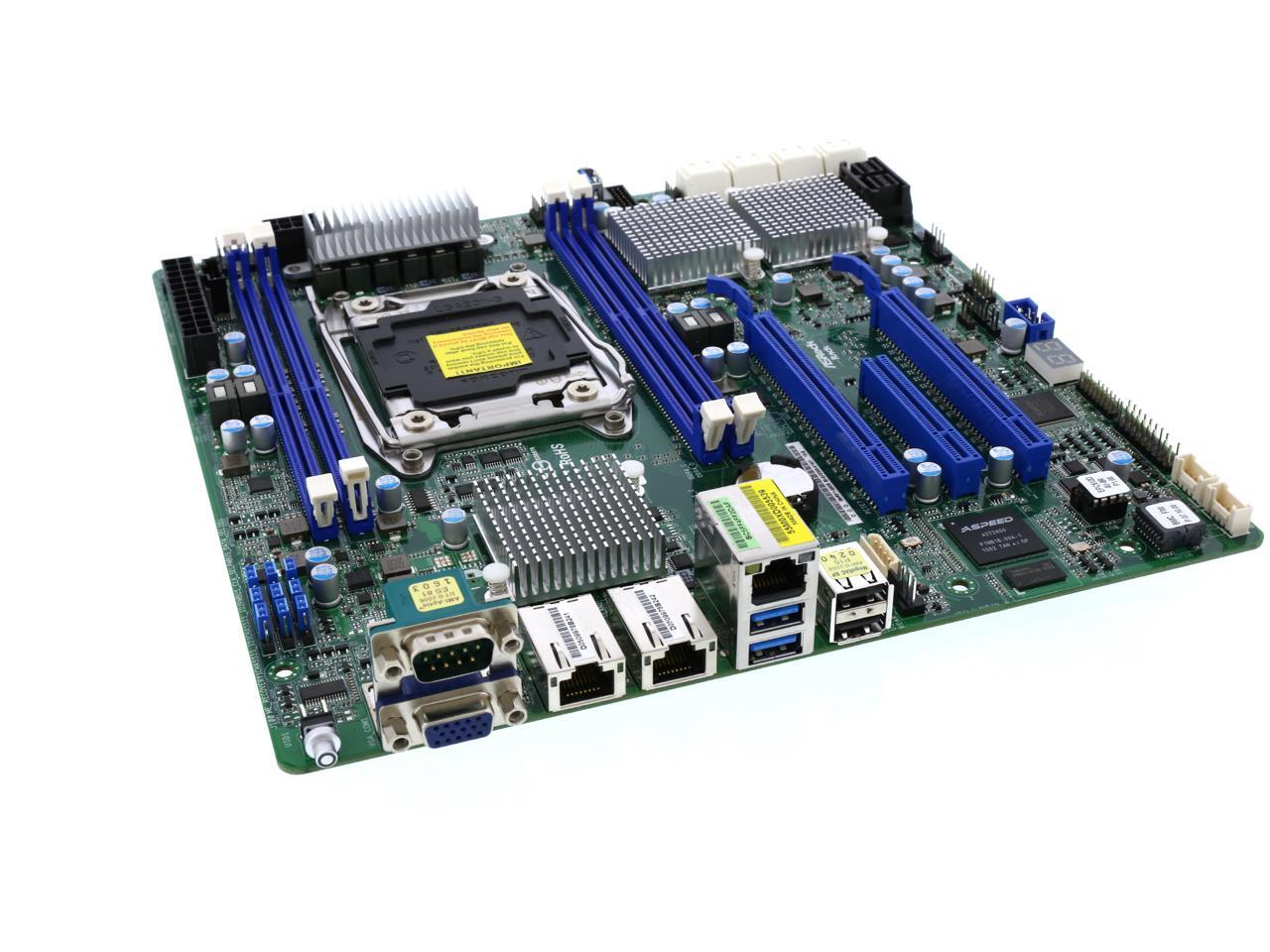

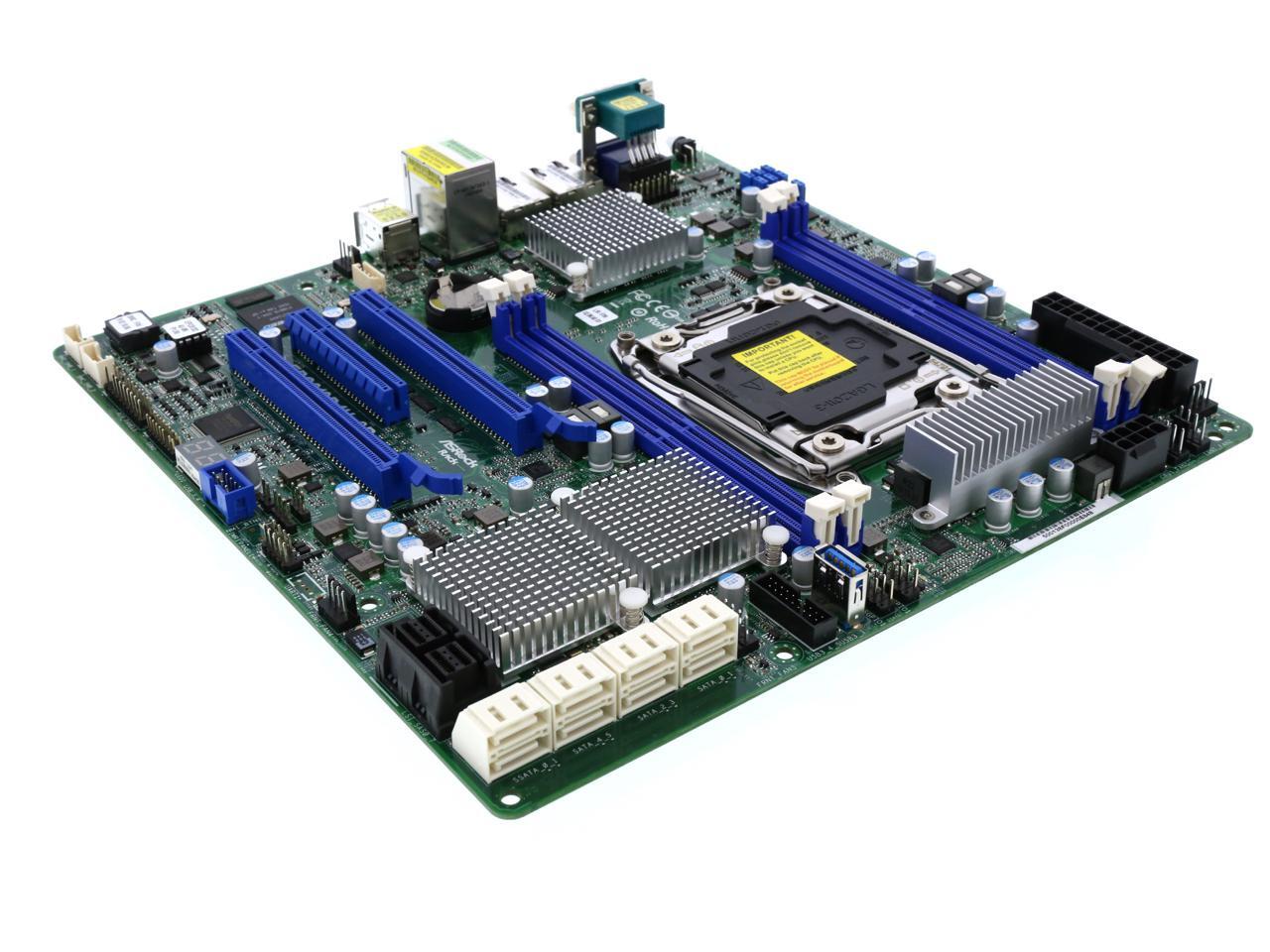

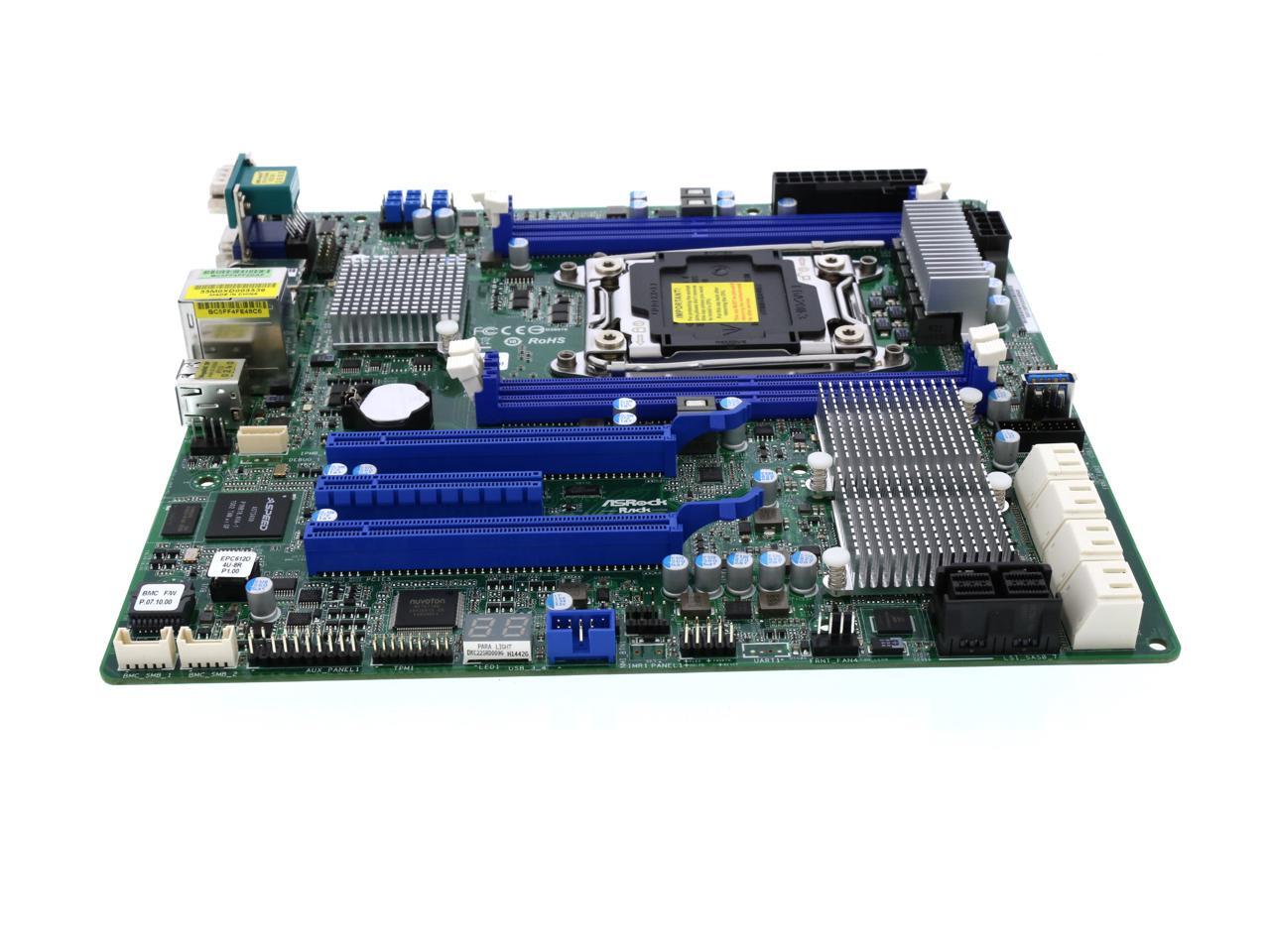

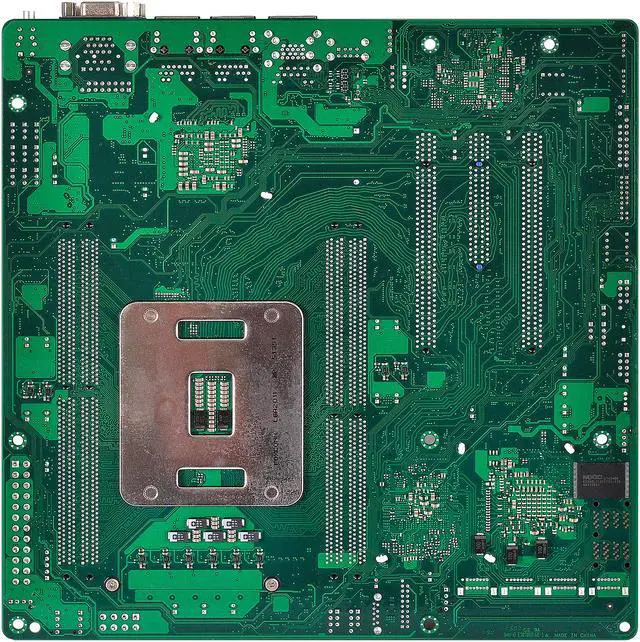

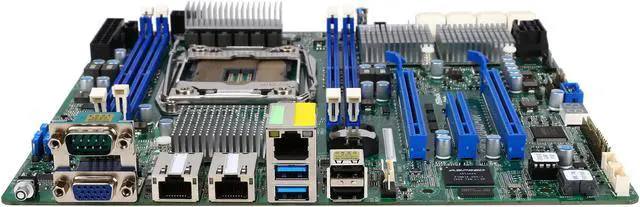

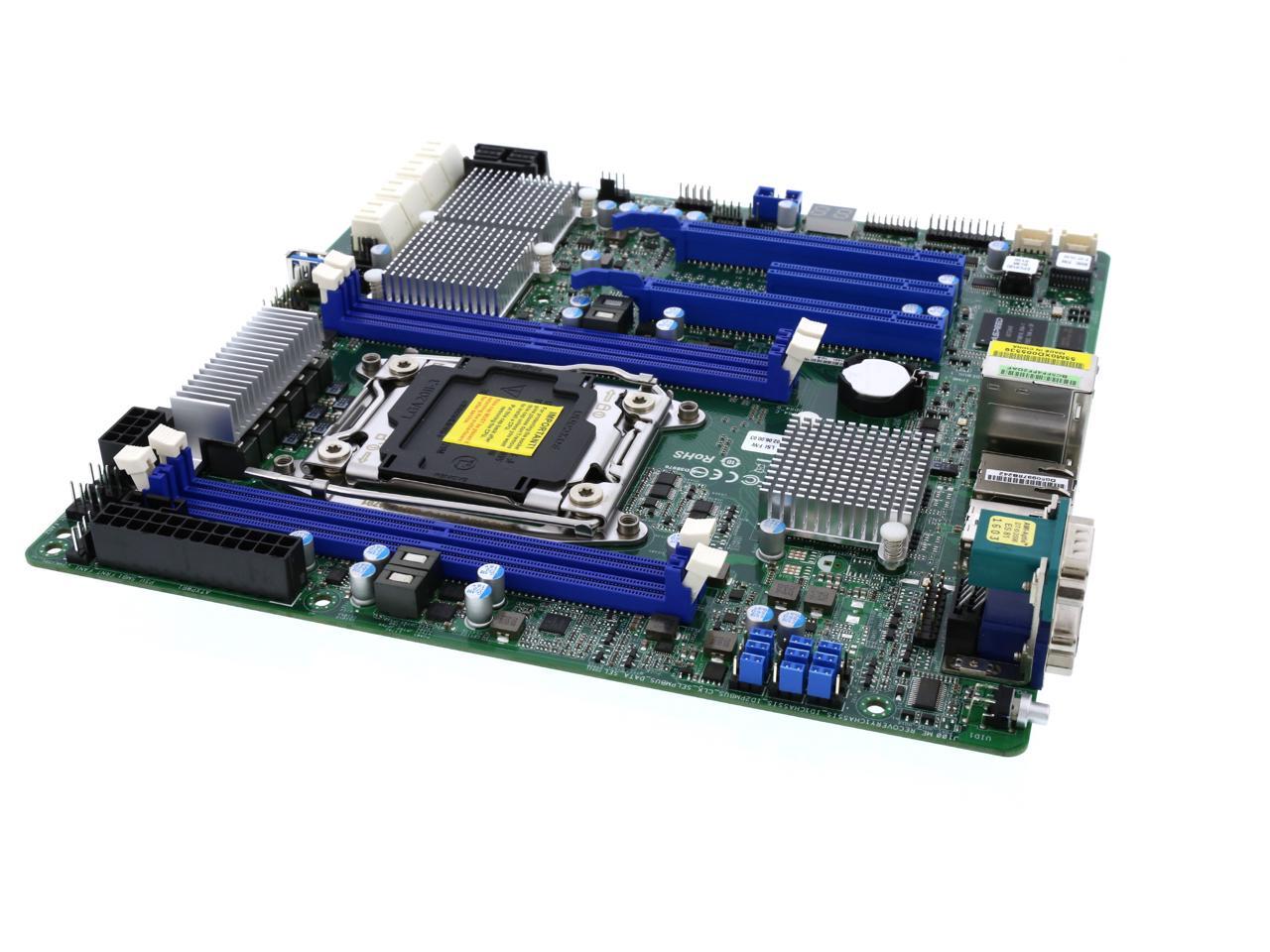

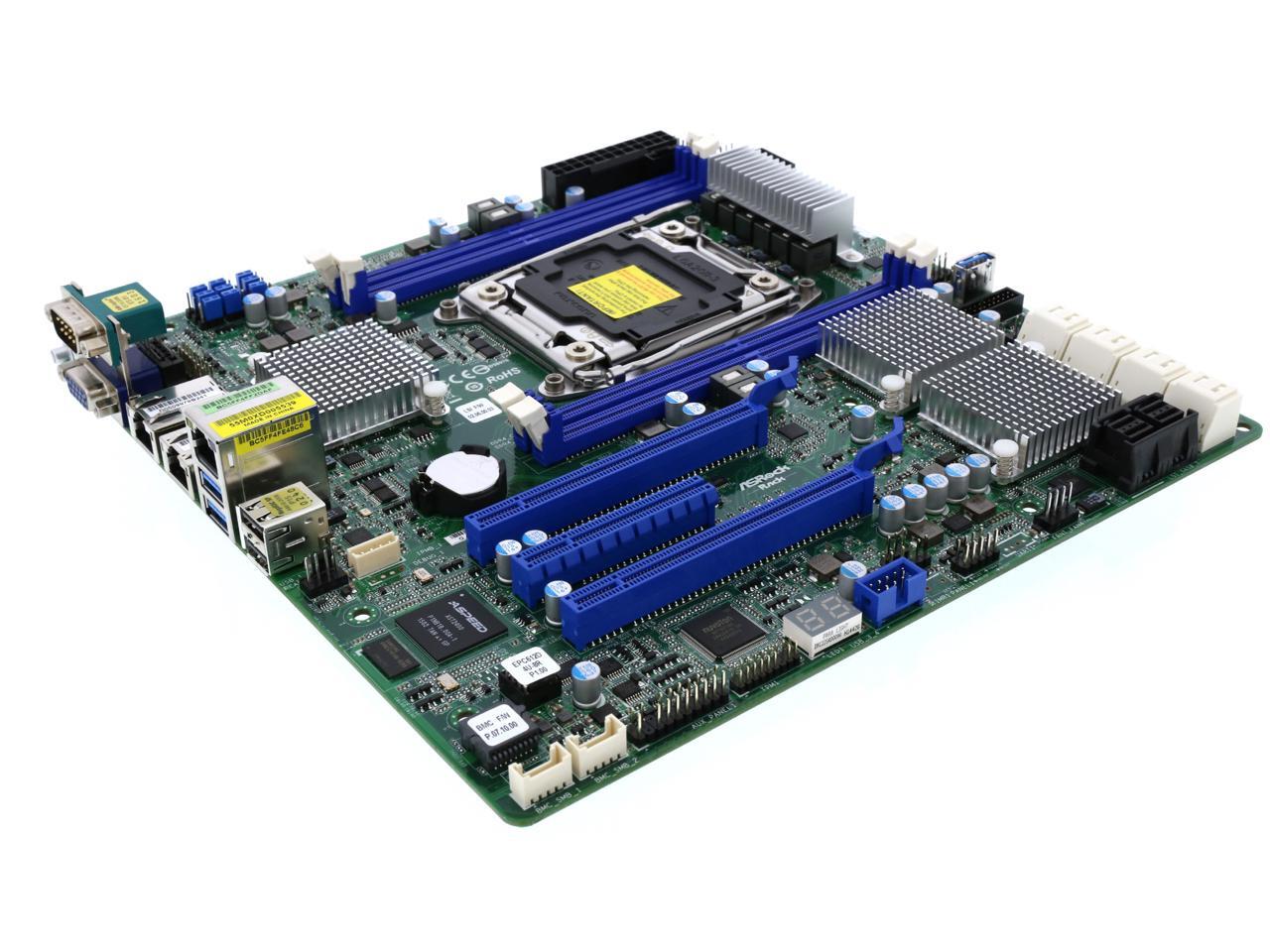

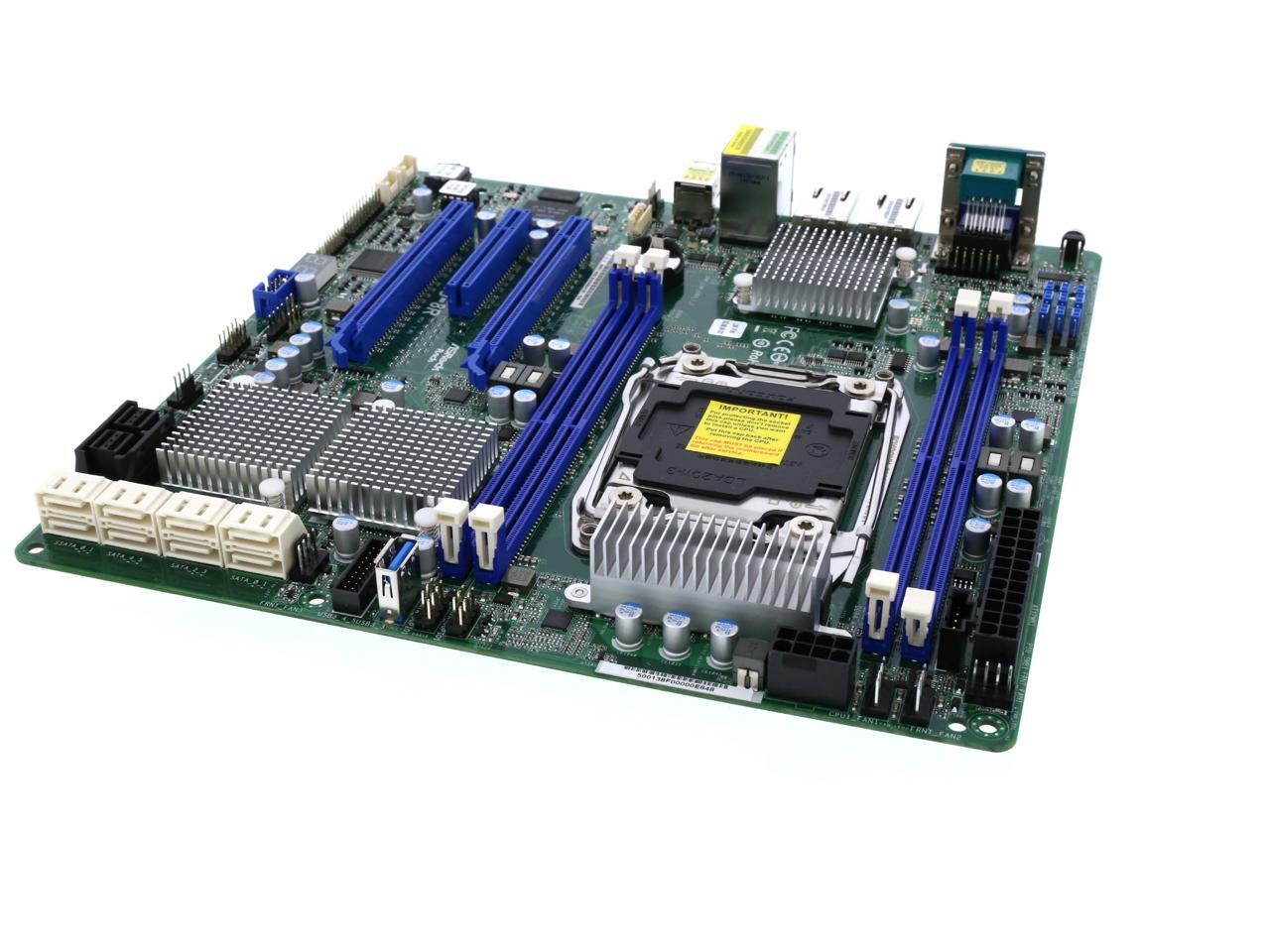

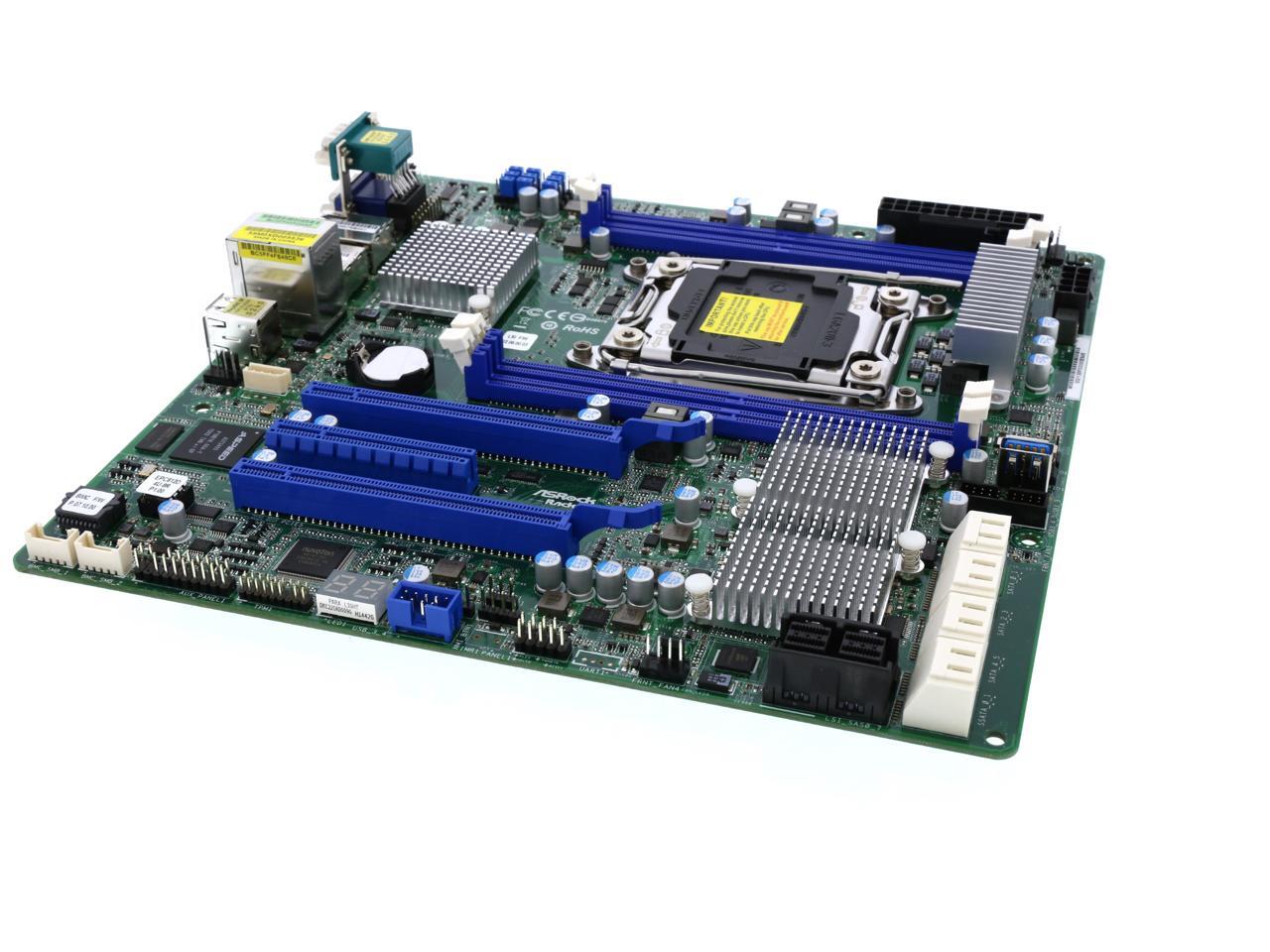

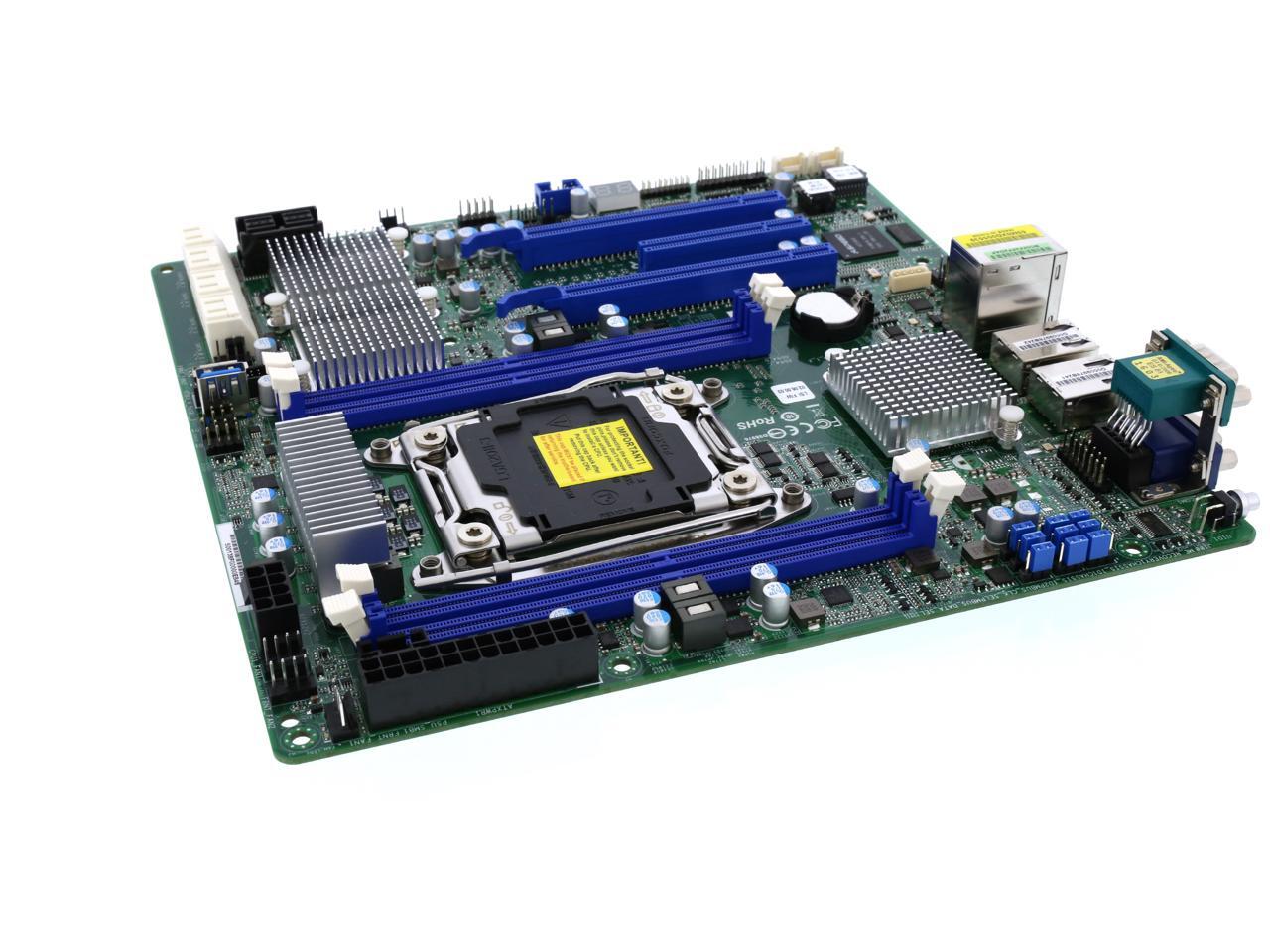

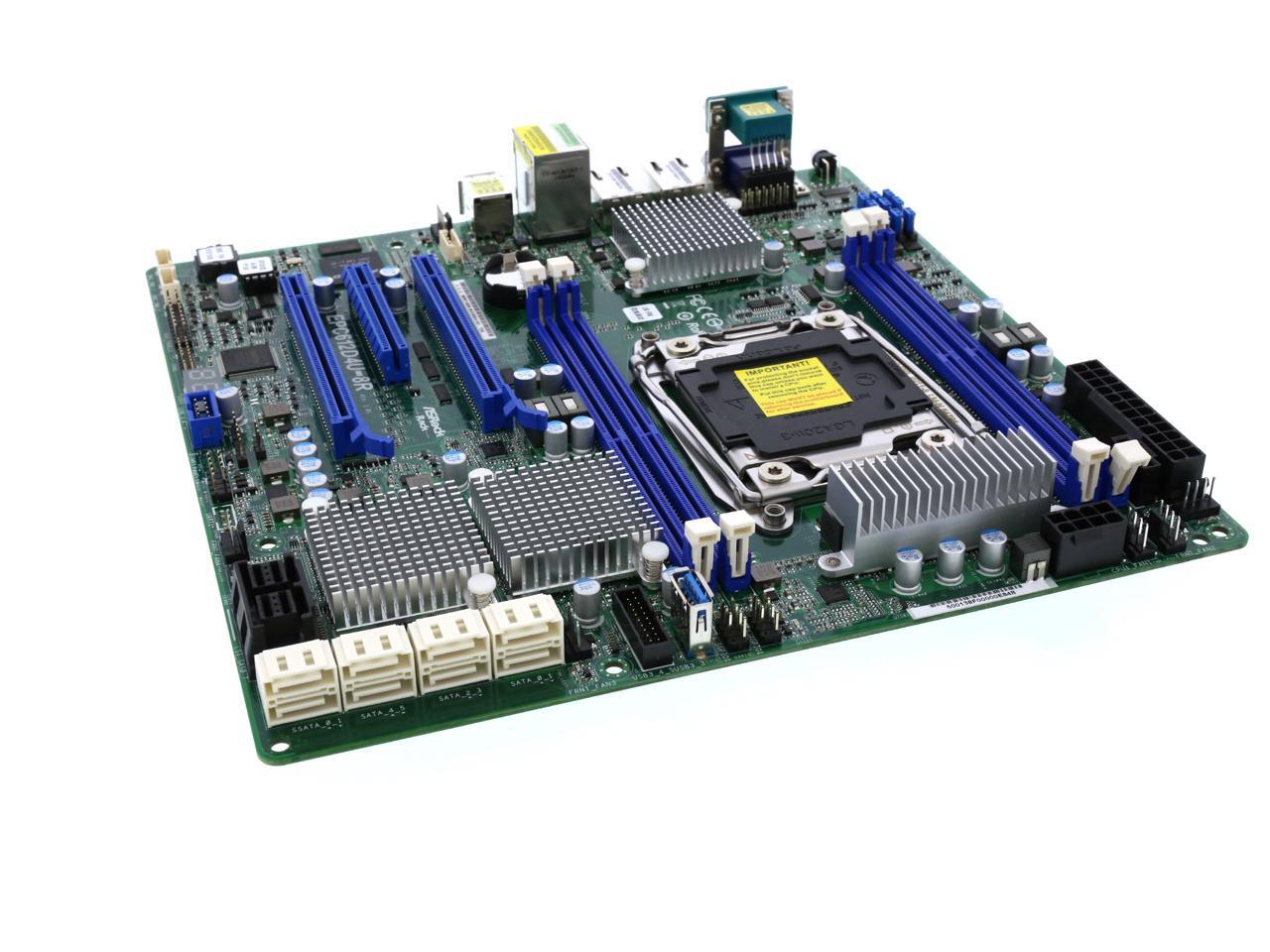

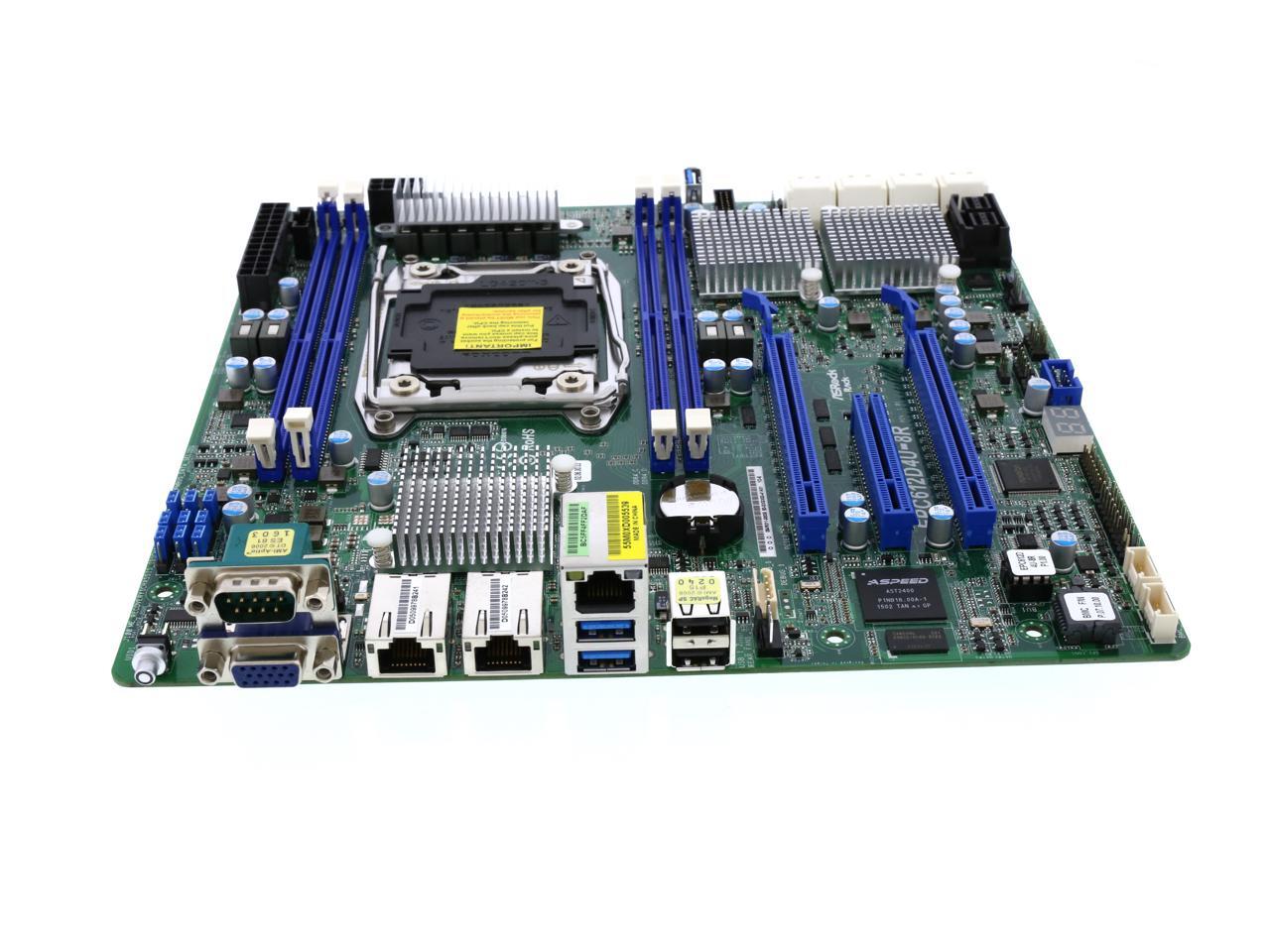

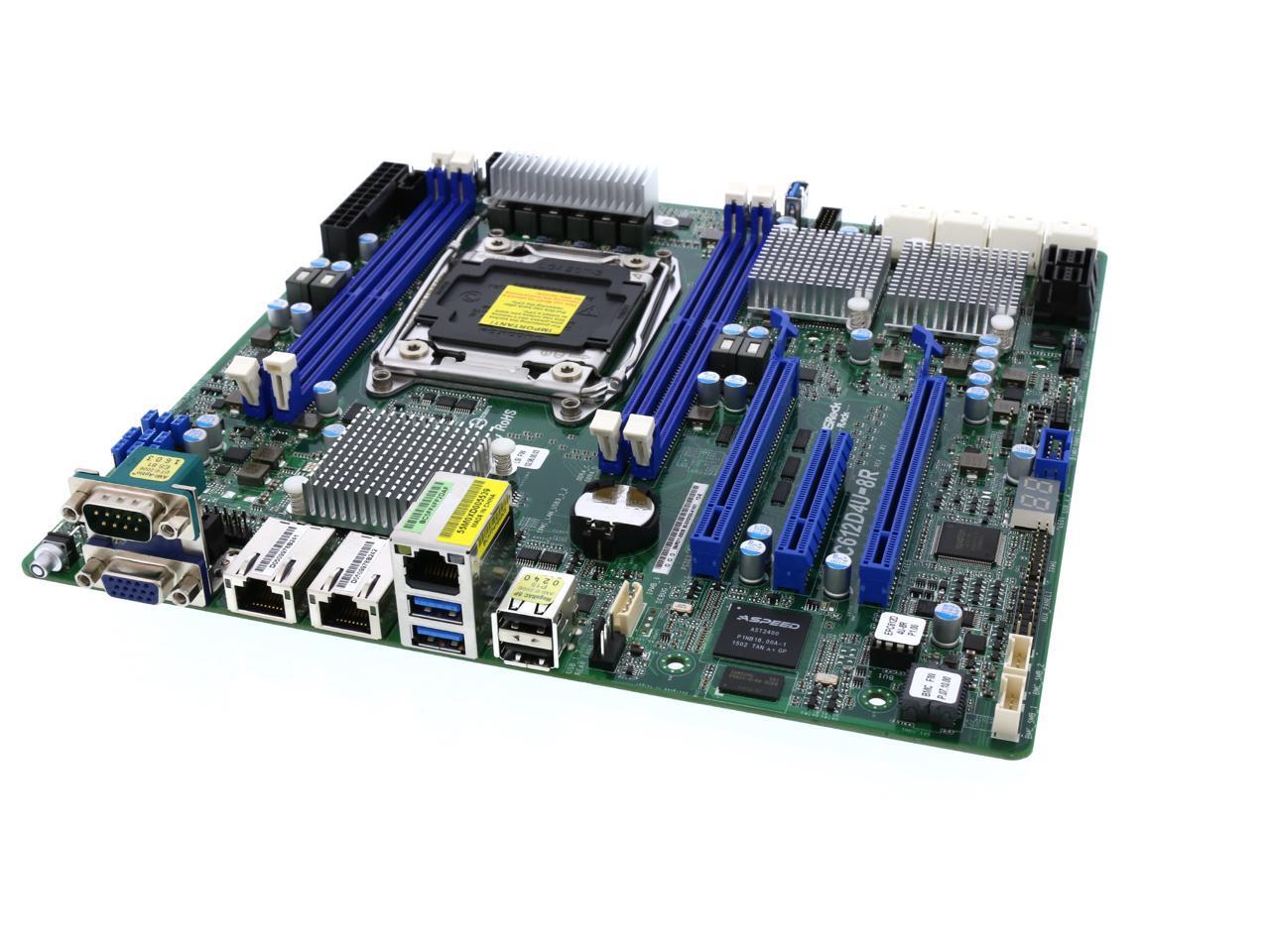

ASRock Rack EPC612D4U-8R uATX Server Motherboard LGA 2011 R3 Intel C612
- UATX 9.6"x9.6"
- Support Single Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3/v4 series
- Support 4 x DIMM slots, Quad channel DDR4 2400/2133/1866 RDIMM AND LR DIMM
- Support 2 x PCIe 3.0 x16 + 1 x PCIe 3.0 x 8
- Support 8 x SATA3 by C612 + 8 x SAS3 by LSI 3008
- Support 2 x GLAN by Intel i350 + 1 x Dedicated IPMI LAN port
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack EPC612D4U-8R
| Brand | AsRock Rack |
|---|---|
| Model | EPC612D4U-8R |
| CPU Socket Type | Socket LGA 2011 R3 |
|---|---|
| CPU Type | Supports Intel Xeon processor E5-1600 / 2600 v3 / v4 series *BIOS version 2.0 or above is required for v4 series. |
| North Bridge | Intel C612 |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | Supports DDR4 2133/1866 RDIMM / LR DIMM / NV DIMM |
| PCI Express 3.0 x16 | 2 slot (PCIE1: x16/x8 switch with PCIE2; PCIE3: x16/x8 (Analog switch with LSI3008)) |
|---|---|
| Other Slots | PCIe 3.0 x 8: 1 slot (PCIE2: x0/x8) |
| SATA | Intel C612: 6 x SATA3 6.0Gb/s, support RAID 0, 1, 5, 10; 2 x sSATA3 6.0Gb/s, support RAID 0, 1 |
|---|
| Onboard Video Chipset | Aspeed AST2400 |
|---|
| LAN Chipset | 2 x RJ45 by Intel i350 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Video Ports | D-Sub |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Features | UATX 9.6''x9.6'' Single Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 series Supports Quad channel DDR4 2133/1866 RDIMM/LR DIMM/NV DIMM, 4 slots Support 8 SATA3 by C612 and by 8 SAS3 LSI 3008 Supports 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x 8 ASPEED 2400. Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E) Supports Intel Dual GLAN by Intel i350 |
|---|
| Form Factor | uATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | June 15, 2015 |
|---|
