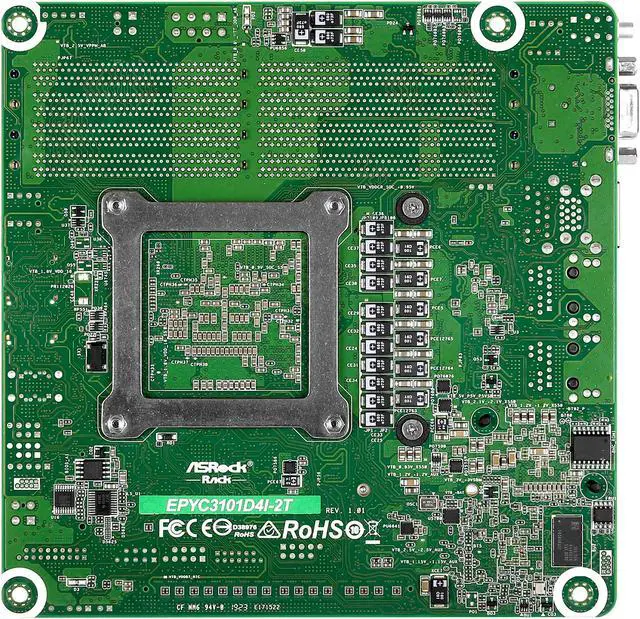

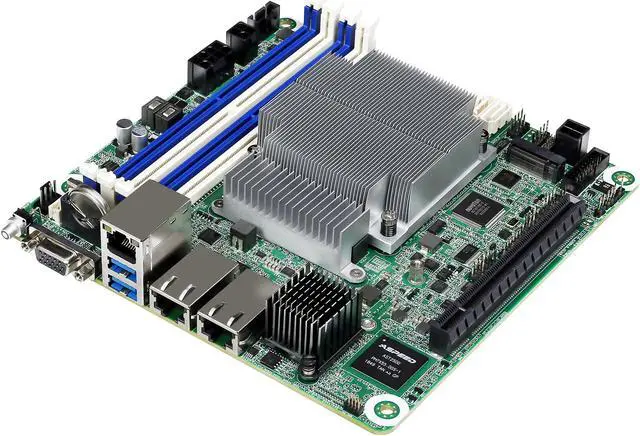

AsRock Rack EPYC3101D4I-2T Mini-ITX Server Motherboard AMD EPYC 3101 SoC 4 cores Dual 10 GLAN
- Mini-ITX 6.7'' x 6.7''
- Support AMD EPYC 3101 Processor, SoC
- Support 4 x DIMM slots, DDR4 ECC/UDIMM, RDIMM up to 2667MT/s; 2DPC
- Support 1 x PCIe 3.0 x 16
- Support up to 1 x OCulinks (PCIe3.0x4 or 4 x SATAIII 6Gb/s) + 2 x SATAIII 6.0 Gb/s
- Support 1 x M.2 (PCIe3.0 x4 and SATA3 shared with SATA_4 port) up to 22110 form factor

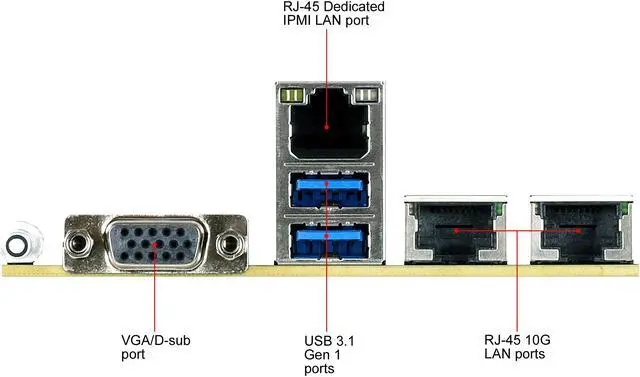

- Support 2 x 10GLAN RJ45 by Intel X550-AT2 + 1 x Dedicated LAN IPMI
- Supports 12V DC or ATX Power Source
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack EPYC3101D4I-2T
| Brand | AsRock Rack |
|---|---|
| Model | EPYC3101D4I-2T |
| CPU Type | Support AMD EPYC 3101 (4 cores, 4 threads) |
|---|
| North Bridge | Soc |
|---|
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | DDR4 2666 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 3.0 x16 | SLOT7: Gen3 x16 link |
|---|
| SATA | AMD Built-in Storage: 6 x SATAIII 6.0 Gb/s (4 x SATA from OCulink, 2 x SATAIII 6.0 Gb/s) |
|---|---|
| SATA RAID | 0/1/10/5 |
| M.2 | 1 (2280/22110, supports SATA3 and PCIe 3.0 x4) |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X550-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |
| Video Ports | 1 x D-Sub |
|---|---|
| RJ45 | 2 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| Other Connectors | COM Header: 1 M.2: 1 x M-Key (PCIe3.0 x4 or SATAIII 6.0 Gb/s); Supports 22110/2280 form factor Auxiliary Panel Header: 1 (include chassis intrusion, 2 front LAN LED, System LED) TPM Header: 1 x (14-pin) IPMB Header: 1 Fan Header: 1 x CPU Fan, 2 x System Fans (1 front, 1 rear) (build in CPU active fansink) ATX Power: 1 x (4-pin) + 1 x (8-pin) support 12V DC-IN USB 3.1 (Gen1) Header: 1 (supports 2 USB 3.1 Gen1 ports) PSU SMB Header: 1 Front Panel: 1 SATA Power Connector: 1 (for DC-IN mode) *Caution: Misconnection may permanently damage the motherboard. SGPIO Header: 1 Clear CMOS: 1 (short pad) |
|---|
| Features | Supports AMD EPYC 3101 Processor Supports 4x DDR4 ECC/UDIMM, RDIMM up to 2667MT/s; 2DPC Supports up to 1 x OCulinks (PCIe3.0x4 or 4x SATAIII 6Gb/s) 1 x PCIe x 16 slot Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E) Supports 12V DC or ATX Power Source |
|---|
| Form Factor | Mini ITX |
|---|---|

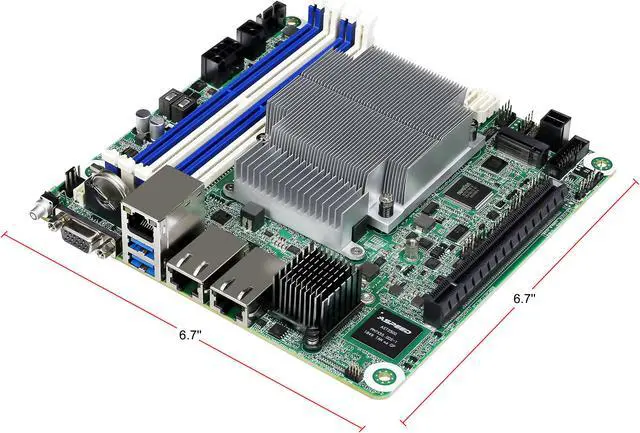

| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | August 26, 2020 |
|---|
