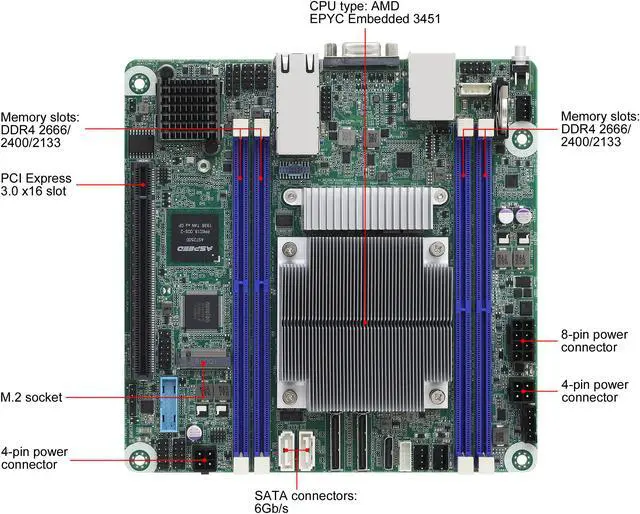

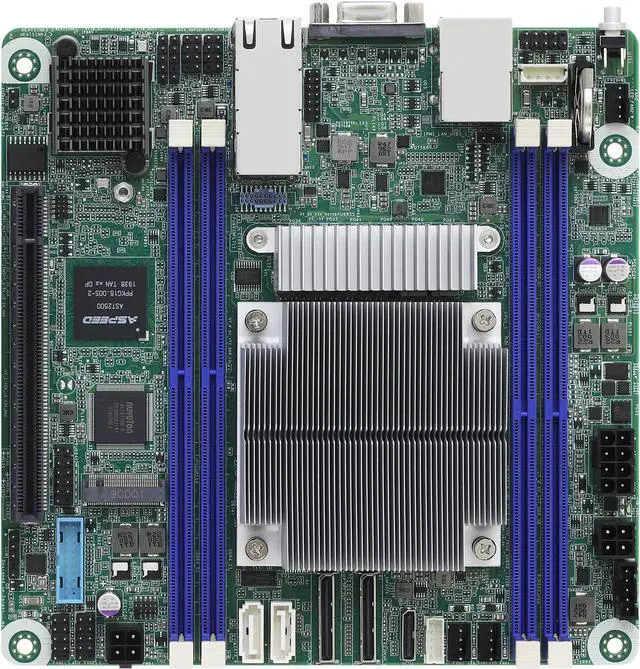

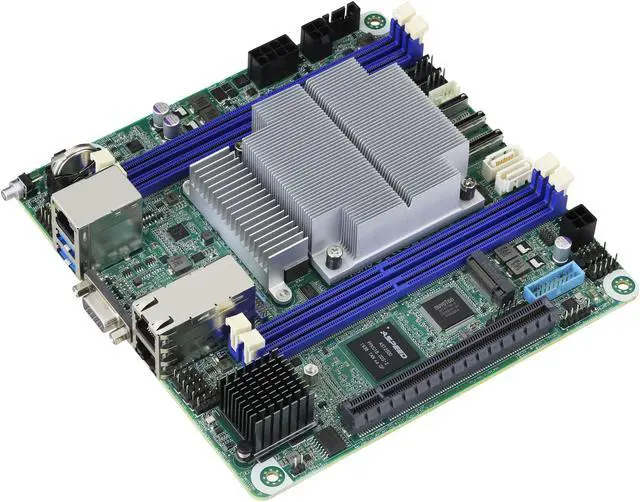

AsRock Rack EPYC3451D4I2-2T Mini-ITX Server Motherboard SP4 AMD EPYC Embedded 3451
- Mini-ITX 6.7" x 6.7"
- Support AMD EPYC Embedded 3451
- Support 4 x DIMM slot, DDR4 ECC/ UDIMMs, RDIMMs, LRDIMMs (1DPC)
- Support 1 x PCIe3.0 x16 + 1 x M.2 (PCIe3.0x4 or SATA 6Gb/s)
- Support 14 x SATA 6Gb/s (8 x from OCulink 8i + 4 x from OCulink 4i + 2 x from SATA 7-pin)
- Suuport 2 x RJ45 10GbE by Intel X710-AT2 + 1 x Dedicated IPMI
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock Rack EPYC3451D4I2-2T
| Brand | AsRock Rack |
|---|---|
| Model | EPYC3451D4I2-2T |
| CPU Socket Type | Socket SP4 |
|---|---|
| CPU Type | AMD EPYC Embedded 3451 |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | ECC/UDIMM: 2666/2400/2133 MHz RDIMM: 2666/2400/2133 MHz *the max speed may vary based on SoC SKU |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | SLOT7: PCIe3.0x16 |
|---|
| SATA | 14 SATA 6Gb/s (8 from OCulink 8i, 4 from OCulink 4i, 2 from SATA 7-pin*, 1 from M.2*) * One of SATA 7-pin will be disabled when installing M.2 SATA device |
|---|---|
| M.2 | 1 M.2 (PCIe3.0x4 or SATA 6Gb/s) |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Max LAN Speed | 10Gbps |

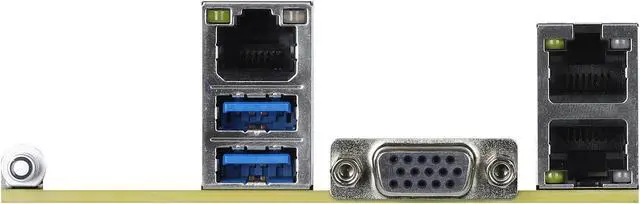

| Video Ports | 1 x D-Sub |
|---|---|
| RJ45 | 2 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen1 Port Type-A (5Gbps) |
| Form Factor | Mini ITX |
|---|---|

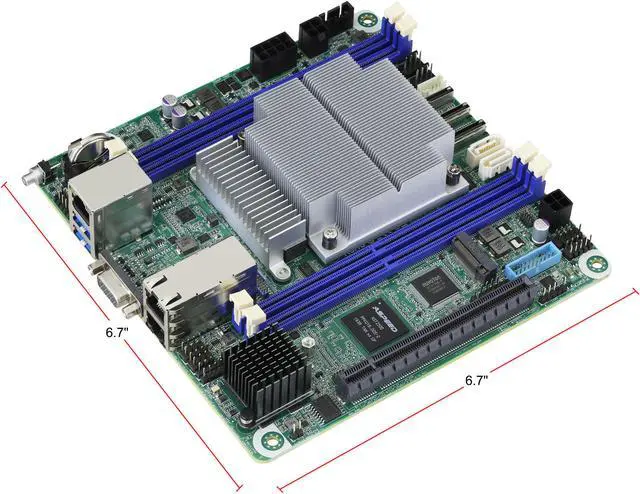

| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | July 16, 2020 |
|---|
