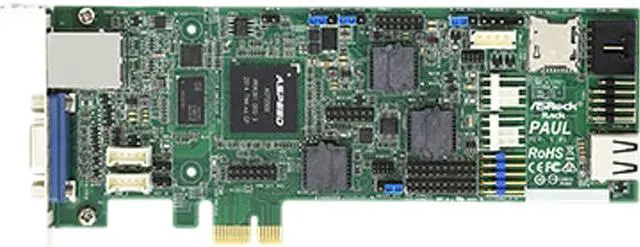

Asrock Rack Server Riser Card/Accessories PAUL Low-profile PCIe IPMI Card
- Low-profile PCIe IPMI card. add-in-card
- ASPEED AST2500
- PCI Express2.0 x1

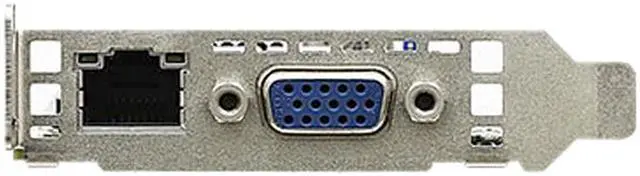

- 1 x RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps) +1 x DB-15 (VGA)
- Power consumption: 7.54W
+
+
Learn more about the ASRock Rack PAUL
| Brand | ASRock Rack |
|---|---|
| Model | PAUL |
| Type | Interface Module |
|---|---|
| Specifications | Controller: ASPEED AST2500 Feature: Base Board Management Controller (IPMI2.0 with iKVM support) VGA (1920x1200@60Hz 32bpp) Memory: 2 SPI flash ROM 32MB 1 DDR4 SDRAM 4Gb Physical Status Form Factor: Low profile PCIe add-in-card Dimensions: 168.45 x 68.9 mm I/O Upstream interface: PCI Express2.0 x1 External: 1 RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps), 1 DB-15 (VGA) Internal connectors: 2 SMBus header 1 x PMBus header 1 x IPMB header 1 x BMC reset 1 x BMC debug header 1 x V BIOS or system BIOS ROM 2 x BMC ROM 1 x Dual ROM select header 1 x TPM (13-pin, LPC) 1 x LPC header (13-pin) 2 x Fan header 1 x USB2.0 (5-pin): KVM and standby power 1 x header (18-pin): GPIO, NCSI 1 x header (18-pin): case open, system fail, GPIO, SMBus, PECI, voltage monitoring 1 x COM port (9-pin) 1 x micro-SD connector 1 x USB Type-A (USB 2.0) Power Power consumption: 7.54W Input: 1 USB2.0 header (5-pin, 5VSB) Goldfinger (+12V) Environment Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| First Listed on Newegg | May 07, 2021 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 909-590-8308
- Support Website
- View other products from ASRock Rack
LOADING...
The ASRock Rack PAUL is a low-profile PCIe 2.0 x1 IPMI add-in card with an ASPEED AST2500 controller and iKVM support, suited to server builders who need dedicated out-of-band management and remote KVM access.
Recommended For
- Homelab builders adding remote BIOS and console access to a server or workstation without built-in IPMI; the PAUL provides networked iKVM, with power-control features dependent on connecting the required motherboard headers.
- Operators of small or home servers that need to manage a machine remotely for console access, power control, sensor checks, or IPMI event logs instead of relying on a monitor and keyboard at the server.
- Experienced hardware tinkerers who want to add BMC functionality to an existing PC and are comfortable checking motherboard support, wiring headers, and potentially experimenting with alternative firmware.
- Builders of compact server systems who need a low-profile add-in card for remote management and can spare a PCIe slot and a dedicated network connection for the BMC.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server management and remote KVM access through IPMI 2.0, with dedicated management networking and VGA output |
| BMC Controller And Memory | ASPEED AST2500 controller, two 32 MB SPI flash ROMs, and 4 Gb DDR4 SDRAM |
| VGA Output | DB-15 VGA output supports 1920 × 1200 at 60 Hz and 32 bpp |
| Host And External Connectivity | PCI Express 2.0 x1 interface; dedicated 10/100/1000 Mbps IPMI LAN via RJ45 and Realtek RTL8211E |
| Internal Headers And Connectors | Includes 2 SMBus headers; PMBus, IPMB, BMC reset, BMC debug, BIOS ROM, 2 BMC ROM, and dual-ROM select connections; 13-pin TPM and LPC headers; 2 fan headers; 5-pin USB 2.0 KVM/standby-power header; 18-pin GPIO/NCSI and 18-pin case-open/system-fail/GPIO/SMBus/PECI/voltage-monitoring headers; 9-pin COM port; micro-SD connector; and USB Type-A 2.0 |
| Form Factor And Dimensions | Low-profile PCIe add-in card measuring 168.45 × 68.9 mm |
| Power | 7.54 W consumption; input through a 5 VSB USB 2.0 header and +12 V goldfinger |
| Operating Environment | Operating temperature: 10°C to 35°C; non-operating temperature: −40°C to 70°C |
| Model Identifiers | ASRock Rack PAUL interface module |
