What types of CPUs are compatible with the AsRock Rack ROME2D16-2T motherboard?

This motherboard supports AMD EPYC 7002 series processors and AMD EPYC 7003 series processors (with a BIOS update required for the 7003 series).

What is the maximum memory capacity supported by this motherboard?

The maximum memory supported by this motherboard is up to 256GB per DIMM using RDIMM/LRDIMM-3DS, and up to 128GB per DIMM using LRDIMM.

double click image to zoom in

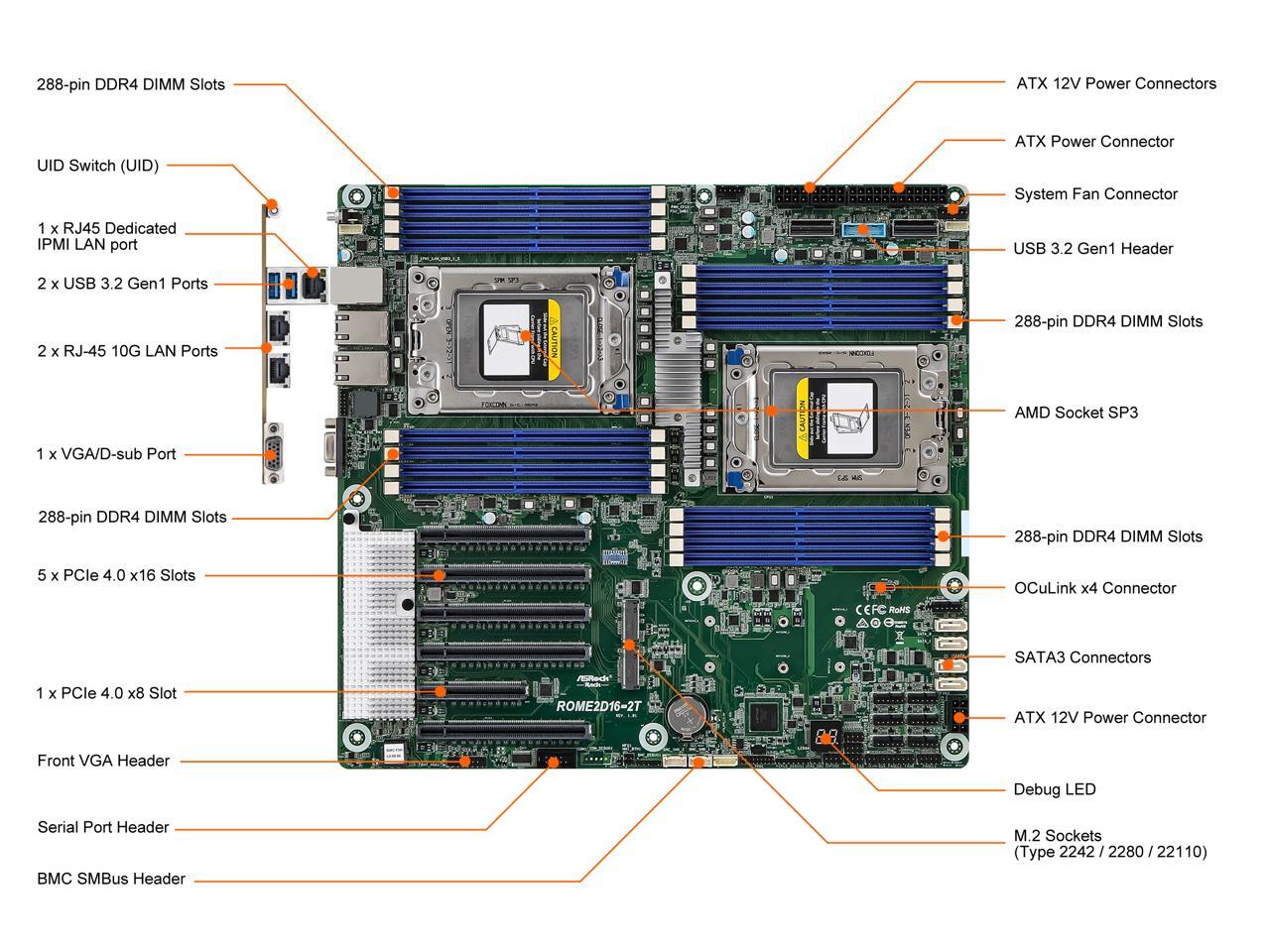

AsRock Rack ROME2D16-2T EEB Server Motherboard Dual Socket AMD SP3 (LGA4094) EPYC 7002 series Dual 10G

EEB 12" x 13"
Support 1+1 SP3 AMD EPYC 7002 Series Processors
Support 16 x DIMM slots, DDR4 288-pin RDIMM, LRDIMM
Support 5 x PCIe4.0 x16 + 1 x PCIe4.0 x8
Support 1 x M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [CPU0] + 1 x M-key (PCIe4.0 x4), supports 22110/2280/2242 form factor [CPU0]
Support 4 x SATA 6Gb/s + 2 x SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) [CPU0, CPU1] + 2 x Oculink (PCIe4.0 x4 or 4 SATA 6Gb/s) [CPU0,CPU1]

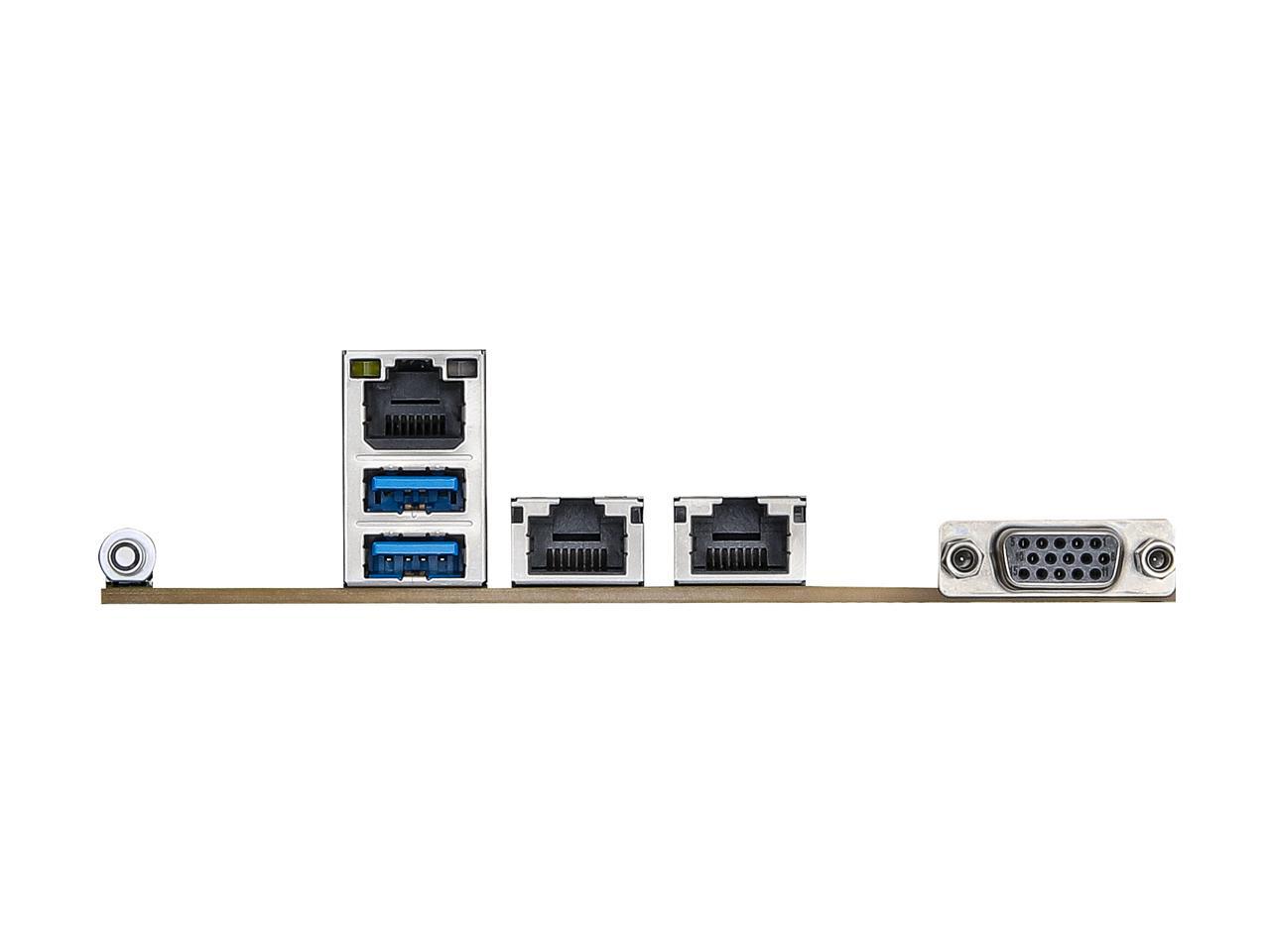

Support 2 x RJ45 10GbE by Intel X550-AT2 + 1 x Dedicated IPMI
High-end workstation/Industrial application/Mainstream server for SMB/Security appliances
